Год начала выпуска: 1982
Регион: Америка
Specifications
Max. music power 23W (total music power)
Continuous power output 3W+3W/FTC (3.2Ω 80-15,000Hz 10% THD)

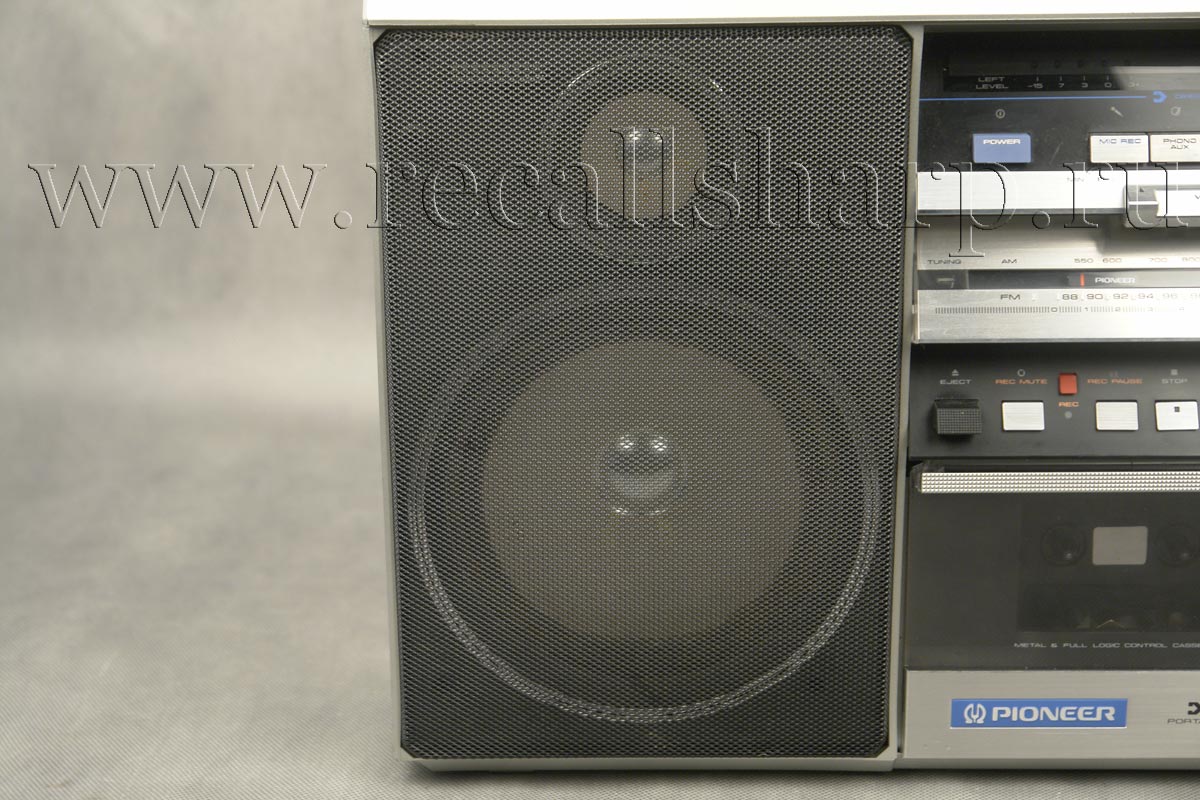

Speakers 16 cm woofer 5 сm tweeter 2-way
Frequency response Normal tape: 30Hz~14kHz
CrO2 tape: 30Hz~15kHz
Metal tape: 30Hz~16kHz
Frequency range FM : 88~108MHz
AM : 525 ~ 1,605kHz
Input jacks MIX MIC, PHONO/AUX, EXT
MIC, EXT FM ANT
Output jacks LINE OUT, EXT SP, PHONES
Power source 120V AC 60Hz, 20W
12V DC (eight 1.5V "D" batteries), EXT 12V DC
Dimensions (W X H X D). . . 588 X 297 X 148mm (23 1/8 X 11 5/8 X 5 7/8in )
Weight 7.6kg (16.7 lbs., without batteries)

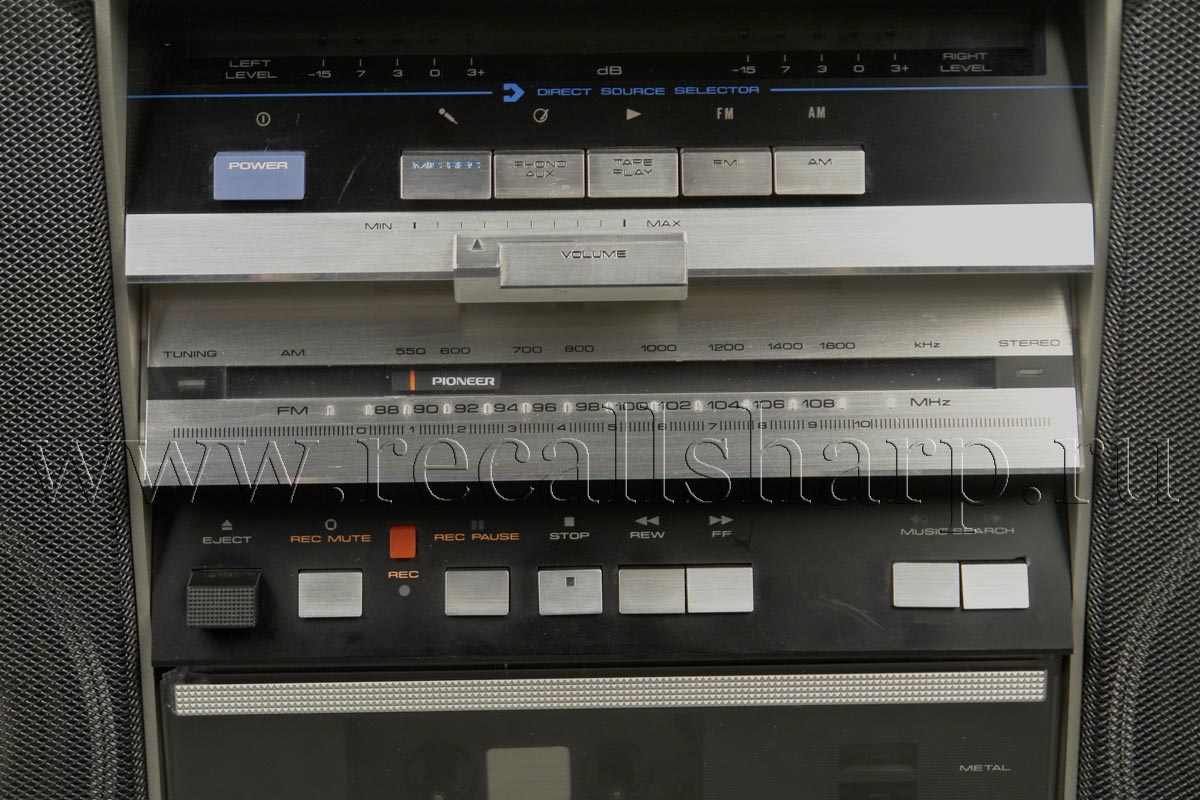

(Subfunctions) Direct Source Selector (DSS),
tape selector (METAL/CrO2/NORMAL),
one-touch music search, semi-automatic record muting,
timer standby mechanism, FM muting, microphone mixing
(Indicators) POWER (red LED), MIC REC
(green LED), PHONO/AUX (green LED),
TAPE PLAY (green LED), FM (green LED),
AM (green LED), REC (red LED),
REC PAUSE (red LED), MUSIC SEARCH (green LED X 2),

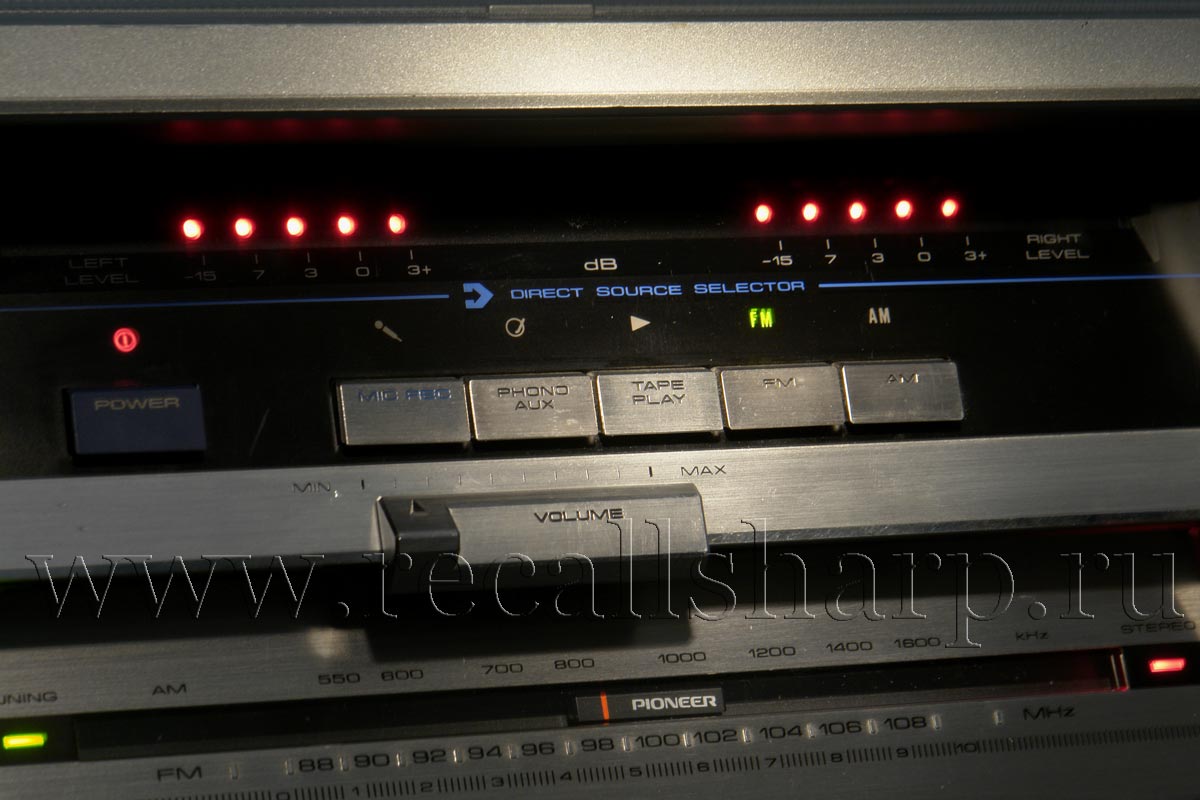

level meter (5 point red LED), TUNING (green LED),
STEREO (red LED)Metal(green LED)CrO2(green LED)
|
