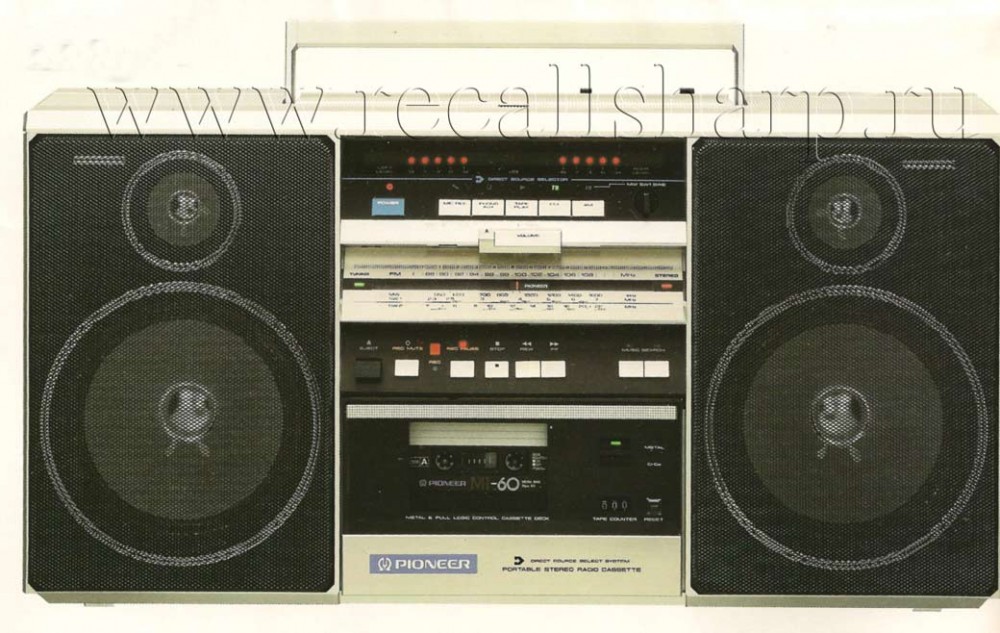

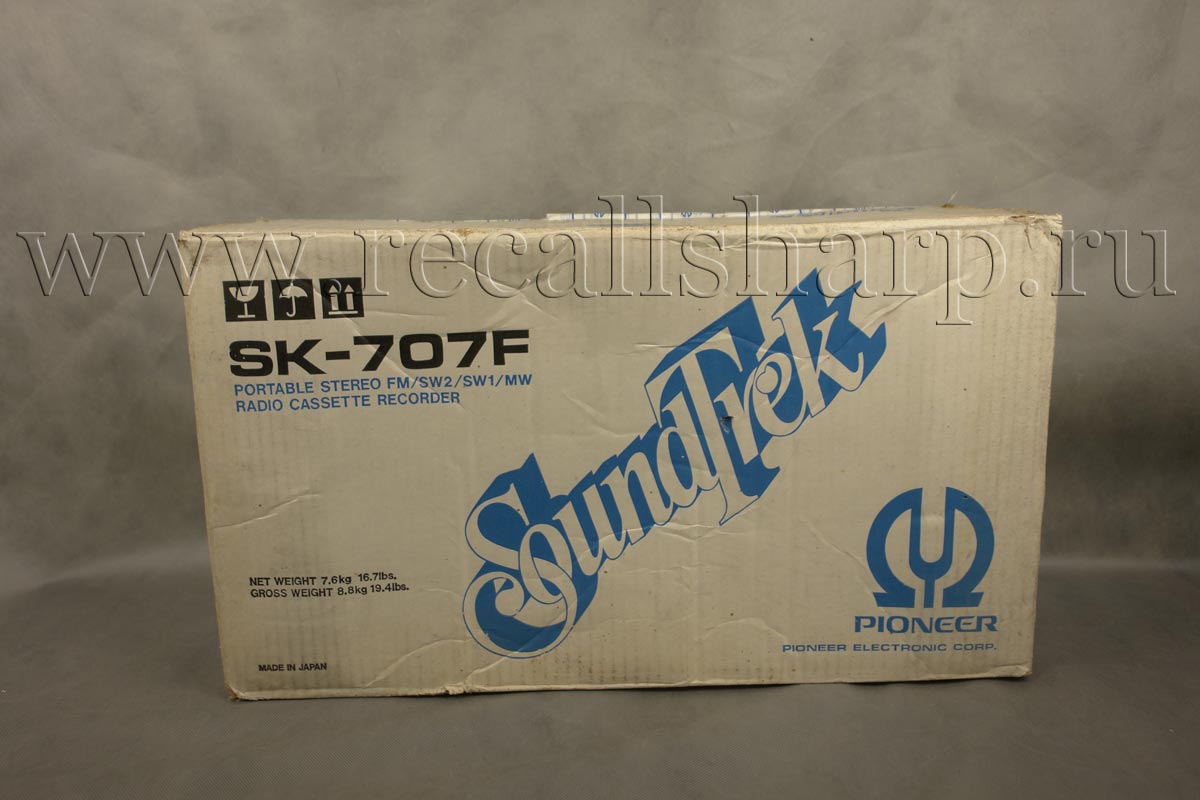

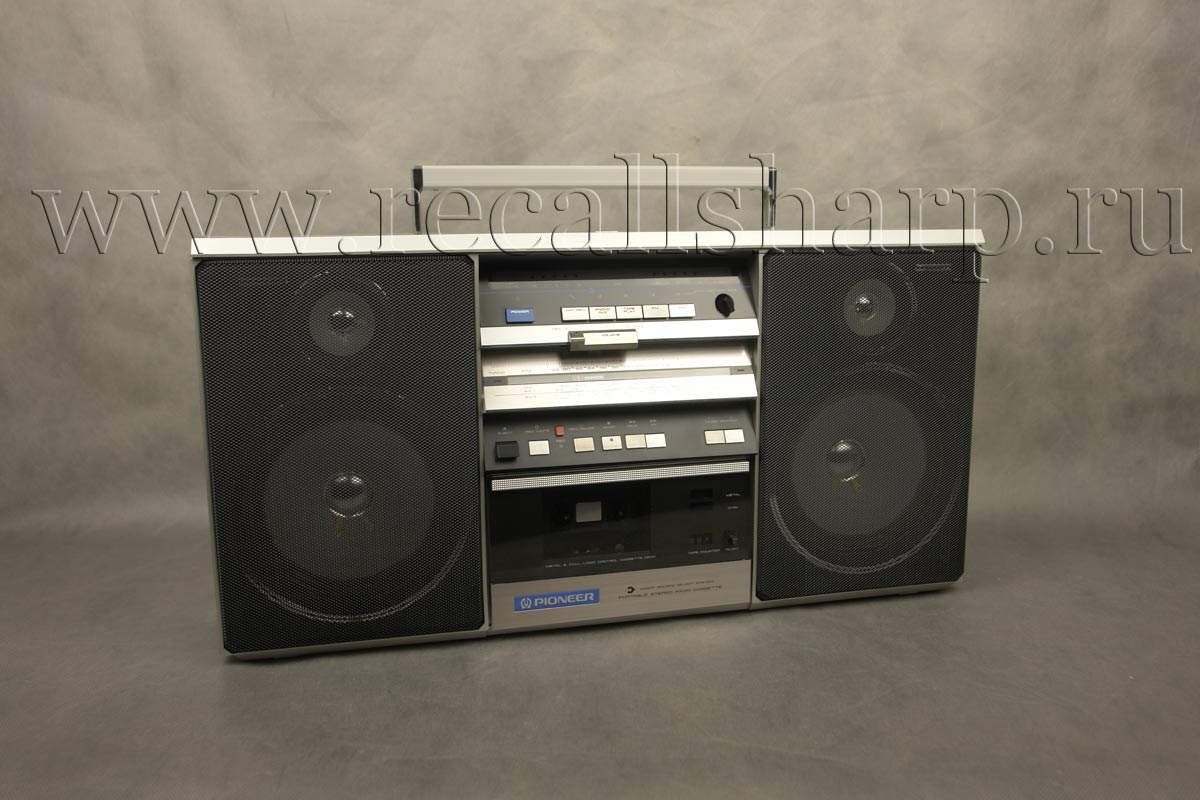

Pioneer SK-707 F



: 1982


Specifications

Max. music power 23W (total music power)

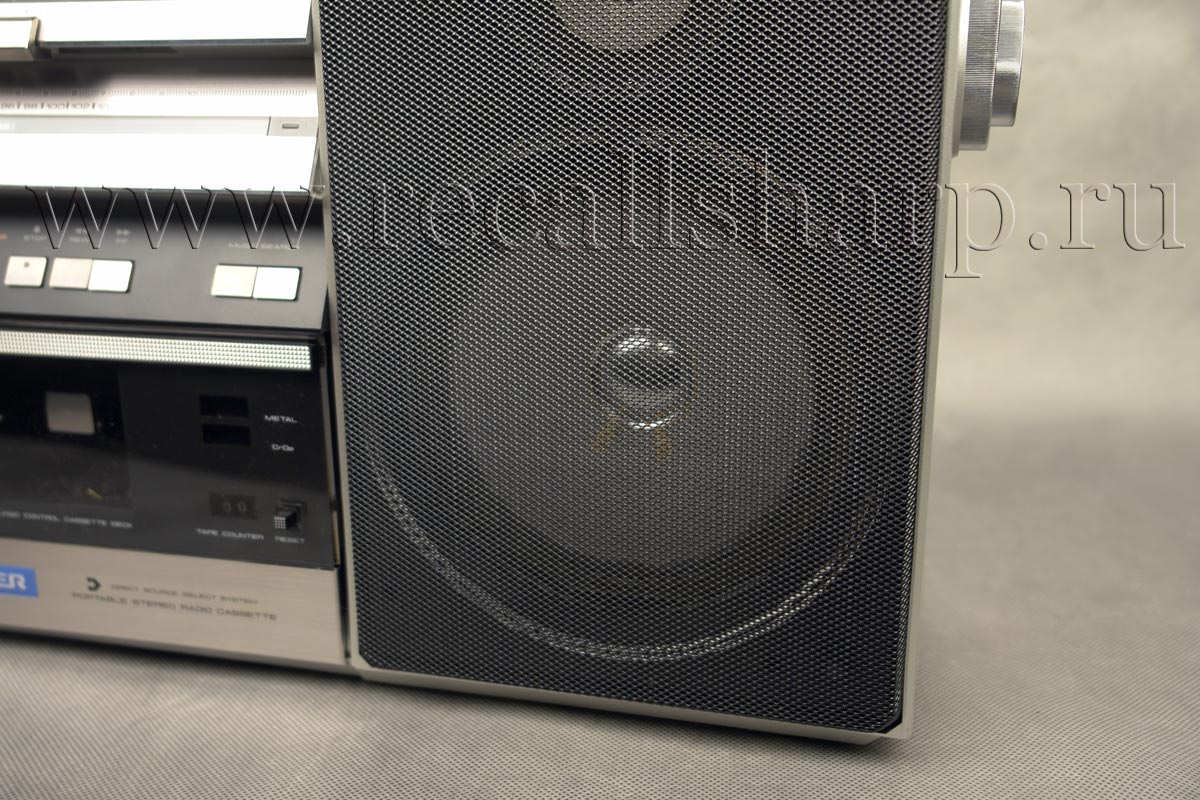

Speakers 16cm 2-way

Frequency response Normal tape: 30Hz~14kHz

CrO2 tape: 30Hz~15kHz

Metal tape: 30Hz~16kHz

Frequency range FM : 88~108MHz

SW2: 7 ~22MHz

SW1: 2.3~7MHz

MW : 525 ~ 1,605kHz

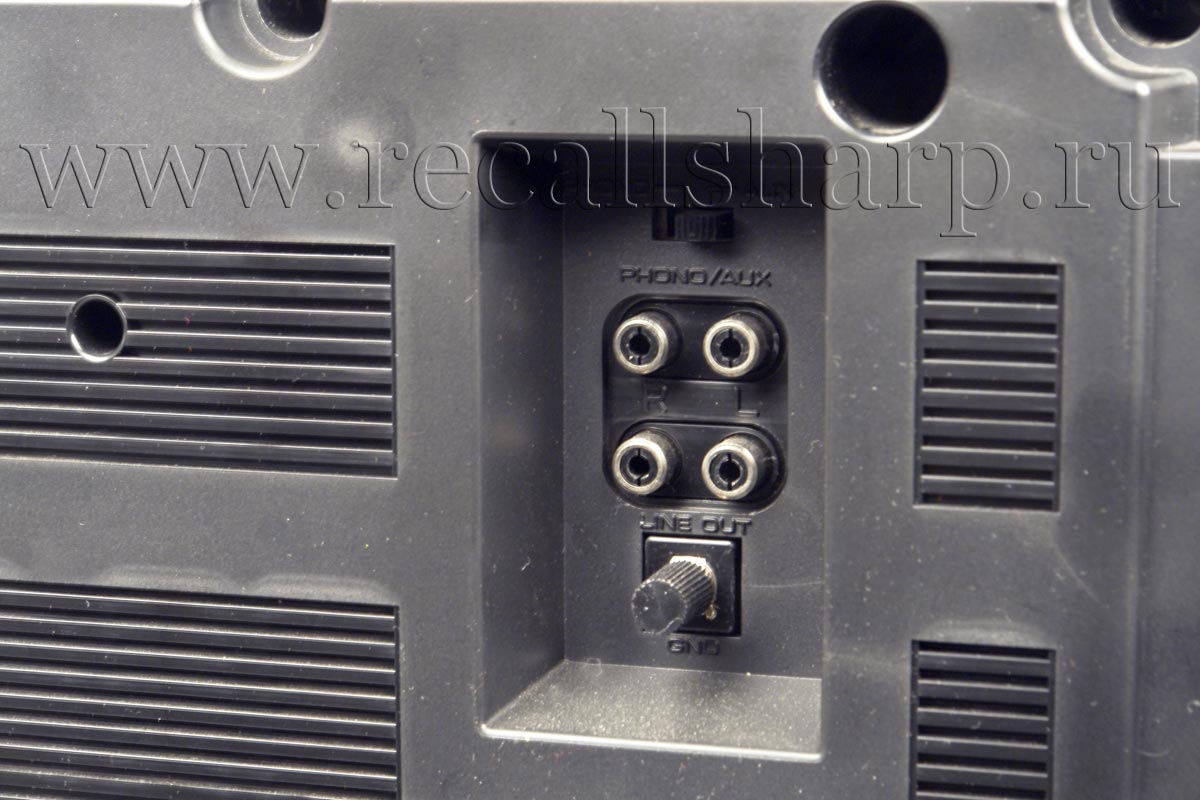

Input jacks MIX MIC, PHONO/AUX, EXT

MIC, EXT FM ANT

Output jacks LINE OUT, EXT SP, PHONES

Power source 120/220/240V AC 50/60Hz,

12V DC (eight 1.5V "D" batteries), EXT 12V DC

Dimensions (W X H X D). . . 588 X 297 X 148mm (23 1/8 X 11 5/8 X 5 7/8in )


Weight 7.6kg (16.7 lbs., without batteries)

(Subfunctions) Direct Source Selector (DSS),

tape selector (METAL/CrO2/NORMAL),

one-touch music search, semi-automatic record muting,

timer standby mechanism, FM muting, microphone mixing

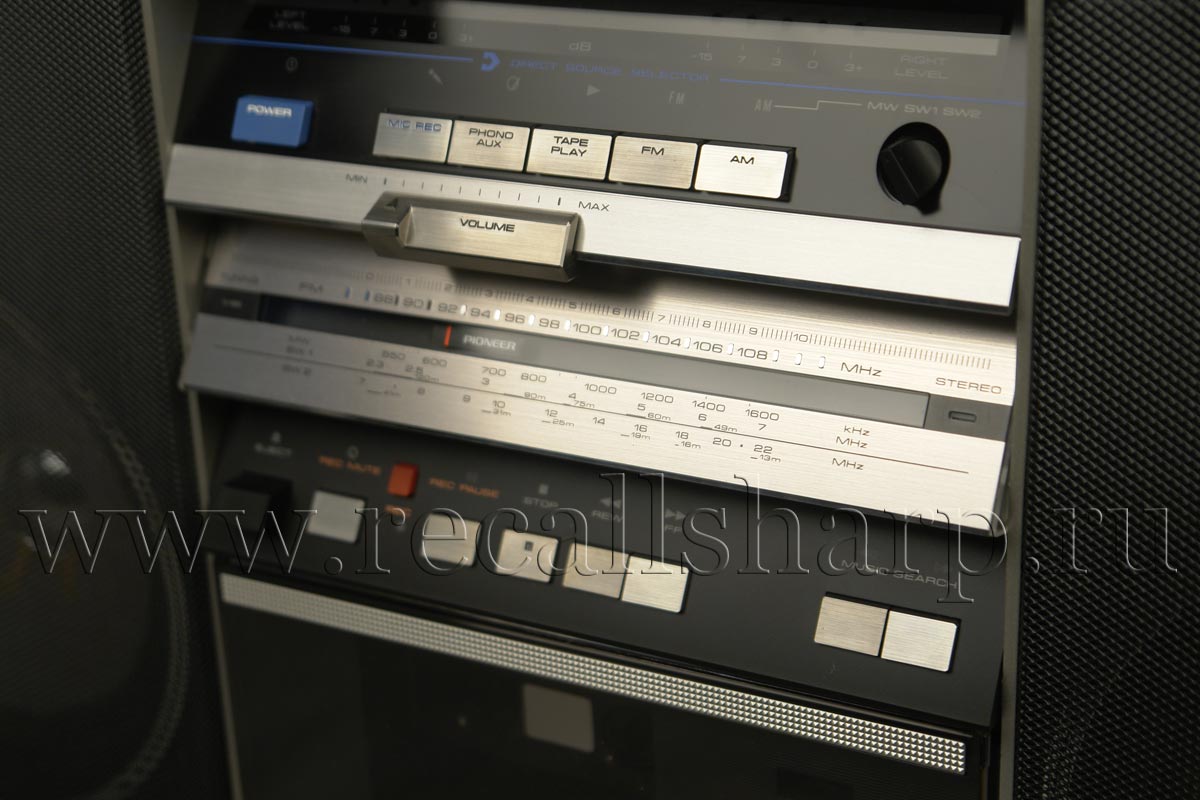

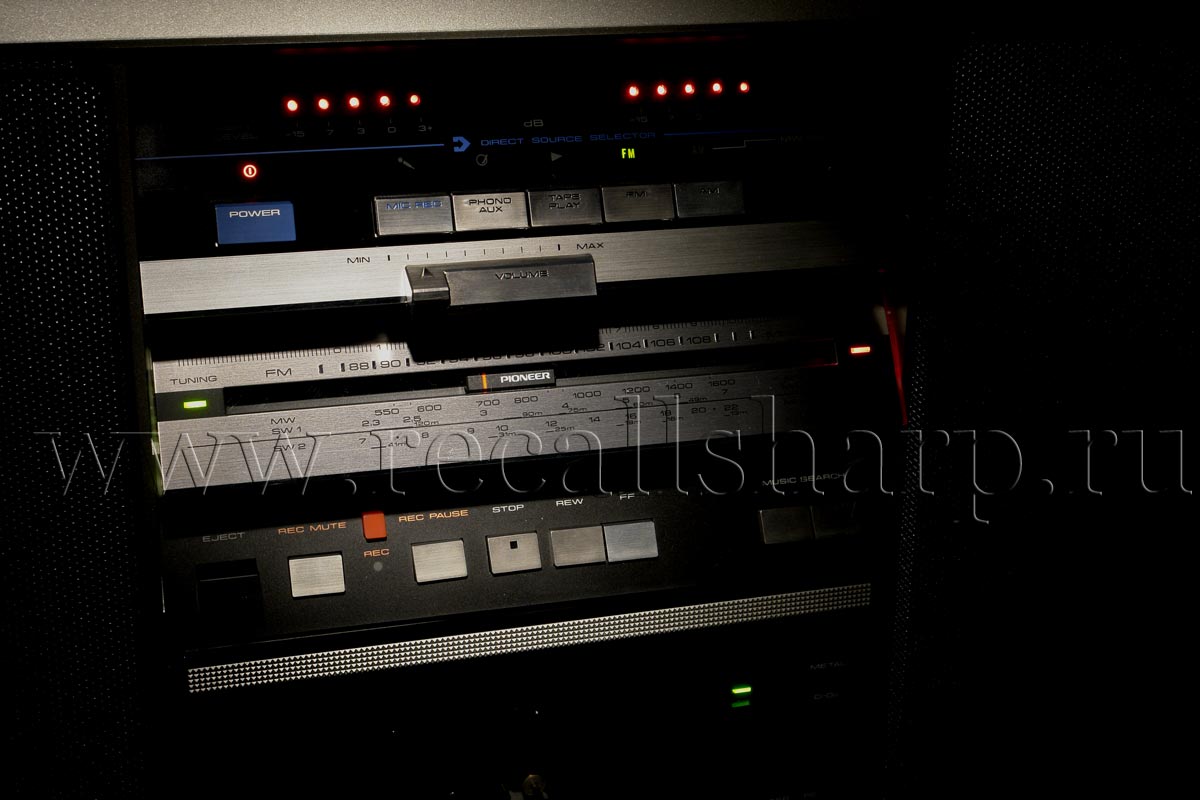

(Indicators)POWER (red LED), MIC REC

(green LED), PHONO/AUX (green LED),

TAPE PLAY (green LED), FM (green LED),

AM (green LED), REC (red LED),

REC PAUSE (red LED), MUSIC SEARCH (green LED X 2),

level meter (5 point red LED), TUNING (green LED),

STEREO (red LED)



:
