Specifications
Max. music power 23W (total music power)

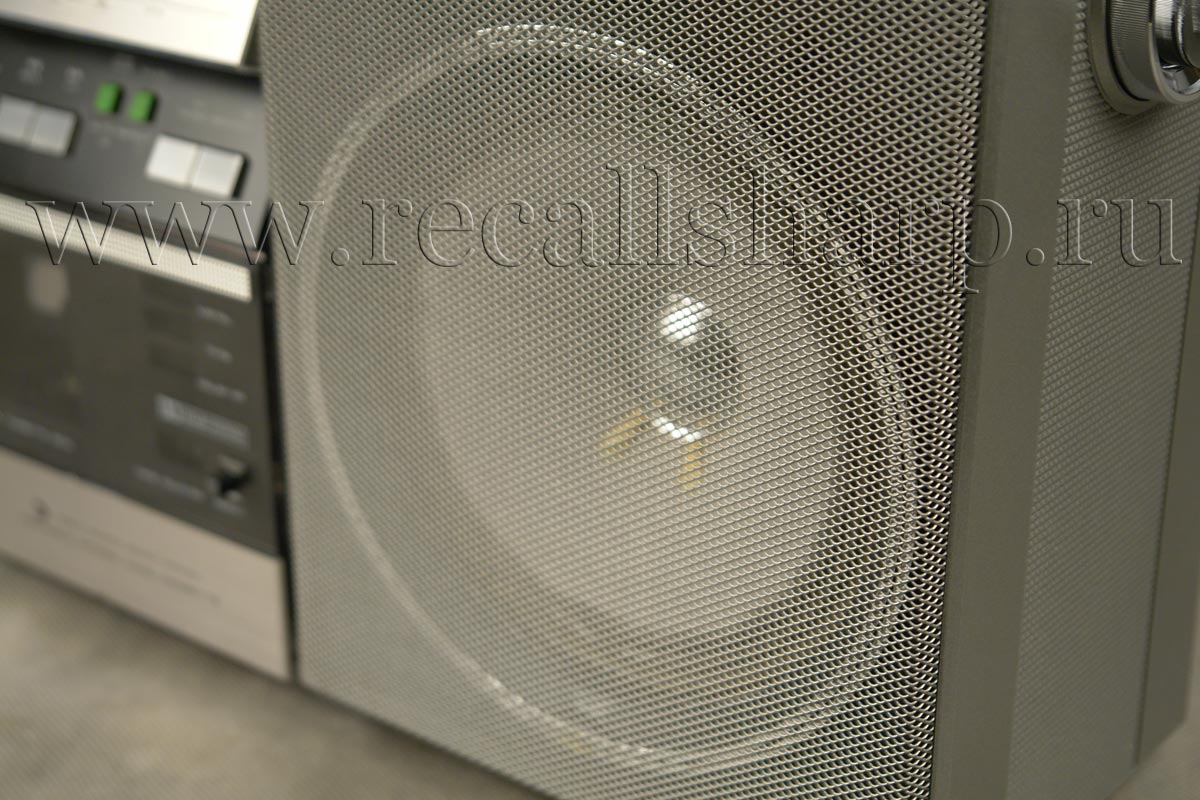

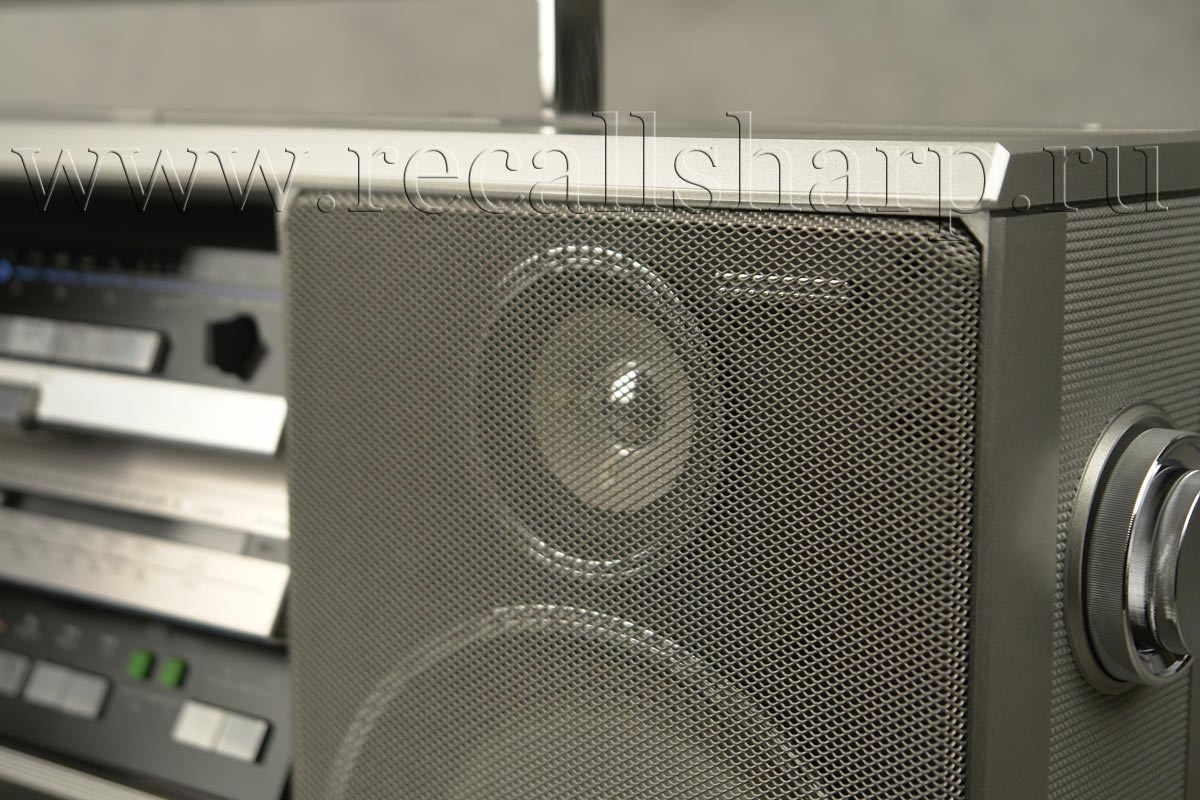

Speakers 16cm 2-way
Frequency response Normal tape: 30Hz- 14kHz
Cr02 tape: 30Hz- 15kHz
Metal tape: 30Hz- 16kHz
Frequency range FM: 88 — 108MHz
SW2: 7 — 22MHz
SW1: 2.3 — 7MHz
MW: 525-1,605kHz
Input jacks MIX MIC, PHONO/AUX, EXT
MIC, EXT FM ANT
Output jacks LINE OUT, EXT SP, PHONES
Power source 120/220/240V AC 50/60Hz,
12V DC (eight 1.5V "D" batteries), EXT 12V DC
Dimensions (WXHXD). . . 588 x 297 X 148mm
(23 1/8 X 115/8 X 57/8 in.)
Weight 7.6kg (16.7 lbs., without batteries)
(Subfunctions) Direct Source Selector (DSS),
Dolby NR, tape selector (METAL/ Cr02-N0RMAL),
auto/manual recording, one-touch music search, music repeat,
one side repeat, semi-automatic record muting,
timer standby mechanism,
FM muting, microphone mixing
(Indicators) POWER (red LED), Dolby NR
(green LED), MIC REC (green LED),
PHONO/AUX (green LED), TAPE PLAY (green LED),
FM (green LED), AM (green LED),
REC (red LED), REC PAUSE (red LED),
ONE SIDE REPEAT (green LED), MUSIC REPEAT (green LED),
MUSIC SEARCH (green LED X 2), METAL (green LED),
Cr02 (green LED), level meter (12 points red/green LED X 2),
tuning (green LED), STEREO (red LED)
