National Panasonic R-3000



: 1971


SPECIFICATIONS

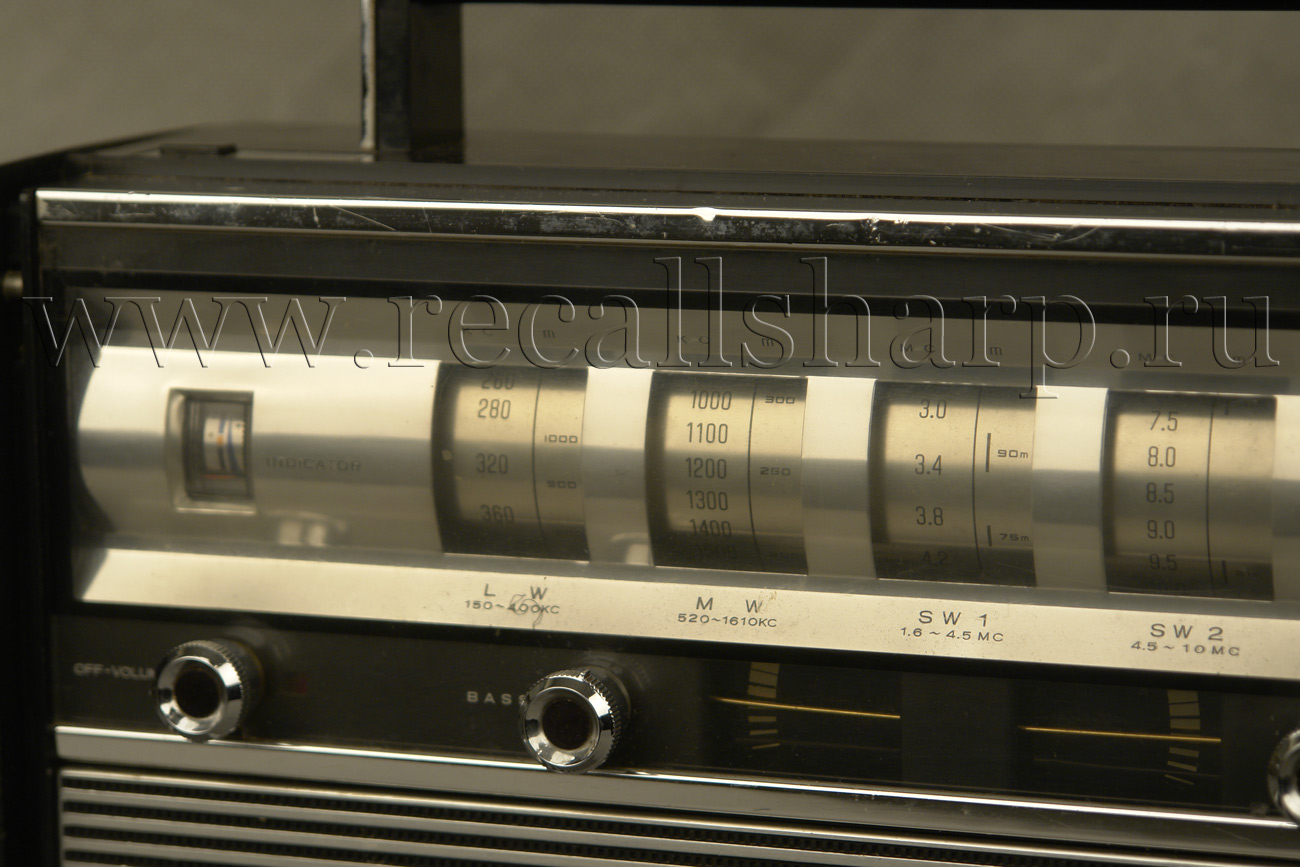

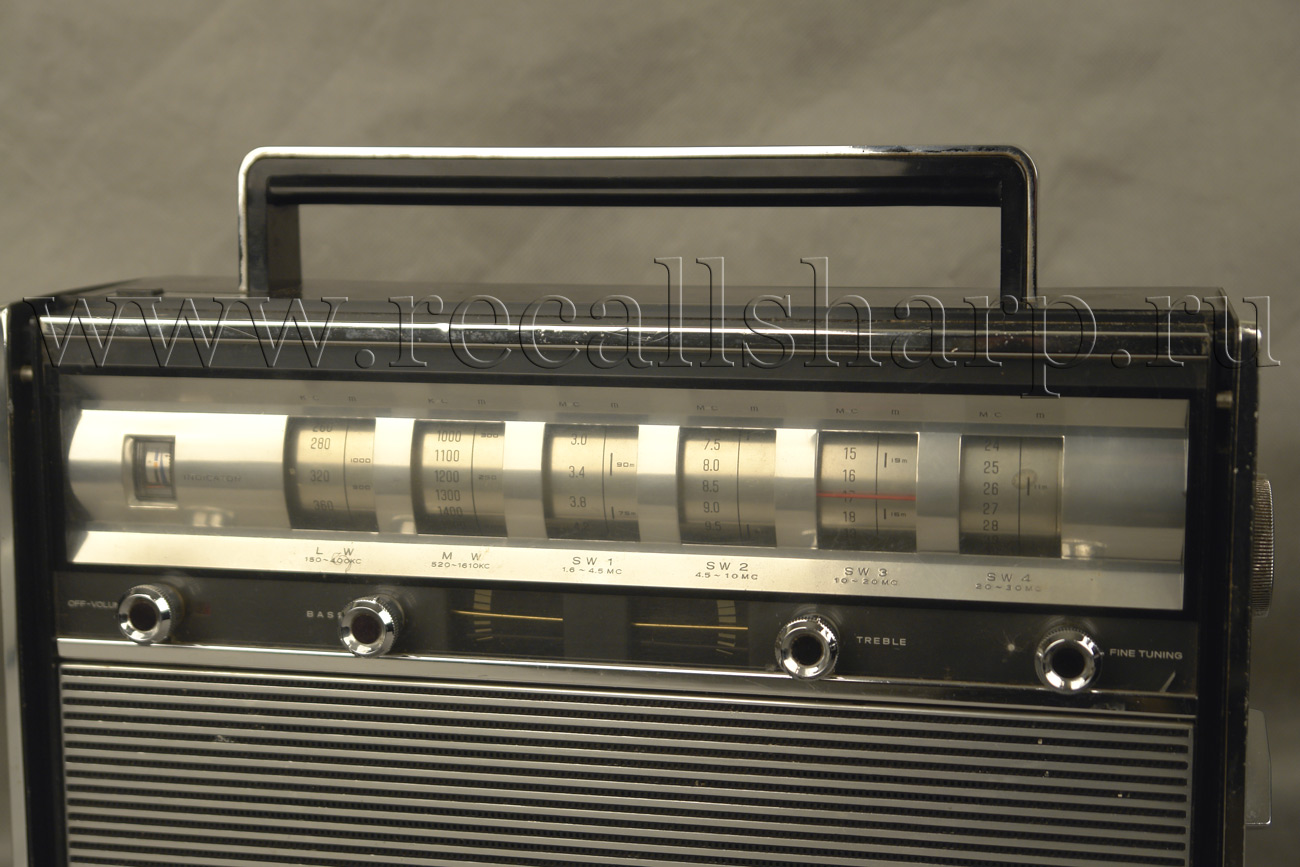

Radio Frequency Range;
LW; 150~400 kHz (2000750m)
MW; 520~1610 kHz (577
186m)
SW1; 1.6~4.5 MHz (187∼66.7m)
SW2; 4.5~10 MHz (66.7∼30m)
SW3; 10~20 MHz (30∼15m)
SW4; 20~30 MHz (15∼10m)



Intermediate Frequency: AM (MW\LW&SW); 455kHz

Sensitivity: LW; 50μV/m/50mW output
MW; 10μV/m/50mW output
SW; 2
μV/m/50mW output


Power Requirement; AC(using AC Adaptor RD-9430D) 110~125/220-240V 50/60Hz
Battery; 9V (Six "D" Size Flashlight Batteries)
(National UM-1 or equivalent)

Power Output: 2W (max.)

Speaker: 12cm PM Dynamic Speaker
10cm(4") PM Dynamic Speaker

Impedance; FM EXT.ANT ….75Ω
PHONO....500kΩ
REC OUT....80kΩ

Earphone jack; .........8Ω

Dimensions: 370mm(Wide)x254mm(High)x192(Deep) mm

Weight: 5kg without batteries

:
National Panasonic RF-3000 IC
