Matsushita Electric Industrial , Ltd. (MEI), Panasonic, National, Technics Quasar, , .

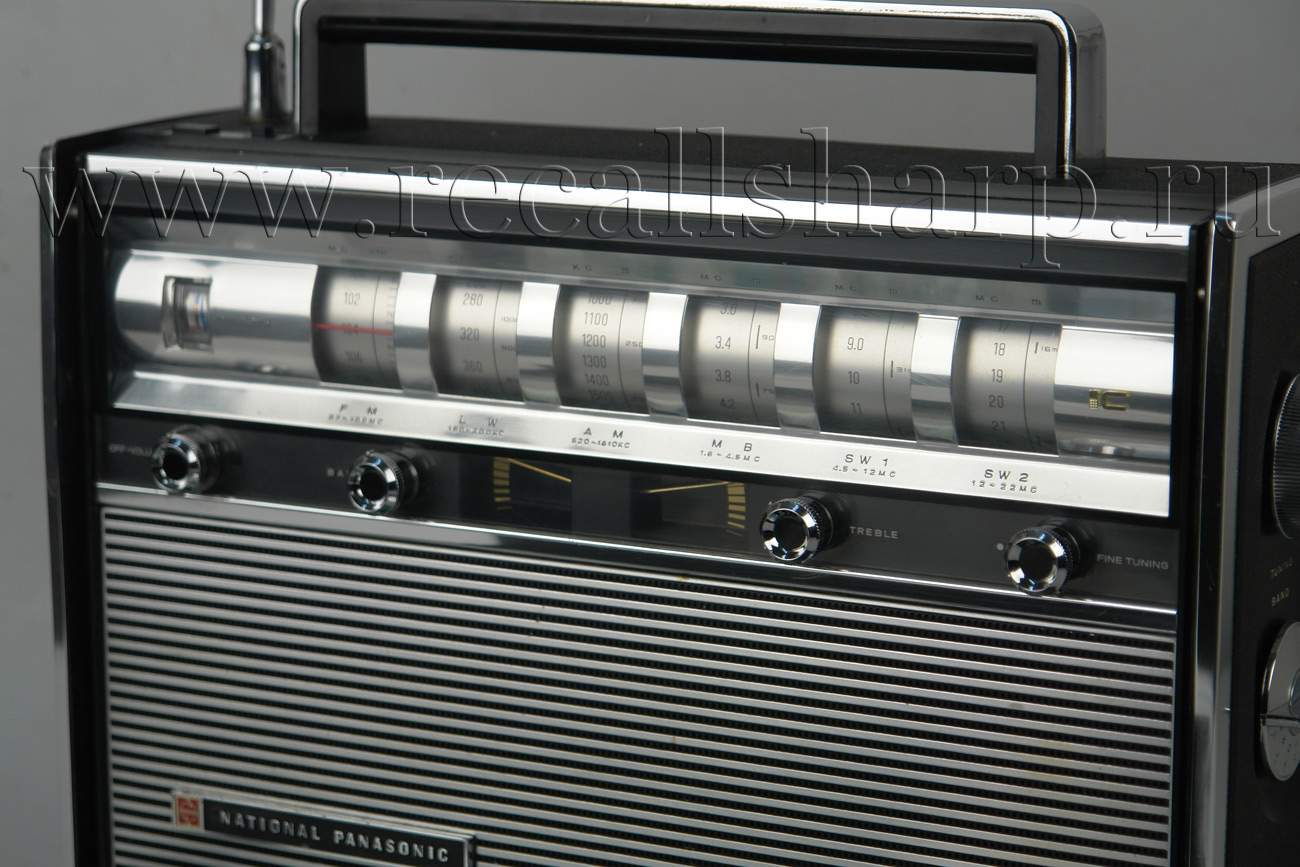

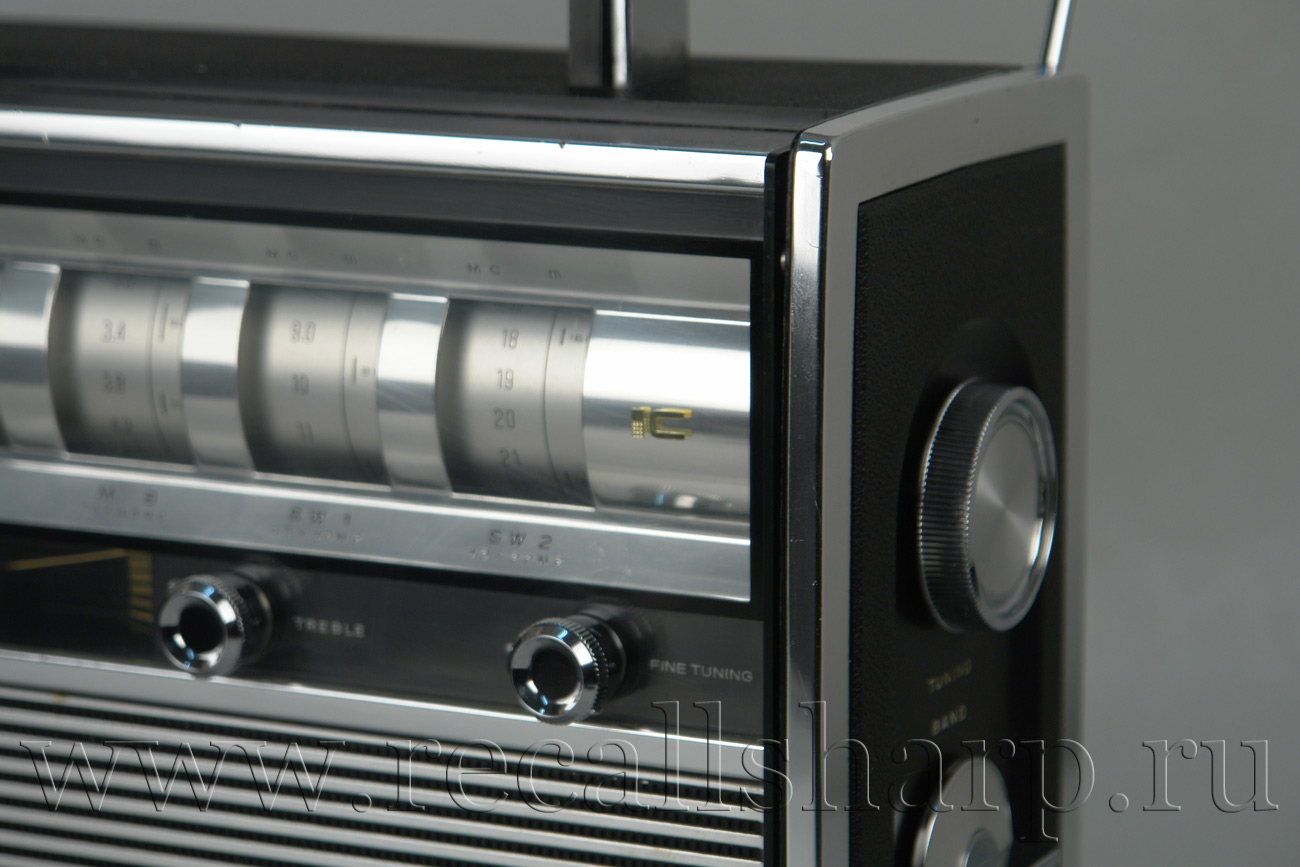

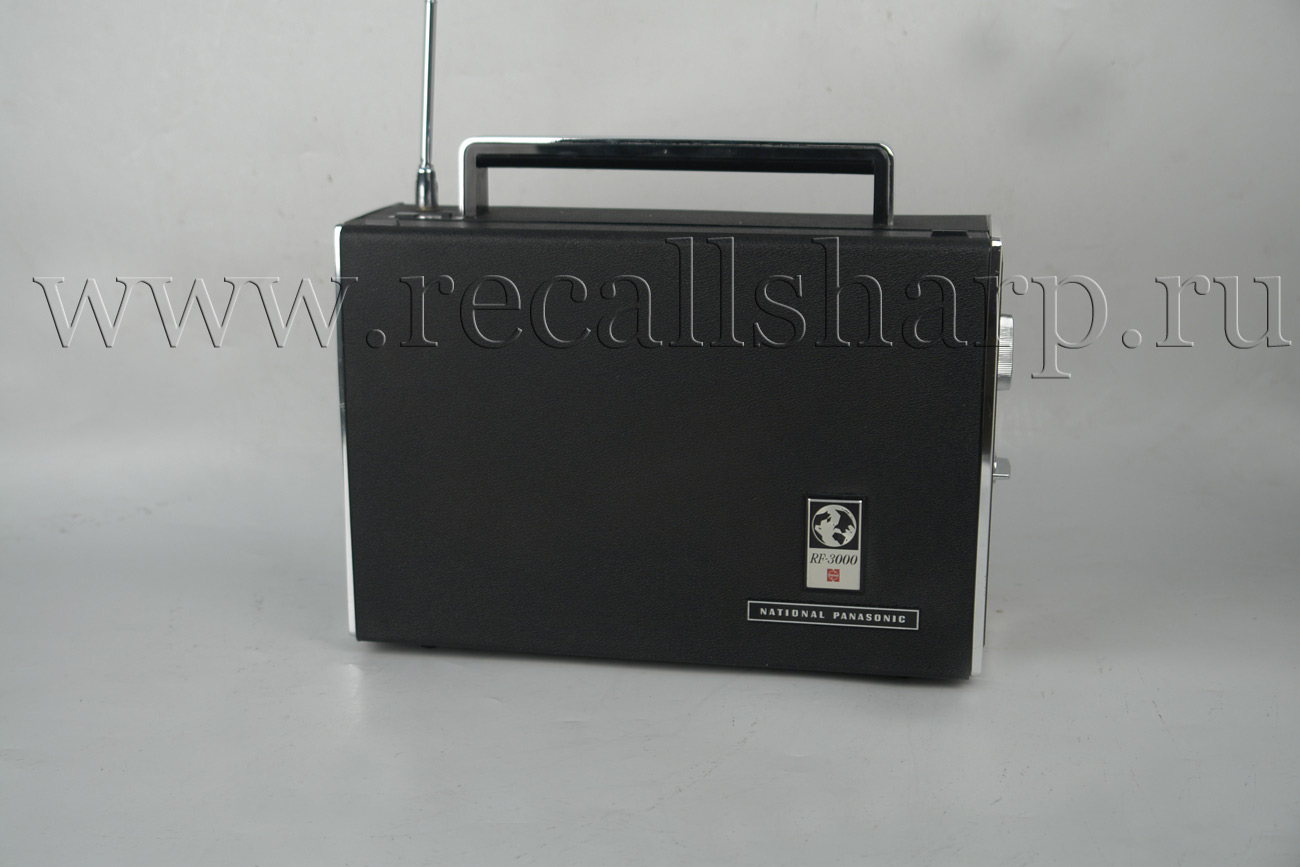

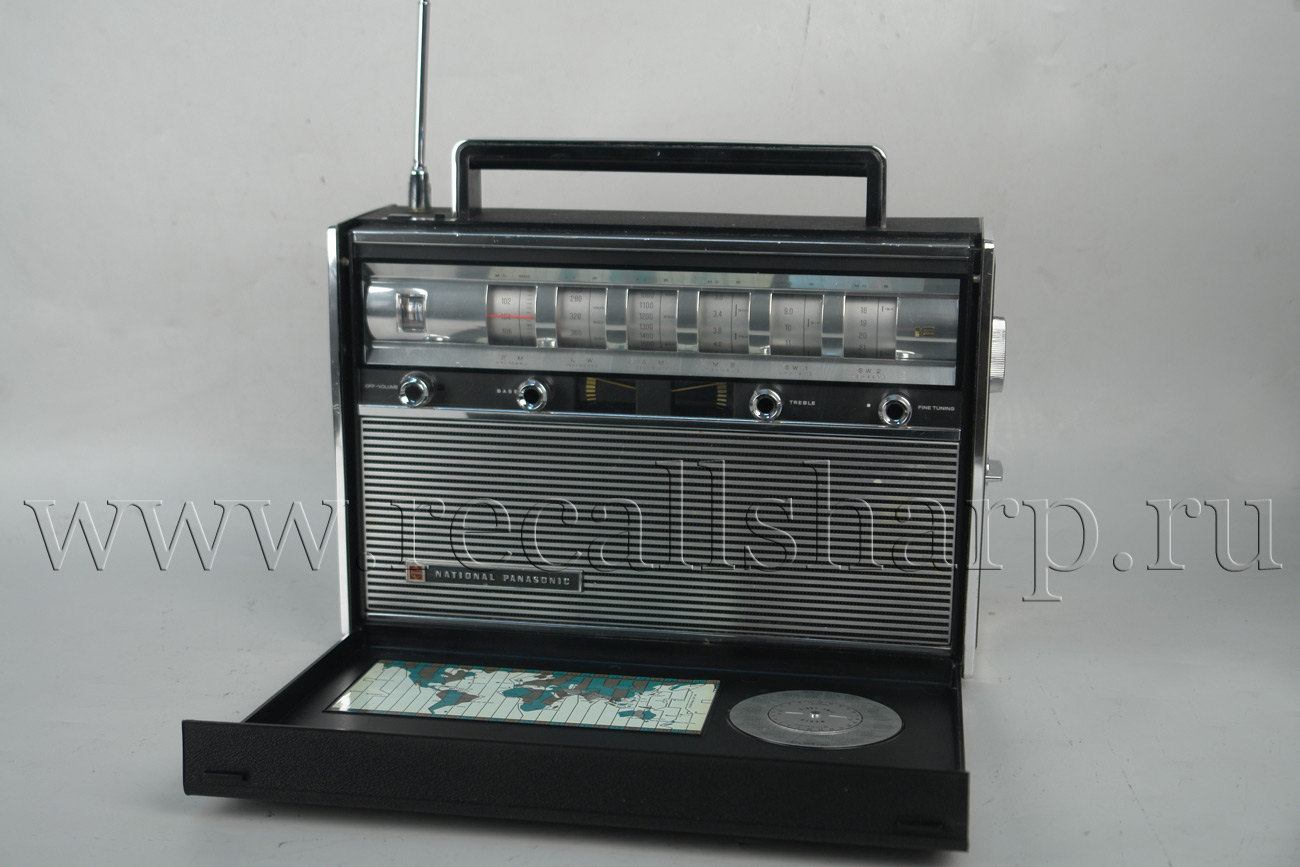

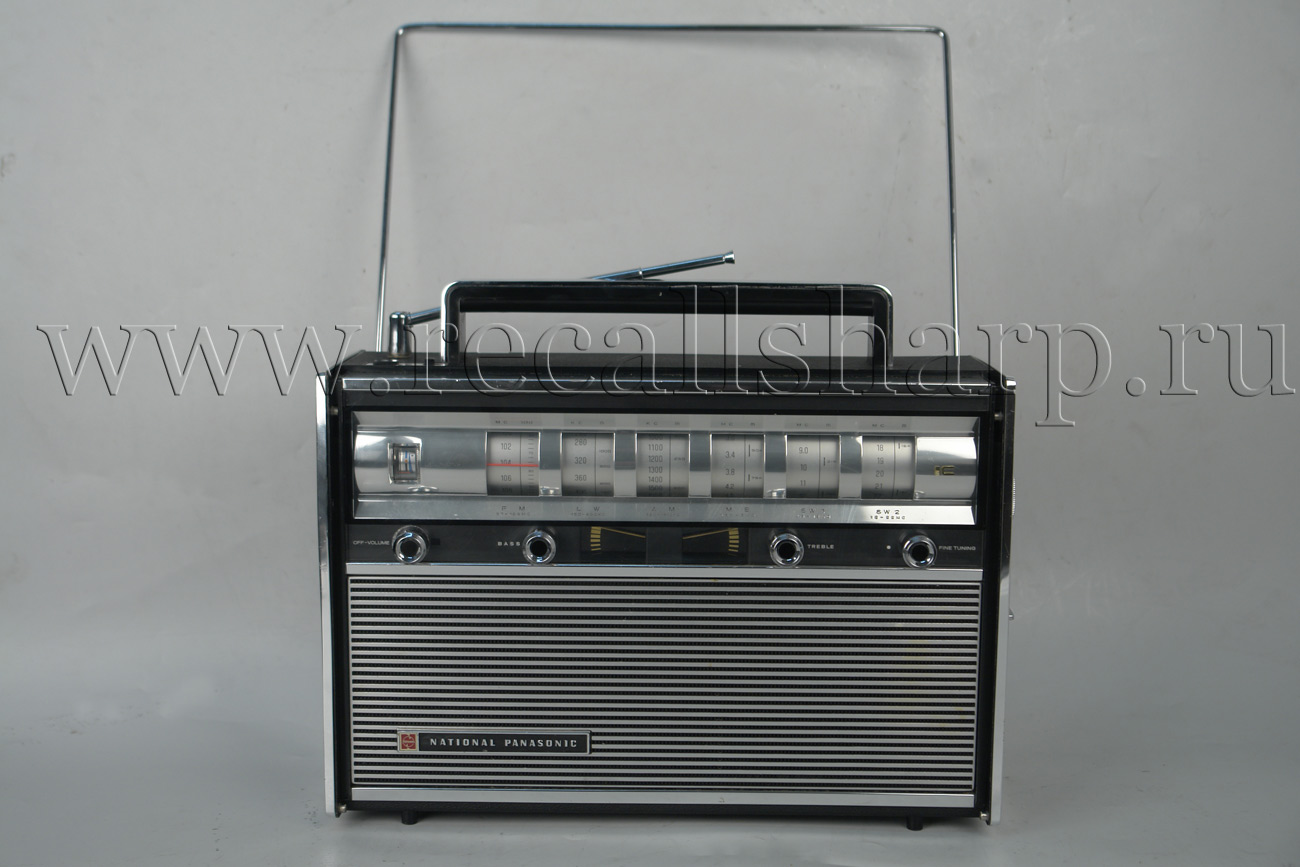

National Panasonic RF-3000 IC



: 1971


SPECIFICATIONS
Radio Frequency Range;
FM; 87~108 MHz
LW; 150~400 kHz (2000750m)
MW; 520~1610 kHz (577
186m)
MB; 1.6~ 4.5 MHz(187~66.7m)
SW1; 4.5~12 MHz (66.7∼25m)
SW2; 12~22 MHz (25∼13.6m)



Intermediate Frequency: FM; 10.7 MHz
AM (MW\MB\LW&SW); 455kHz
Sensitivity: FM: 2.0μV/50mW output
LW; 50μV/m/50mW output
MW; 10μV/m/50mW output
SW; 2
μV/m/50mW output


Power Requirement; AC(using AC Adaptor RD-9430D) 110~125/220-240V 50/60Hz
Battery; 9V (Six "D" Size Flashlight Batteries)
(National UM-1 or equivalent)

Power Output: 2W (max.)

Speaker: 12cm PM Dynamic Speaker
10cm(4") PM Dynamic Speaker

Impedance; FM EXT.ANT ….75Ω
PHONO....500kΩ
REC OUT....80kΩ

Earphone jack; .........8Ω

Dimensions: 370mm(Wide)x254mm(High)x192(Deep) mm

Weight: 5kg without batteries

:
National Panasonic R-3000
