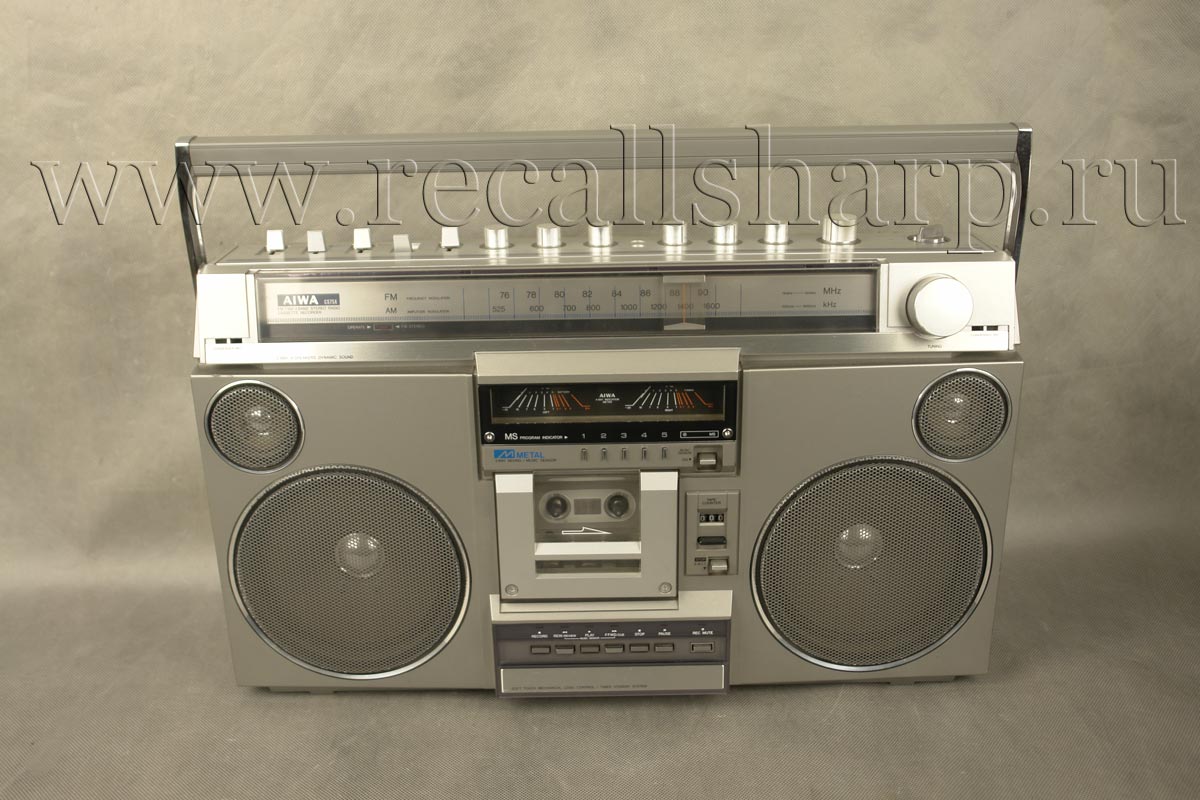

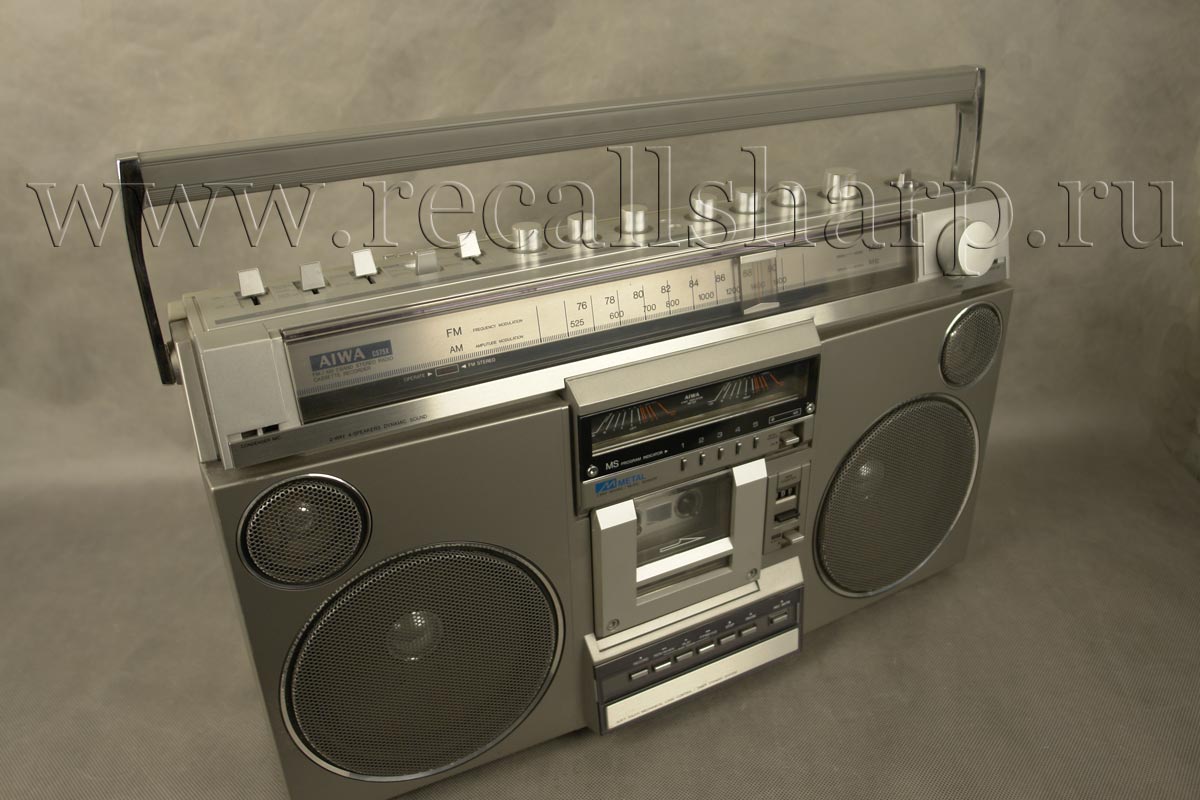

Aiwa CS-75 X



: 1980


SPECIFICATIONS
Type Stereo FM\AM radio cassette recorder
Circuitry
27 transistors, 17 diodes, 4 ICs, 7 LEDs, 1 FET
Power source Batteries,
DC 12 V (UM-1 x 8)
AC 100 V 50\60 Hz
Car battery (thru car adaptor)
Output maximum 4.2 W + 4.2 W
Power consumption 18W

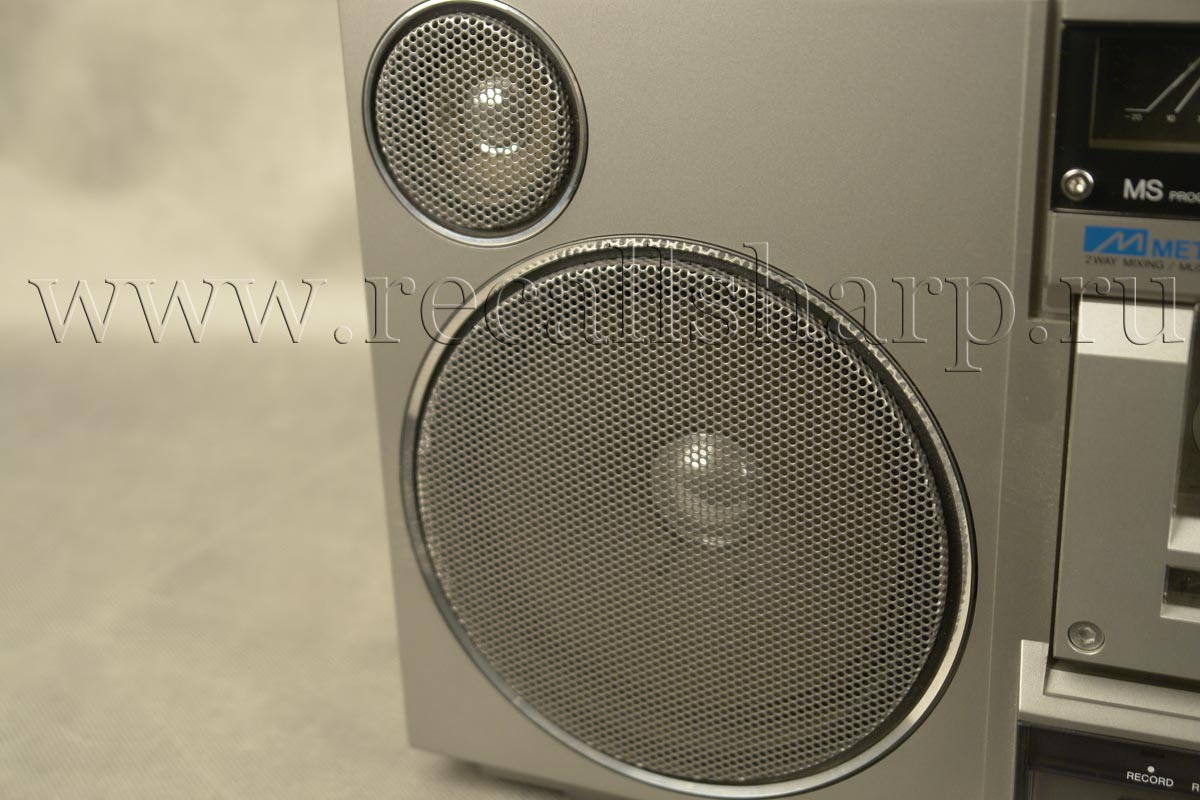

Speakers 160 mm cone (2)
50 mm dome (2)
Tape Recorder Section
Built-in microphones Electret condenser microphones
Tape speed 4.8 cm/sec
Recording system AC bias
Erasing system AC erase
Recording time 90 minutes (C-90 cassette, both directions)
Frequency response
)
LH tape: 50—12 000 Hz ±3dB
Cr02 tape: 5013 000 Hz 3dB
METAL tape: 5014 000 Hz 3dB
Signal-to-noise ratio
53 dB (LH tape, Dolby NR OFF) (PEAK LEVEL) 65 dB
(METAL tape, Dolby NR ON)
Wow and flutter 0.07% (WRMS)
Radio Section
Frequency ranges FM: 7690 MHz
AM: 5251605 kHz

Antennas
Whip antenna for FM
Ferrite bar antenna for AM

External antenna terminals for FM
Dimensions (WxHxD)567 x 331 x 177 (mm)
Weight 7.2 kg
Accessories
AC power cord 1
Cassette tape 1
The specifications and external appearance of this set are subject to change without prior notice.

:
