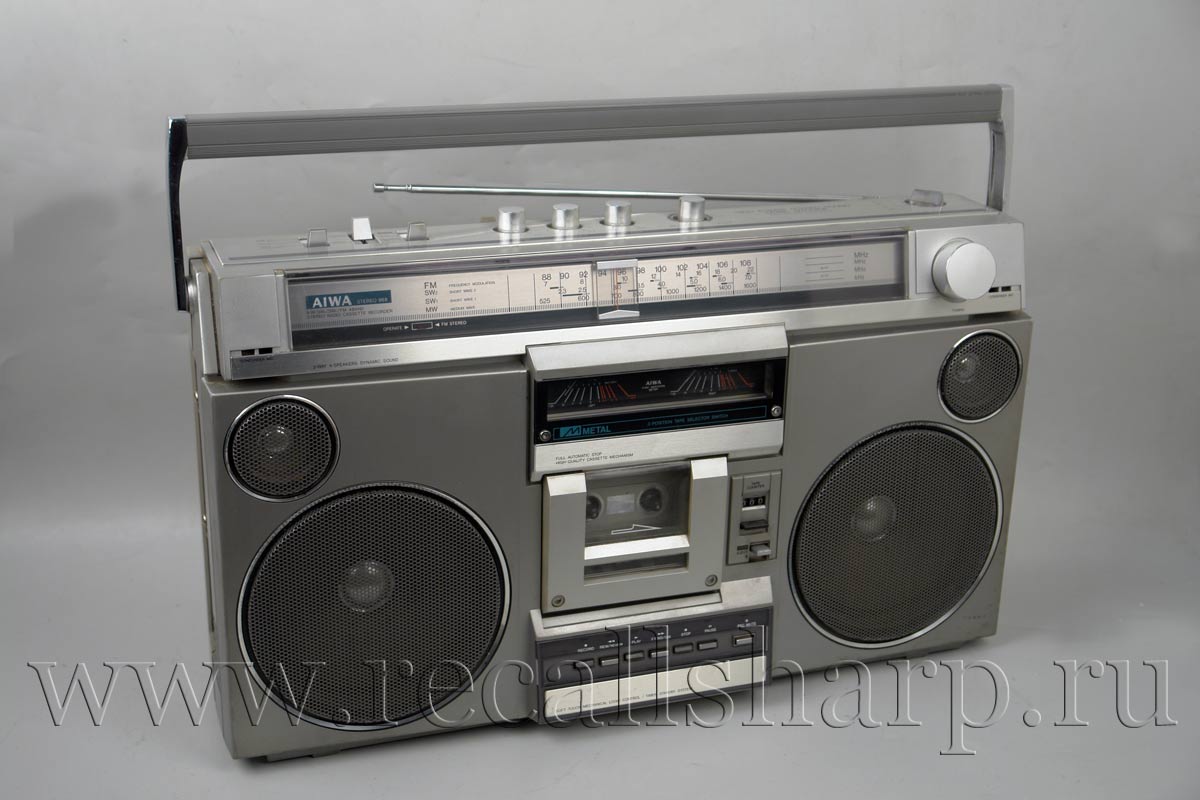

Aiwa TPR-968H



: 1980


SPECIFICATIONS
Type Stereo multiband radio cassette recorder
Circuitry
27 transistors, 17 diodes, 4 ICs, 7 LEDs, 1 FET
Power source Batteries,
DC 12 V (UM-1 x 8)
AC 110—120 V/220240 V (switchable) 5060 Hz
Car battery (thru car adaptor)
Output maximum 4.2 W + 4.2 W
Power consumption 17W
Speakers 160 mm cone (2)
50 mm dome (2)
Tape Recorder Section
Built-in microphones Electret condenser microphones
Tape speed 4.8 cm/sec
Recording system AC bias
Erasing system AC erase
Recording time 90 minutes (C-90 cassette, both directions)
Frequency response
)
LH tape: 5012 000 Hz ±3dB
Cr02 tape: 5013 000 Hz 3dB
METAL tape: 5014 000 Hz 3dB
Signal-to-noise ratio
53 dB (LH tape, Dolby NR OFF) (PEAK LEVEL) 65 dB
(METAL tape, Dolby NR ON)
Wow and flutter 0.07% (WRMS)
Radio Section
Frequency ranges FM: 87.5108 MHz
MW: 5251605 kHz
SW1: 2.37.0 MHz
SW2: 7.022 MHz
Antennas
Whip antenna for FM and SW2
Ferrite bar antenna for MW and SW,
External antenna terminals for FM
Dimensions (WxHxD)567 x 331 x 177 (mm)
Weight 7.2 kg
Accessories
AC power cord 1
Cassette tape 1
The specifications and external appearance of this set are subject to change without prior notice.

:
