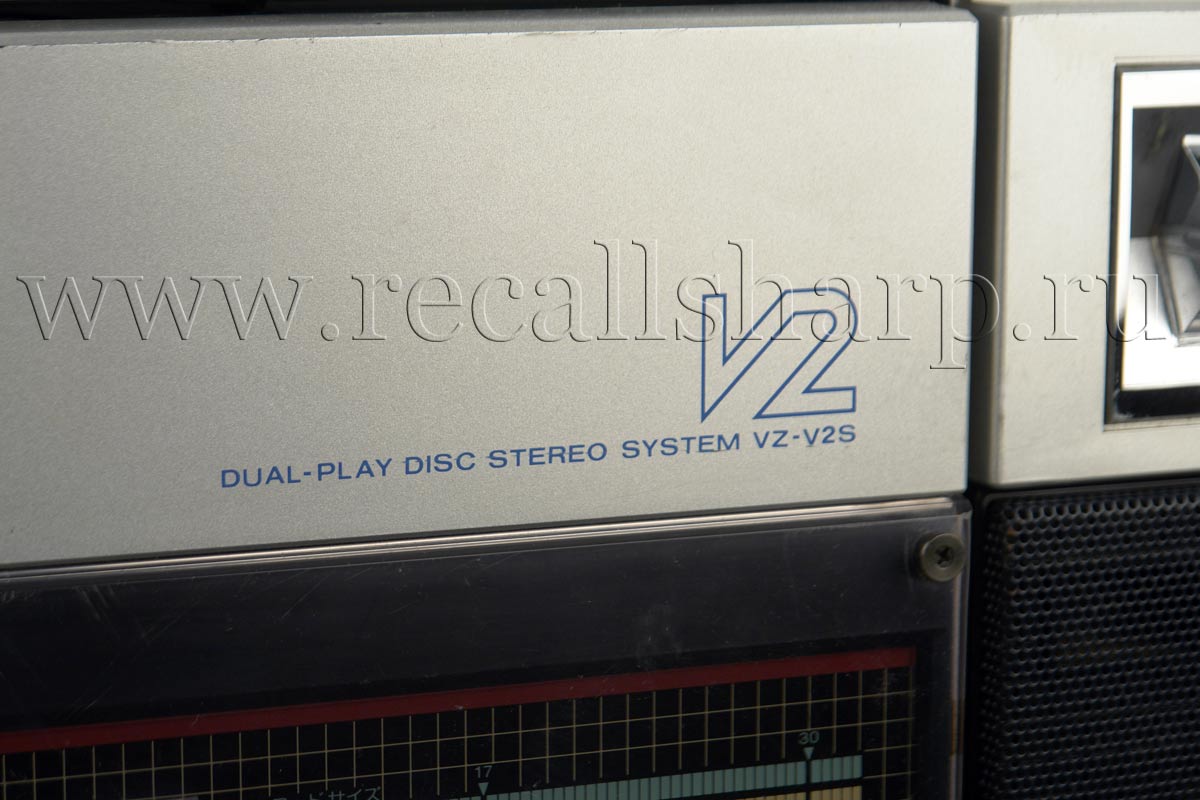

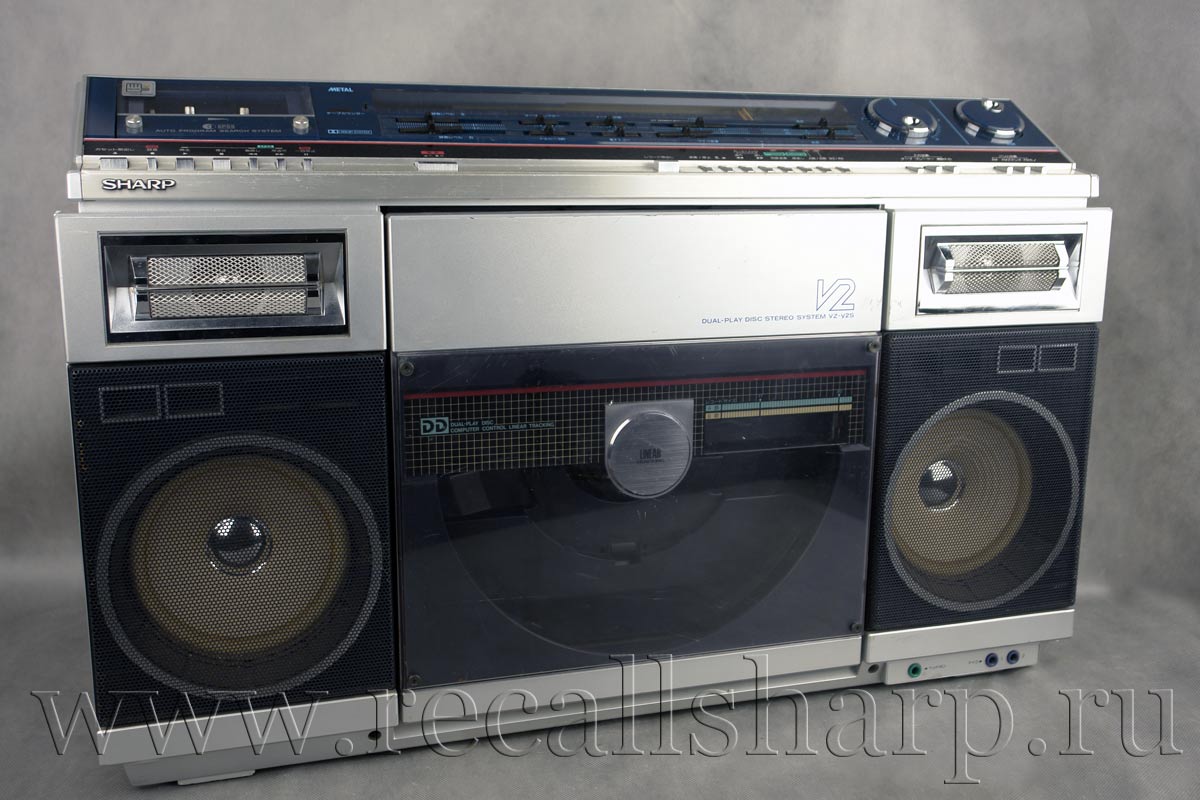

Sharp VZ-V2 S



: 1981


GENERAL

Power source AC; 100V, 50/60Hz
DC. Internal (Batteries): Ten HP-2 or UM/SUM-1 size
DC. External: 15V

Power consumption: 33 W
Dimensions: Width; 738 mm
Height; 459 mm
Depth; 193 mm

Weight: 17.5 kg or 16.5 kg without batteries
Input sockets: Microphone: 1mV/600
Ω, 6.3mm jack
Aux (PB): 120mV, 47 k
Ω

Output sockets: Aux(REC): 100mV,47kΩ
External speaker: 4 — 8
Ω 3.5mm socket

Headphones: 8Ω,6.3mm socket

Other sockets: FM aerial: outside aerial
AM aerial: outside aerial
Earth: AM aerial earth
Semiconductors: 1 LSI, 14 ICs, 1 FET, 59 transistors,
40 diodes, 9 LEDs,2 photo-interruptors,

3 infrared LEDs, 2-LED arrays

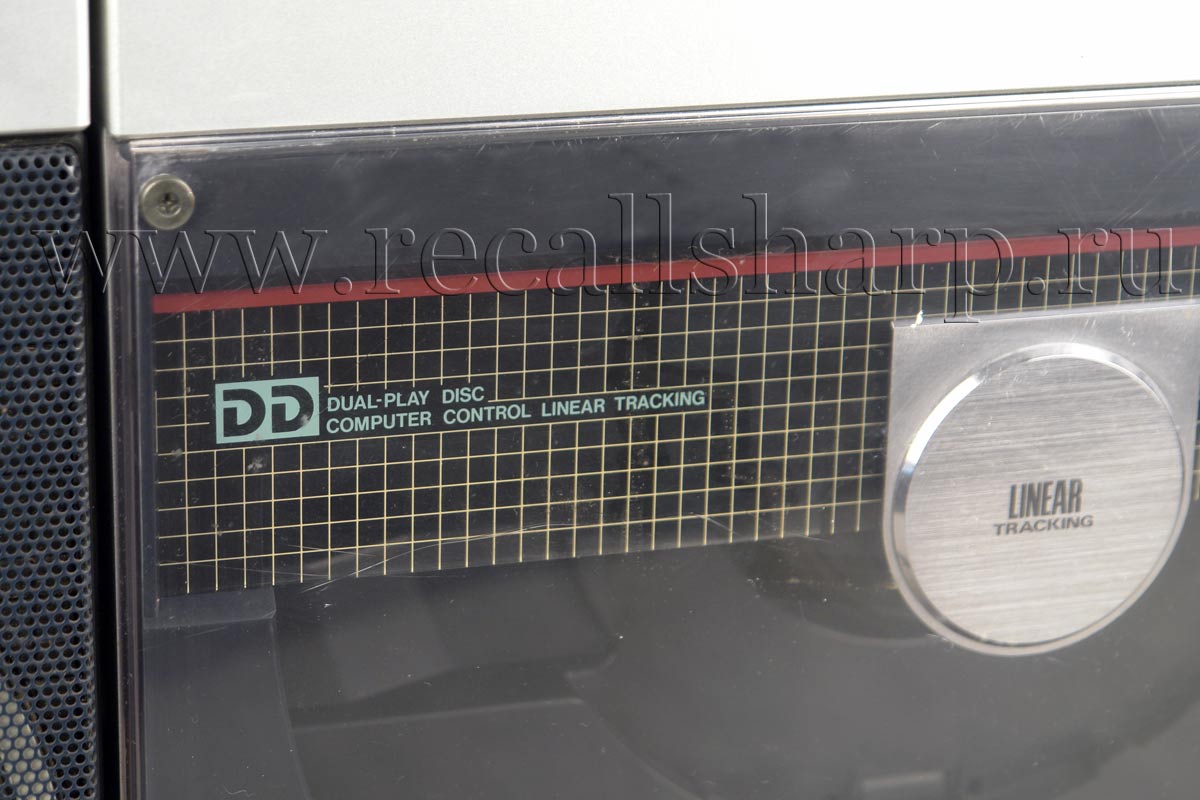

Player Section
Type: Microcomputer control, linear tracking full
auto

Motor: DC motor with FG (for platter drive) x 1,
DC motor (for tonearm drive) x 1

Drive system: Belt drive system
Speeds: 33-1/3, 45 rpm
Wow & Flutter: 0.08% (WRMS)
Tonearm: Dynamic balanced
Cartridge: VM type
Frequency response: 20 20,000Hz
Exchangeable stylus: STY-123

Supplied devices: Auto lead-in, auto return, auto record size
sensing, automatic speed selection, both sides
play, repeat play

Amplifier Section
Circuit: Multi-channel amplifier
Power output: Woofer
10W(5W+5W)/ EIAJ 1kHz 4
Ω (DC 15V supply operation)

Tweeter

10W(5W+5W)/ EIAJ 1kHz 4 Ω (DC 15V supply operation)

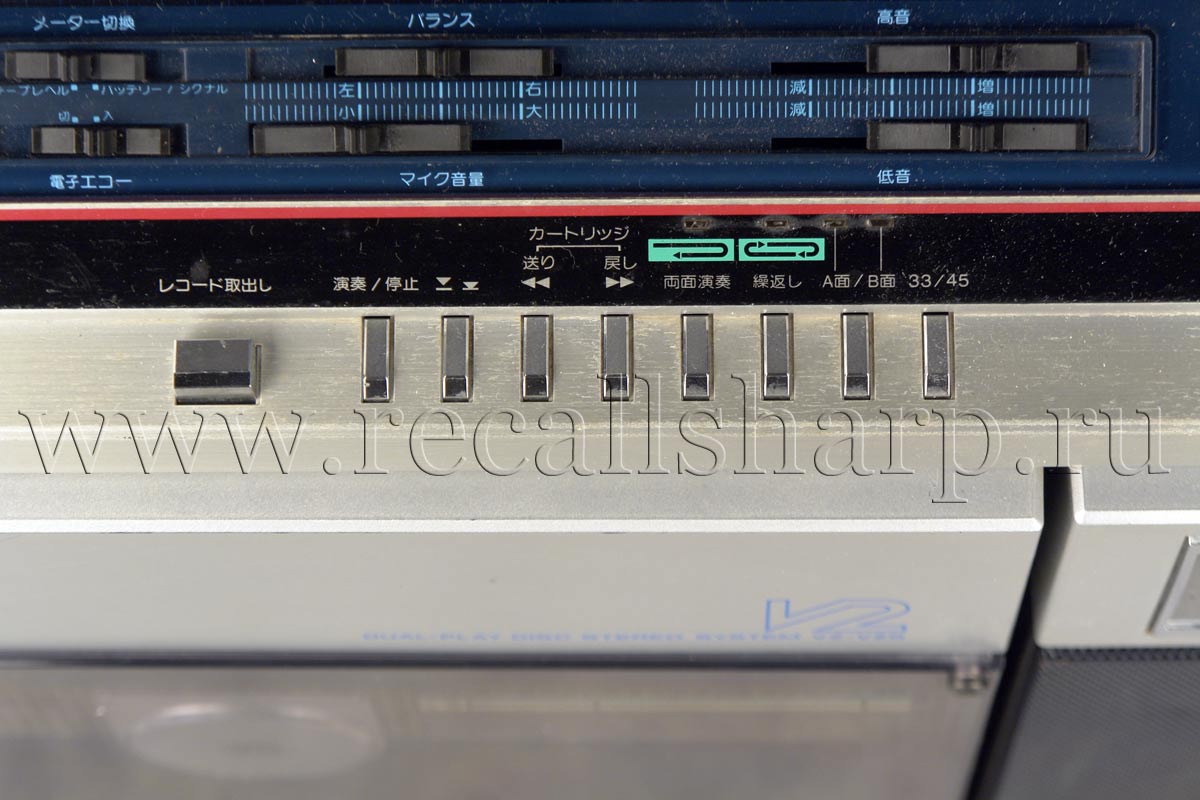

Supplied devices: Bass control, treble control, balance control.

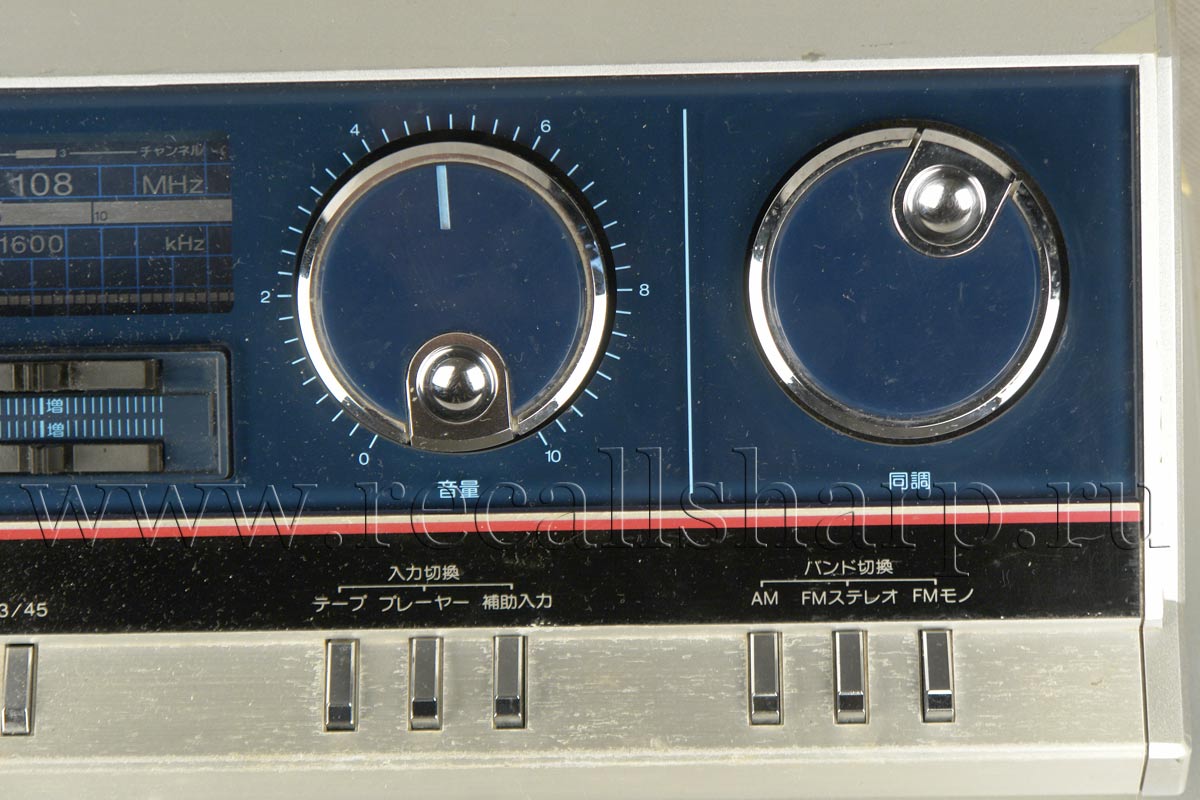

Tuner Section
Circuit: Superheterodyne FM/AM tuner, PLL
stereo demodulation circuit

Frequency range: FM: 76-108 MHz
AM: 520 - 1.620 kHz

Intermediate frequency: FM: 10.7 MHz

AM: 455 kHz

Cassette Deck Section

Recording tracks: 4 track 2 channel stereo system
Recording system: AC bias (88 kHz)
Erasing system: AC erasing system (88 kHz)
Heads: Record/playback head x 1, erase head x 1
Motor: Electronic control DC motor
Tape speed: 4.8 cm/sec.
Fast forward time: 100 sec. (C-60 tape)
Rewind time: 100 sec. (C-60 tape)
Wow & flutter: 0.065% (WRMS,JIS)
Frequency response: Normal tape: 30 - 14,000Hz
Chrome tape: 30 - 15,000Hz

Metal tape: 30 - 16,000Hz
S/N: Dolby NR off; 52dB

Dolby NR on; 62dB

(Metal tape, over 5kHz)

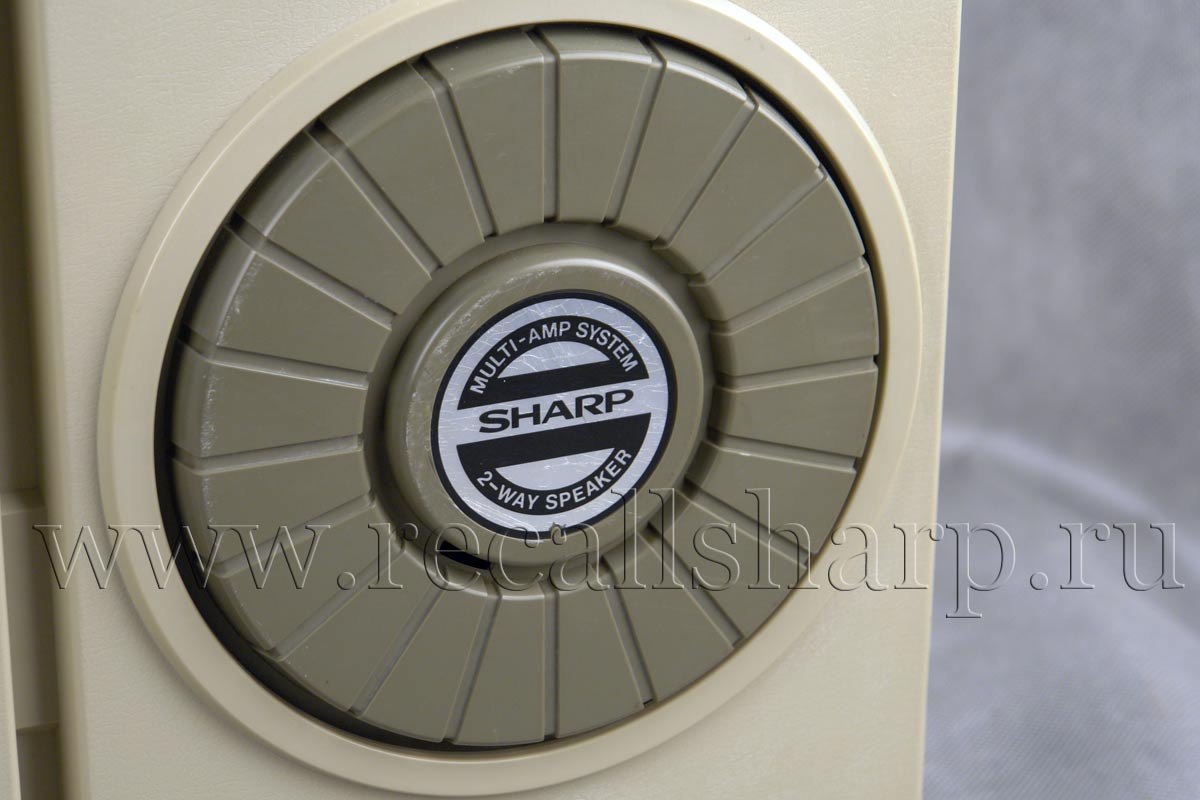

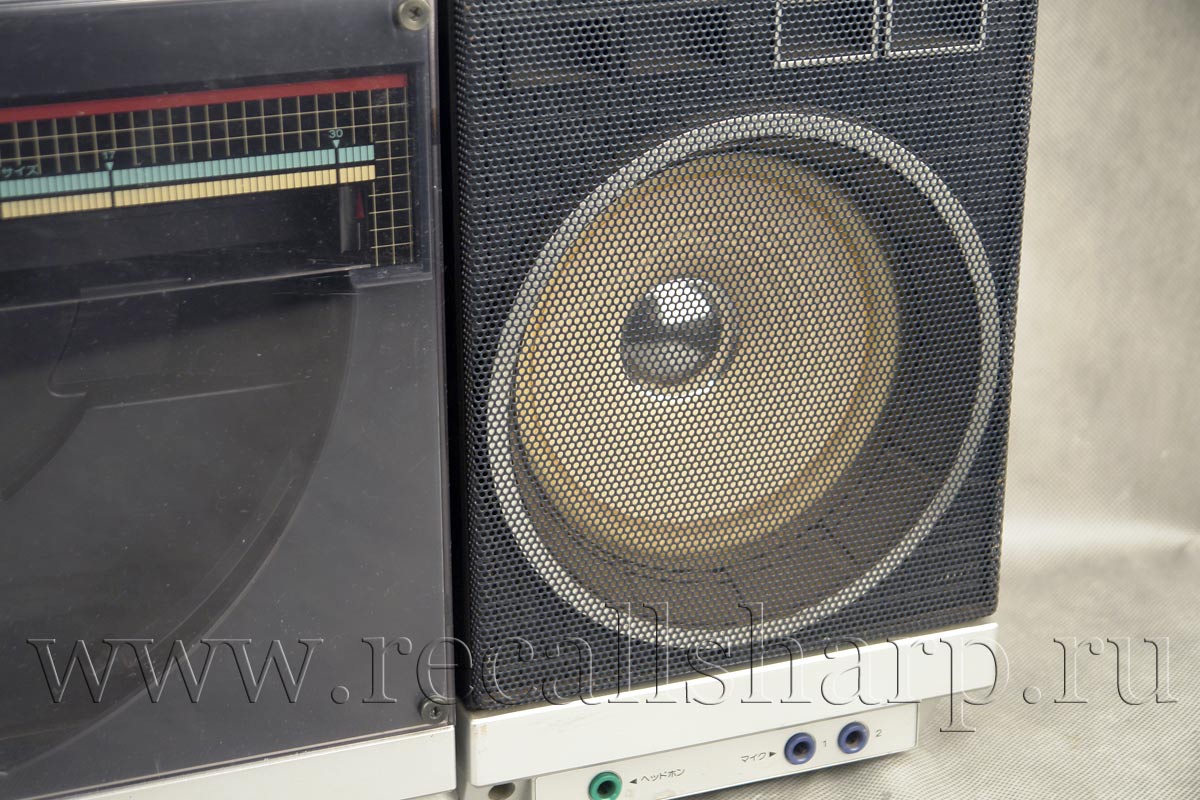

Speaker Section
Speakers: 16cm woofer x 2
5cm tweeter x 2

Frequency range: 70 20,000Hz
Crossover frequency: 3,000Hz
Impedance: 4
Ω

Sharp reserves the right to make design and specification changes for product improvement.

:
