SHARP 15 1912 ., . "". 1915 . " " , . 1923 . . , Haykawa Metal Works, - Sharp Corparation.

1925 . , , . , . , SHARP. , SHARP .

1926 . , . 1951 . , 1952 . RCA. SHARP TV3-14T.

1952 . . 1961 . .

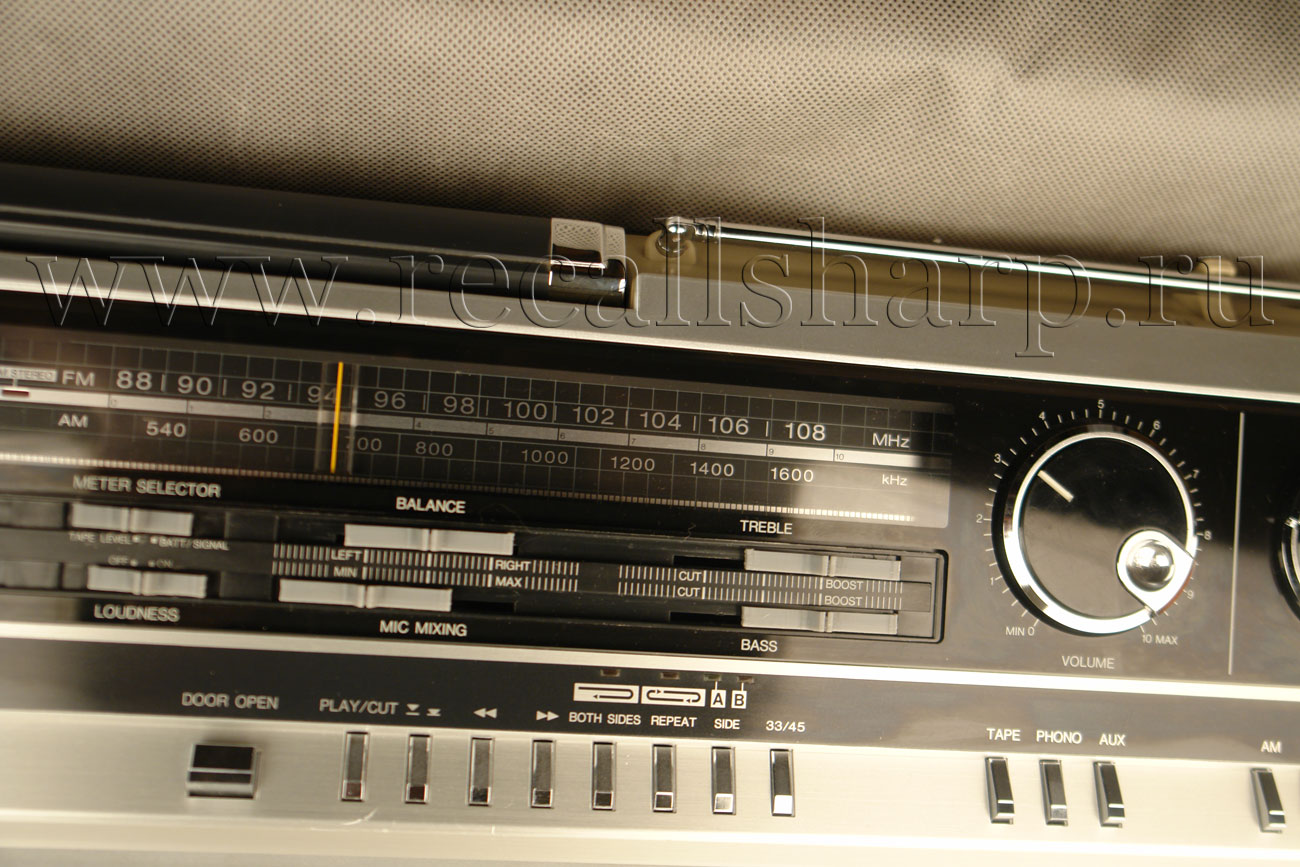

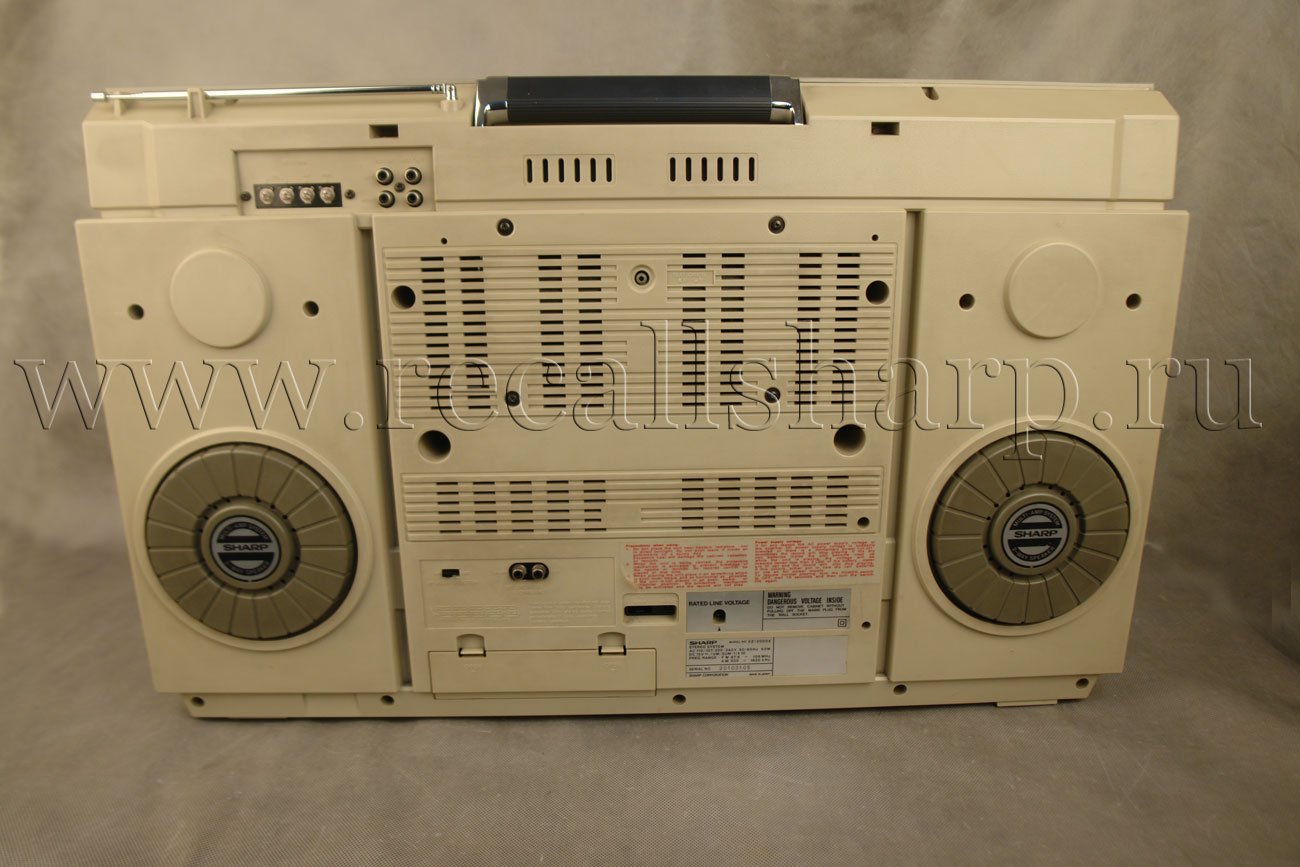

Sharp VZ-2000



: 1981


Power source AC; 110\127\ 220\ 240V,50/60Hz

DC. Internal (Batteries): UM/SUM-1 size
DC. External: 15V

Power consumption: 60 W

Dimensions: Width; 738 mm
Height; 459 mm
Depth; 193 mm

Weight: 16.5 kg without batteries

Tuner Section
Circuit: Superheterodyne FM/MW/LW tuner, PLL
stereo demodulation circuit

Frequency range: FM: 87.6-108 MHz
AM: 520 - 1.620 kHz

Intermediate frequency: FM: 10.7 MHz

AM: 455 kHz

Cassette Deck Section

Recording tracks: 4 track 2 channel stereo system
Recording system: AC bias (88 kHz)
Erasing system: AC erasing system (88 kHz)
Heads: Record/playback head x 1, erase head x 1
Motor: Electronic control DC motor
Tape speed: 4.8 cm/sec.
Fast forward time: 100 sec. (C-60 tape)
Rewind time: 100 sec. (C-60 tape)
Wow & flutter: 0.2% (DIN)
Frequency response: Normal tape: 30 - 14,000Hz
Chrome tape: 30 - 15,000Hz

Metal tape: 30 - 16,000Hz
S/N: Dolby NR off; 52dB

Dolby NR on; 62dB

(Metal tape, over 5kHz)

Speaker Section
Speakers: 16cm woofer x 2
5cm tweeter x 2

Frequency range: 70 — 20,000Hz
Crossover frequency: 3,000Hz
Impedance: 4
Ω

Sharp reserves the right to make design and specification changes for product improvement.



:
Sharp VZ-2000 E
Sharp VZ-2000 H
Sharp VZ-V2
Sharp VZ-V2 S
Sharp VZ-2000 XA
