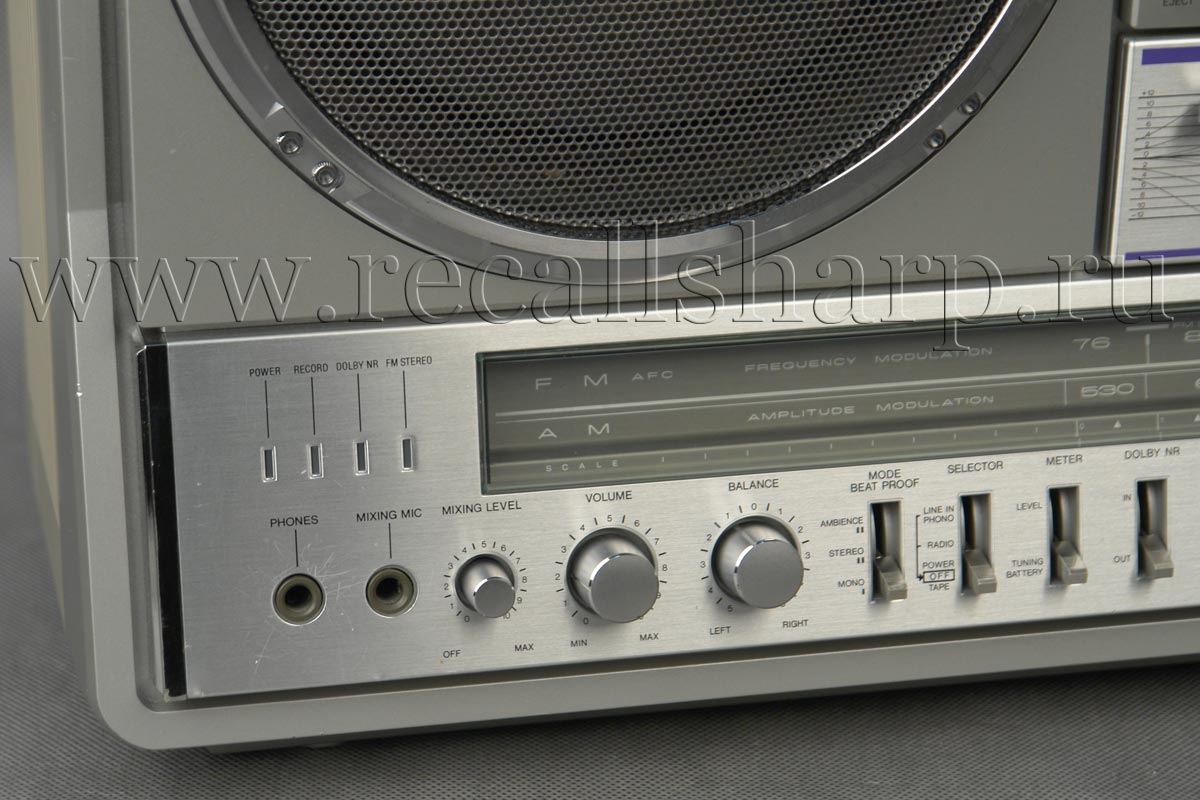

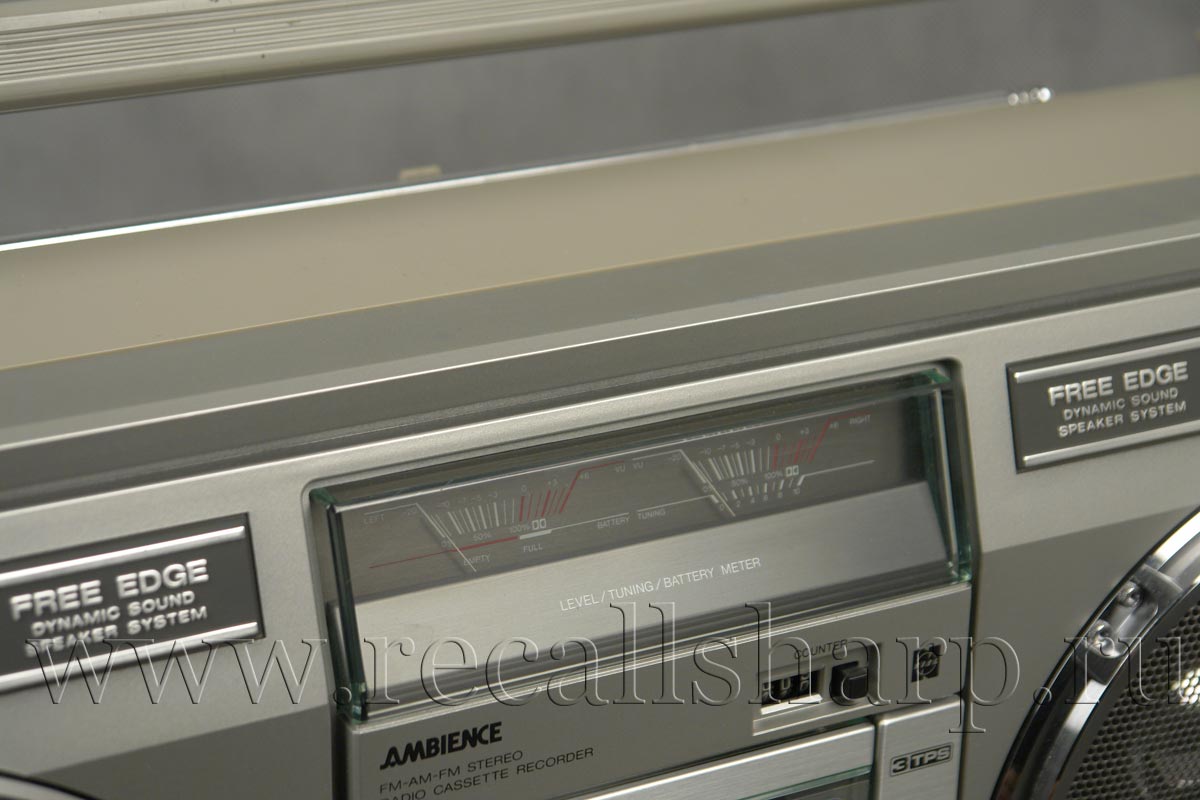

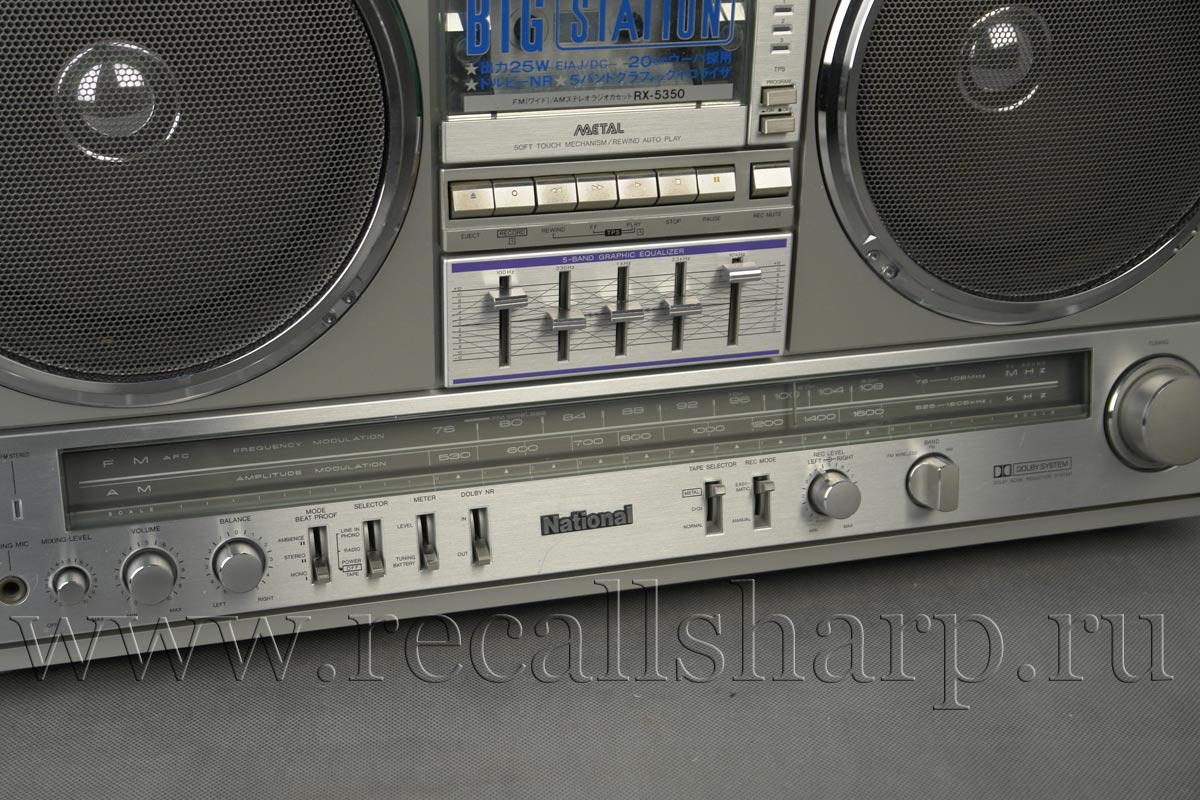

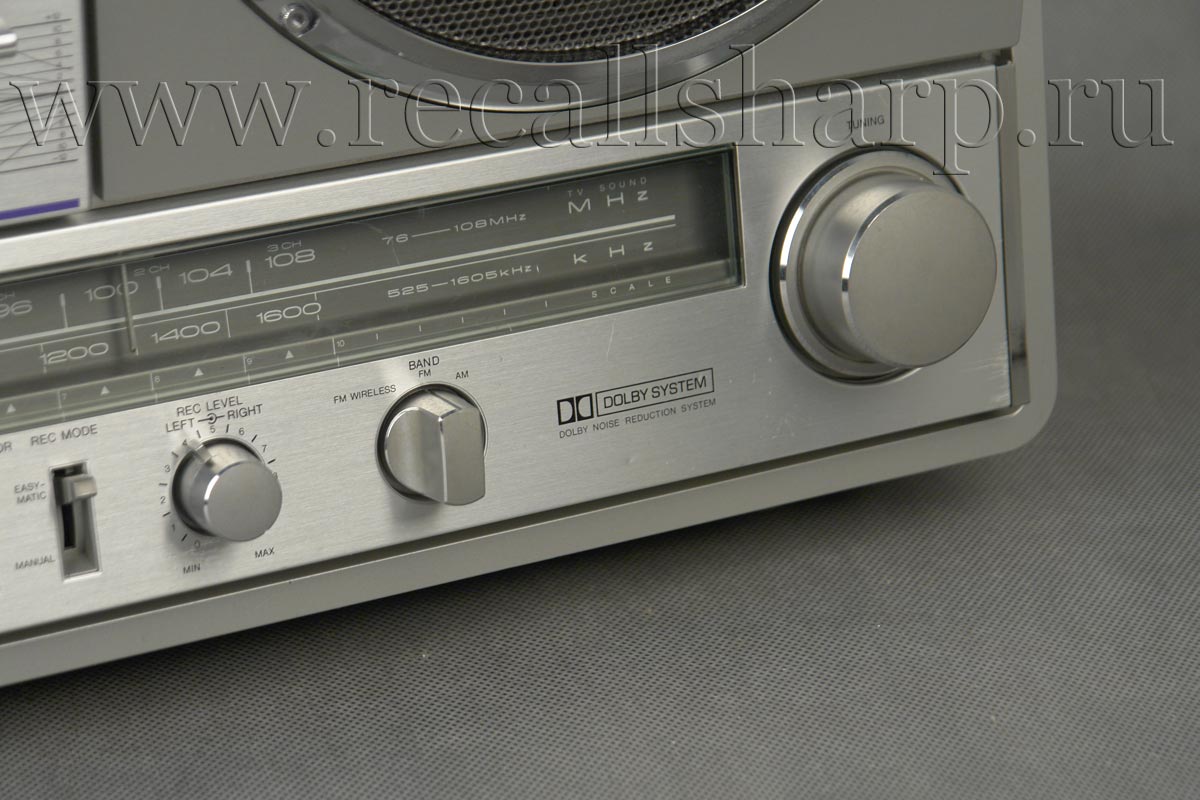

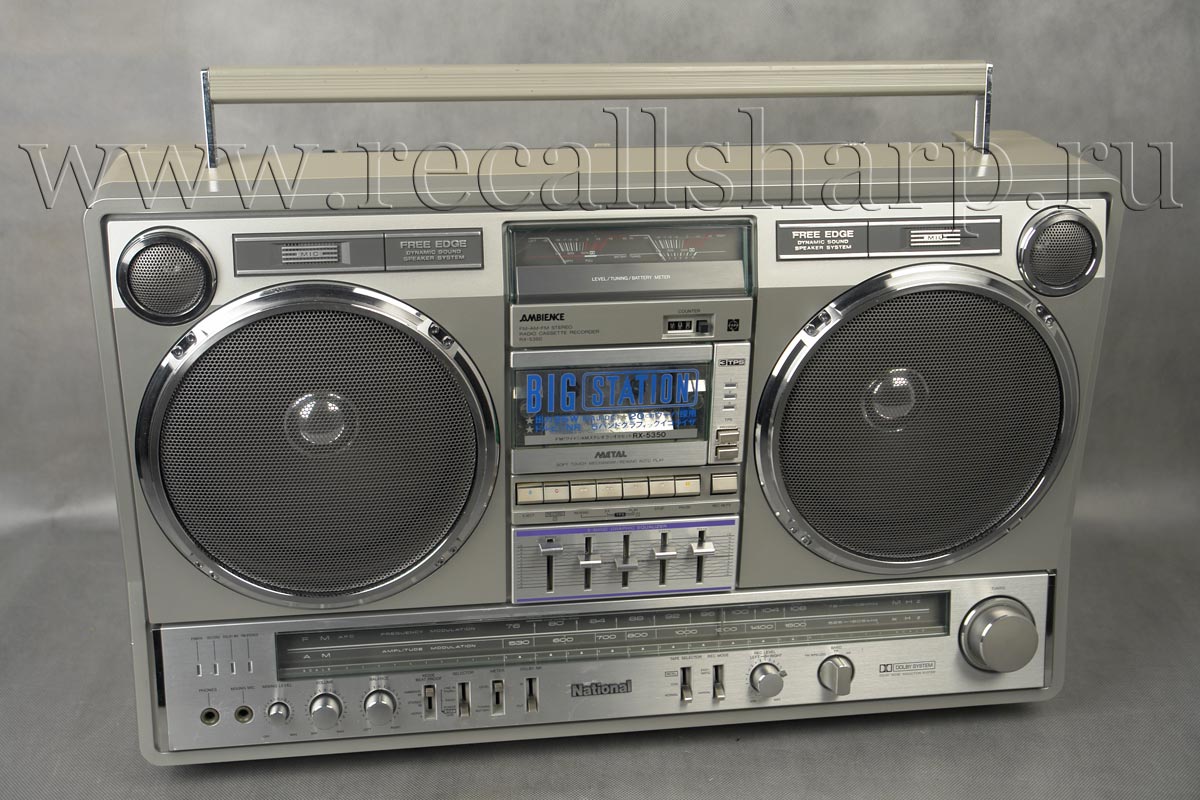

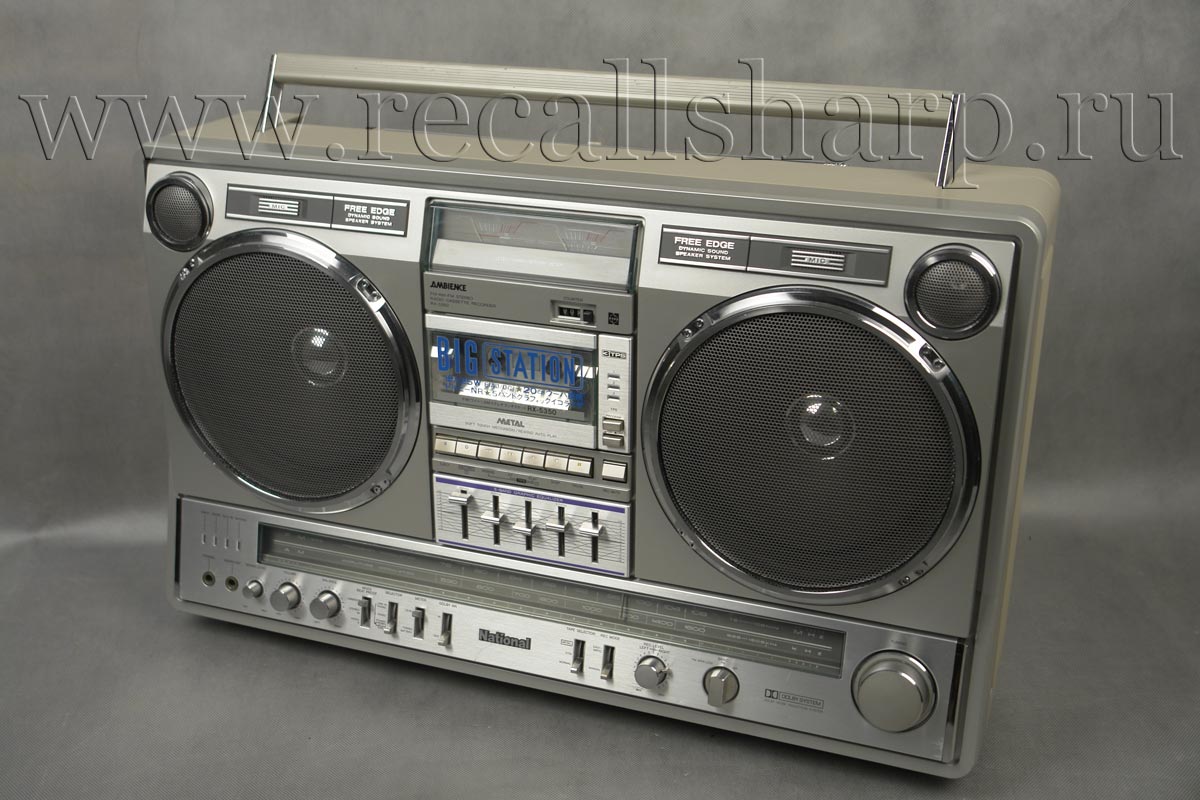

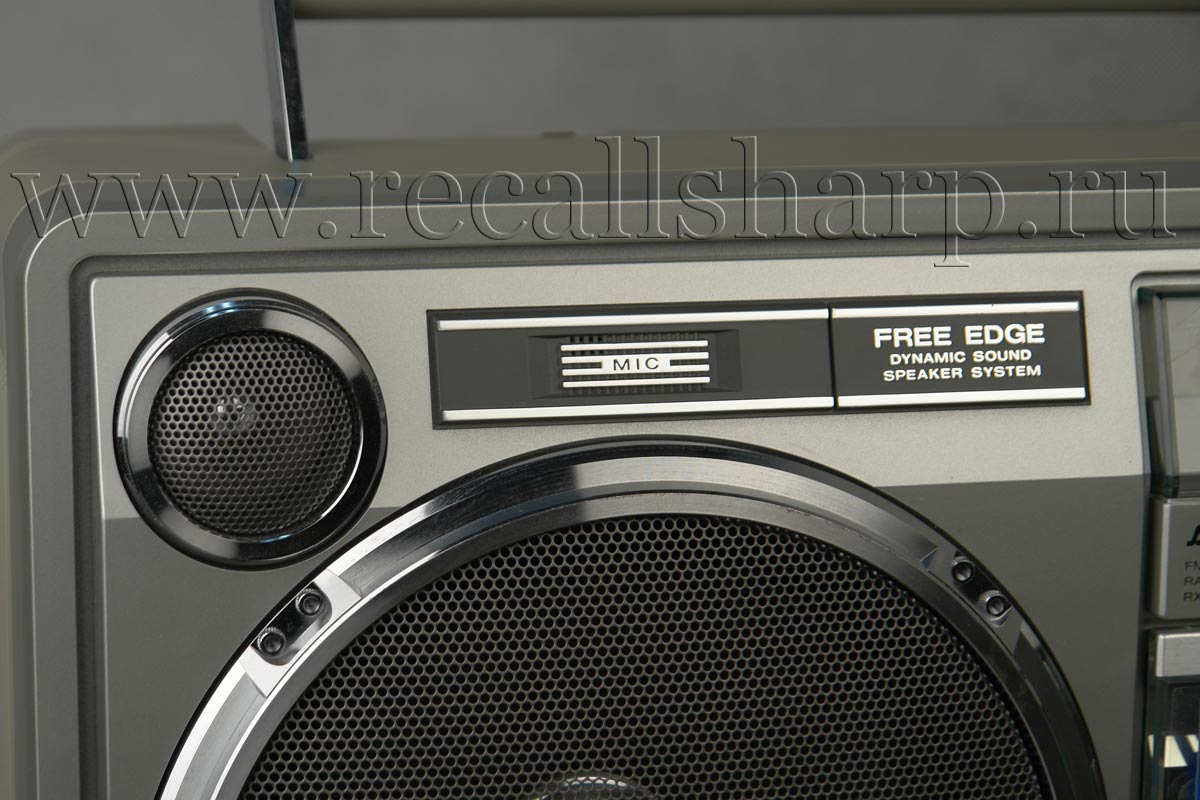

National RX-5350



: 1982


General
Power requirement: AC;100V, 50Hz\60Hz

Battery; 15V (Ten- "D" size Flashlights batteries
Panasonic UM-1 or equivalent)
Car battery;with optional car battery cord RP-9550
Power consumption; 37 W (with AC only)
Power output: 25W (EIAJ)
(with DC )
Speakers: WOOFER; 20cm(8") PM dynamic speaker 8
Ω
TWEETER; 5cm(2") PM dynamic speaker 4
Ω

Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ohm
MIX MIC
sensitivity 0.8mV
PHONO
sensitivity 2.5mV/47KOhm
LINE IN; sensitivity 100mV/47KOhm
DC IN:13.2
15V

Output: LINE OUT sensitivity 420mV/4.7KΩ
under EXT SP
8Ω
HEADPHONES; 8Ω
Dimensions: 642mm(W) x 396mm(H) x 187mm(D)
Weight 9.8 kg without
batteries

Radio section:
Radio frequency range: FM; 76-108 MHz
AM; 525-1610 kHz



Tape deck section:
Frequency Response: 40-15,000 Hz(with normal tape)

40-16,000Hz (with CrO2 tape)
40-17,000Hz
Recording system; AC bias, AC erase
Tape speed: 4.8cm/s
Wow&Flutter 0,05%(WRMS)
Program time: 1 hour with C-60 cassette tape
Track system: 4-track stereo recording and playback







:
National Panasonic RX-5350 F
Panasonic RX-5350
