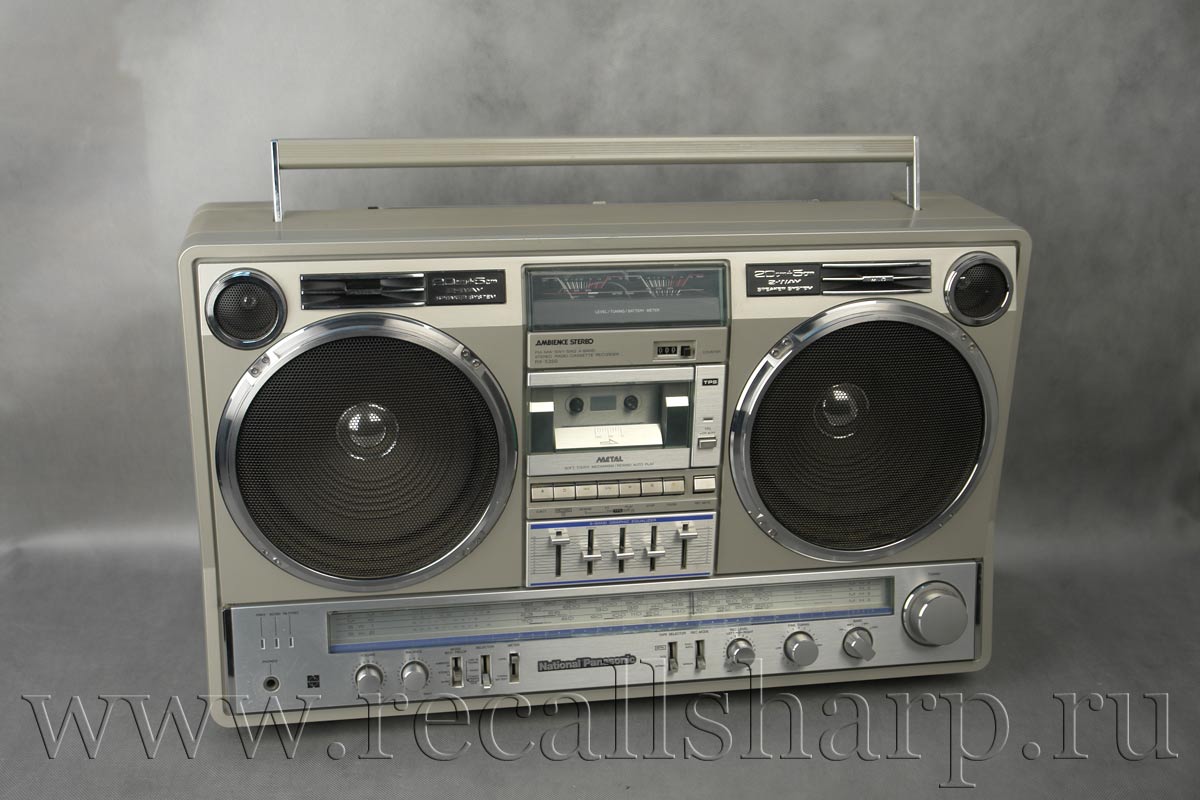

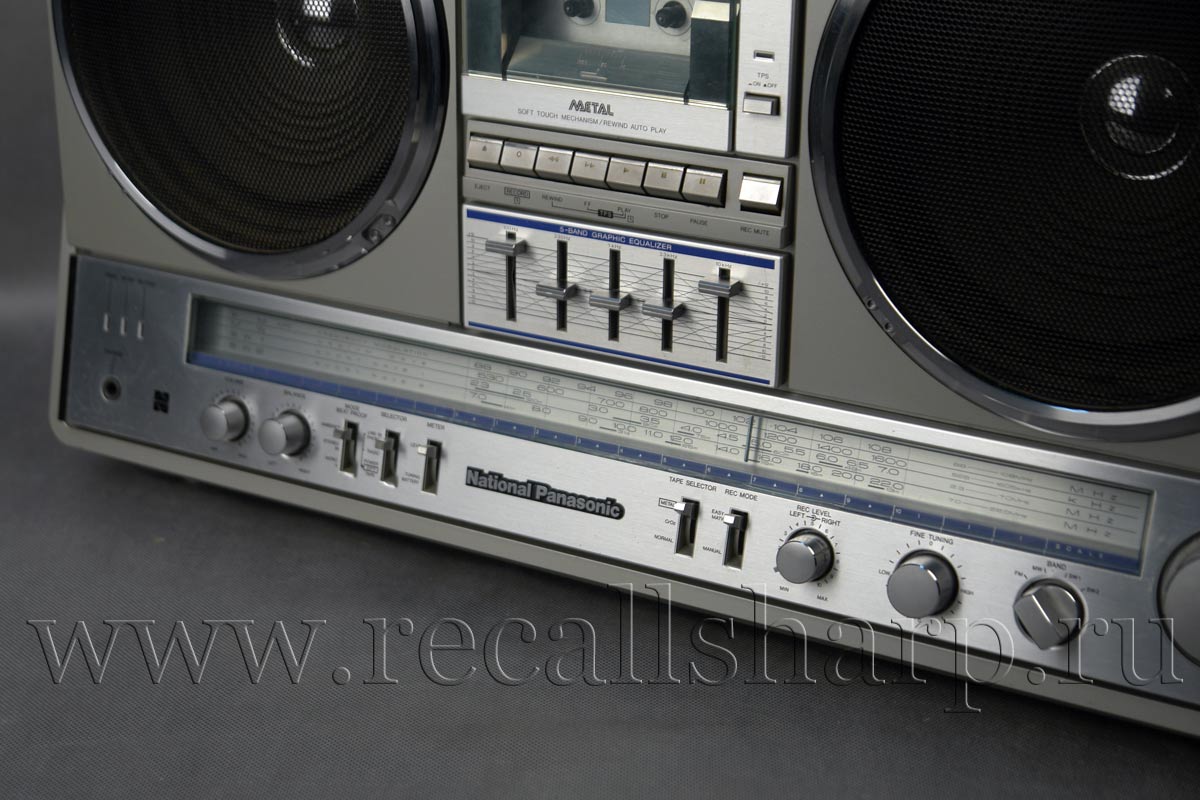

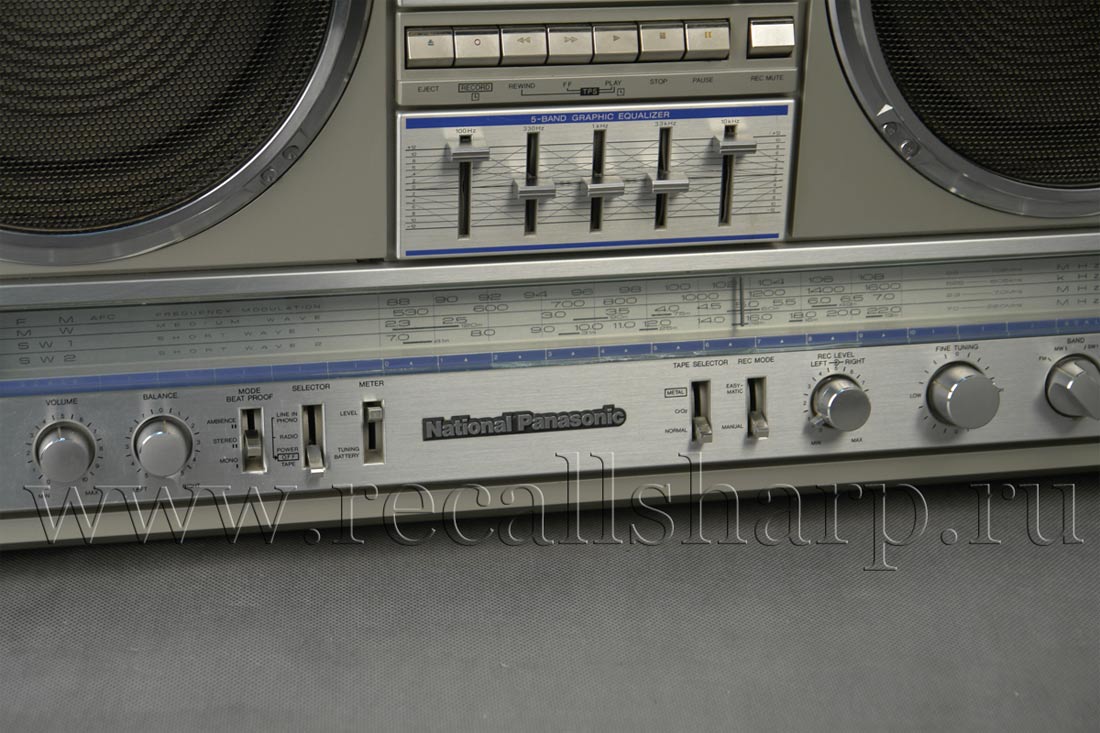

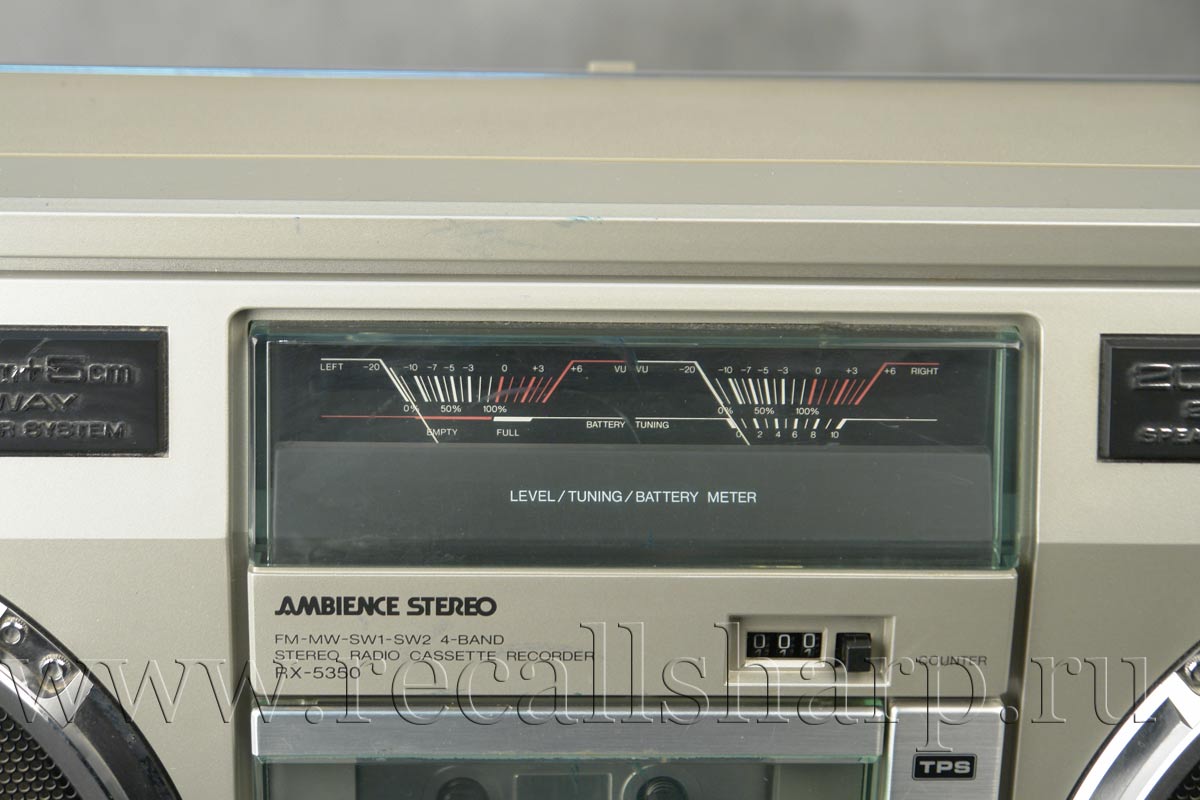

National Panasonic RX-5350 F



: 1982


General
Power requirement: AC;200-220/230-250V, 50Hz\60Hz

Battery; 15V (Ten- "D" size Flashlights batteries
Panasonic UM-1 or equivalent)
Car battery;with optional car battery cord RP-9550
Power consumption; 48 W (with AC only)
Power output: 40W (20Wx2) ... RMS (max)

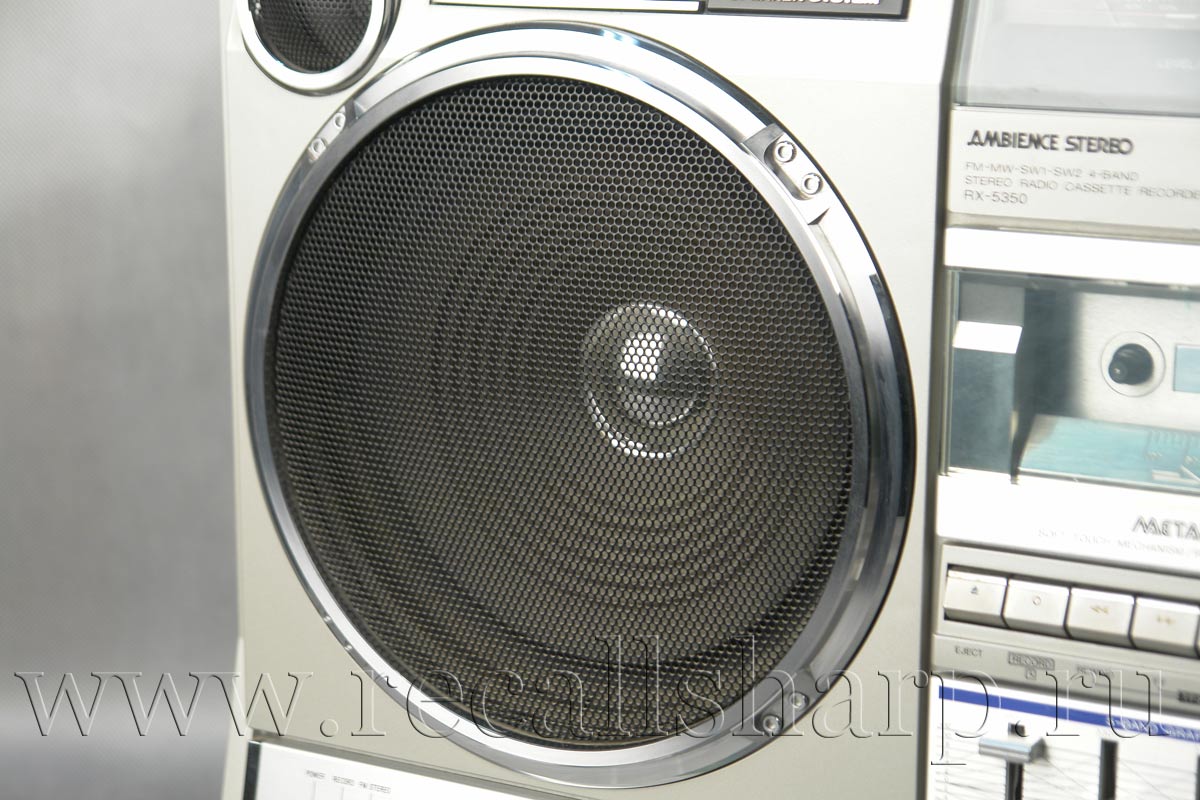

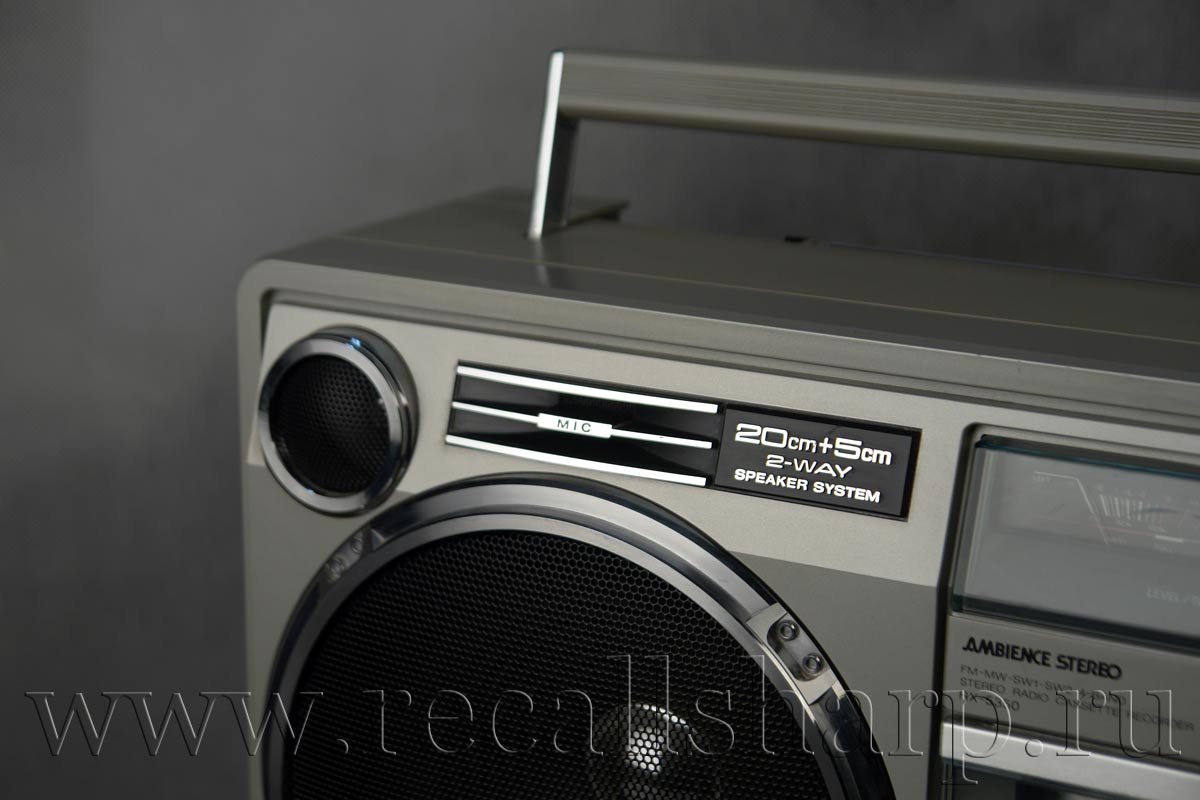

Speakers: WOOFER; 20cm(8") PM dynamic speaker 8Ω
TWEETER; 5cm(2") PM dynamic speaker 4
Ω

Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ohm
MIX MIC
sensitivity 0.8mV
PHONO
sensitivity 2.5mV/47KOhm
LINE IN; sensitivity 100mV/47KOhm
DC IN:13.2
15V

Output: LINE OUT sensitivity 420mV/4.7KΩ
under EXT SP
8Ω
HEADPHONES; 8Ω
Dimensions: 642mm(W) x 396mm(H) x 187mm(D)
Weight 9.8 kg without
batteries

Radio section:
Radio frequency range: FM; 88-108 MHz
MW; 530-1605 kHz
SW1; 2.3-7 MHz
SW2
; 7-22 MHz
Intermediate F
requency FM 10.7 MHz
AM (MW/SW) 455 kHz

Sensitivity: FM 2μV/50mW Output
MW 70μV
/m/
50mW Output
SW1
70μV/m/ 50mW Output
SW2
10μV/50mW Output

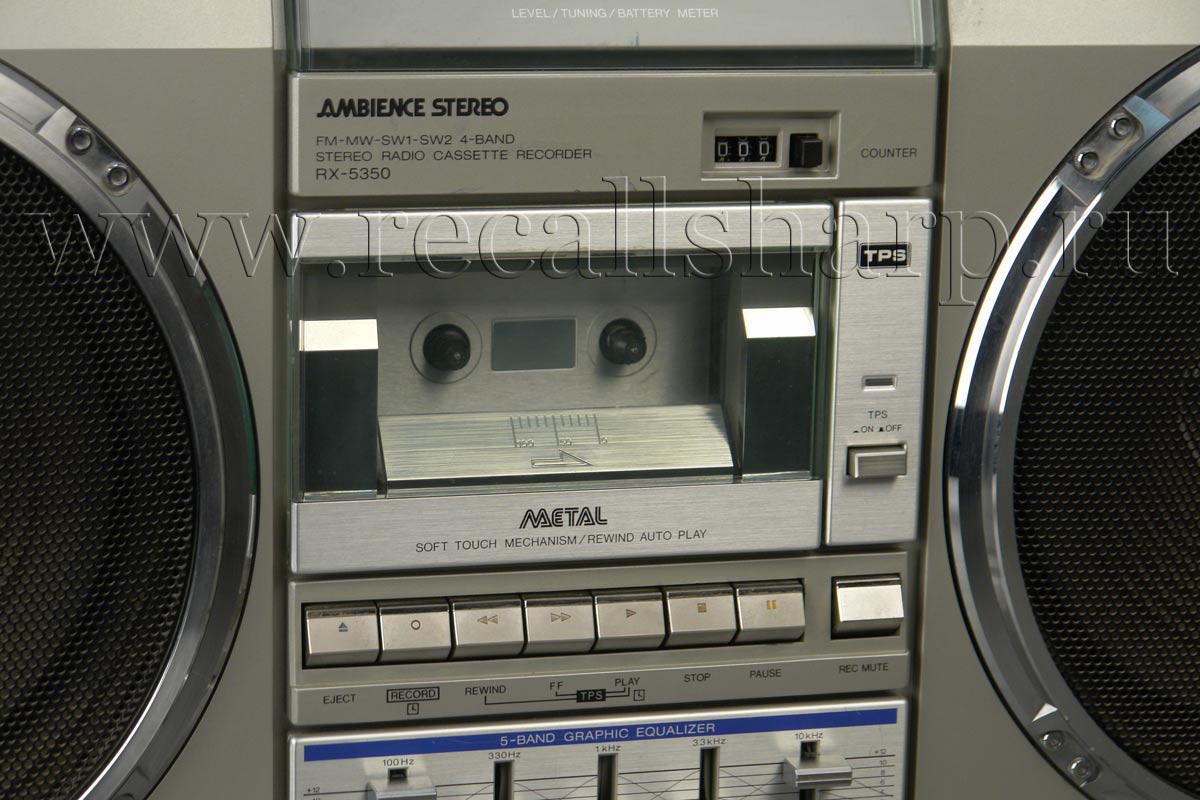

Tape deck section:
Frequency Response: 40-15,000 Hz(with normal tape)

40-16,000Hz (with CrO2 tape)
40-17,000Hz
Recording system; AC bias, AC erase
Tape speed: 4.8cm/s
Wow&Flutter 0,05%(WRMS)
Program time: 1 hour with C-60 cassette tape
Track system: 4-track stereo recording and playback







:

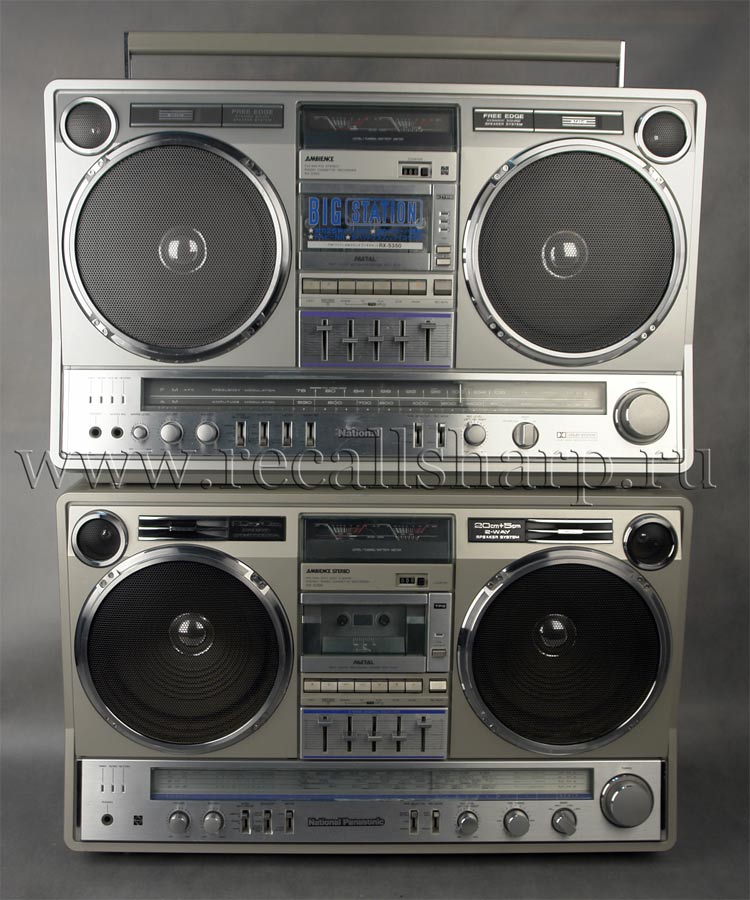

National RX-5350
Panasonic RX-5350
