Panasonic Corporation , . 2007 59- Fortune Global 500. 1 2008 Matsushita Electric Industrial Co., Ltd.

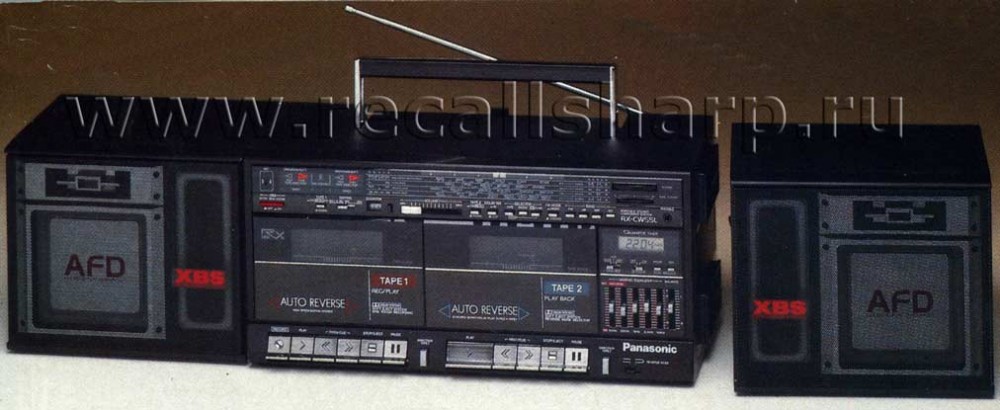

Panasonic RX-CW55 L 88-108 MHz



: 1987


SPECIFICATIONS
<RADIO>
Radio Frequency Range:
FM; 87.5-108 MHz
LW; 148.5-285 kHz
MW; 520-1610 kHz
SW; 5.9-18.0 MHz
<TAPE RECORDER>-
Frequency Range:
60-12000 Hz (with normal tape)
60-13000 Hz (with Cr02 type tape)
Recording System: AC bias, Magnet erase
Tape Speed: 4.8 cm/s
Track System: 4-track 2-channel stereo




<TIMER/CLOCK>-

Power Requirement: Battery; DC 1.5 V (one UM-3, "AA" size battery)

<GENERAL>
Power Requirement: AC; 110-127/200-220/230-250 V, 50/60 Hz
Power consumption; 38 W Battery; 15 V (ten UM-1, "D" size batteries)
Car Battery; with optional car battery cord RP-9550

Power Output: 60W (30Wx2)….PMPO

30W(15Wx2)...MPO
Speakers:
Woofer; (10 cmx10 cm AFD speaker)x2
Tweeter; 2 cm speakerx2
Passive Radiator; 5 cmx13 cm
Jacks:
Input;
MIX MIC; sensitivity 4 mV/applicable microphone impedance
200-600 Ohm (recommended microphone RP-V305)
CD/LINE IN; sensitivity 400 mV/47 kOhm.

Output; EXT SP; 3 Ohm
HEADPHONES; 32 Ohm (8-50 Ohm)

Dimensions: (WxHxD) 725x163x188 mm

Main unit; 355x163x188 mm

Speaker box;191x163x168 mm
Weight:6.0 kg without batteries




:
National RX-CW55 F
Panasonic RX-CW55 L 65-74 MHz
