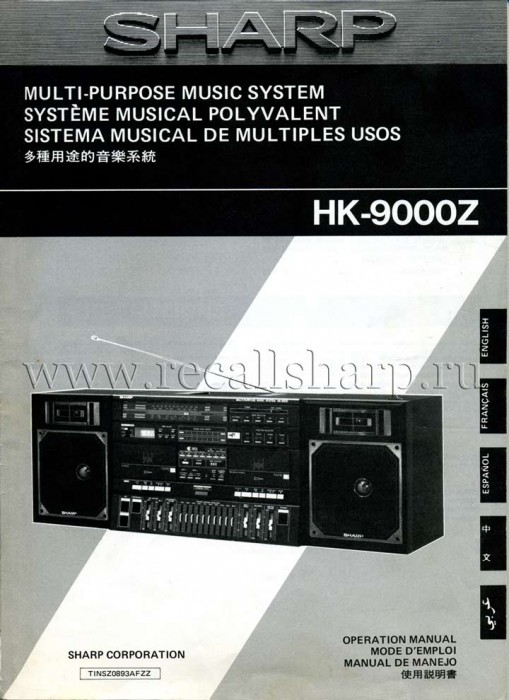

Sharp HK-9000 Z(BK)



: 1985


SPECIFICATIONS
General
Power source: AC 110V - 127V and 220V - 240V, 50/60HZ
DC 15V (UM/SUM-1 or R20 type x 10, or external 12 - 15V DC)
Power consumption: 70W (AC)
Semiconductors: 17 ICs (Integrated circuits)
53 transistors
55 diodes
16 LEDs (Light Emitting Diodes)

Dimensions: (Main unit)
Width; 430 mm (17")
Height; 295 mm (11-5/8")
Depth; 235 mm (9-1/4")
(System)
Width; 858 mm (33-3/4")
Height; 295 mm (11-5/8")
Depth; 235 mm (9-1/4")
Weight: (Main unit) 9 kg (19.8 lbs)
without batteries)
(System) 14.8 kg (32.6 lbs)
Amplifier

Peak music power
output: 2 x 104W/4 ohms (AC operation)
Music power output: 2 x 26W/4 ohms (AC operation)
Continuous power
Output: 2x 18W/4ohms, at 10%T.H.D.
(AC operation)
Frequency response
(AUX) 60Hz - 20kHz (±3dB)
Graphic equalizer: 100Hz(8dB)
180Hz (8dB)
310Hz
(8dB)
550Hz (8dB)
1kHz (8dB)
1.8kHz (8dB)
3.1kHz (8dB)
5.5kHz (8dB)
10kHz (
8dB)
16kHz (8 dB)
Input sensitivity/ Impedance:
CD/AUX; 220mV/47 k ohms
PHONO; 3mV/47kohms
MIC; 1mV/10kohms
INSTRUMENT; 220mV/1 M ohms

Out impedance: Speakers; 4 —16 ohms
Headphones; 8 32 ohms

Cassette Deck
Tape: Compact cassette tape
Tape speed: 4.8cm/sec.
Frequency response: Normal tape; 60 - 12,000Hz
CrO2 tape; 60 - 13,000Hz
Metal tape; 60 - 14,000Hz
S/N ratio; 55 dB (Deck 1, playback)
50 dB (Deck 2, recording)
Wow and flutter: 0.07% WRMS

Tuner
Frequency range: FM; 87.6 - 108 MHz
MW; 526.5-1606.5 kHz
SW1; 2.3-7.3 MHz
SW2; 7.3-22 MHz
Usable sensitivity
(mono): FM; 3 mV (40kHz deviation, S/N 26dB)
MW; 560mV/m (30% modulation, S/N 20dB)
SW1; 300mV/m (30% modulation, S/N 20dB)
SW2; 55mV/m (30% modulation, S/N 20dB)
FM S/N ration (mono): 50 dB
Total harmonic
distortion: FM; 0.5% (Mono)
FM stereo separation: 30 dB

Speaker
The specifications can be applied to either of the right and left speaker enclosures:

Type: 2-way
Speaker: 16cm (6-1/2") woofer x 2
5cm (2") tweeter x 2
Input: 36W
Rated impedance: 4 ohms
Dimensions: Width; 212 mm (8-3/8")
Height; 295 mm (11-5/8")
Depth; 228 mm (9")
Weight: 2.9 kg (6.4 lbs)



:
