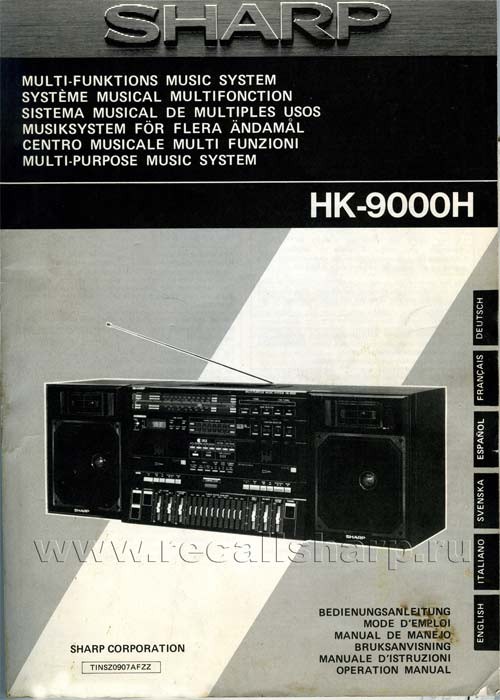

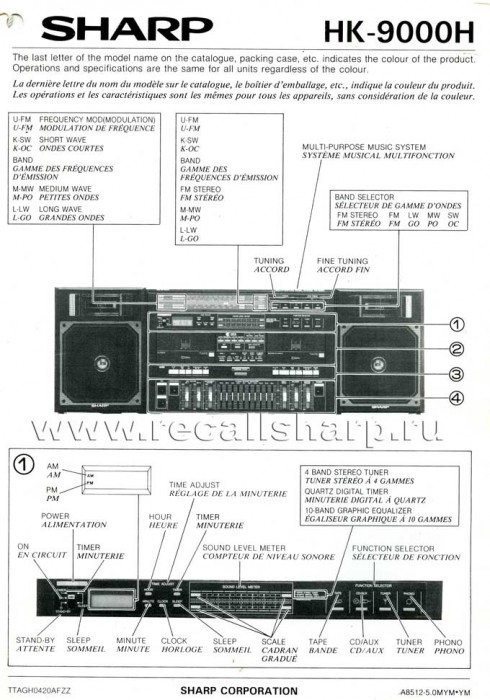

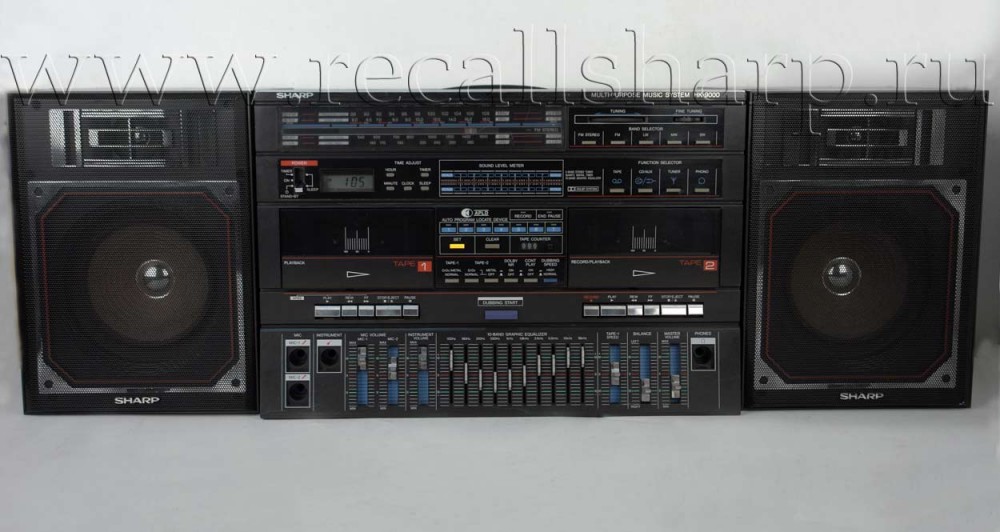

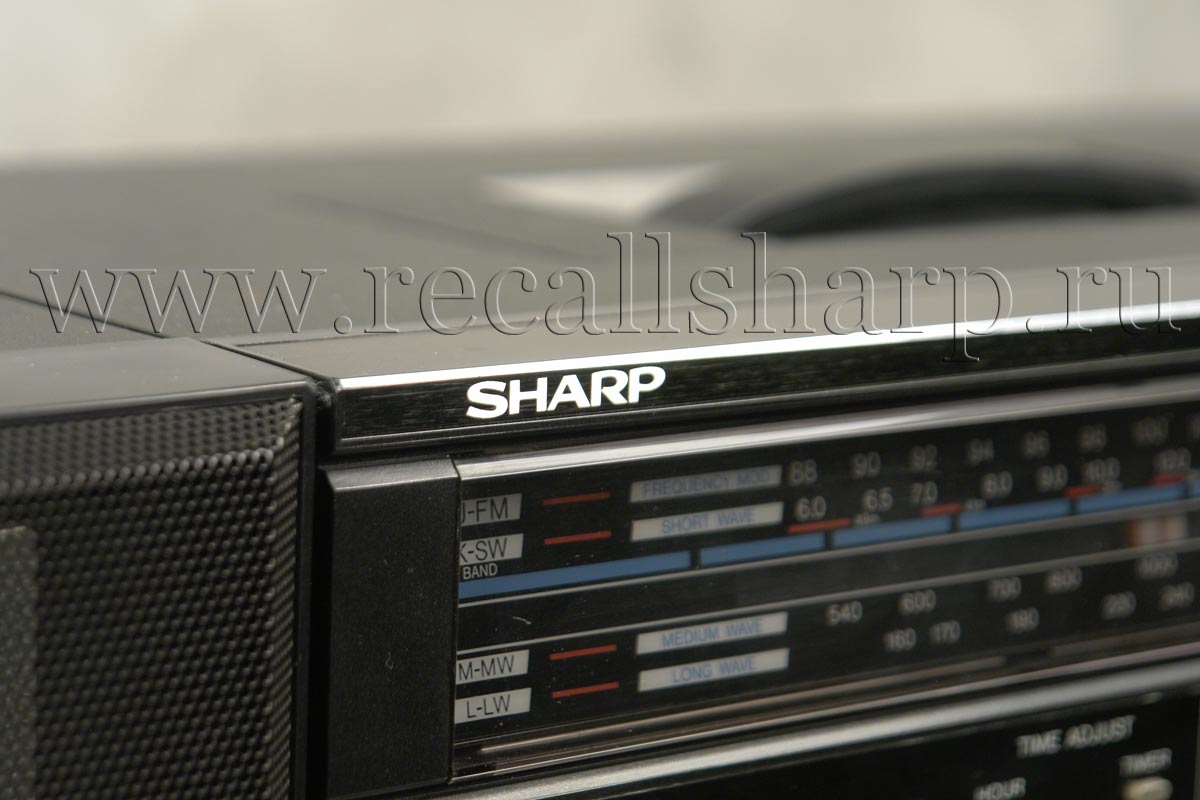

Sharp HK-9000 H (BK)



: 1985


General
Power source: AC110-1 20 and 220-240V,
50/60Hz
DC 15V (UM/SUM-1 or R20 type x

10, or external 12 - 15V DC)
Power consumption: 120W(AC)
Semiconductors: 19 ICs (Integrated circuits)
61 transistors
62 diodes
17 LEDs (Light Emitting Diodes)

Dimensions: (Main unit)
Width; 430 mm (17")

Height; 295 mm (11-5/8")

Depth; 235 mm (9-1/4")

(System)
Width; 858 mm (33-3/4")

Height; 295 mm (11-5/8")

Depth; 235 mm (9-1/4")

Weight: (Main unit) 9 kg (19.8 lbs)
(without batteries) (System) 14.8 kg (32,6 lbs)

Amplifier
Music power output: 2 x 26W/4 ohms (AC operation),
DIN45 324

Continuous power 2 x 18W/4 ohms, (AC operation),
output: DIN45 324
Frequency response 60Hz - 20kHz (+3 dB)
(Aux):
Graphic equalizer:

100Hz (±7dB)

180Hz (±7dB)
310Hz (±7dB)
550Hz (±7dB)
1 kHz (±7dB)
1.8kHz (±7dB)
3.1kHz (±7dB)
5.5kHz (+7dB)
10kHz (±7dB)
16kHz (±7dB)
Input sensitivity/ CD/AUX; 220mV/47 k ohms
impedance: PHONO; 3mV/47 k ohms
MIC; 1mV/10kohms
INSTRUMENT; 220mV/1 M ohms Speakers; 4-16 ohms
Output impedance: Headphones; 8-32 ohms

Cassette Deck
Tape: Compact cassette tape
Tape speed: 4.8cm/sec.
Frequency response: Normal tape; 60 -12,000Hz

CrO2 tape; 60 - 13,000Hz

Metal tape; 60 - 14,000Hz
S/N ratio; 55 dB (Deck 1, playback)
50 dB (Deck 2, recording)
Wow and flutter: ±0.17% (DIN)
Tuner
Frequency range: FM; 87.6 - 108 MHz
MW; 526.5-1606.5 kHz

LW; 150 -285 kHz

SW; 5.95-18 MHz

Usable sensitivity
(mono): FM; 3
μV (40kHz deviation, S/N
26dB)

MW; 500μV/m (30% modulation,
S/N 20dB)

LW; 350μV/m (30% modulation,
S/N 10dB)

SW; 60μV (30% modulation, S/N 20dB)

FM S/N ratio (mono): 50 dB

Total harmonic
distortion: FM; 0.5% (Mono)
FM stereo separation: 30 dB
Speaker
The specifications can be applied to either of the right and left speaker enclosures:
Type: 2-way
Speaker: 16cm (6-1/2") woofer x 2
5cm (2") tweeter x 2
Input: 36W
Rated impedance: 4 ohms
Dimensions: Width; 212 mm (8-3/8")
Height; 295 mm (11-5/8")

Depth; 228 mm (9")
Weight: 2.9 kg (6.4 lbs)



:
Sharp HK-9000 Z(BK)
