Год начала выпуска: 1979
Регион: Азия
TECHNICAL DATA
Rated Power Output (2-Channel Driven)...... 2 x 65 watts into 8 ohms(20-20000Hz) IHF
Power Bandwidth (IHF)..... 6 Hz to 60 kHz/8 ohms (Total harmonic distortion: 0.08%)
Signal to Noise Ratio (IHF)
PHONO............ Better than 75 dB
AUX/TAPE.............. Better than 95 dB
Residual Noise........... Less than 0.5 mV at 8 ohms
Channel Separation (IHF)
PHONO............ Better than 55 dB at 1,000 Hz
AUX.............. Better than 50 dB at 1,000 Hz
Damping Factor.......... More than 30(1 kHz, 8 ohms)

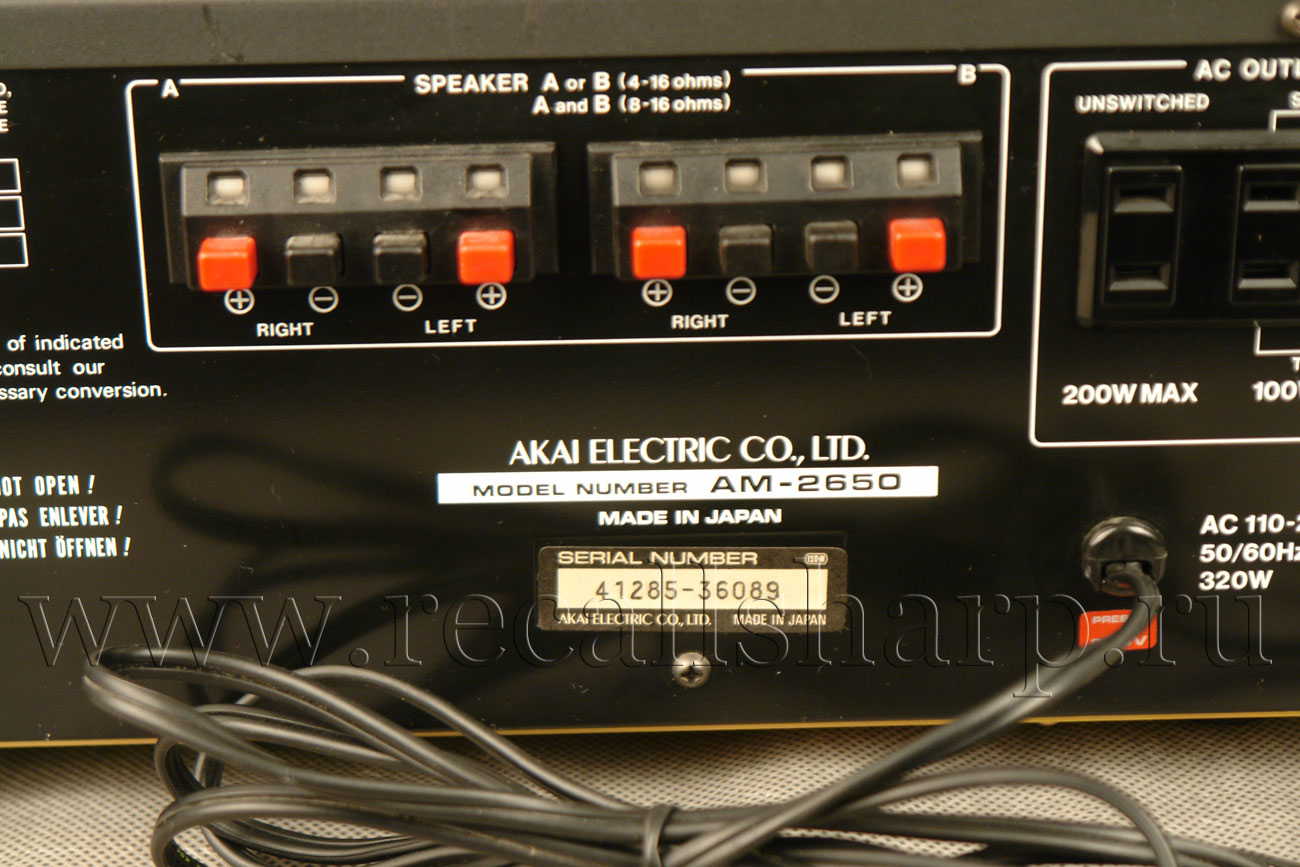

Output SPEAKERS......... A,B 4 to16ohms A+B 8 to16ohms
HEADPHONE........ 4 to 16 ohms
Input Sensitivity/Impedance

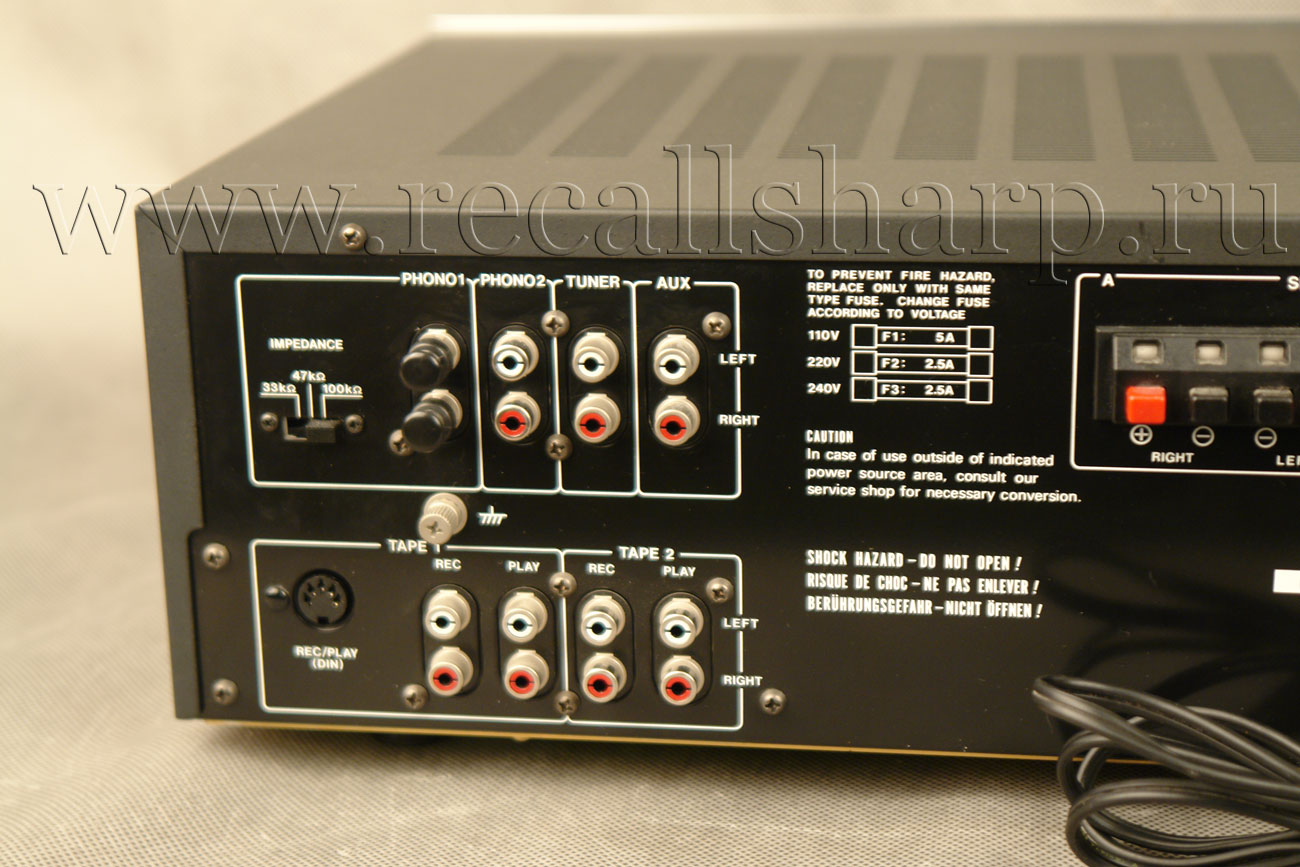

PHONO............ PHONO1 : 3 mV/33/47/100 kohms PHONO2 : 3 mV/47kohms
AUX.............. 150 mV/100 kohms
TUNER............ 150 mV/100 kohms
TAPE.............. PIN: 150 mV/100 kohms DIN: 150 mV/100 kohms Output Level
TAPE REC........... PIN: 150 mV/5 kohms, DIN: 30 mV/80 kohms
Frequency Response
PHONO............ 30 Hz to 15 kHz, ± 0.8dB
TUNER,TAPE,AUX monitor.............. 10 Hz to 60 kHz, +0 dB, -1 dB
Tone Control
BASS.............. ±9 dB at 100 Hz
TREBLE............ ±9 dB at 10 kHz
Loudness Control......... +10 dB at 100 Hz,
+5 dB at 10 kHz
Power Requirements....... 110-240V, 50/60 Hz 320 W
Dimensions............ 440(W) x 144(H) x 345(D) mm
Weight............... 10.9 kg
|
