TECHNICAL DATA
TRACK SYSTEM 4 Track, 2 channel stereo system
TAPE Philips type cassette tape
TAPE SPEED 4.8 cm/sec
WOW & FLUTTER Less than 0.06% WRMS. 0.1% (DIN45500)
FREQUENCY RESPONSE
25 to 15,000 Hz ±3 dB at LN position
25 to 18,000 Hz +3 dB at CrO, position
25 to 19,000 Hz ±3 dB at FeCr position
DISTORTION
Less than 1.0% (1000Hz "0" VU using at LN tape)
SIGNAL TO NOISE RATIO
Better than 51 dB at CrO2, position (DIN 45500)
Dolby NR switch ON: Improves up to 10 dB above 5 kHz
ERASE RATIO Better than 66 dB
BIAS FREQUENCY 100 kHz

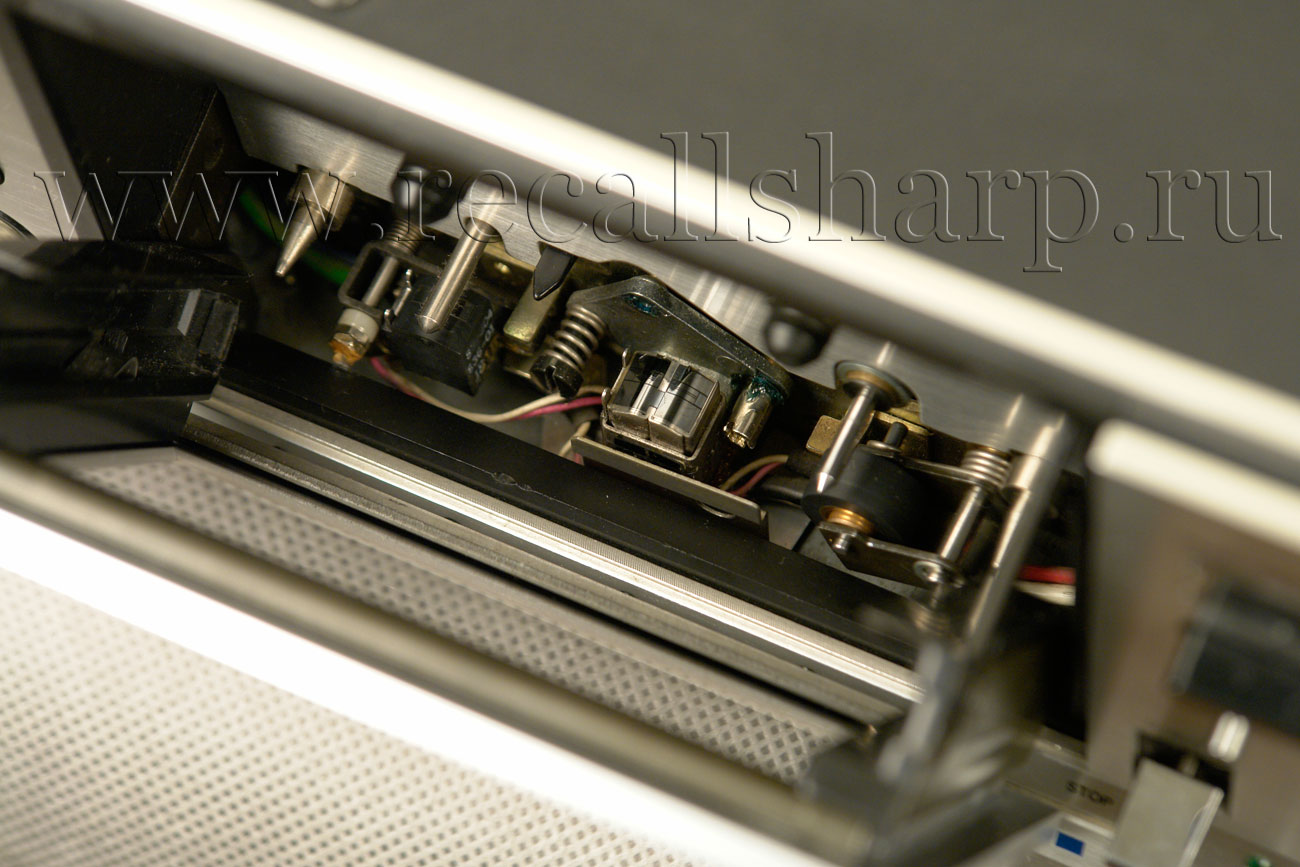

HEADS 3 head system (one GX recording/playback head and one erase head)
MOTORS 2 motor system (one DC FG servo motor for capstan drive and DC motors for reel drive)
F.F. & REWIND TIME 70 sec, using a C-60 Tape

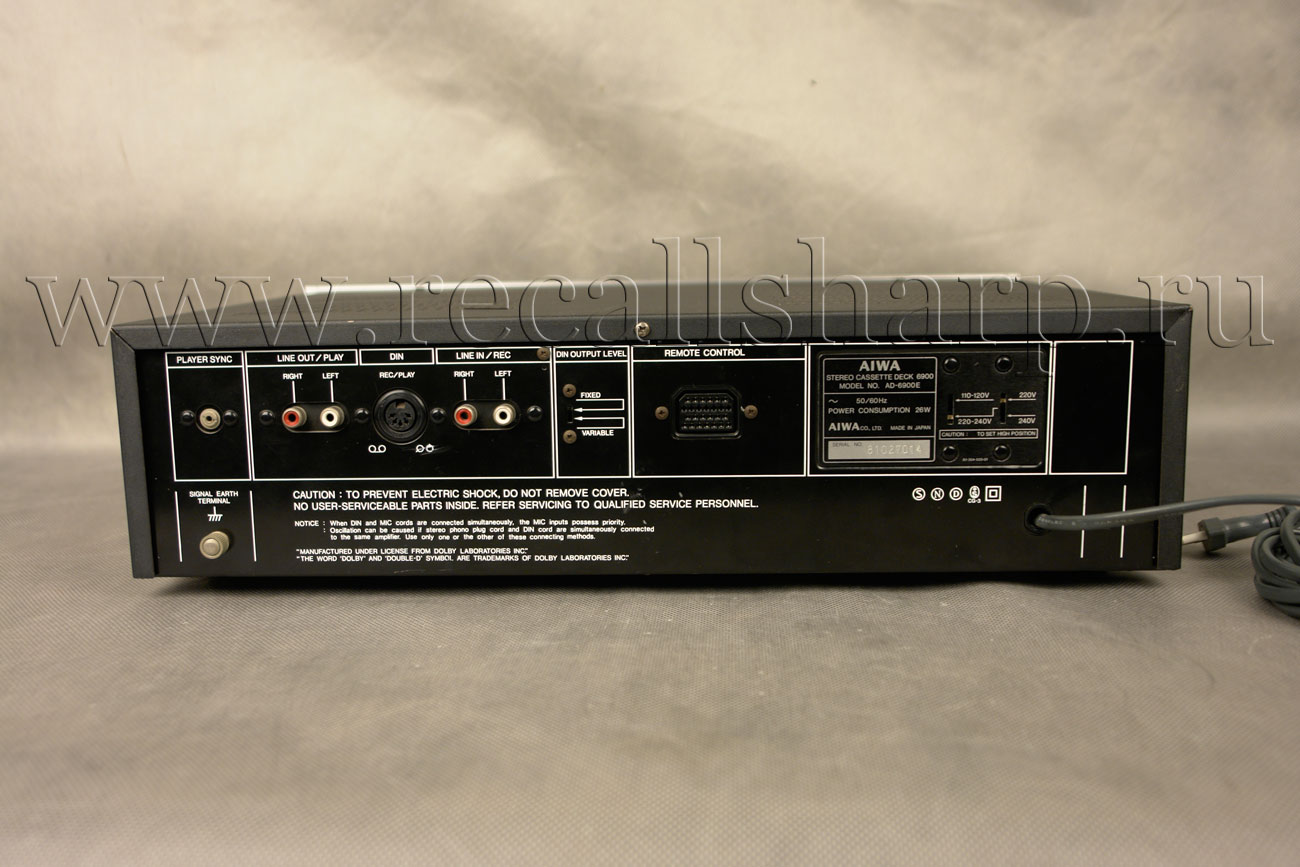

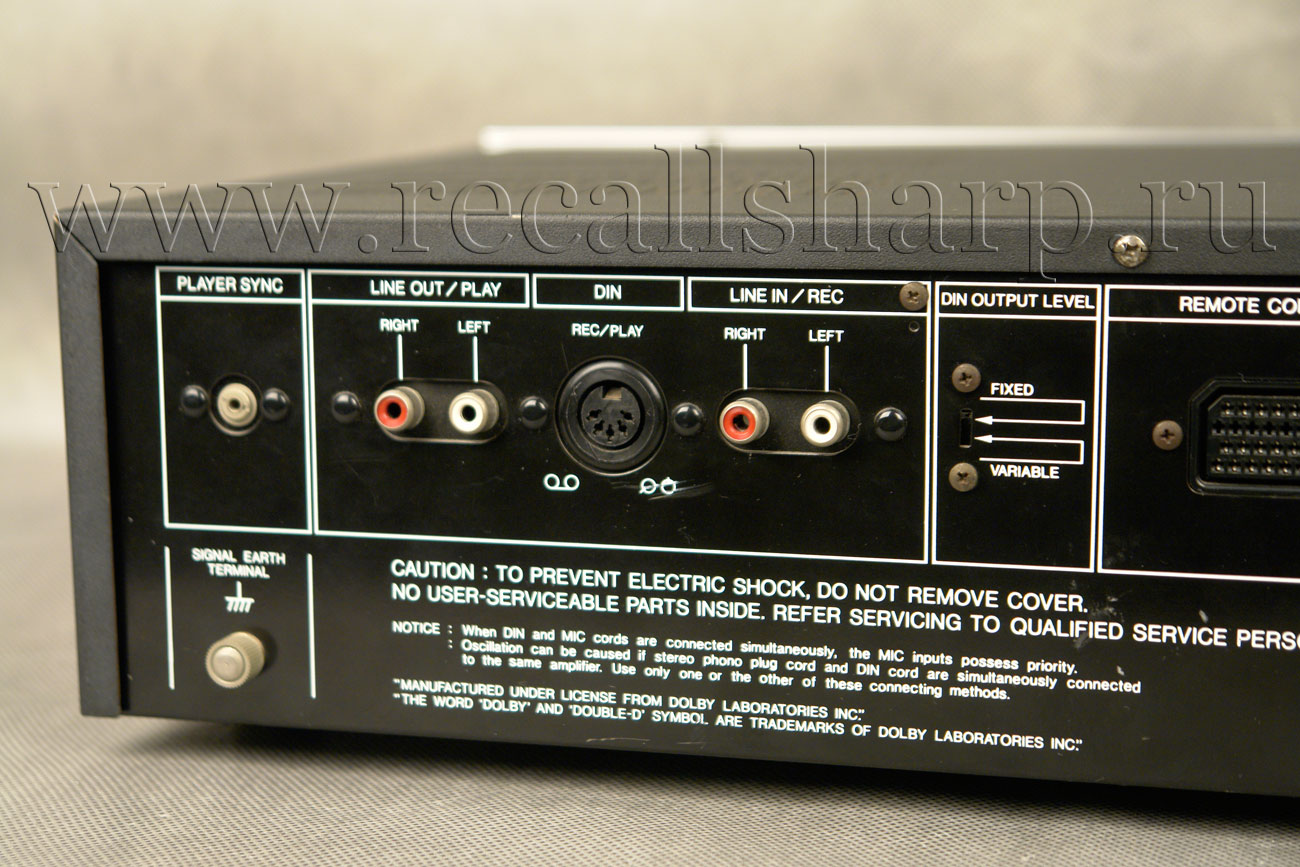

OUTPUT JACKS
Line (2): 0.775 V(0 VU)
Required load impedance: more than 20 kohms
Phone (1): 50 mV/8 ohms
INPUT JACKS Microphone (2): 0.3 mV (input impedance 2.4 kohms)
Required microphone impedance: 600 ohms
Line (2): 70 mV (input impedance 100 kohms)
SEMICONDUCTORS Transistors: 82, Diodes: 125, FETs: 8, ICs: 8
POWER REQUIREMENTS
110-120V/220-240V, 50/60 Hz 26W
DIMENSIONS 450(W) x 327(D) x 120(H) mm
WEIGHT 9.5 kg
