PIONEER Nozomu Matsumoto 1937 -8

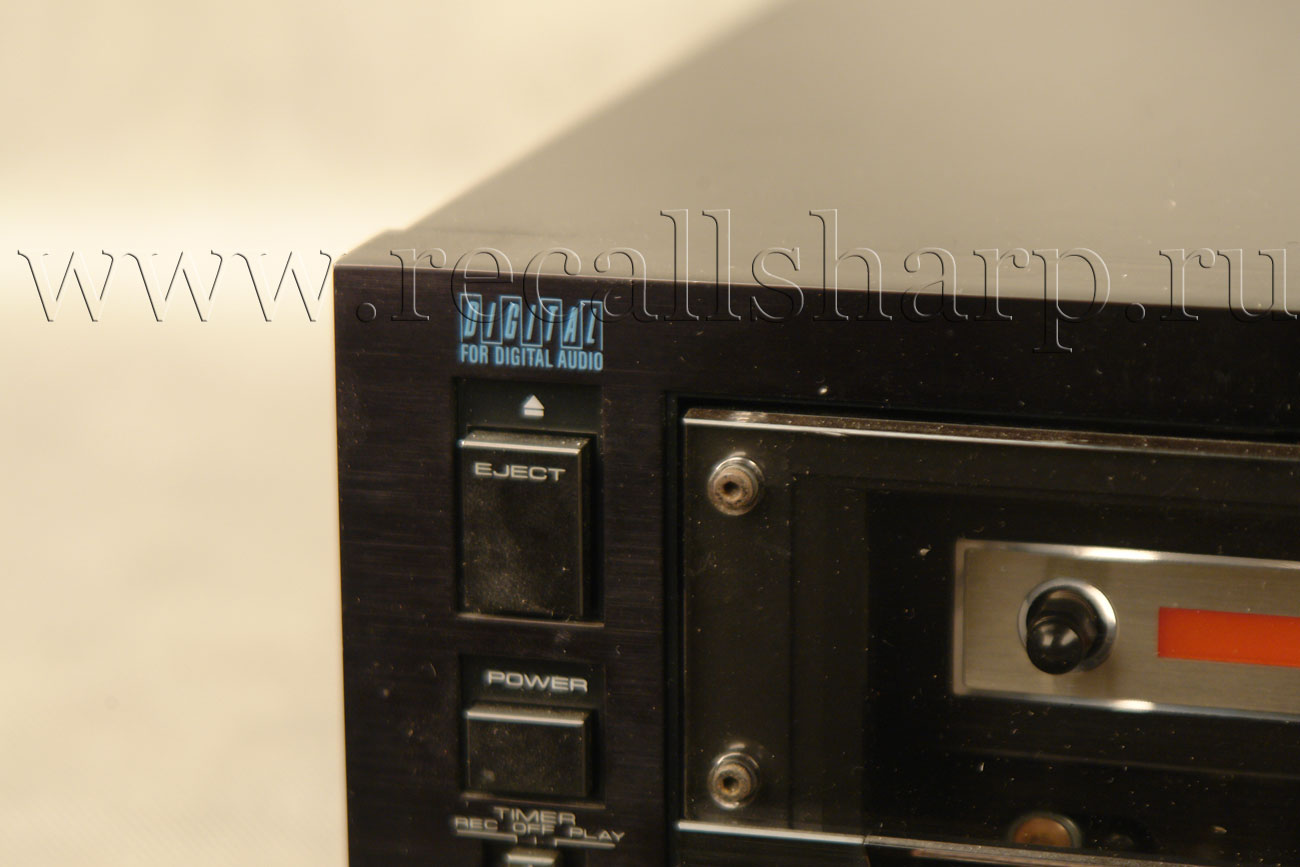

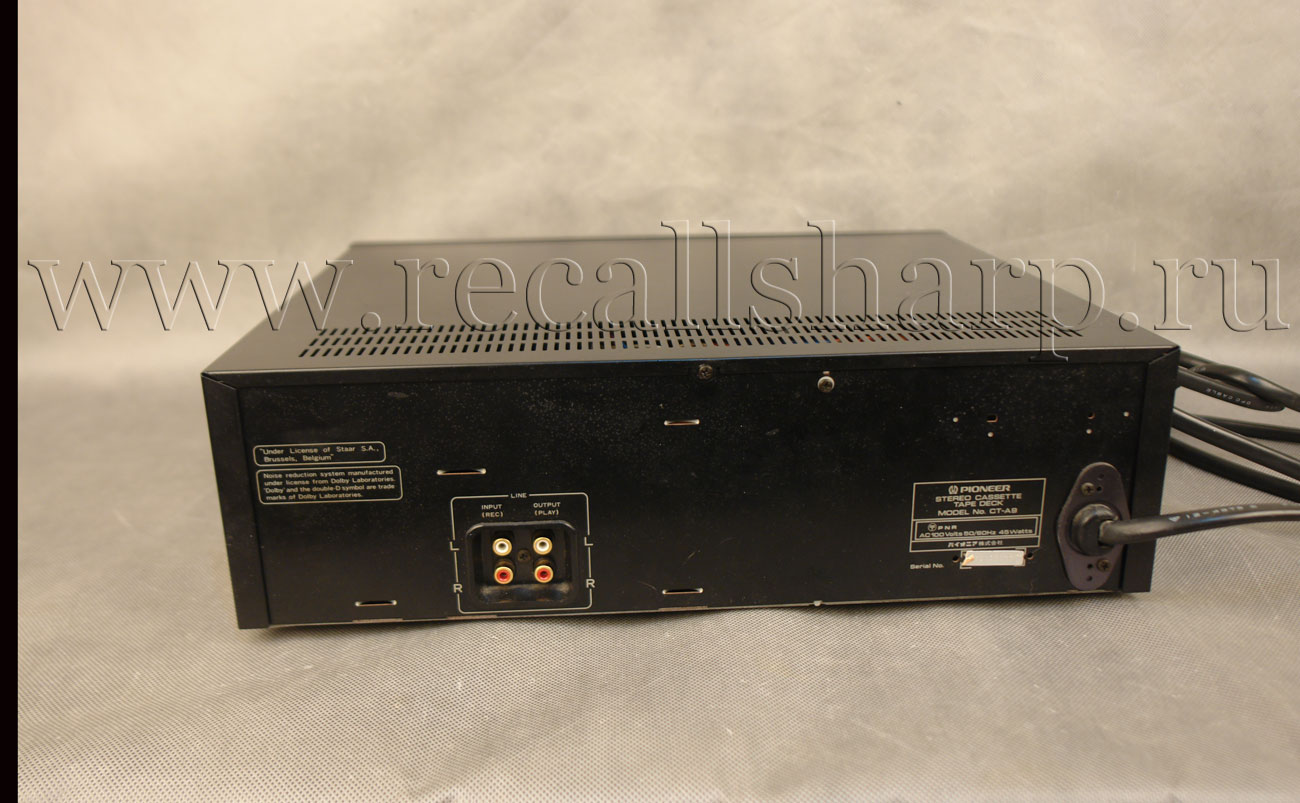

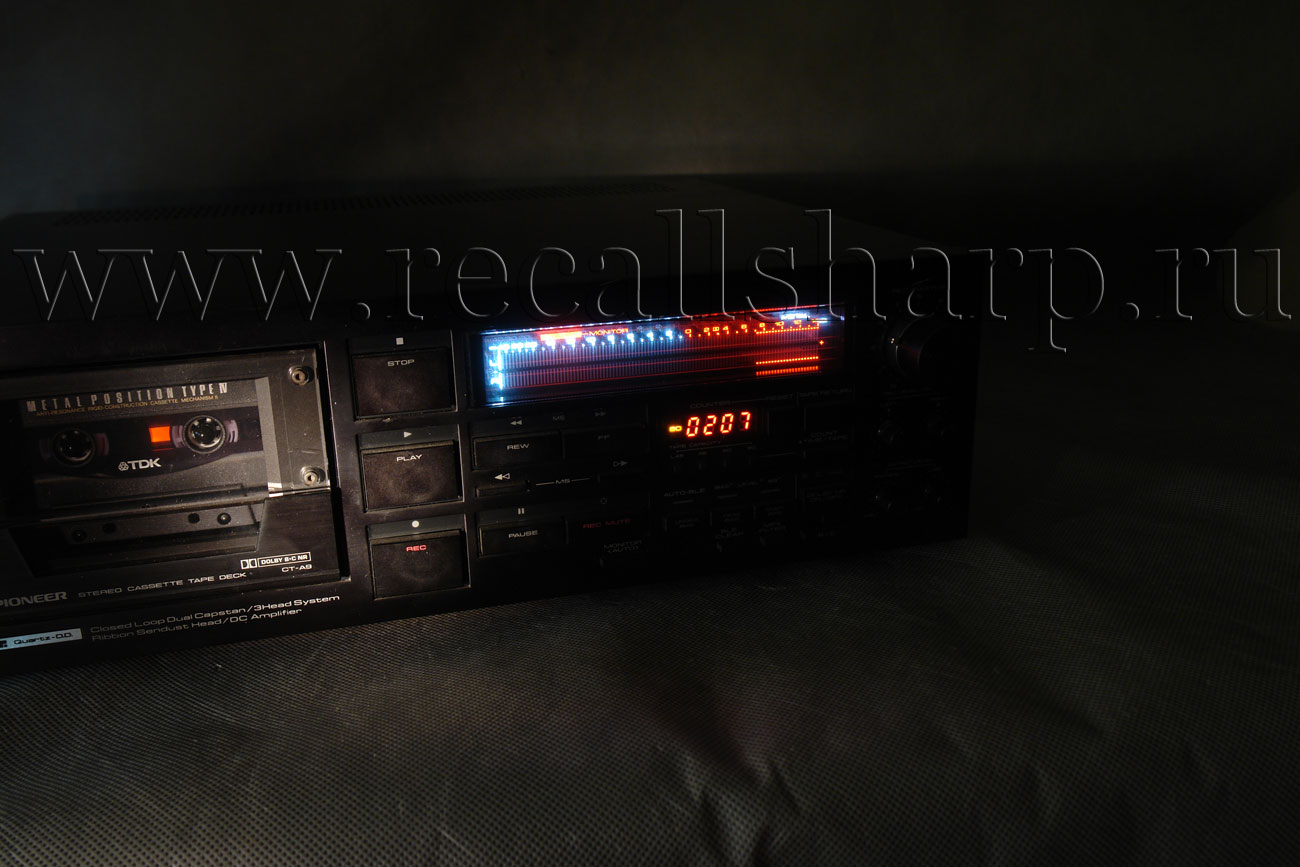

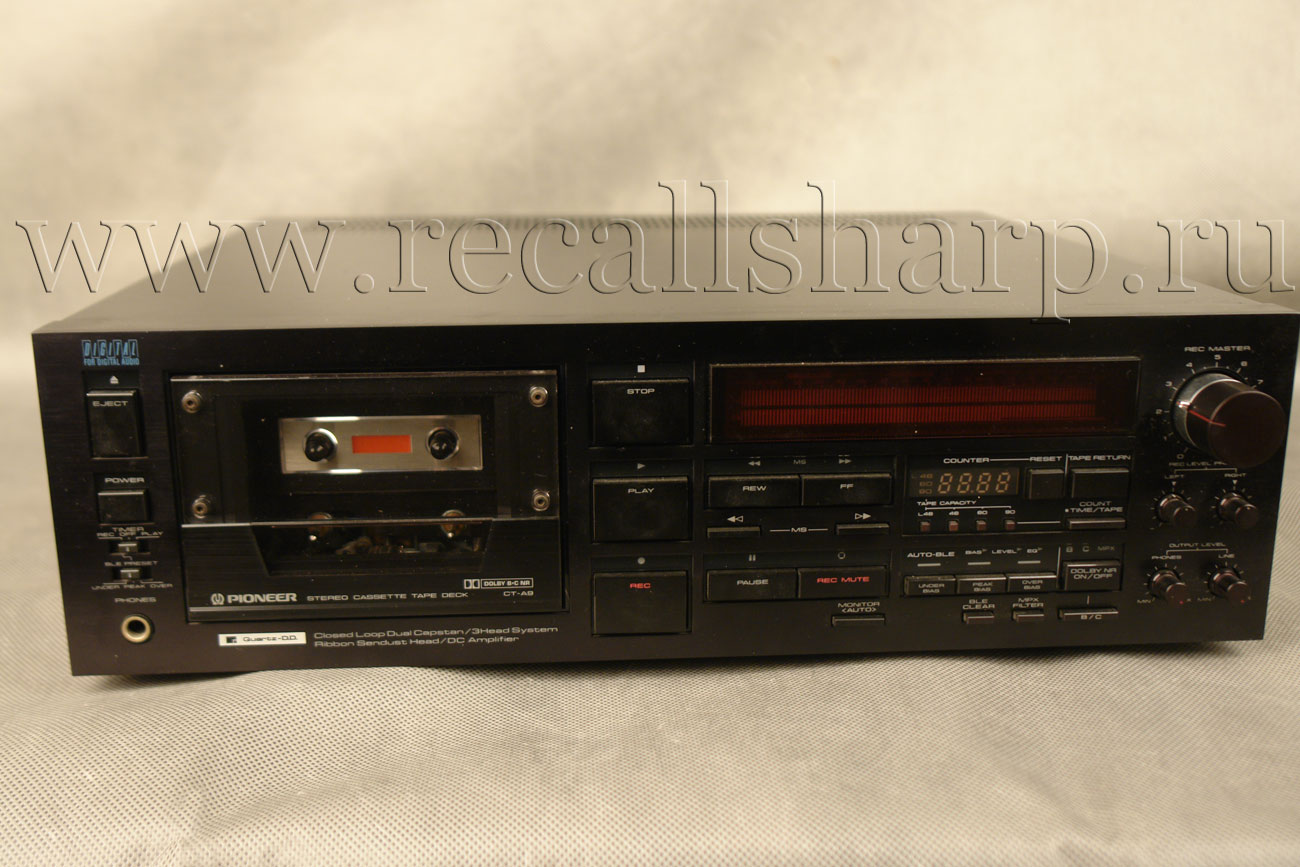

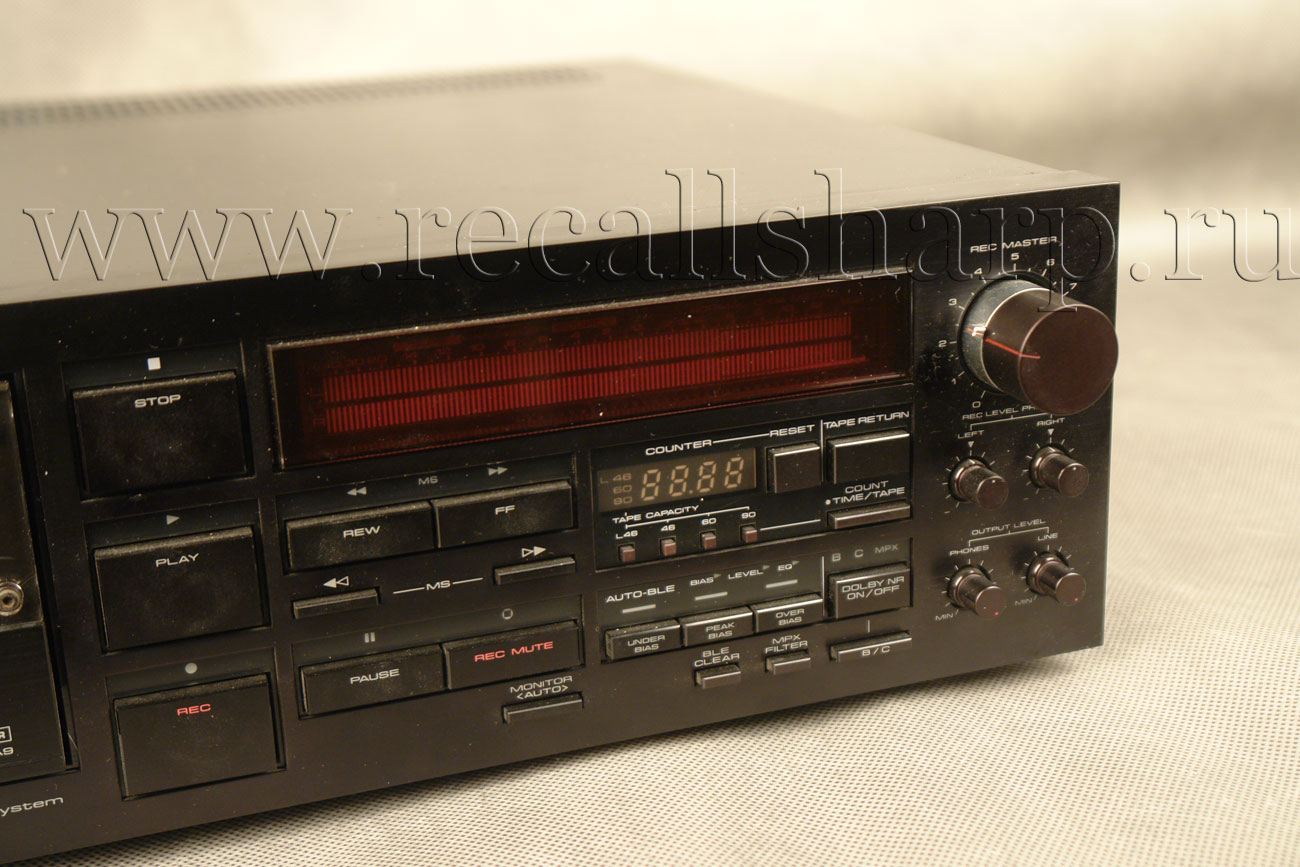

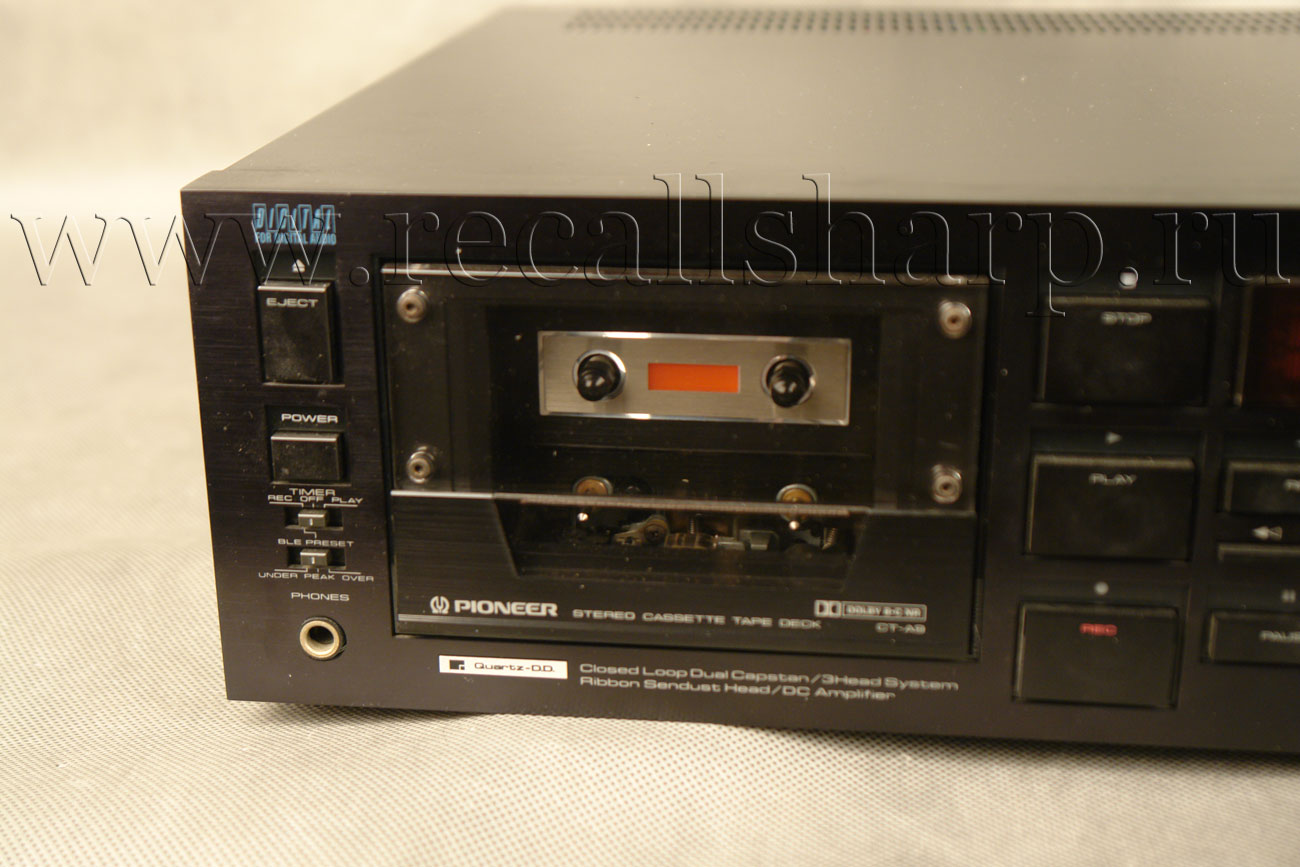

Pioneer CT-A9 Digital



: 1984


TECHNICAL DATA
Track System: 4 track, 2 channel stereo system
Heads: "Ribbon Sendust " recording/playback combination head x1,erasing head x1
Motor Quartz PLL D.D. capstan motor x1
Coreless reel motor x1
Tape: Philips type cassette
Tape Speed: 4.76 cm/s ±1% (1-7/8 ips 1% )
Wow & Flutter: Less than 0.018% WRMS,

Frequency Response:
20- 21,000Hz (30to 19,000 Hz +3 dB) Normal tape
20-22,000Hz (25 to 20,000 Hz 3 dB) Cr02(SA) tape
20-23,000Hz(25 to 21,000 Hz 3 dB ) Metaltape

Signal to Noise Ratio: Dolby NR off Better than 58dB


Dolby NR switch ON: Improves up to 10 dB above 5 kHz


Output Jacks:
Line: 410 mV (0 VU).
Required load impedance: More than 20 kohms
Phone: 100 mV/8 ohms
Input Jacks:
Microphone: 0.25 mV (Input impedance 5.0
kohms). Required microphone impedance: 600 ohms
Line: 70 mV (Input impedance 100 kohms)
DIN Jack: Input: 0.25 mV (Input impedance 2.2 kohms)
Output: 410 mV.
Required load impedance: More than
20 kohms
Power Requirements: 100V 50/60 Hz 45 Watts

Dimensions:
420(W) x 130(H) x 374(D) mm

Weight: 10kg

:
Pioneer CT-A9
