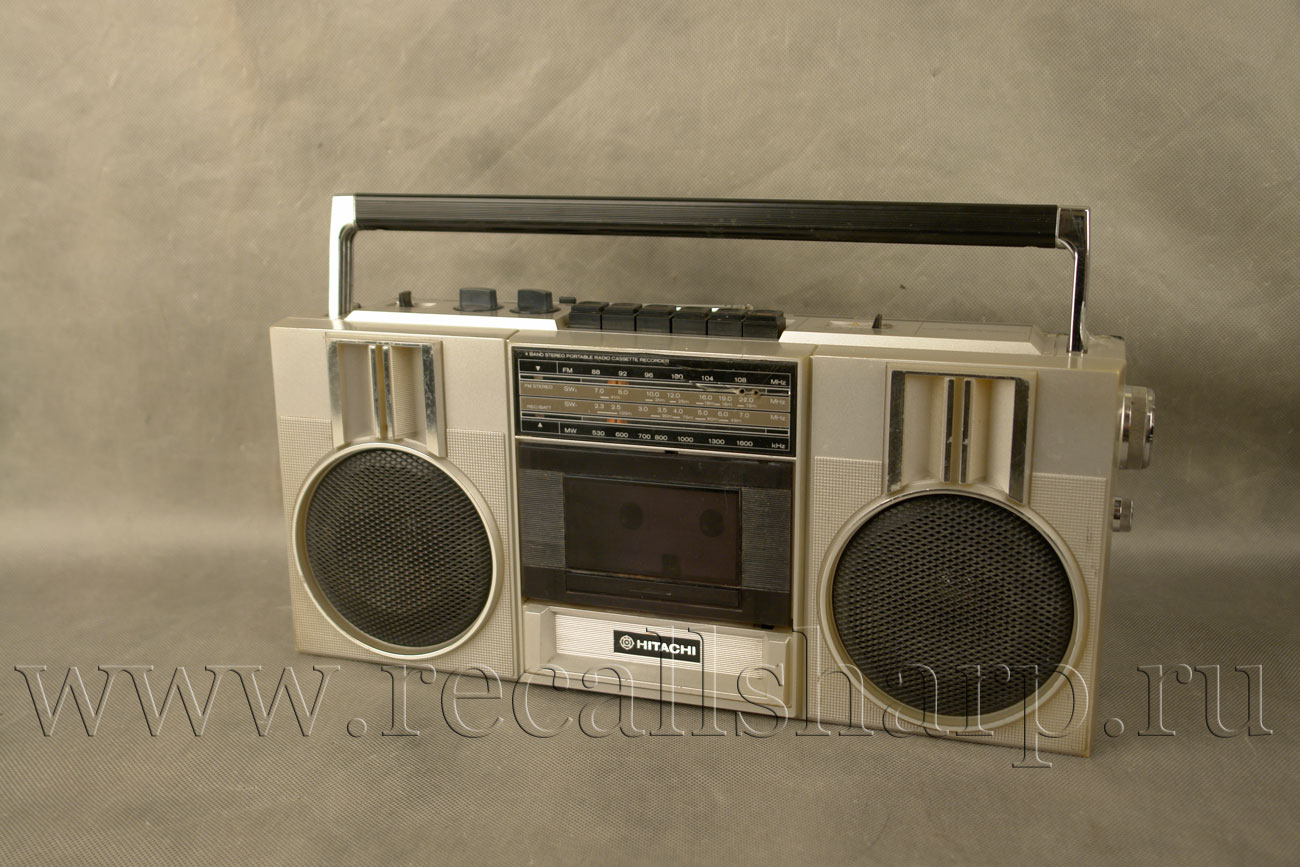

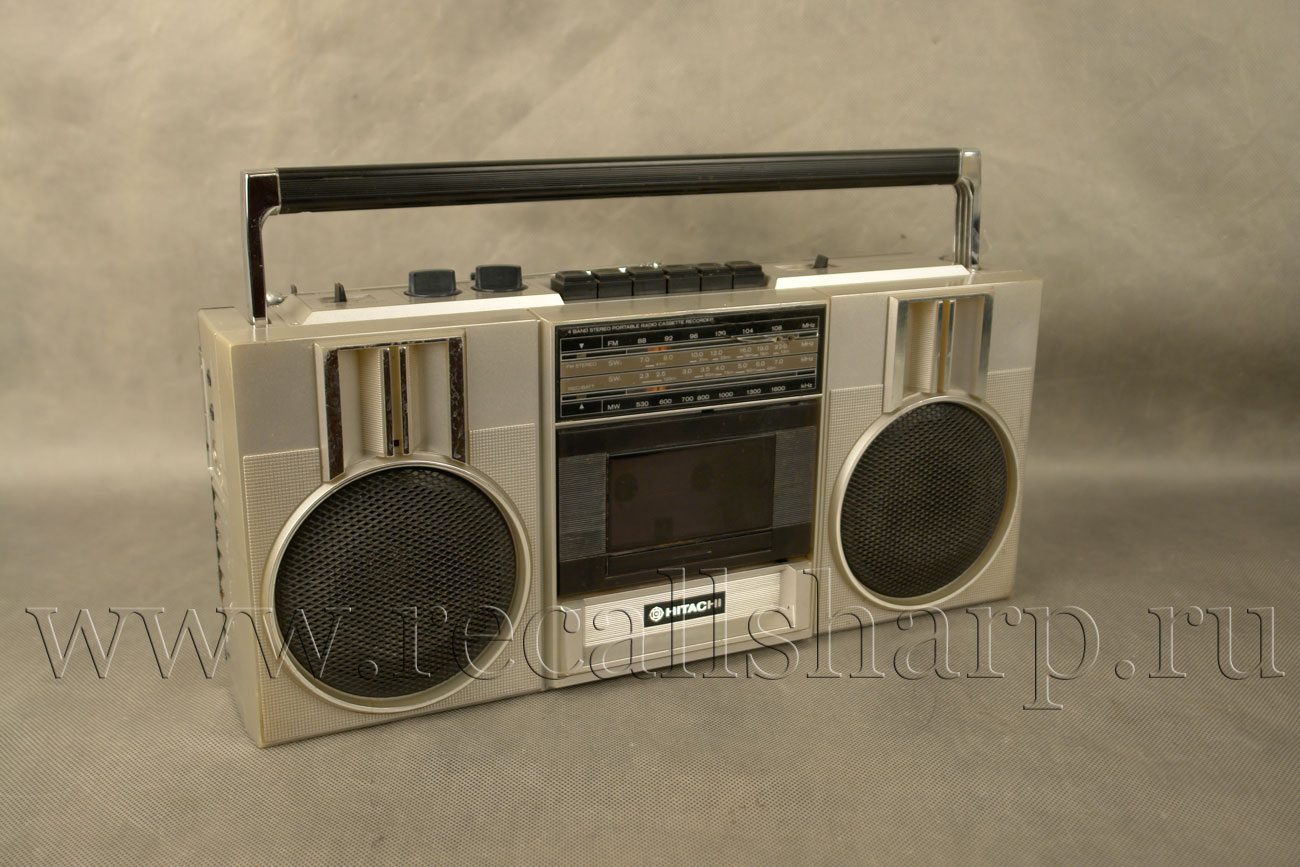

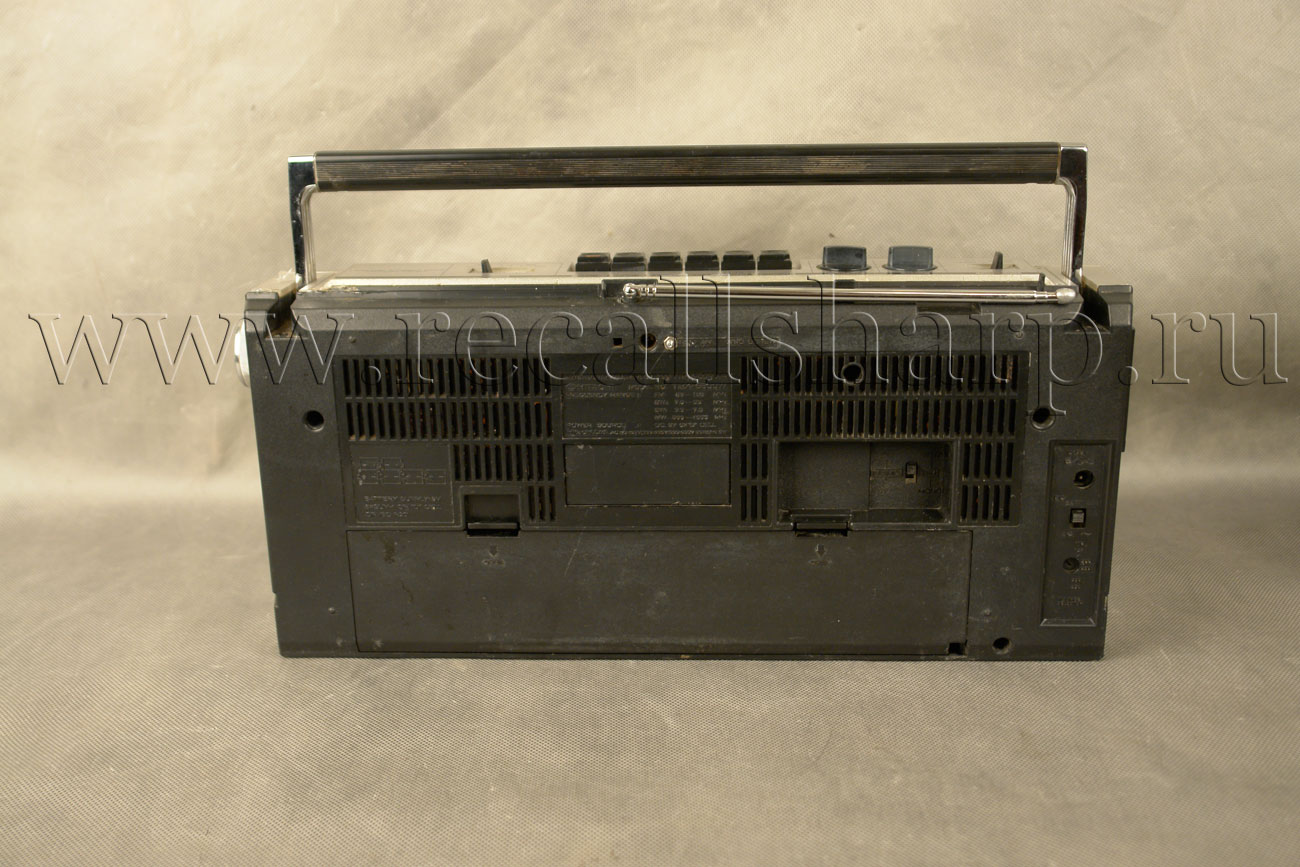

Hitachi TRK-6800 W



: 1983


Power AC100-110/115-127/200-220/230-250 v 50/60 Hz 8w

9V or 6x1,5 v "D" batteries)

Speakers: 2x10cm, 8Ω

Output: 2x1.2WRMS (AC operation)

1.2 W/CH (10% THD DC)

Dimensions: 438(H) x 201(W) x 123(D) mm

Weights: 3.3 kg (with batteries)

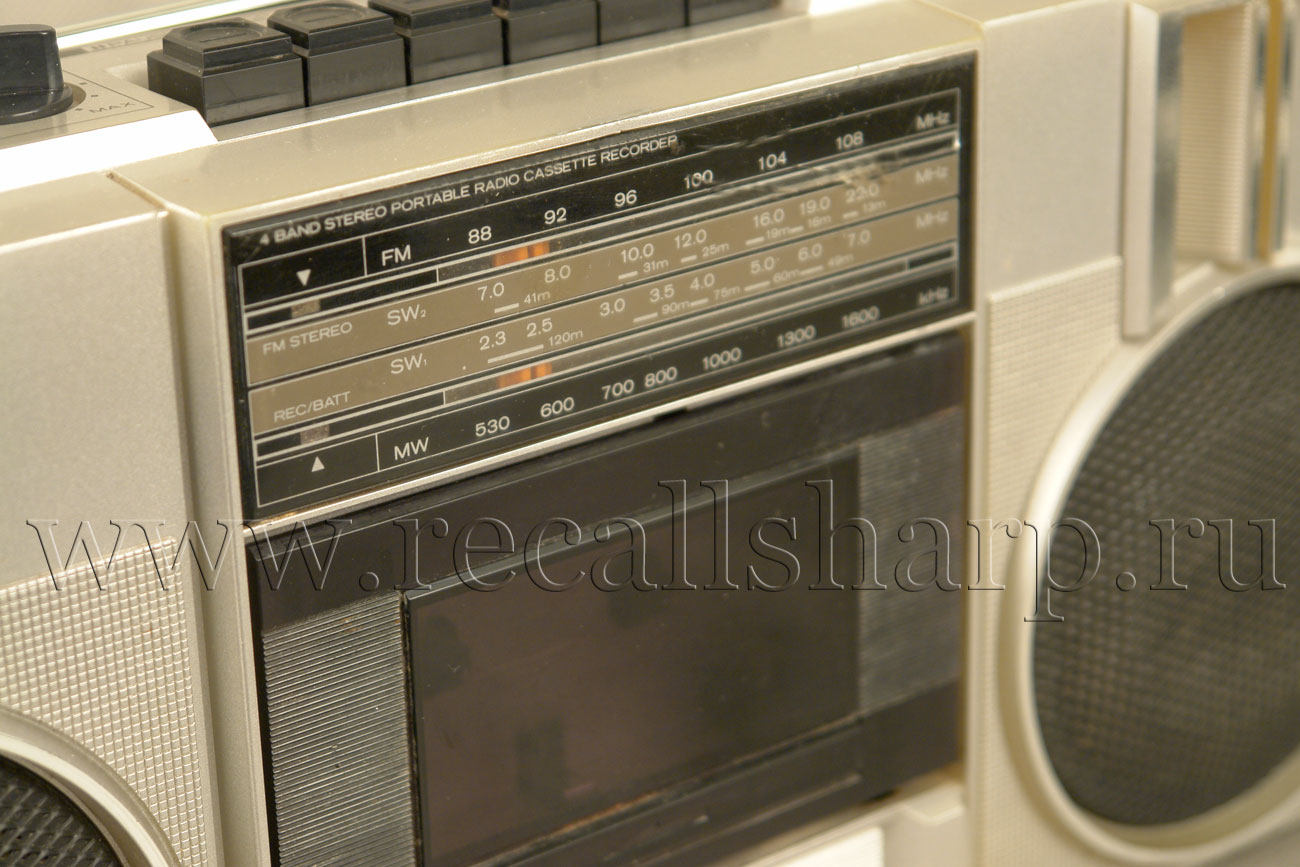

RADIO SECTIONS

Circuit System : 4-band superheterodyne

FM88-108 MHz

MW 530-1605kHZ

SW1 2.3-7.0 MHz

SW2 7.0-22.0 MHz

TAPE RECORDER SECTION

Tape: Cassette tape

Tape Speed: 4.75 cm/s

Playback Frequency Range:

80 to 10,000 Hz (Normal tape)

Input Sensitivity and Impedance:

External microphone: 2 mV, 10 kohms

Output Level and Load Impedance: Headphones: 8 to 100 ohms
