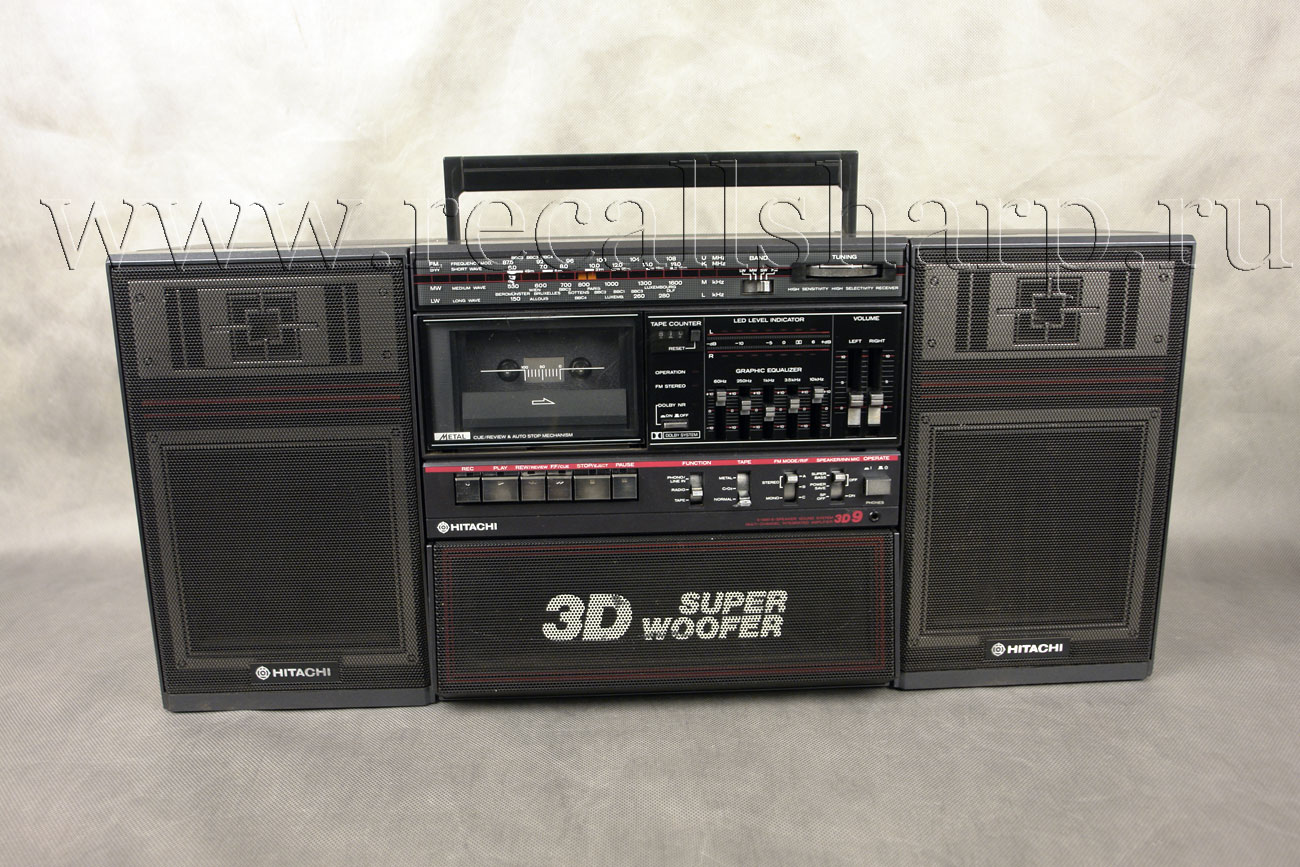

Hitachi TRK-9230 E 3D9



: 1985


Power Supply: AC: 220V, 50/60 Hz

DC: 12V ["C" cell (IEC R14) x 8 or equivalent]

Car: Use 12V car battery adaptor

Power (mains) consumption: 22W

Speakers: 2 x10cm Super Woofer

2 x 12cm,

2 x 2 cm,

Output: 42W P.M.P. (AC operation)

5 W/CH (10% THD DC)

Dimensions: 280(H) x 624(W) x 211(D) mm

Weights: 7.7 kg (with batteries)

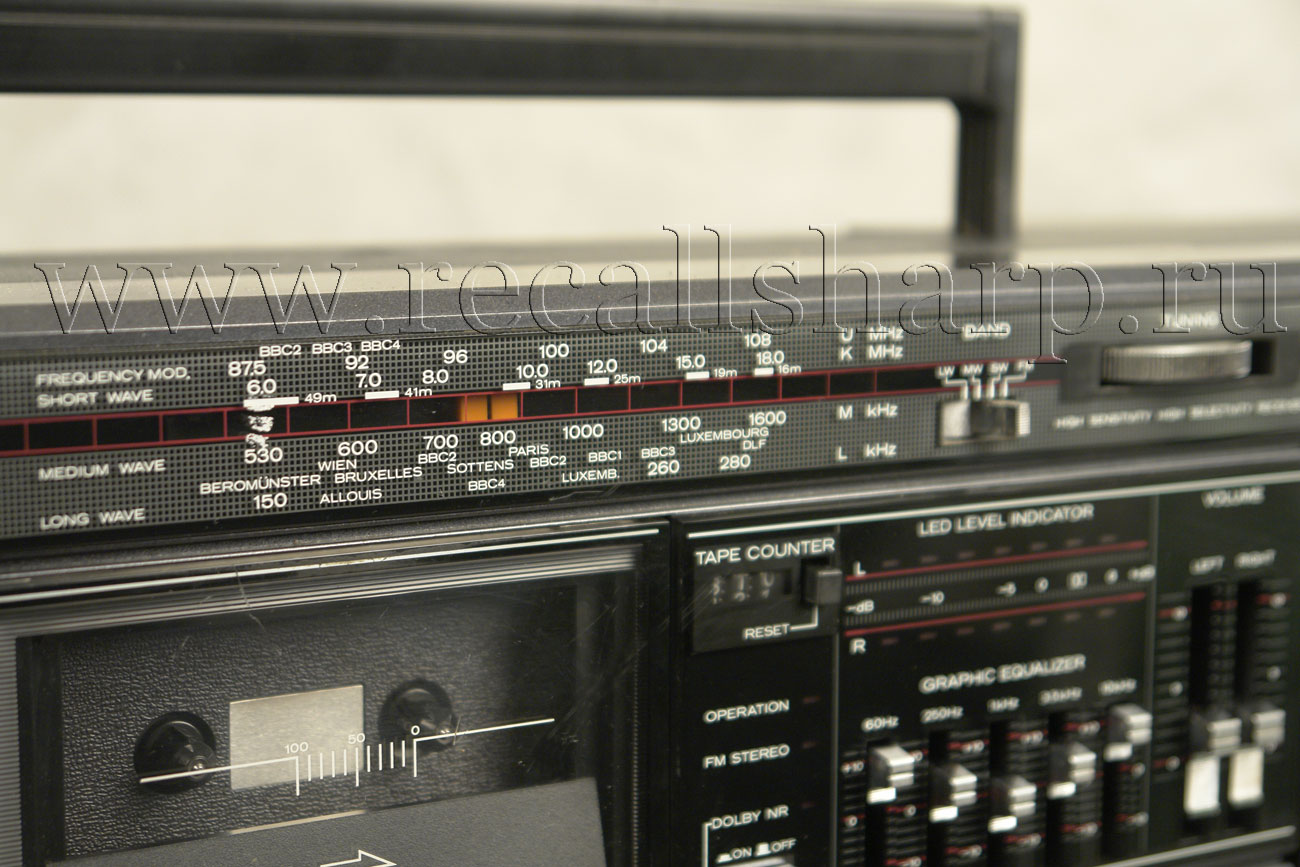

RADIO SECTIONS

Circuit System: FM/SW/LW/MW 4-band superheterodyne

Tuning Range: FM: 87.5 to 108 MHz

SW: 6.0 to 18.0 MHz

LW: 150 to 285 kHz

MW: 530 to 1605 kHz

Antenna (Aerials): FM/SW: Telescopic antenna (aerial)

MW: Built-in ferrite-core antenna (aerial)

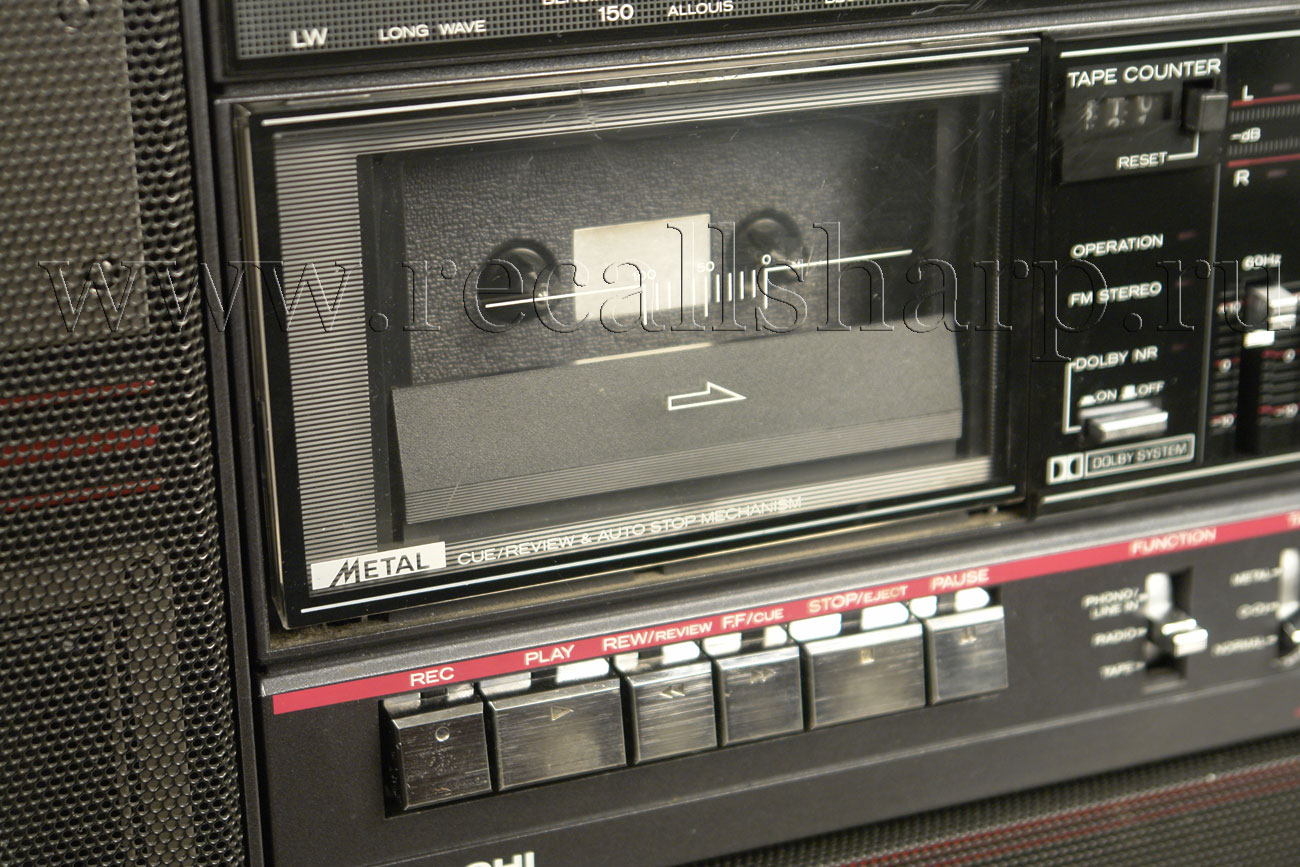

TAPE RECORDER SECTION

Tape: Cassette tape Tape Speed: 4.75 cm/s

Recording System: AC bias

Erasing System: AC erase

Playback Frequency Range: 60 to 12,000 Hz (Metal tape)

60 to 11,000 Hz (CrO2 tape)

60 to 10,000 Hz (Normal tape)

Input Sensitivity and Impedance: External microphone: 2 mV, 10 kohms

Line in: 400 mV, 50 kohms

Output Level and Load Impedance: Headphones: 8 to 100 ohms

External speaker: 2.8 to 8 ohms
