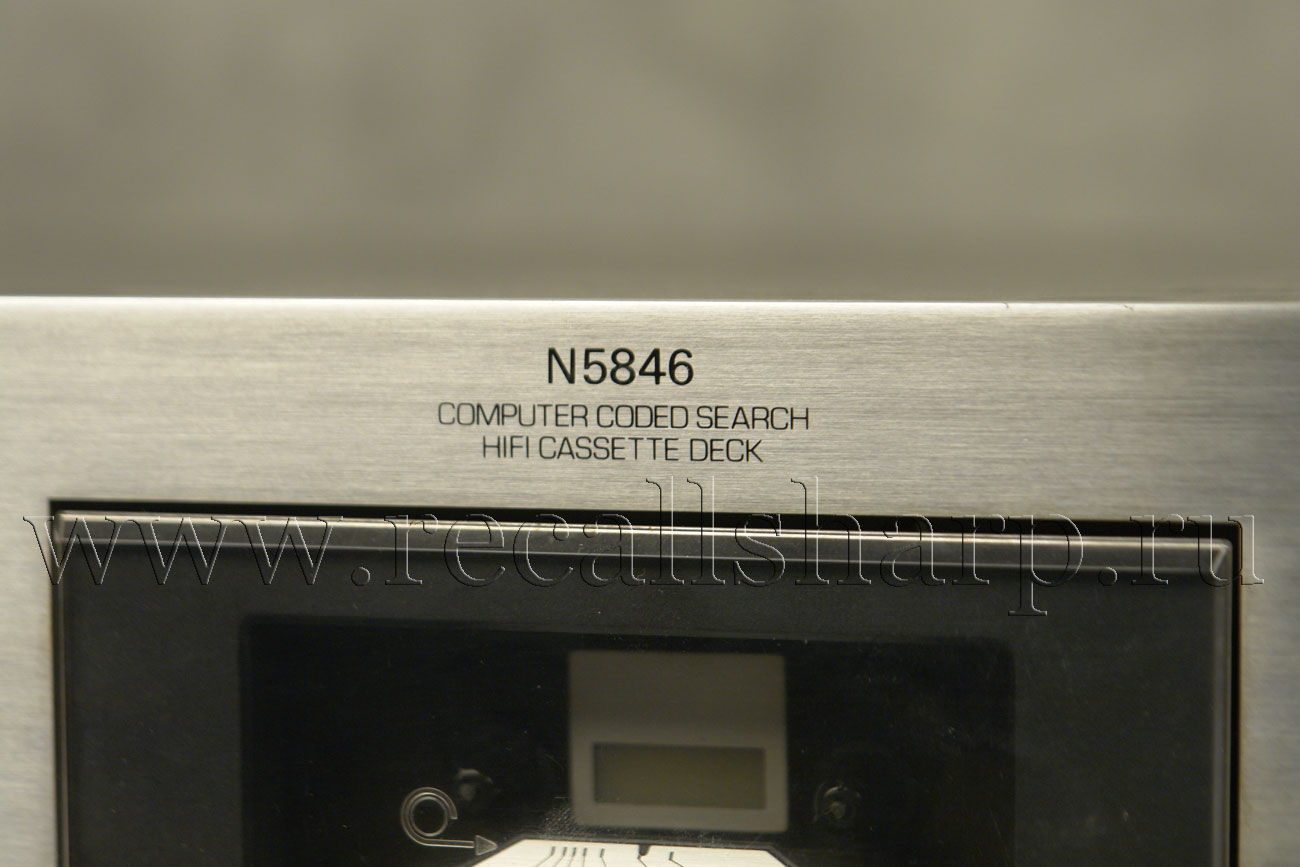

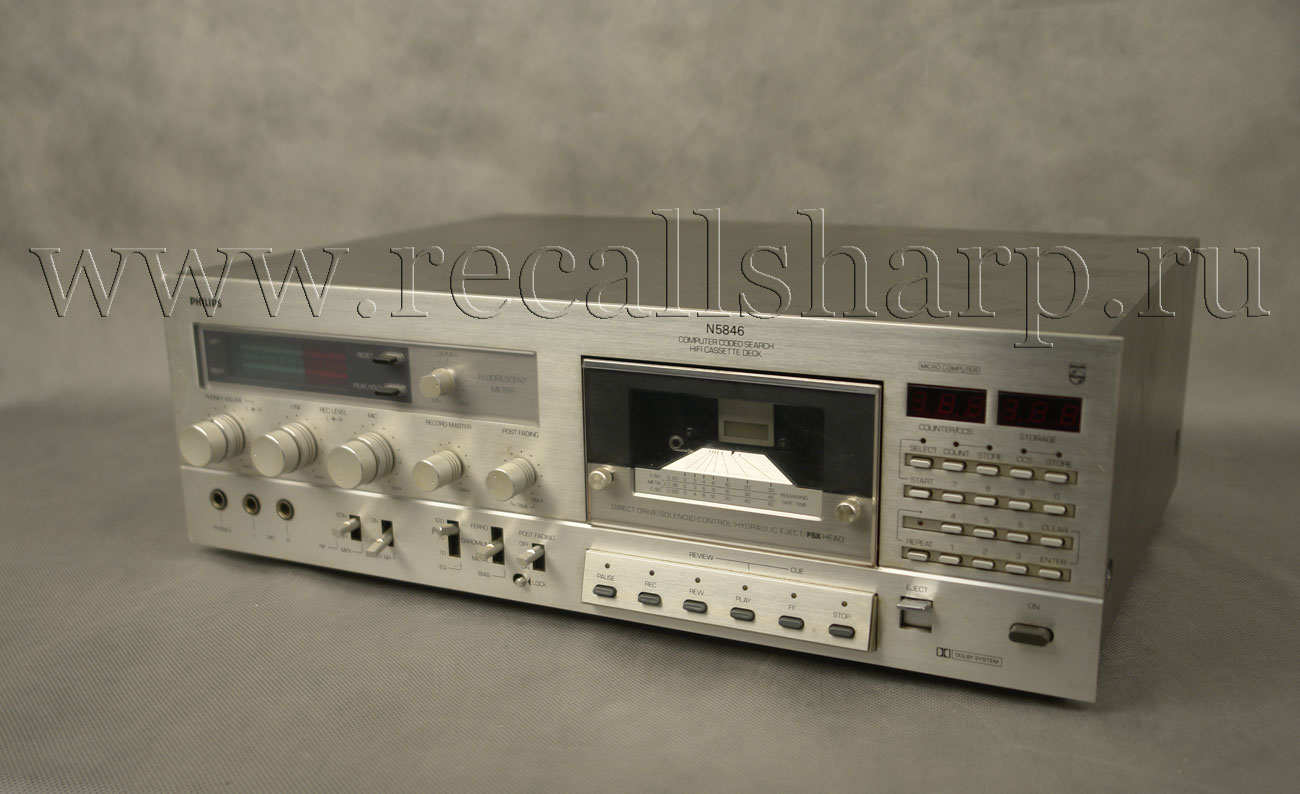

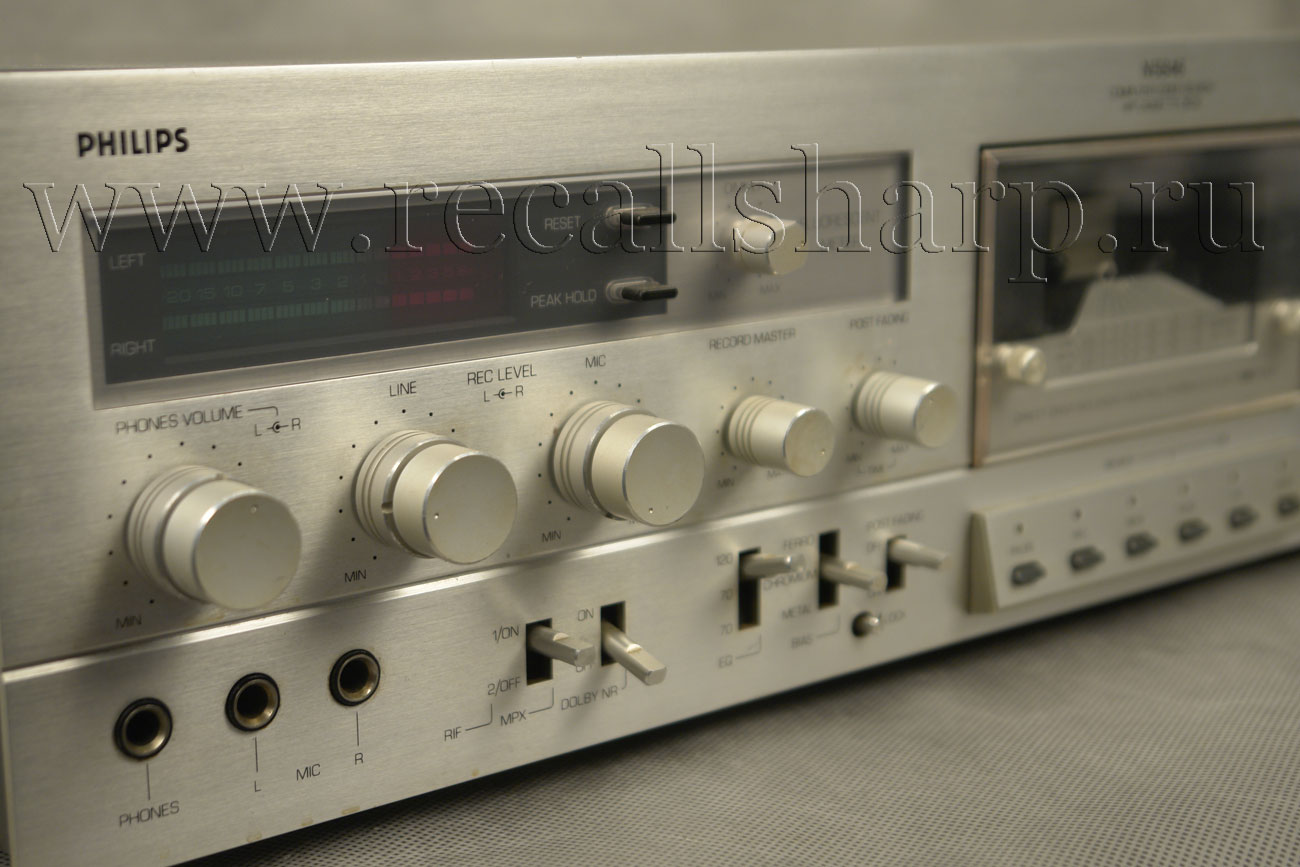

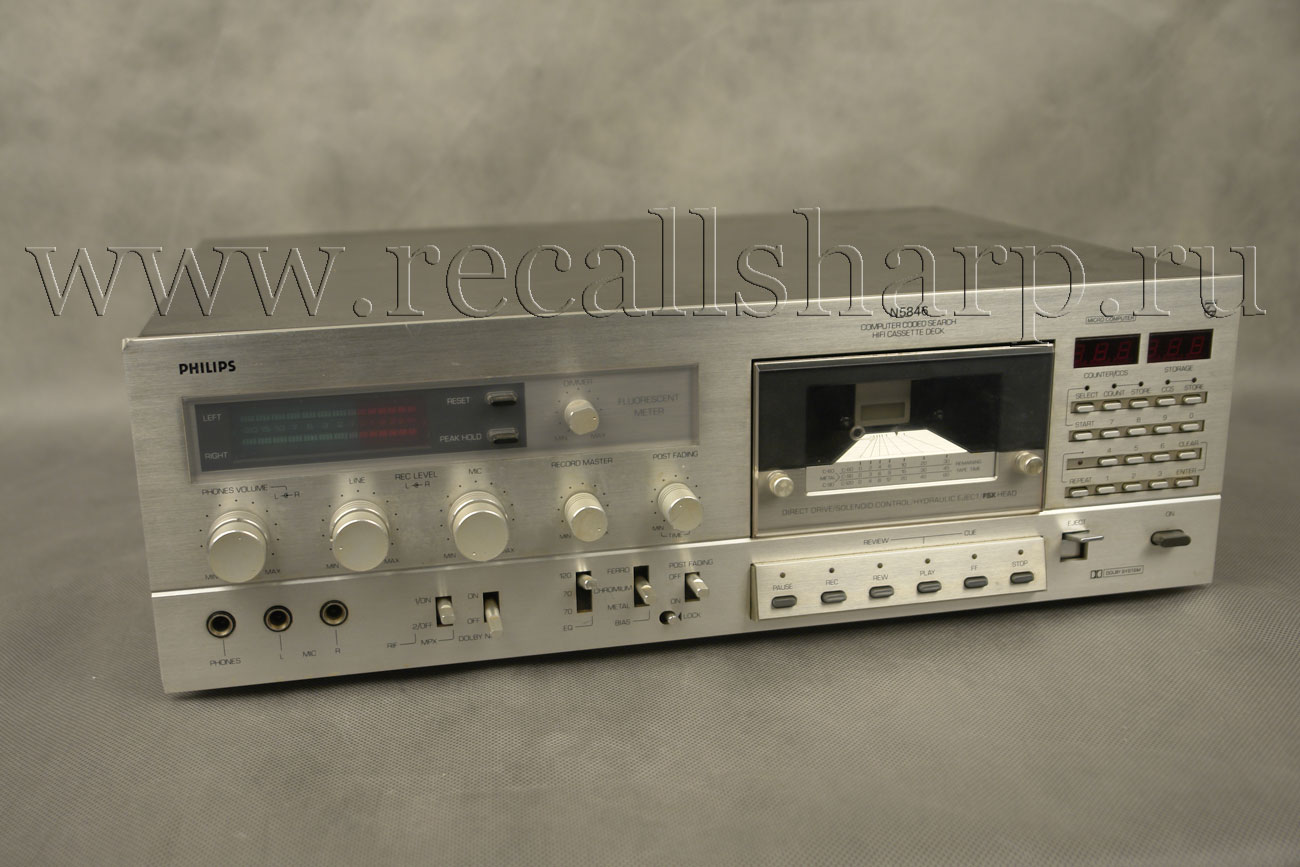

Philips N5846



: 1981


Specifications:
Track System: 4 track, 2 channel stereo system
Tape: Philips type cassette
Tape Speed: 4.76 cm/s ±1% (1-7/8 ips 1% )

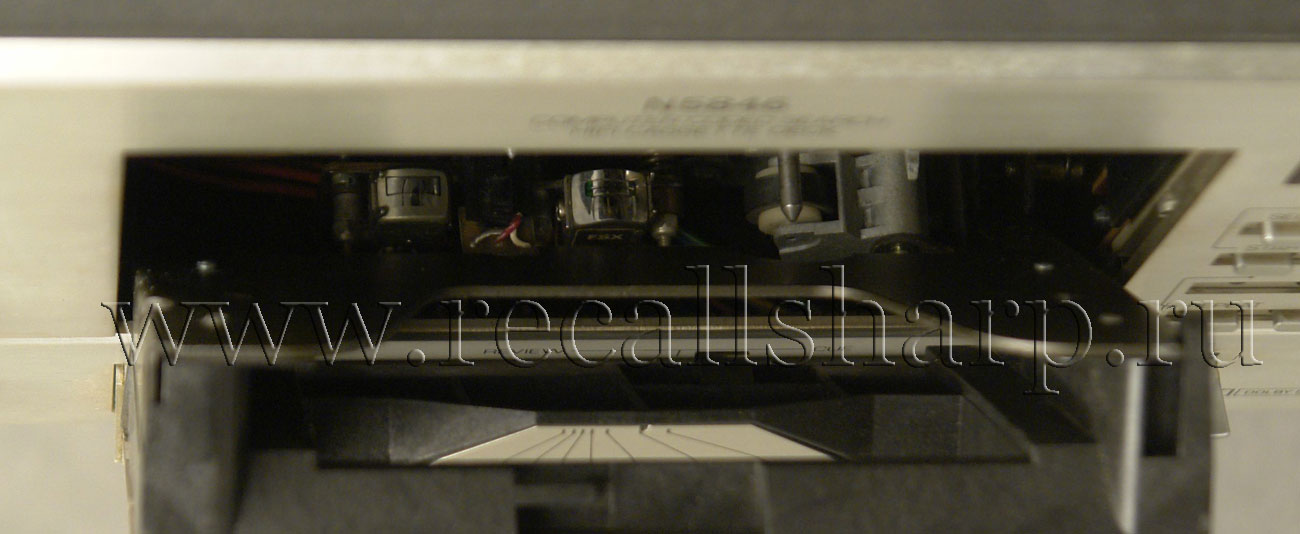

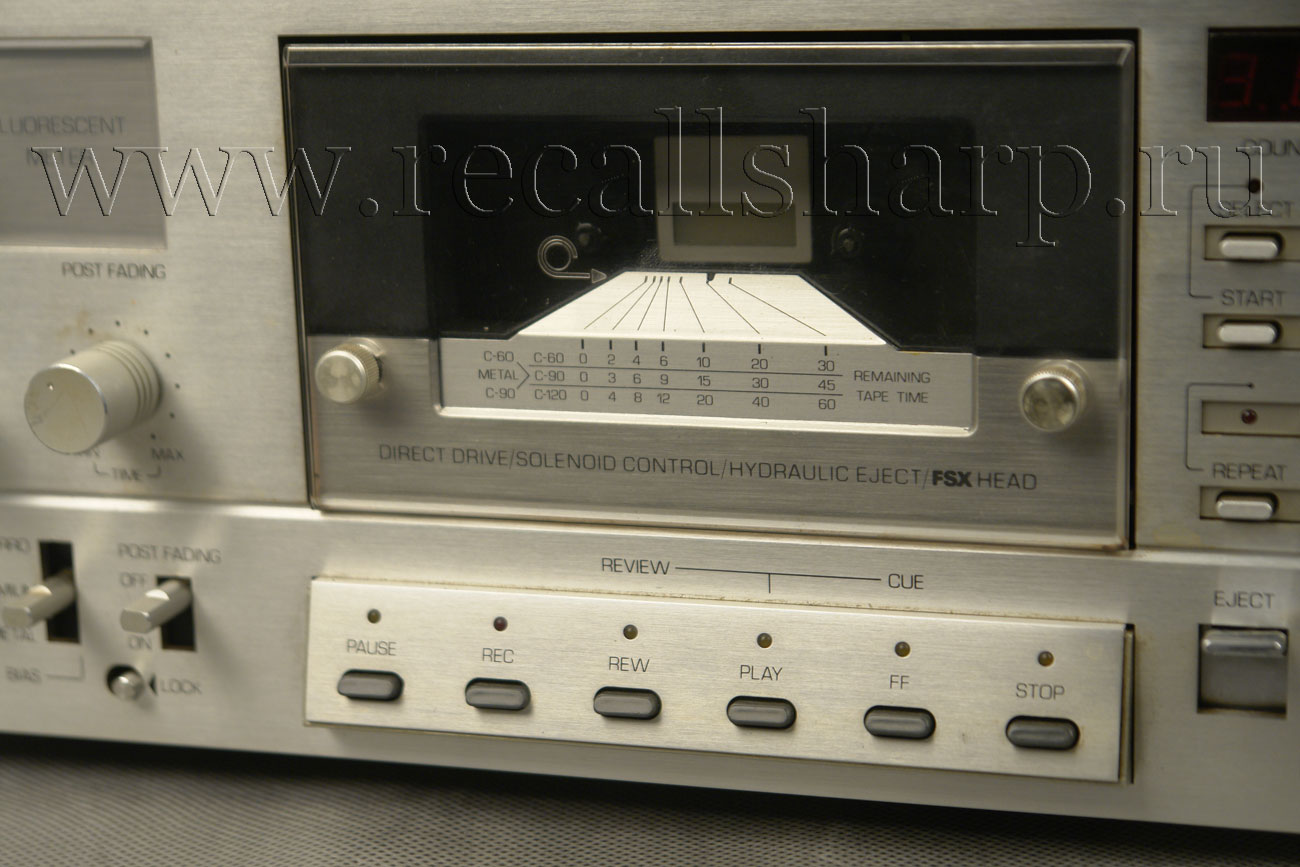

Head: FSX head
Motors: DC motor for direct capstan drive x1
DC motor for reel drive x1
Wow & Flutter: 0.1% DIN,
(0.03% NAB )
Tape winding time: 90sec using a C-60 cassette tape
Frequency Response: Normal 30- 18,000 Hz DIN
(20- 20,000 Hz NAB)
CrO2 30- 18,000 Hz DIN
(20-20,000 Hz NAB)
Metal 30- 20,000 Hz DIN
(20-22,000 Hz NAB)


Signal to Noise Ratio: Metal: Better than 57 dB DIN
(measured via tape with peak recording level)
Dolby 65.5 DIN

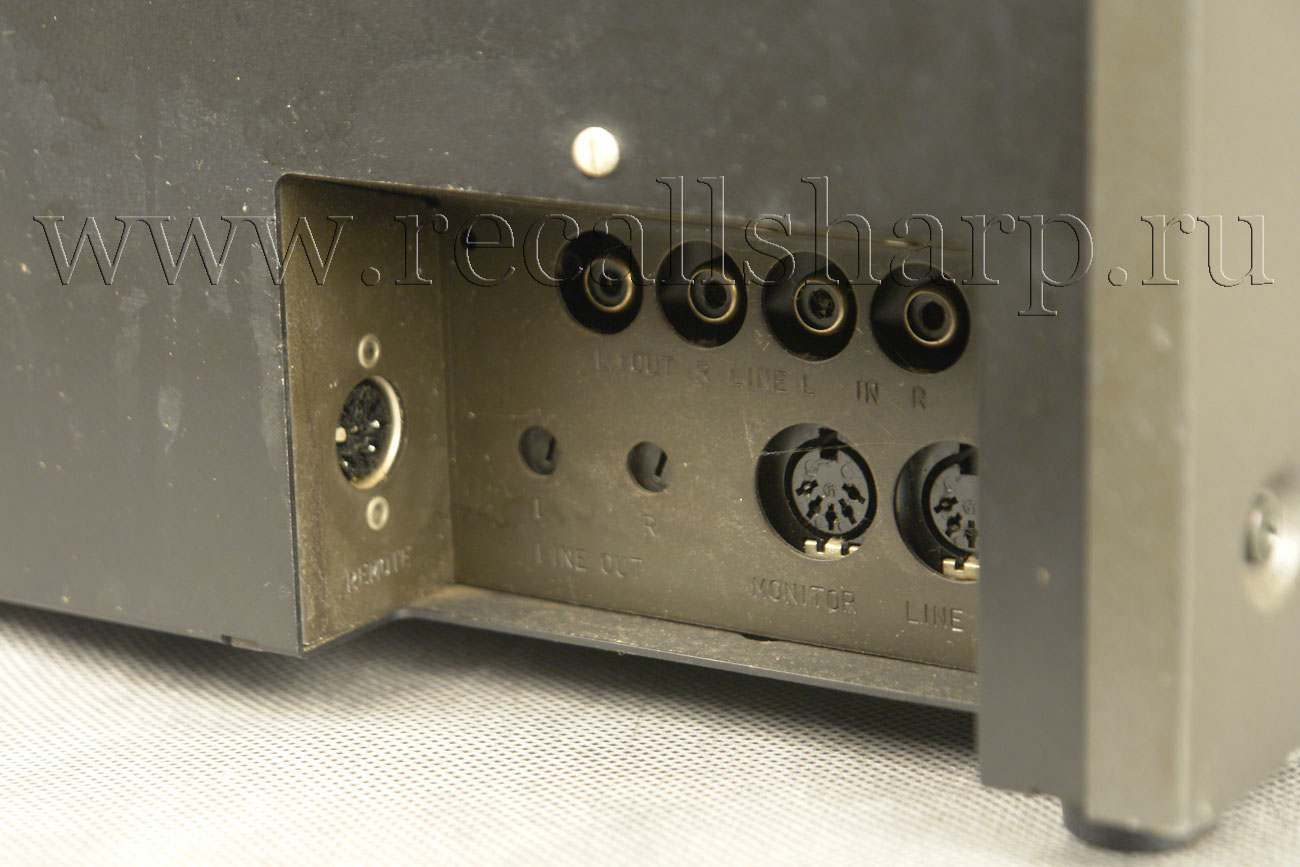

Input Line: 60 mV\300kohms)
.
DIN Input : 0,4 mV\2Kohms
Output: 200 mV\1MOhms


Power Requirements:
220V/50 Hz for European Countries except U.K.

Dimensions: 482(W) x 140(H) x 305(D) mm

Weight: 9.5 kg
