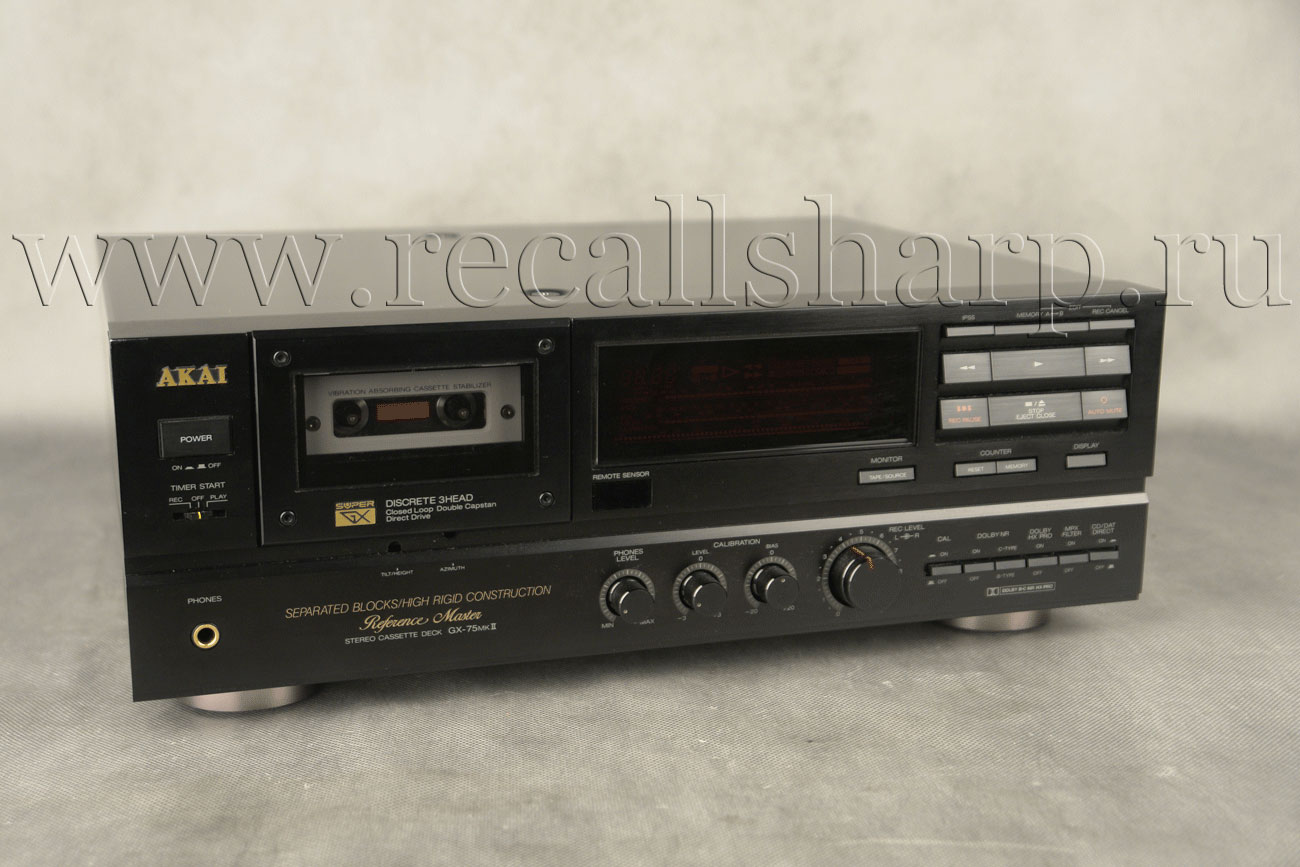

Akai GX-75 Mk 2



: 1992


TECHNICAL DATA
Track System: 4 track, 2 channel stereo system
Tape: Philips type cassette
Tape Speed: 4.76 cm/s ±1% (1-7/8 ips 1% )
Wow & Flutter:
Less than 0.04% (DIN )
0.025% WRMS
Frequency Response:
15 to 19,000 Hz normal
15 to 20,000 Hz Cr02
15 to 22,000 Hz Metal

Signal to Noise Ratio:

Better than 59 dB using Metal tape

Dolby B switch ON(db\kHz): +5\1:+10\5
Dolby C switch ON(db\kHz):+15\0.5:+20\1
T.H.D. 0.6%

Bias Frequency: 85 kHz
Heads: (3): LC-OFC Super GX recording x1,
LC-OFC SGX x1playback head, Erase Head x 1
Motor: (3): F.G. Servo D.D. Motor for capstan drive x1,
D.C. motor for reel drive x1,
D.C. motor for cam drive & tape eject/ loadingx1
Fast Forward and Rewind Time: 85 sec. using a C-60 cassette tape
Output Jacks: Line: 388mV /200 Ohms

Phone: 1.3 mW/8 ohms
Input Jacks: Line: 70 mV /47 kohms)
CD/DAT Direct IN 240mV/47kOms


Power Requirements:
220V/50 Hz for European Countries except U.K.


Dimensions:
425(W) x 154(H) x 350(D) mm

Weight: 9.0 kg

* For improvement purposes, specifications and design are subject to change without notice.
* "Dolby" and the Double D symbol are trademarks of Dolby Laboratories (Manufactured under license from Dolby Laboratories)
