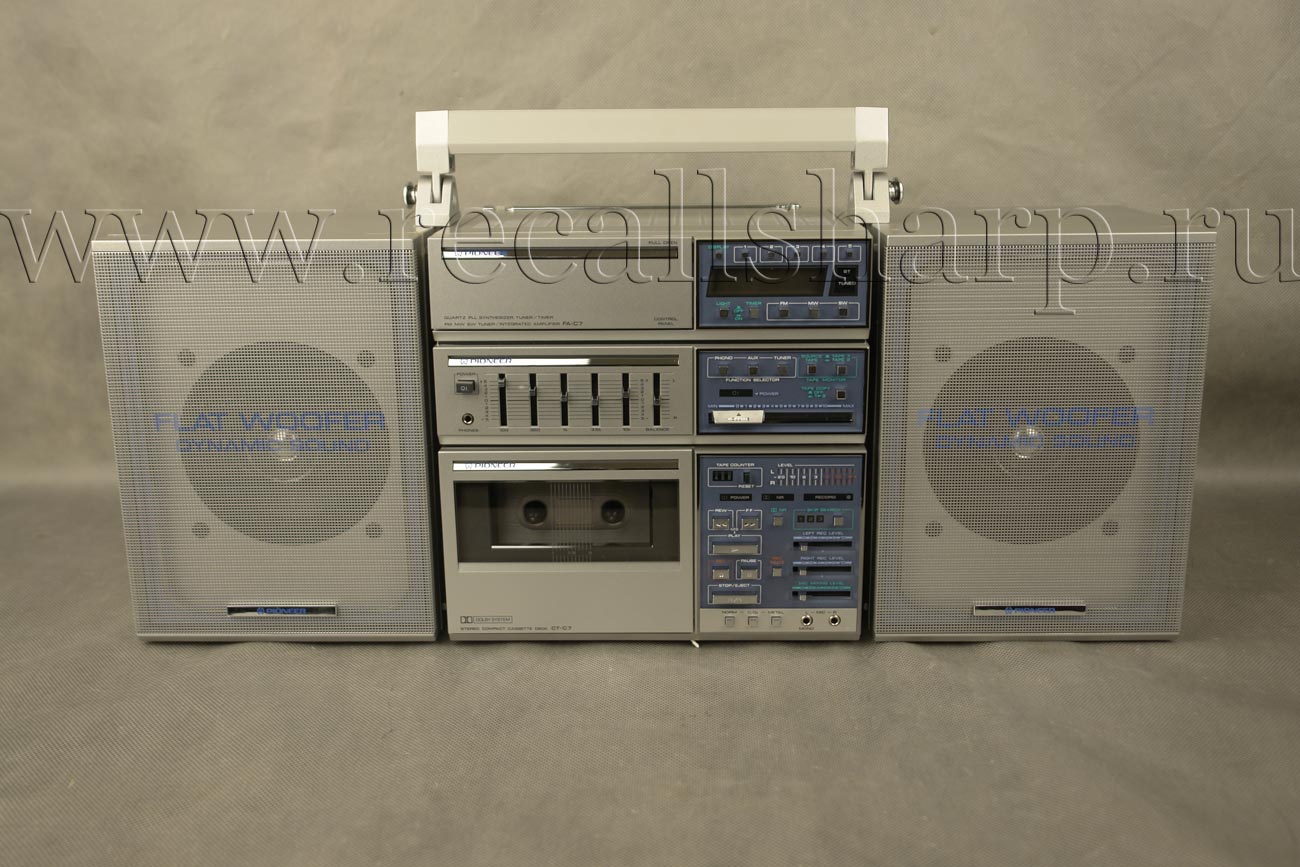

Pioneer CK-7 T



: 1984


Specifications

When all components are connected

Power source120/220/240V AC 50/60Hz

15V DC (ten size "D" batteries)

EXTDC12-15V

Power consumption55W/AC

65W/AC (Australia)

Dimensions (WXHXD). . . 559 X 272 X 150mm

(When all components are connected, including

the handle but not including protrusions)

Gross weightApprox.10.4kg

(without batteries)

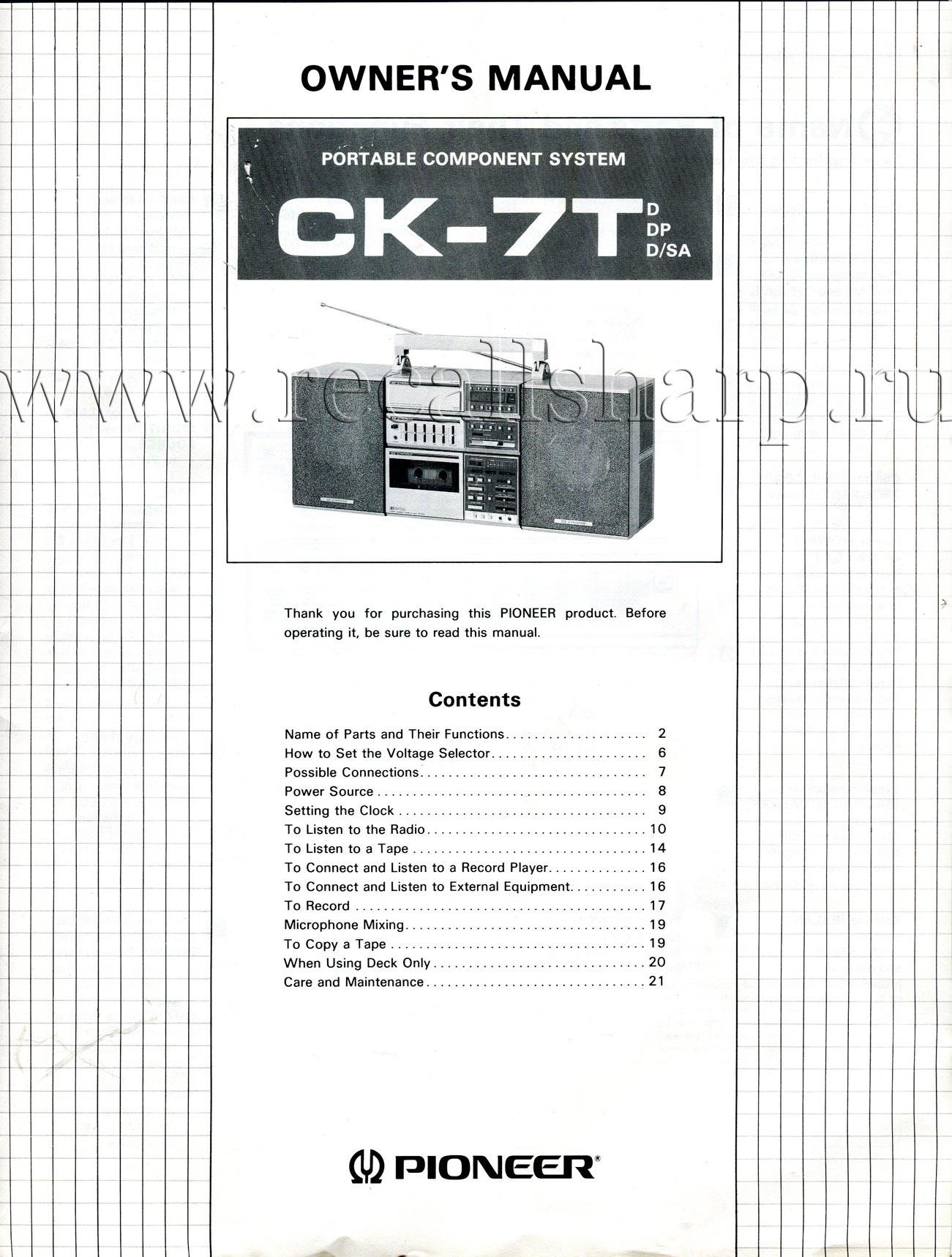

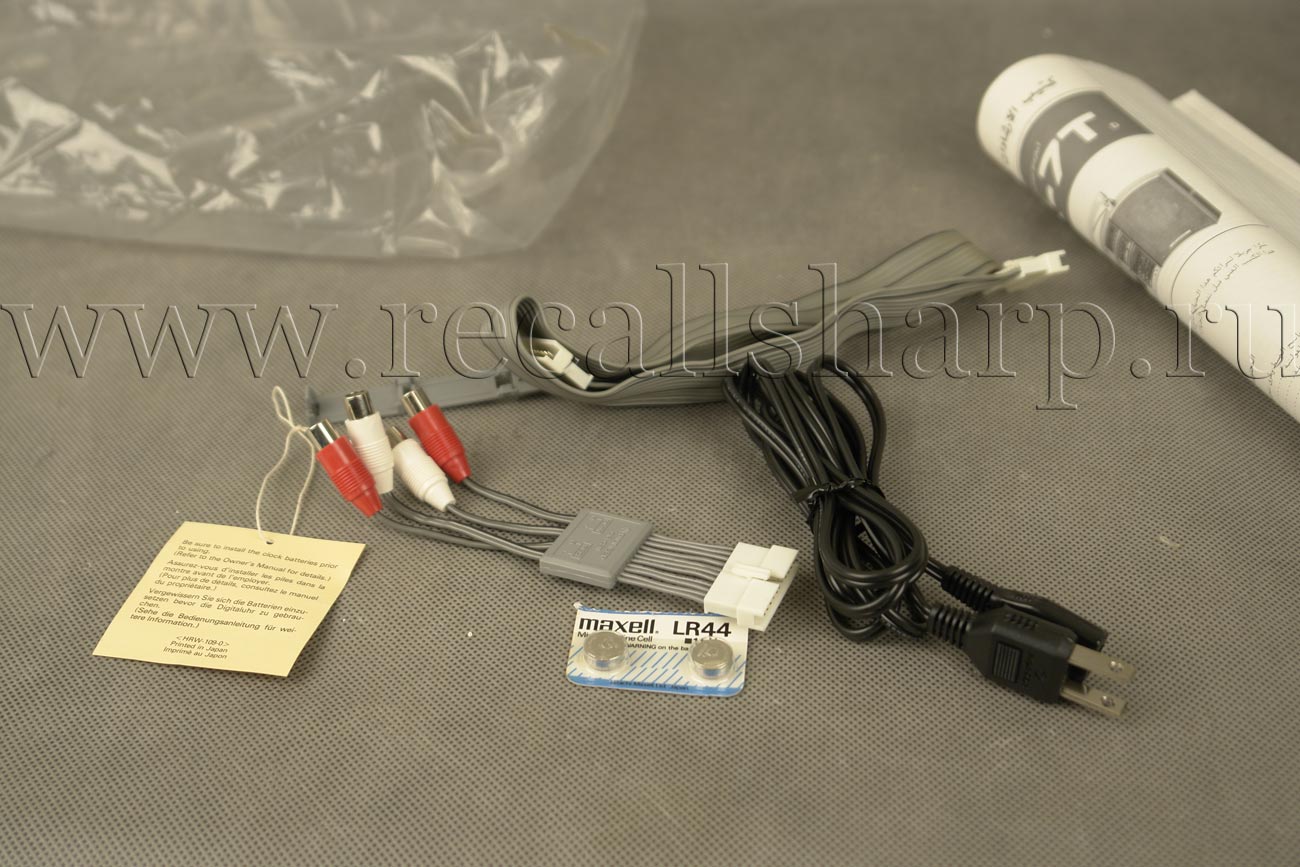

Accessories♣ Owner's manual

♣ AC cord

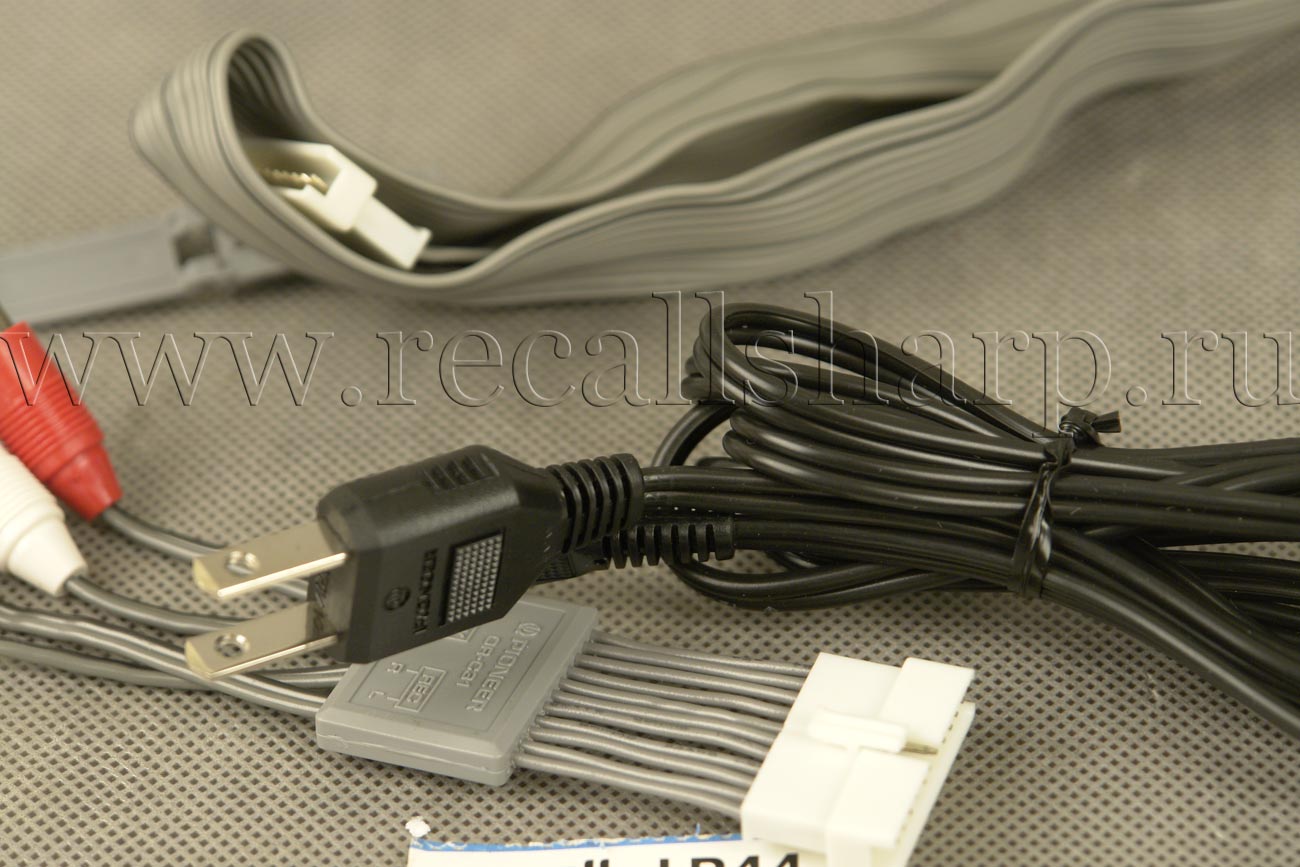

Connection cord (600mm)

11p with cord securing clip

Connection cord (45mm)

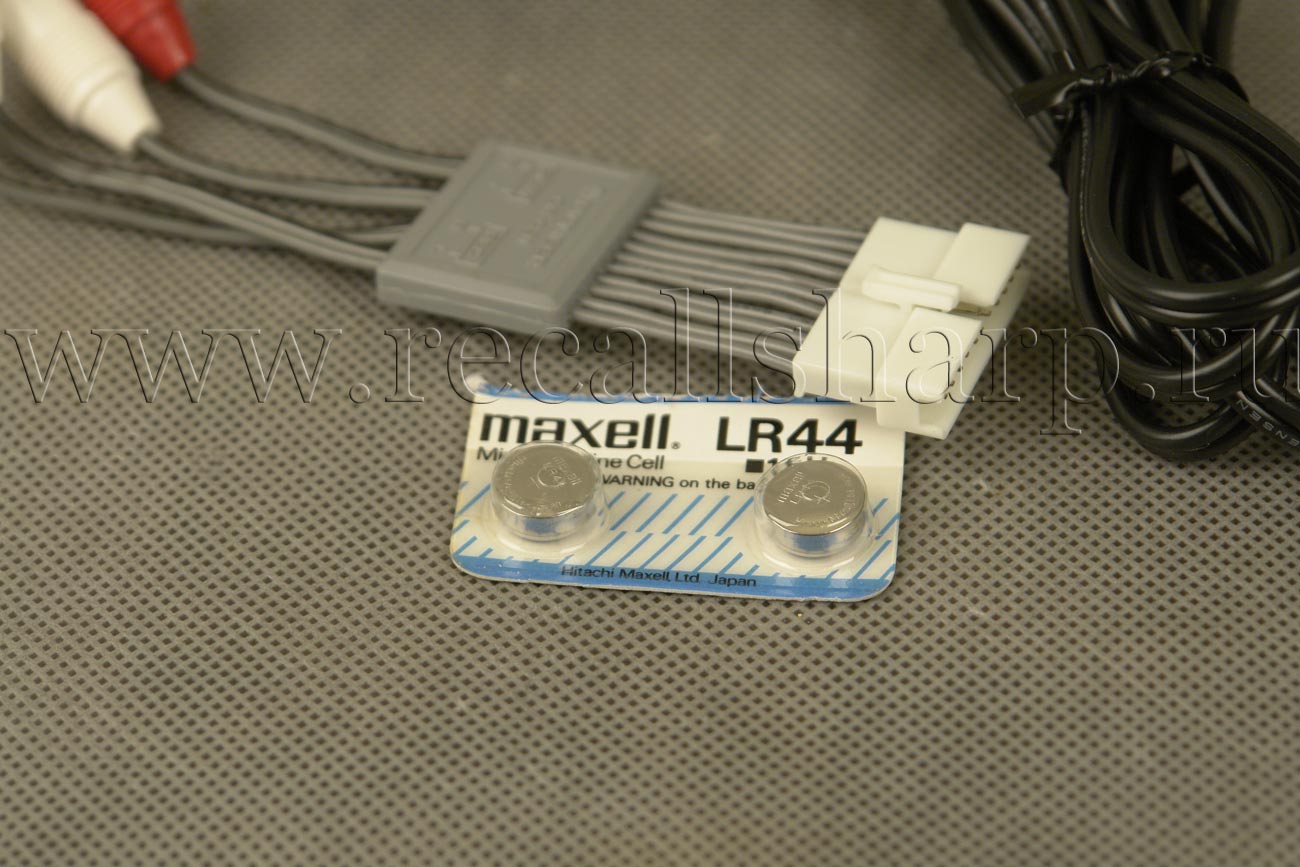

Conversion cord(11p-RCA pin terminals)

Handle

♣ Micro batteries(LR-44 type)x2

♣ Size "D" battery pack

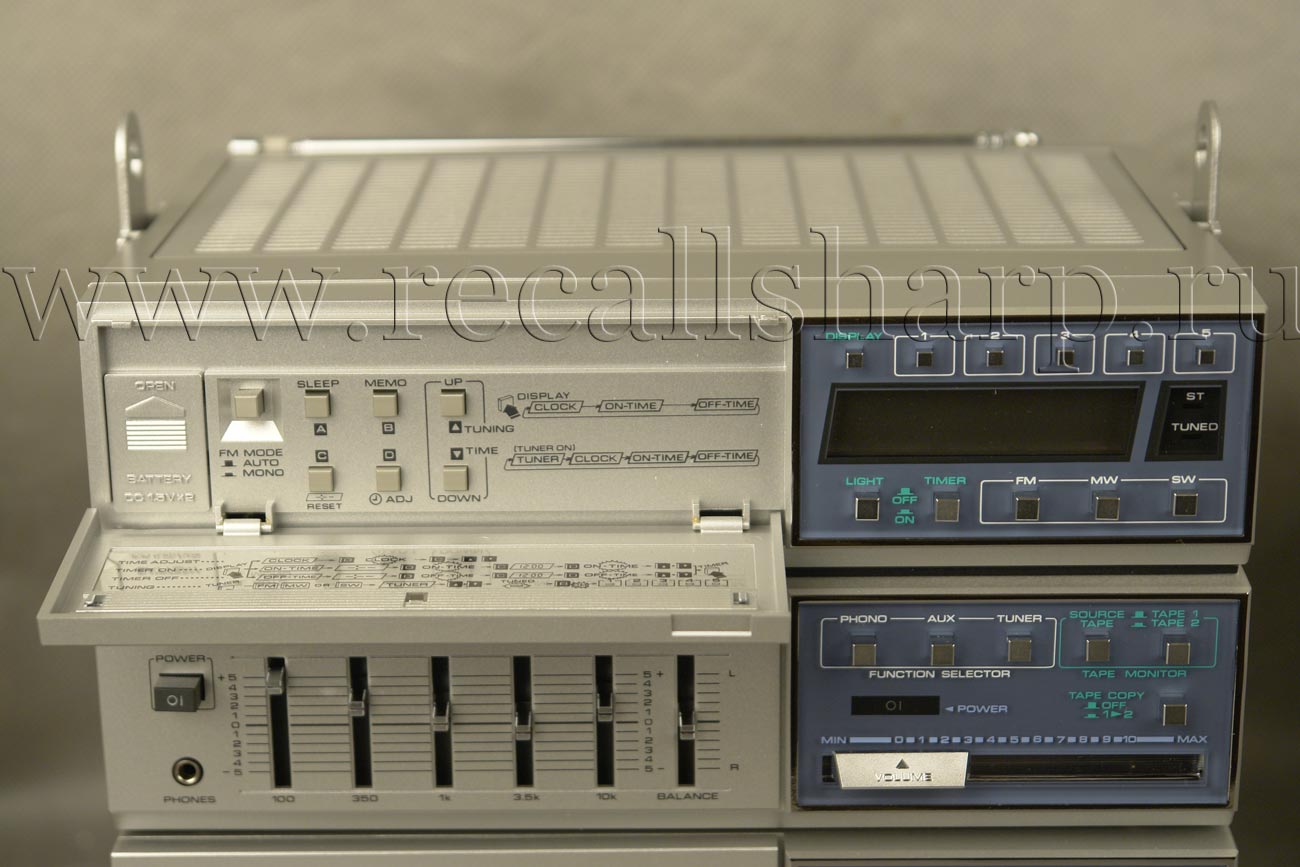

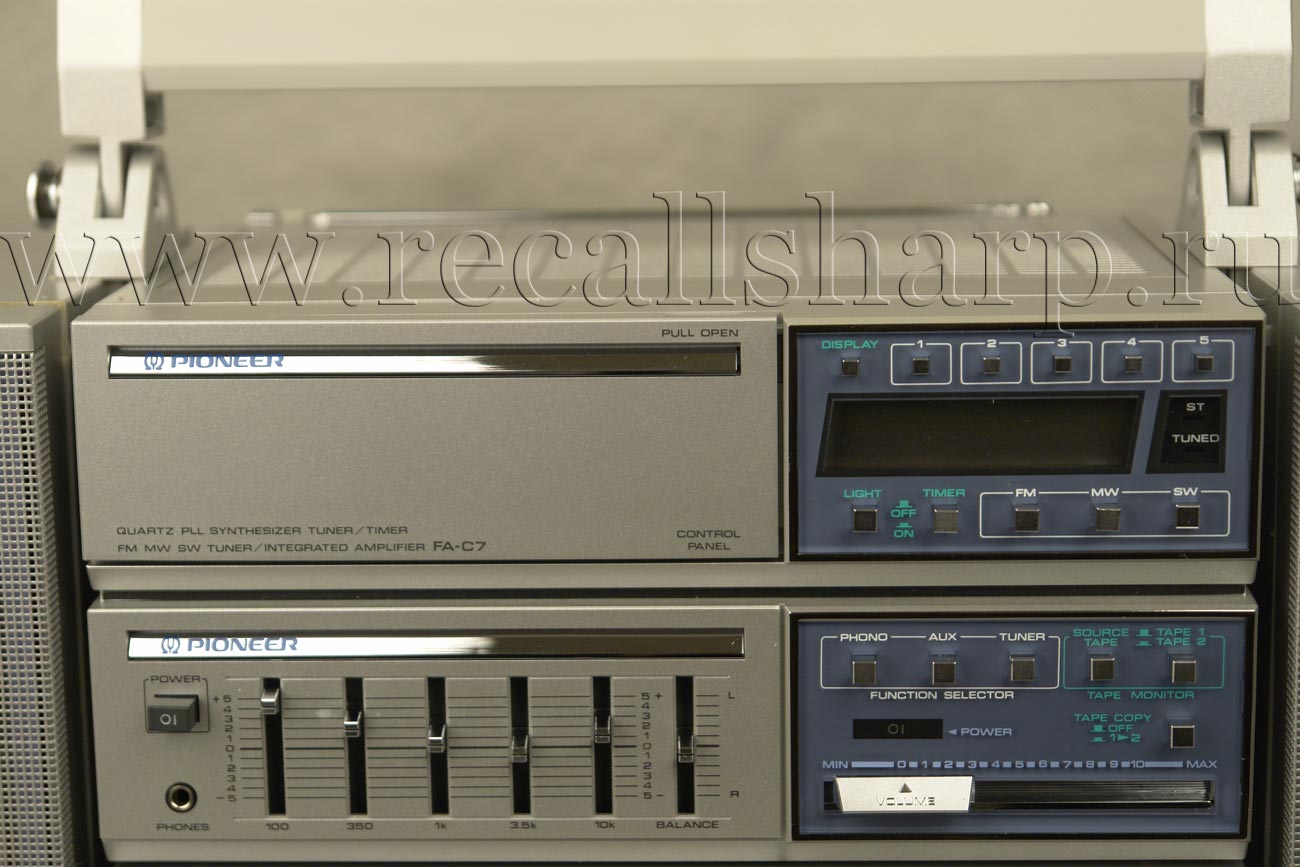

Tuner/amplifier unit (FA-C7)

(Tuner section)

Frequency rangeFM: 88-108MHz

SW: 5.8-15.5MHz

MW: 530- 1,600kHz

System..............................................Liquid crystal digital display and quartz PLL synthesizer


(Amplifier/common section)

Maximum output power. . . Total music power 36W

(10% THD)

Input terminals• MONITOR IN (System only)

DC IN (System only)

PHONO

AUX

EXT ANT

AC IN

Output terminals PRE OUT

EXT SP

PHONES

REC OUT (System only)

DC OUT (System only)


Power source 120/220/240V AC 50/60Hz

15V DC (System only/deck power supply)

Dimensions (WX HX D) . . . 225 X 110 X 150mm

(Not including protrusions)

WeightApprox. 3.3kg

Subfunctions 5 -band graphic equalizer

(100Hz,350Hz,1kHz,3.5kHz,10kHz)

2-deck tape dubbing function

Dial light

15 preset stations(5FM,5SW,5MW)

Clock:Liquid crystal digital display AM\PM 12-hour quartz type clock

Timer:Liquid crystal digital display,

one time action mode ON\OFF,sleep time 60 minutes

Indicators........................................... STEREO (red LED)

TUNED (green LED)

POWER (red LED)

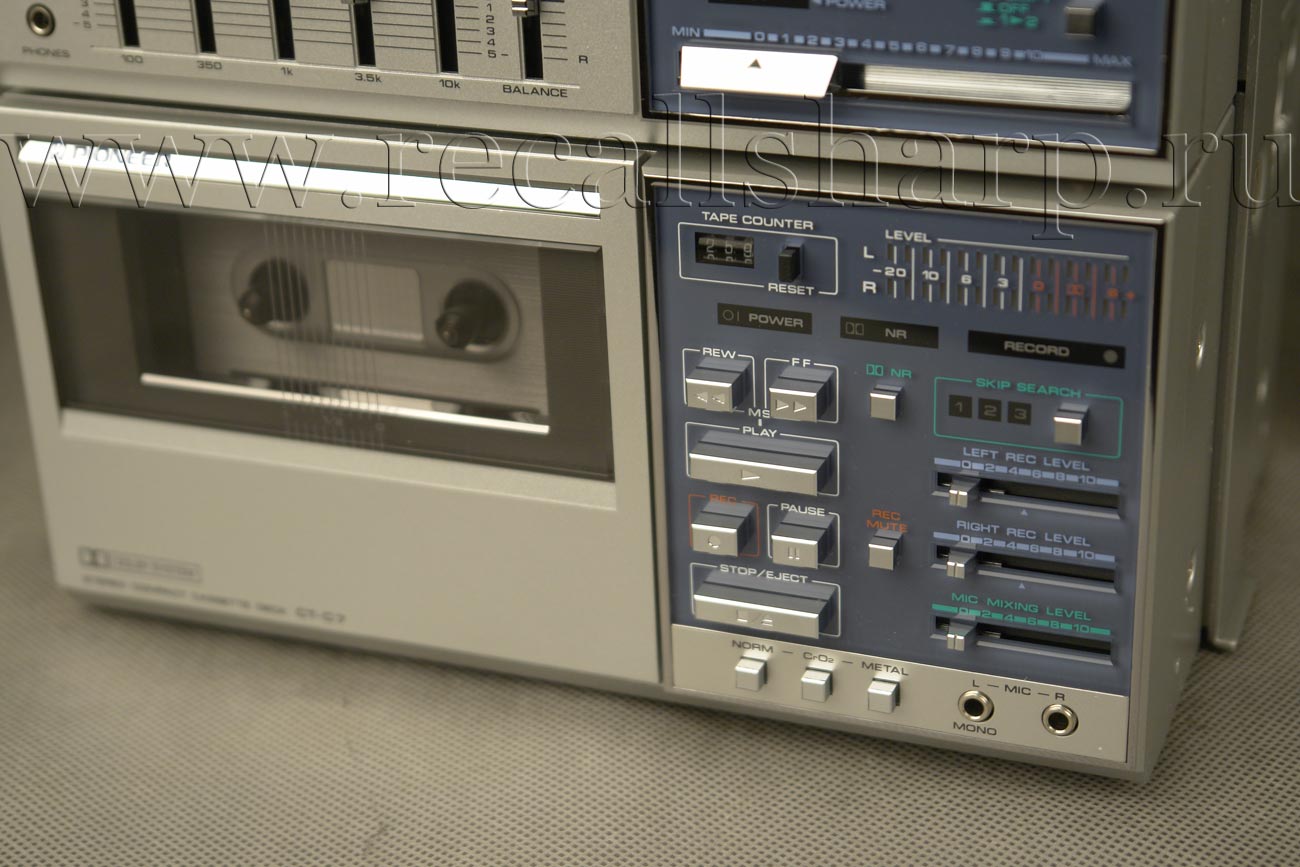

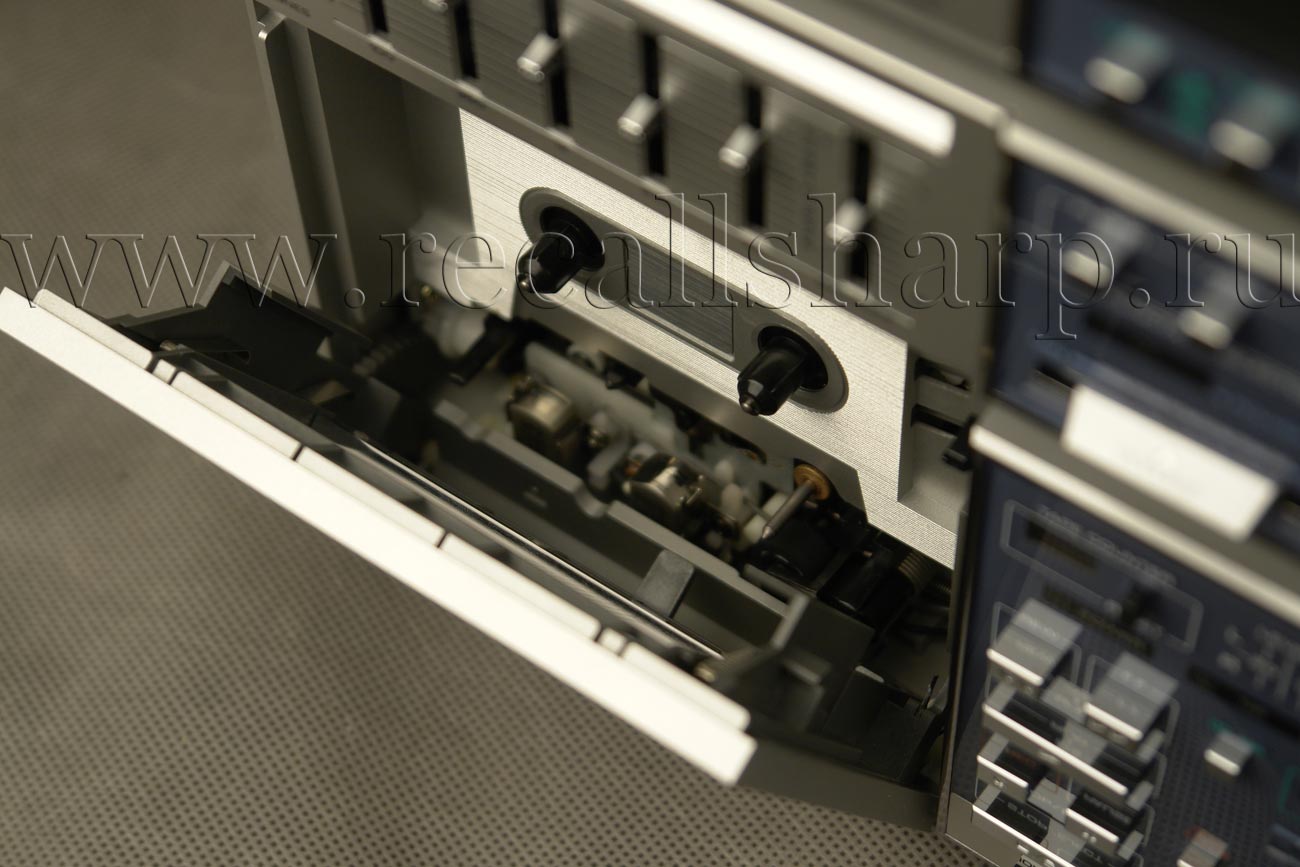

Cassette deck unit (CT-C7)

HeadsRecord/playback x 1, Erase X1

MotorElectronic governor DC motor X1


Frequency rangeNormaltape: 35Hz- 15,000Hz

Chrome tape: 35Hz- 16,000Hz

Metal tape: 35Hz- 17,000Hz

S/N ratio

(record/playback)51dB

58dB (DolbyNRON)

Input terminals EXT MIC (3.5Ø mini jack)

LINE IN (System only)

DC IN (System only)

DC IN

REMOTE

Output terminals LINE OUT (System only)

DC OUT (System only)

PHONES(3.5Ø mini jack)

Power source15V DC (ten size "D" batteries)

EXT DC 12V-15V

Dimensions (WX HX D). . . 225 X 110 X 150mm

(Not including protrusions)

WeightApprox. 1,8kg (without batteries)

Subfunctions DOLBY NR (B type)

Tape selector (metal/Cr02/ Norm)

3-selection skip search

Variable headphone output

One touch recording

External remote terminal

Manual recording adjustment

Indicators LEVEL METER (yellowish green LED X

4, red LED X 3) x2

DOLBY NR (green LED)

REC (red LED)

SKIP SEARCH (green LED X 3)

POWER\BAT (red LED)

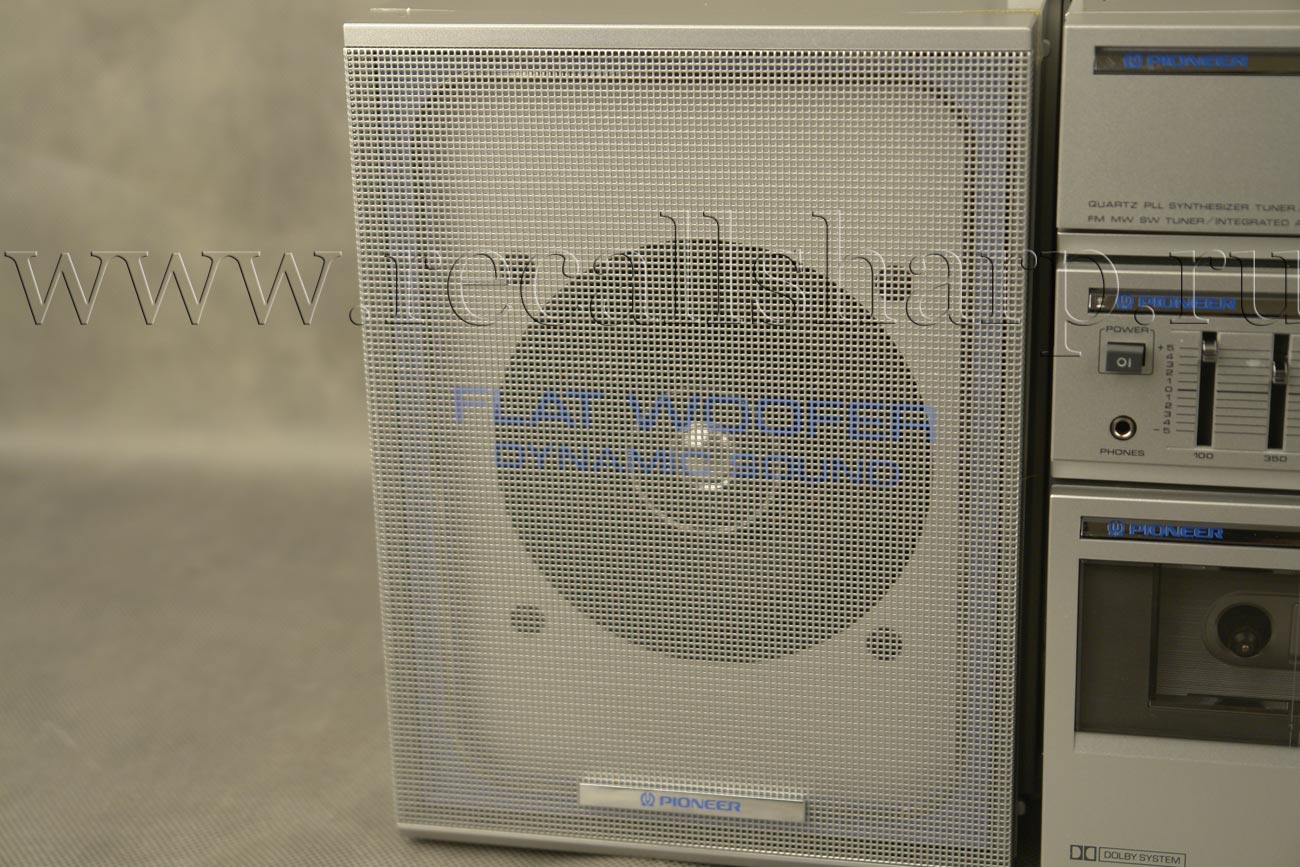

Speaker section (CS-C7)

TypeOpen rear system with acoustic damper

SpeakersWoofer: 15cm x 21 cm flat type

(equivalent to 22 cm diametr round type)

Tweeter: 9 cm Cone type

Nominal impedance6Ω

Frequency range 40 —20,000Hz

Sensitivity90dB/W (1m)

Rated input power 40W

Maximum instantaneous

input power100W

Dimensions (WXHXD) . . . 168 X 226 X 150mm

WeightApprox.2.3kg (each one)

Note: Specifications and design are subject to change without notice.
