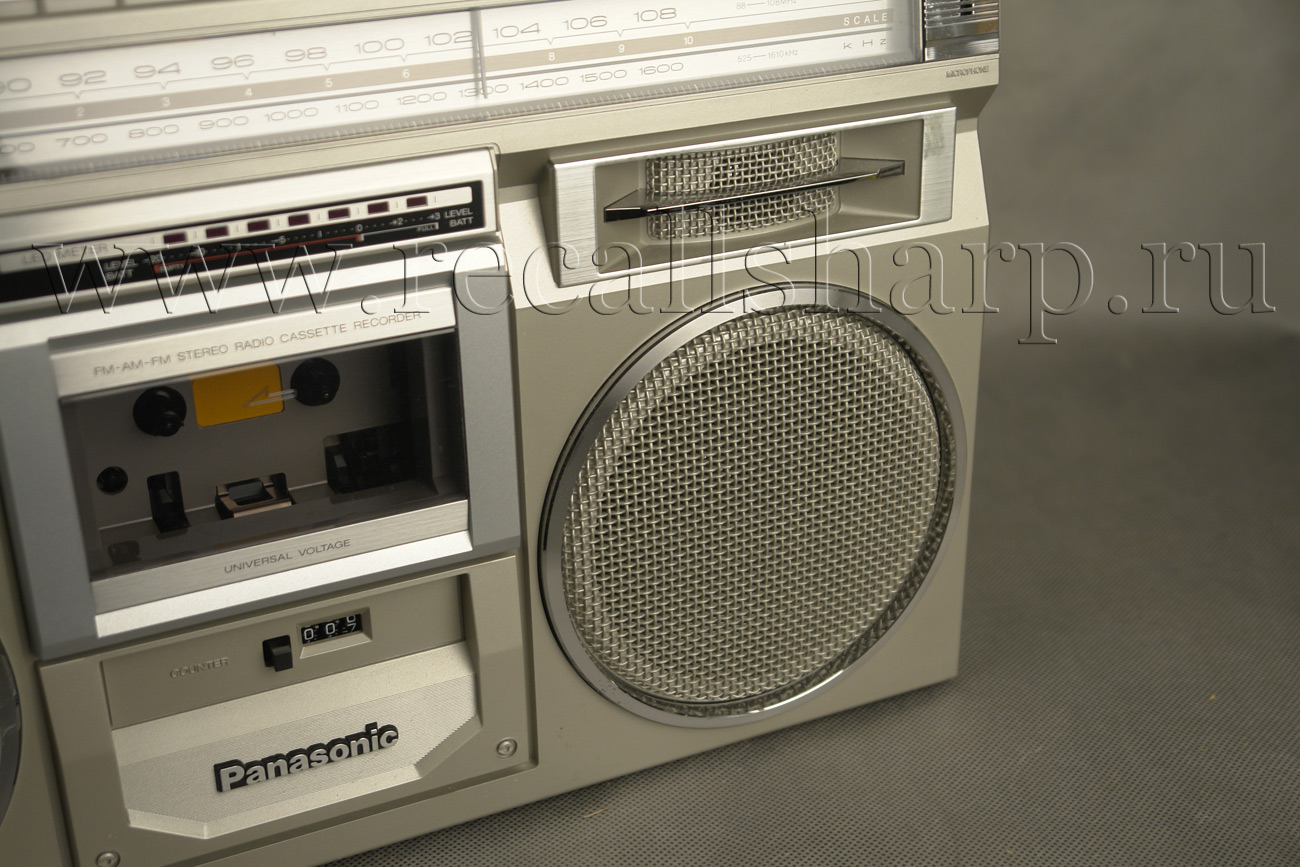

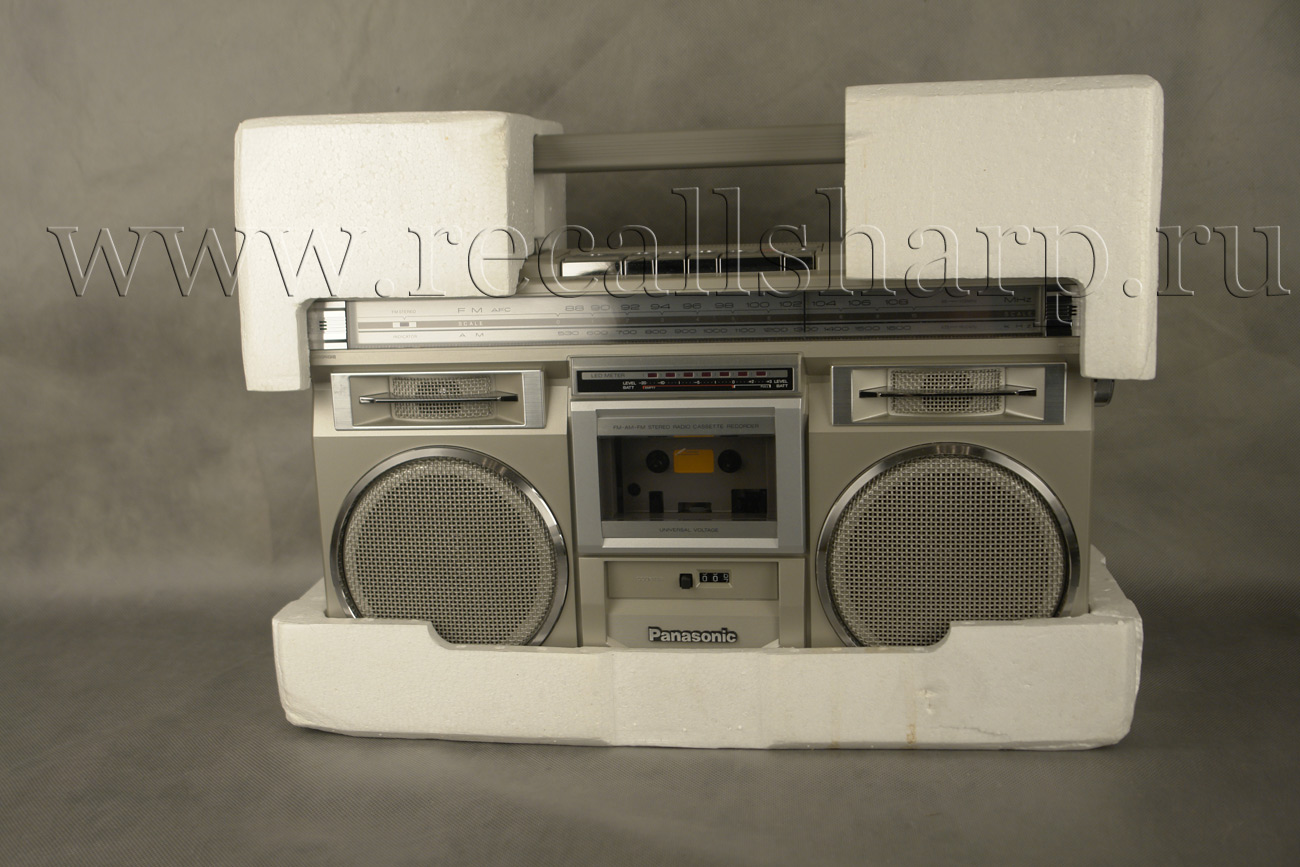

Panasonic RX-5110



: 1981


SPECIFICATIONS

<RADIO>
Radio Frequency Range:
FM; 88-108 MHz

AM; 525-1610 kHz

Frequency Range:
50-11,000 Hz (with normal tape)
50- 13,000Hz (with CrO2 tape)
Recording System: AC bias,

Erasing system Magnet erase
Track System: 4-track 2-channel stereo recording and playback

Tape speed: 4.8 cm/s

PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape

Power Requirement:
<GENERAL>
Power Requirement:
AC; 100-110/115-127/200-220/230-250V , 50/60 Hz

Power consumption; 25W

Battery; 12 V (eight "UM-1", D size batteries)

Car Battery; with optional car battery cord RP-952

Power Output: 12W (6Wx2)...(RMS max)

Speaker: Woofer;12cm PM dynamic speakers 3Ω

Tweeter; 3cm Ceramic speakers(200Ω)

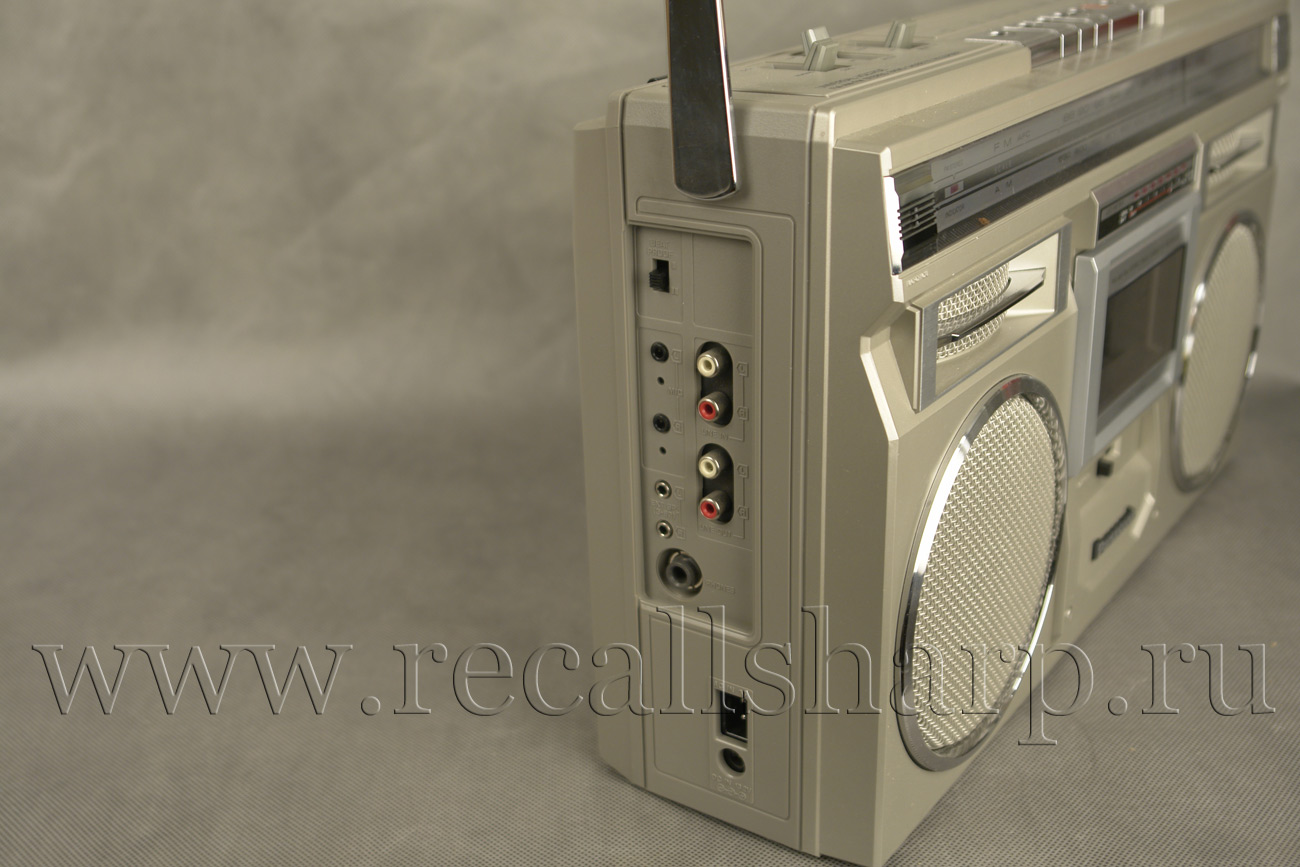

Jacks:
Input;
MIC; sensitivity 0.32 mV/applicable microphone impedance

200-600 Ohm (recommended microphone RP-8135)

DC in 13.2V

LINE IN; sensitivity 220 mV/47 kOhm.


Output; LINE OUT sensitivity 0.36V impedance 4.7kΩ
EXT SP; 3-8 Ohm
HEADPHONES; 8 Ohm

Dimensions: (WxHxD)467x267x155 mm

Weight: 4.8 kg without batteries
(not included)
