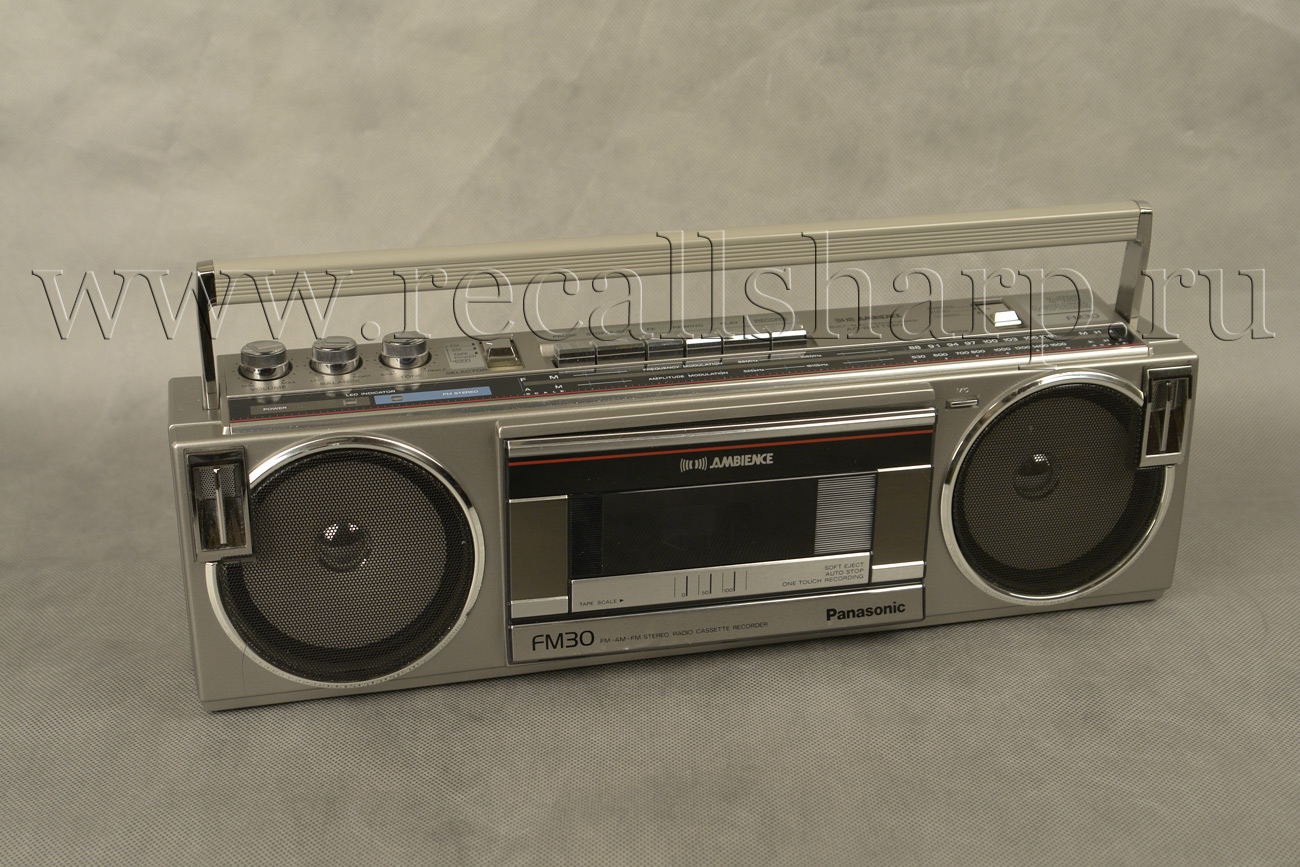

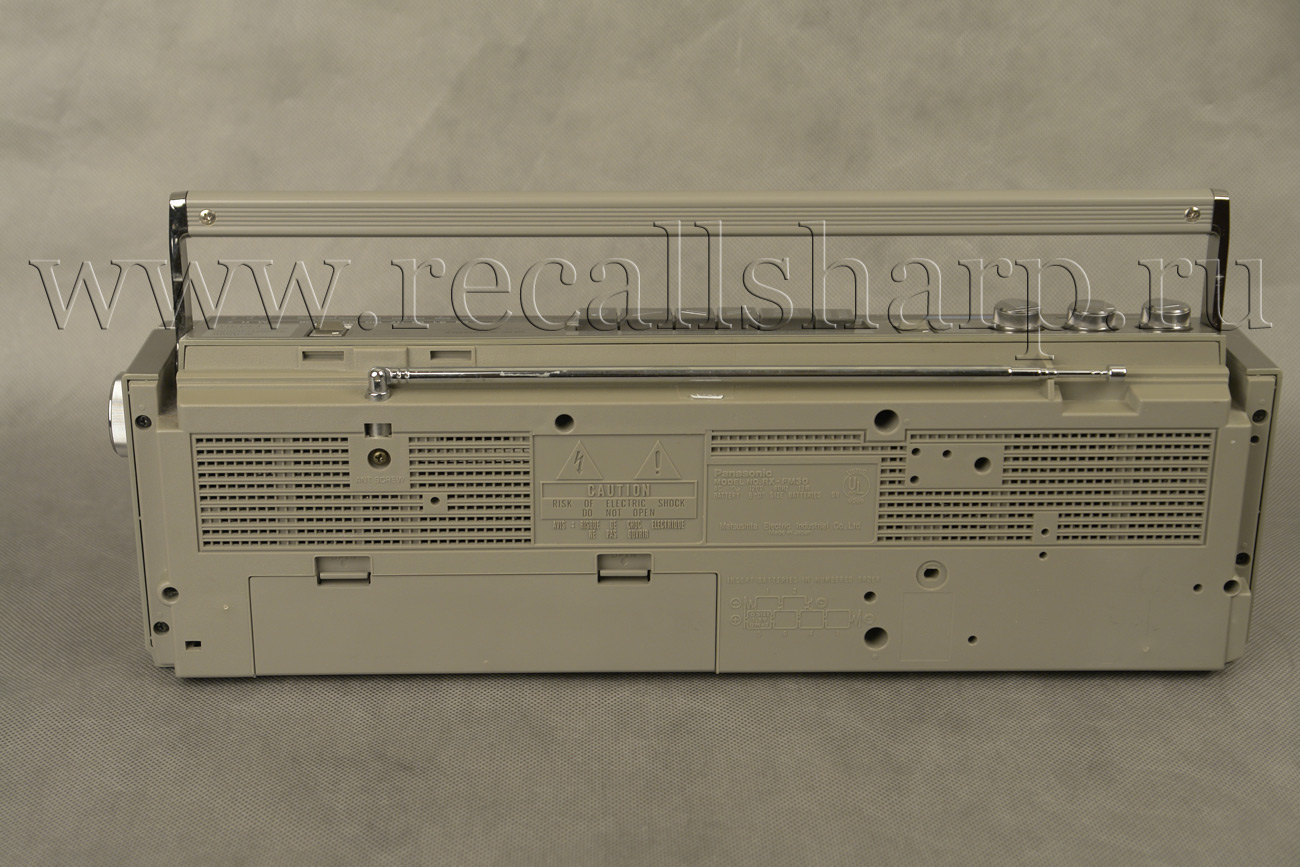

Panasonic RX-FM30



: 1985


SPECIFICATIONS

<RADIO>
Radio Frequency Range:
FM; 88-108 MHz

MW; 525-1610 kHz


Frequency Range:
100-8,000 Hz (with normal tape)

Recording System: DC bias,

Erasing system Magnet erase
Track System: 4-track 2-channel stereo recording and playback

Tape speed: 4.8 cm/s

PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape

Power Requirement:
<GENERAL>
Power Requirement:
AC; 120V , 50/60 Hz

Power consumption; 13W(AC only)

Battery; 9 V (six"UM-1", D size batteries)

Car Battery; with optional car battery cord RP-917

Power Output: 7W (3.5Wx2)...(RMS max)

Speaker: Woofer;10cm PM dynamic speaker 3Ω

Tweeter; 1.5cm PM dynamic speaker(2.5Ω)

Jacks:
Input;

DC in 9V


Output; EXT SP; 3-8 Ohm,∅3.5mm
HEADPHONES; 32 Ohm ,∅3.5mm

Dimensions: (WxHxD)440x140x118 mm

Weight: 2.3 kg without batteries
(not included)
