Год начала выпуска: 1981
Регион: Япония
SPECIFICATIONS
Radio section
Frequency range FM 76-108 MHz
AM 530-1,605 kHz

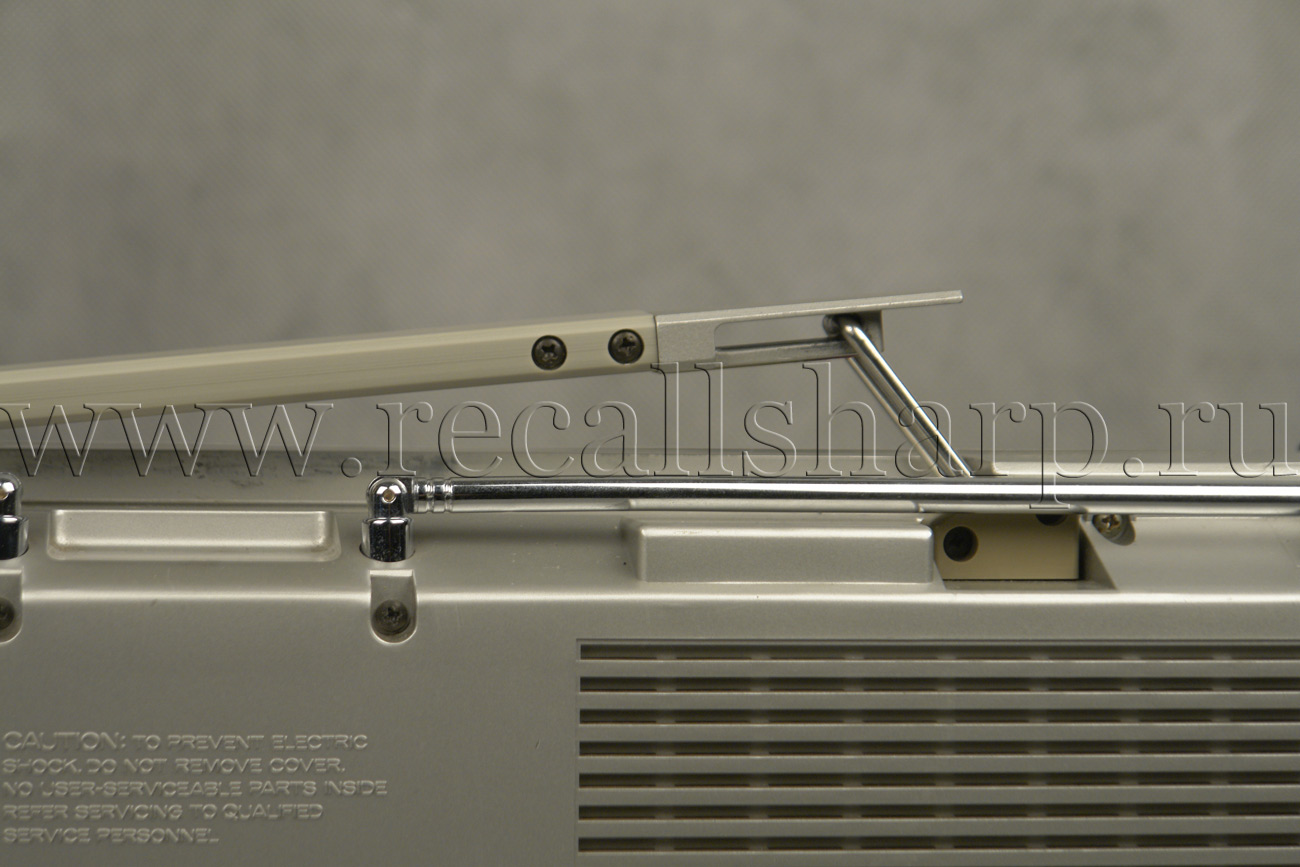

Antennas FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Tape recorder section and general
Recording system 4-track 2-channel stereo
Fast winding time Approx. 1 min. 30 sec. Cassette C-60
Frequency response 30-14,000 Hz (NORMAL)
30-17,000 Hz (Cr02)
30-18,000 Hz (METAL)
S/N 55 dB
Wow and flutter 0.075% (WRMS)
Speakers 3-way.
Dimensions: Width; 700-mm
Height; 225-mm
Depth; 115-mm
Weight: 9-kg without batteries
Output power: MPO; 30W (15W + 15W) (AC operation)
RMS; 20W (10W + 10W) (DC operation)

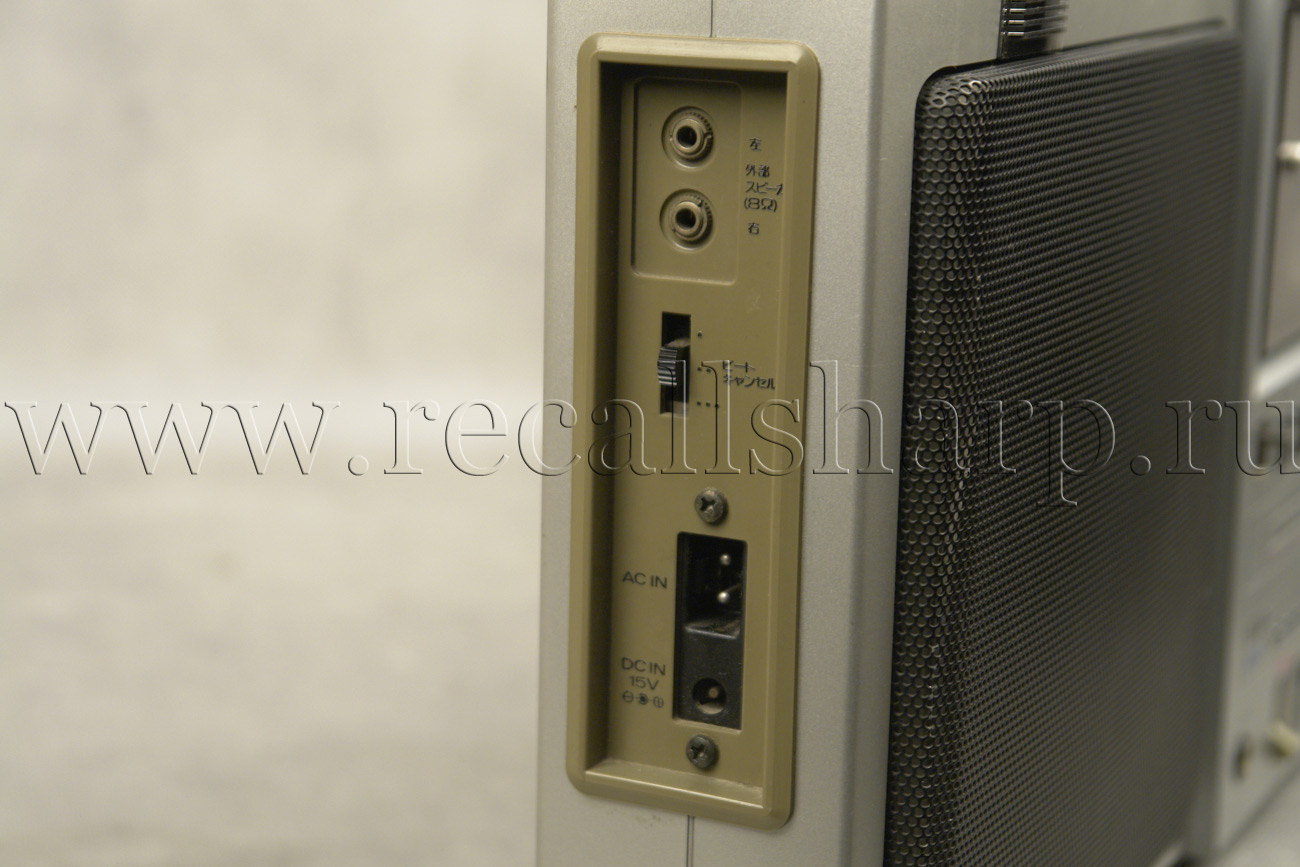

Power requirements 100V ac ,
50\ 60 Hz
15 V dc, ten batteries size D (IEC designation R20)
Power consumption 31 W ac
|
