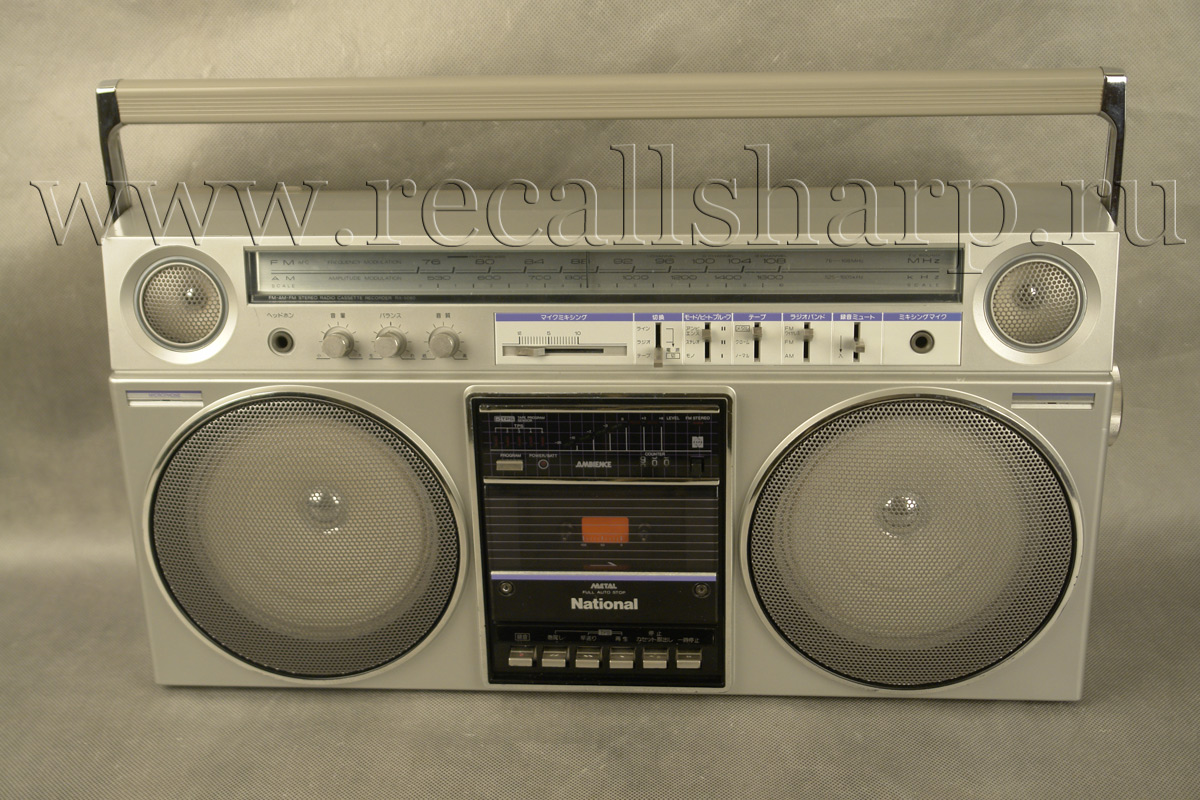

National RX-5080



: 1982


Specifications
General
Power requirement: AC;100V,
50Hz\60Hz

Battery; 12V (eight- "D" size Flashlight batteries)
Panasonic UM-1 or equivalent
Car battery; with optional car adaptor RP-952
Power consumption; 13 W (AC only)
Power output: 15W (7.5Wx2) ... RMS (max)

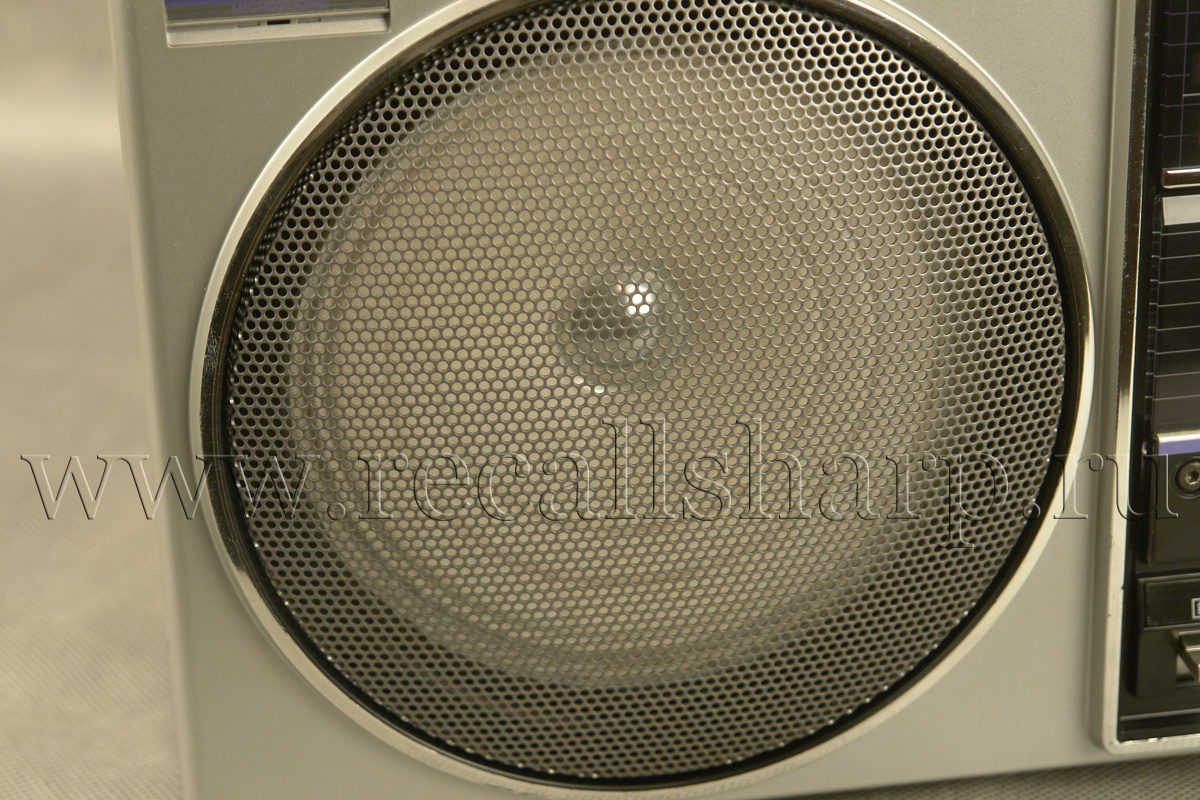

Speakers: Woofer 16 cm PM dynamic speaker (3Ω)

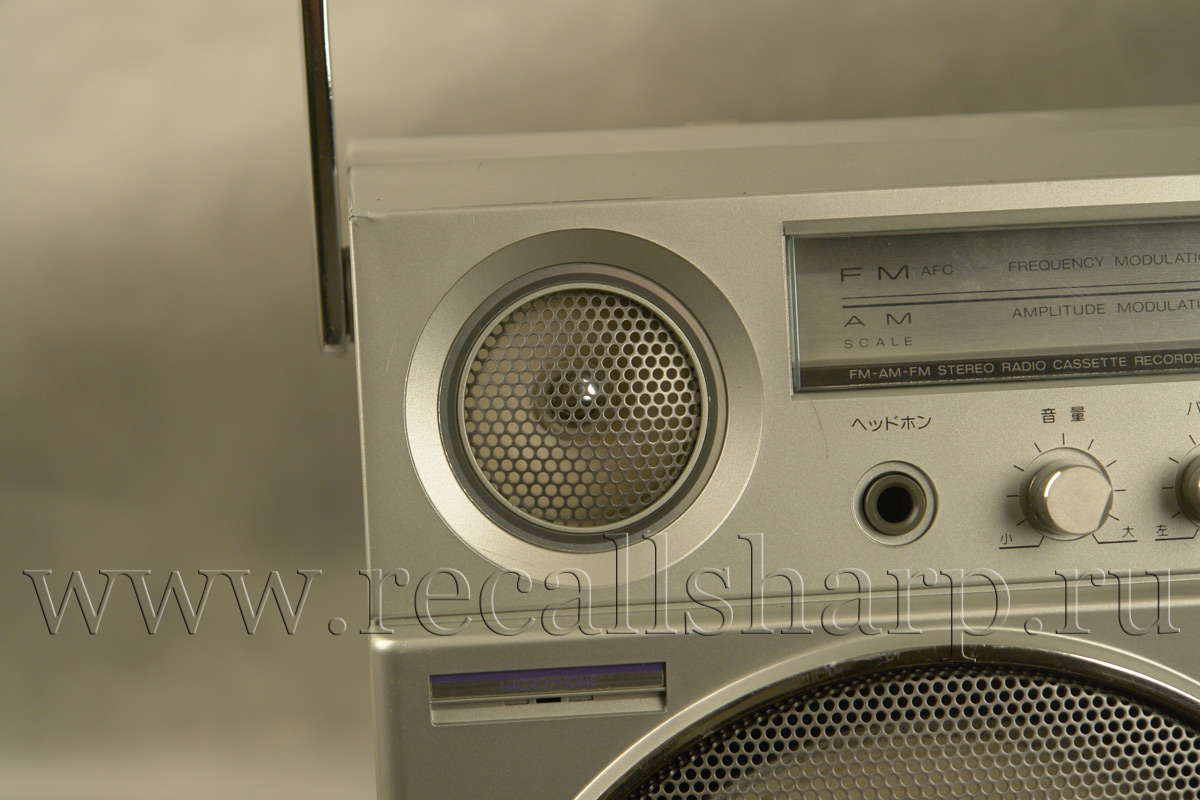

Tweeter 5cm PM dynamic speaker (4Ω)
Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ω
MIXING MIC sensitivity 0.8mV/applicable microphone
impedance 200-600Ω

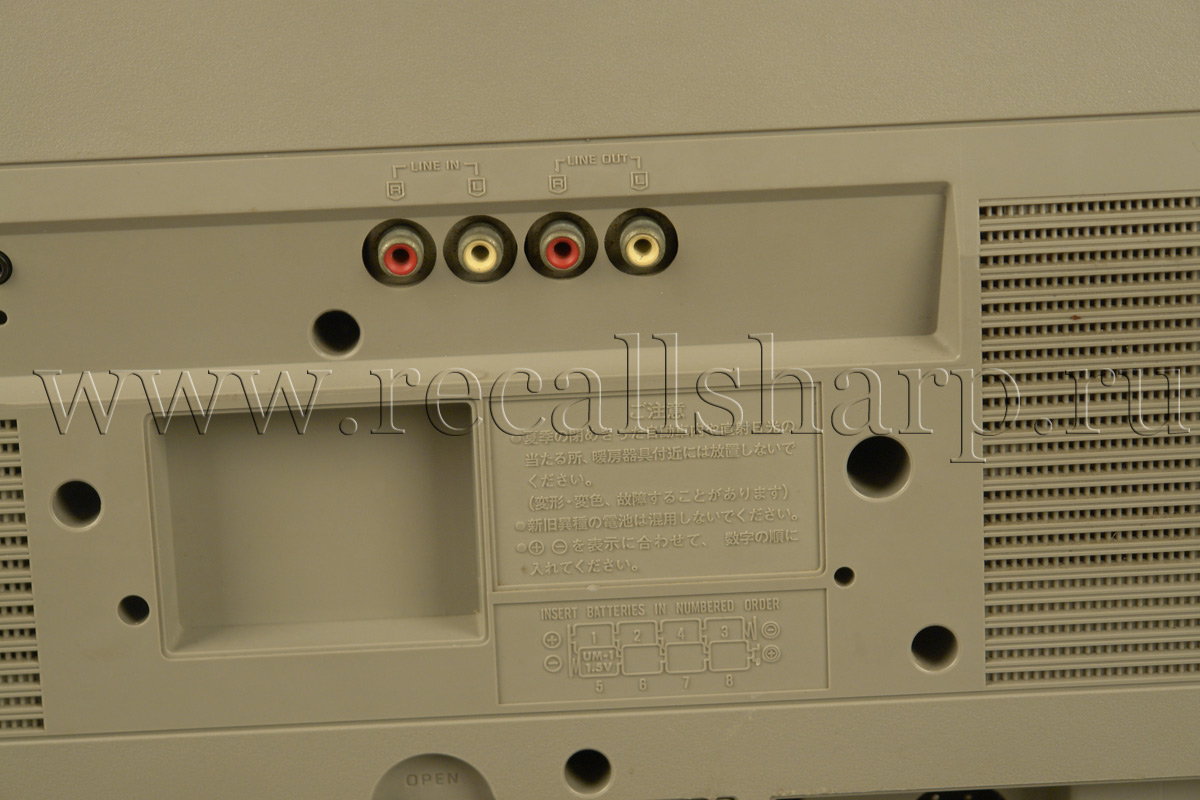

PHONO sensitivity 2.5mV/47kΩ
LINE IN; sensitivity 200mV/47kΩ

Output: LINE OUT;sensitivity 420mV/10kΩ under Speaker 3Ω-
8 Ω

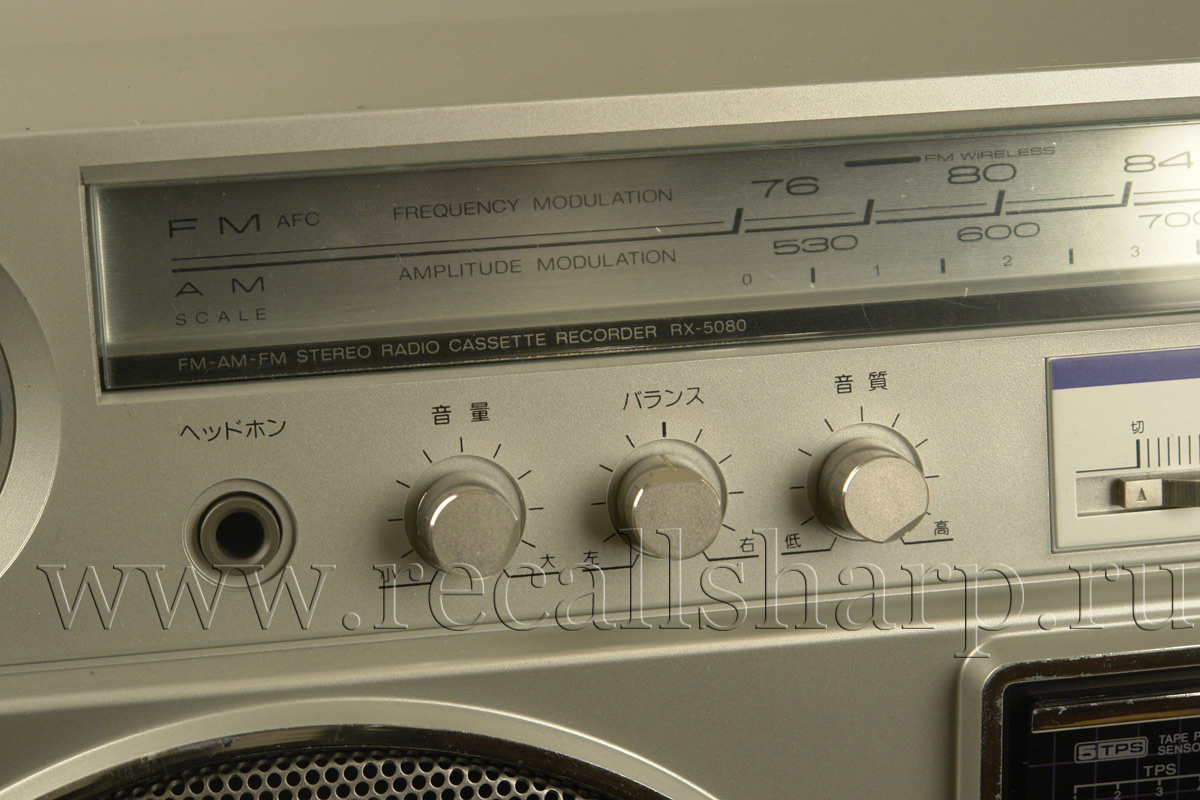

Headphones:8 Ω

Dimensions: Total size
534mm(W) x 265mm(H) x 178mm(D)

Weight: 5.7kg (without batteries)

Radio section

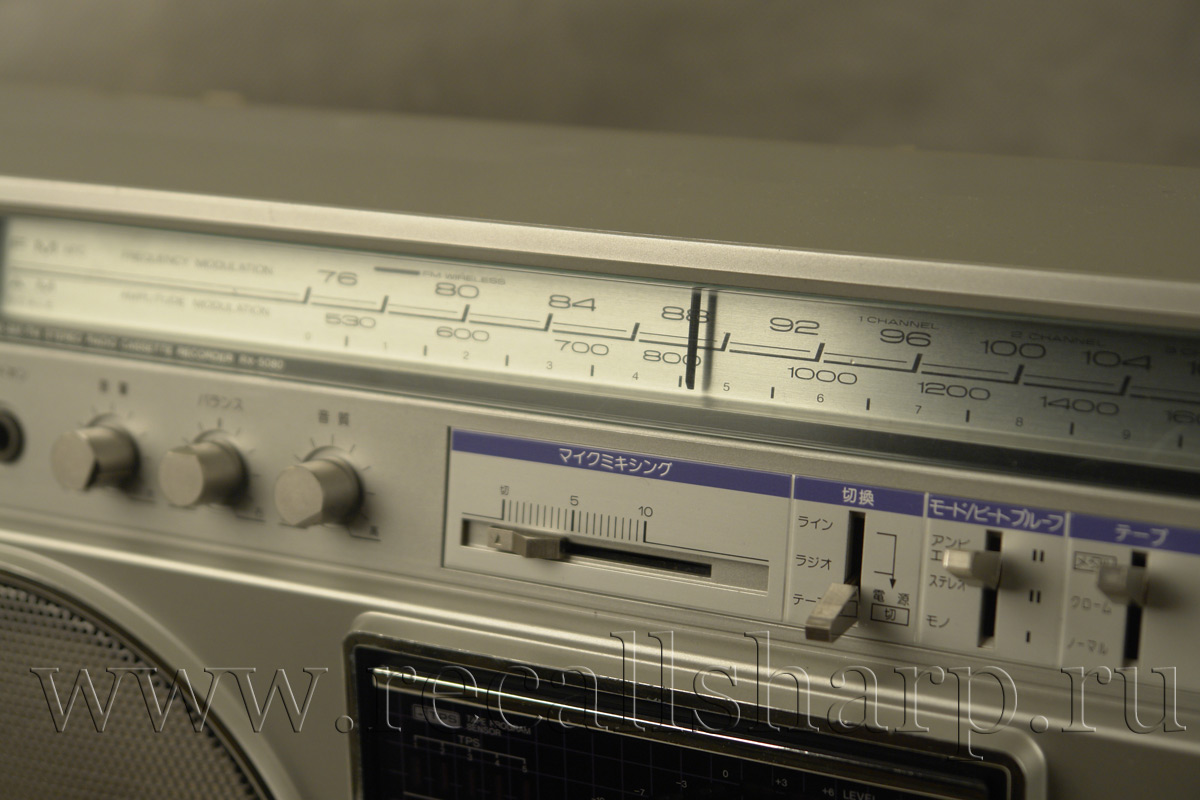

Radio frequency range: FM; 76MHz ~ 108MHz

AM; 525-1610kHz

Intermediate Frequency (IF): FM 10.7MHz
AM 455kHz

Sensitivity: FM 2.5μ V /50mW output

AM 70μ V/m/50mW output


Tape Deck Section
Frequency responce: 5 0-12,000 Hz(with normal tape)
50-13,000 Hz(with CrO2 tape)

50-14,000Hz (with Metal tape)

Recording system; AC bias, AC erase

Tape speed: 4.8cm/s
Wow&Flutter 0.08%(WRMS)
Program time: 1 hour with C-60 cassette tape

Track system: 4-track stereo recording and playback


:
Panasonic RX-5080
