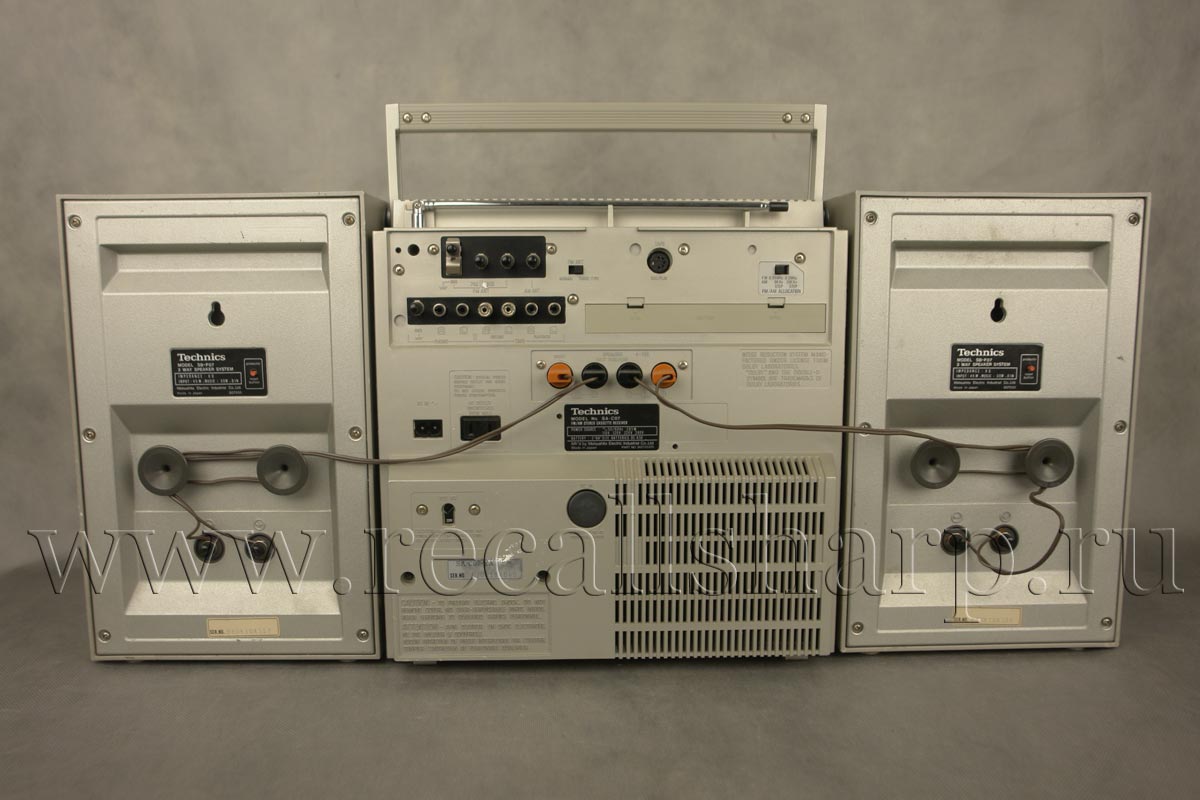

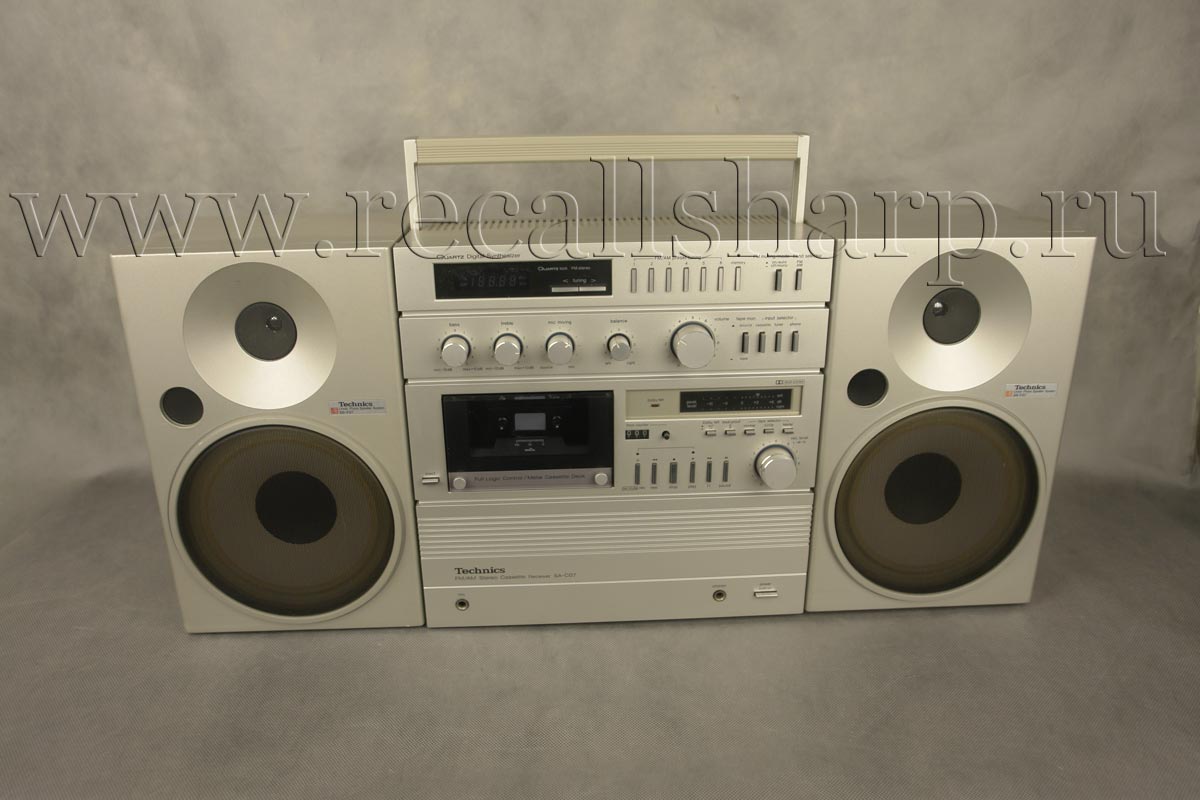

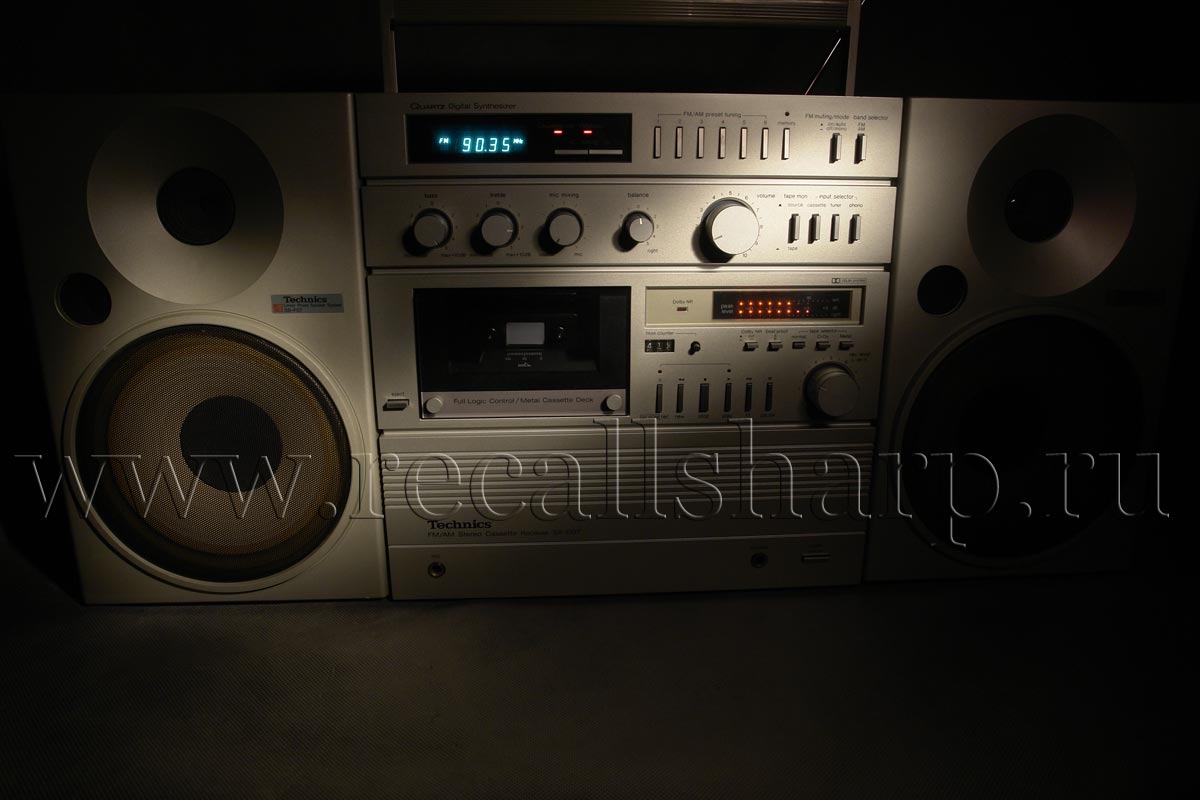

Frequency response
PHONO 30 Hz~15 kHz RIAA standard curve ±1 dB
AUX 10 Hz~40 kHz, -3 dB
MIC 40 Hz~15 kHz. -3 dB
Input sensitivity
PHONO 0.5 mV (2.5 mV, IHF '66)
AUX 25 mV (150 mV, IHF '66)
MIC 0.5 mV (1.5 mV, IHF 66)
S/N (IHF, A)
PHONO 70 dB (72 dB, IHF '66)
AUX 82 dB (87 dB. IHF '66)
MIC 70 dB (66 dB, IHF '66)
Maximum input voltage
PHONO 120 mV (150 mV, 1 kHz)
Input impedance
PHONO 47 kilohms
AUX 27 kilohms
MIC 10 kilohms
Tone controls
BASS 50 Hz, +10 dB~ -10 dB
TREBLE 20 kHz, +10 dB~ -10 dB
Output voltage
REC OUT 150 mV
Low frequency damping factor 30 (8 ohms)
15 (4 ohms)
Load impedance 4~16 ohms

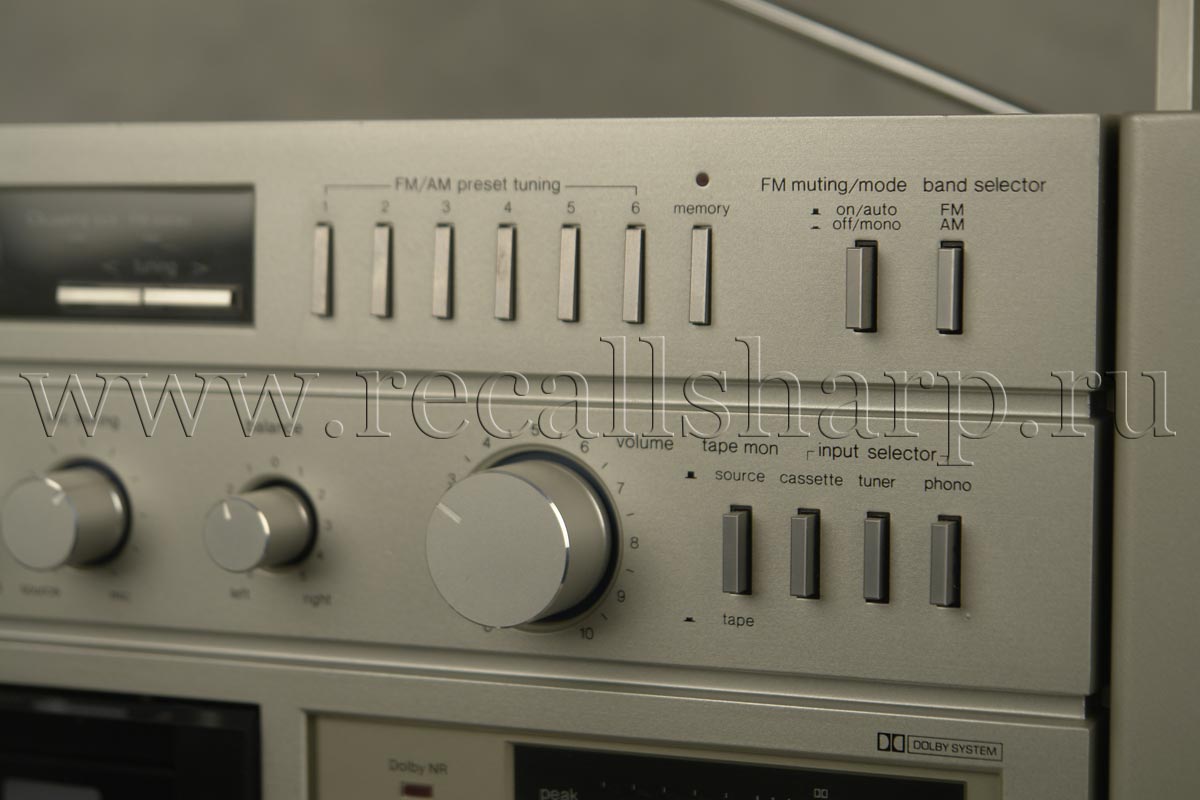

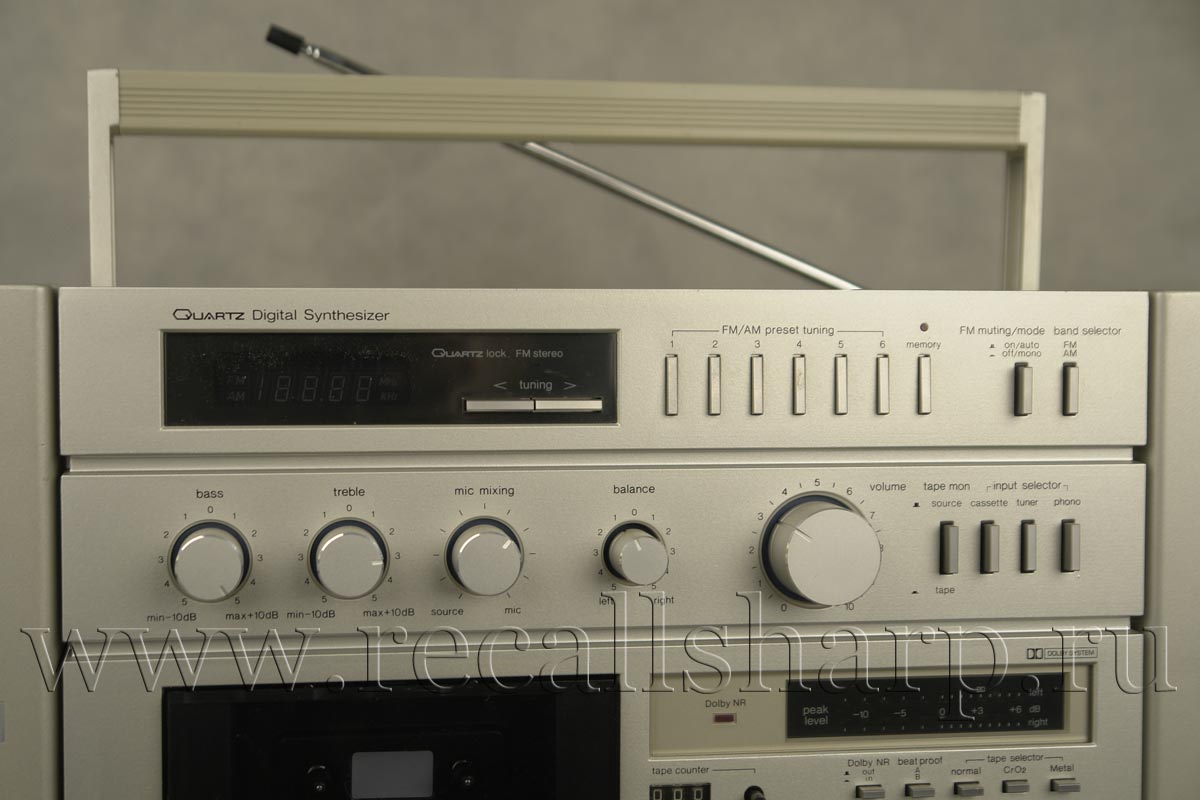

FM TUNER SECTION
Frequency range 87~108 MHz
Sensitivity 11.2 dBf (2.0 μHF '58)
50 dB quieting sensitivity
MONO 17.5 dBf (4.1//V IHF'58)
STEREO 39 dBf (49 IHF '58)
Total harmonic distortion
1 kHz 0.2% (MONO), 0.4% (STEREO)
S/N
MONO 75 dB
STEREO 70 dB
Frequency response 20 Hz~15 kHz, +0.5 dB, -1.5 dB
Alternate channel selectivity 60 dB
Capture ratio 1.0 dB
Image rejection at 98 MHz 60 dB
Spurious response rejection at 98 MHz 80 dB
AM suppression 55 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Carrier leak
19 kHz -35 dB
38 kHz -35 dB
Antenna terminals 300 ohms (balanced)
75 ohms (unbalanced)
AM TUNER SECTION
Frequency range 522~1611 kHz
Sensitivity 30 μV, 300 μV/m
Selectivity (±10 kHz) 27 dB
Image rejection at 1000 kHz 50 dB
IF rejection at 1000 kHz 40 dB

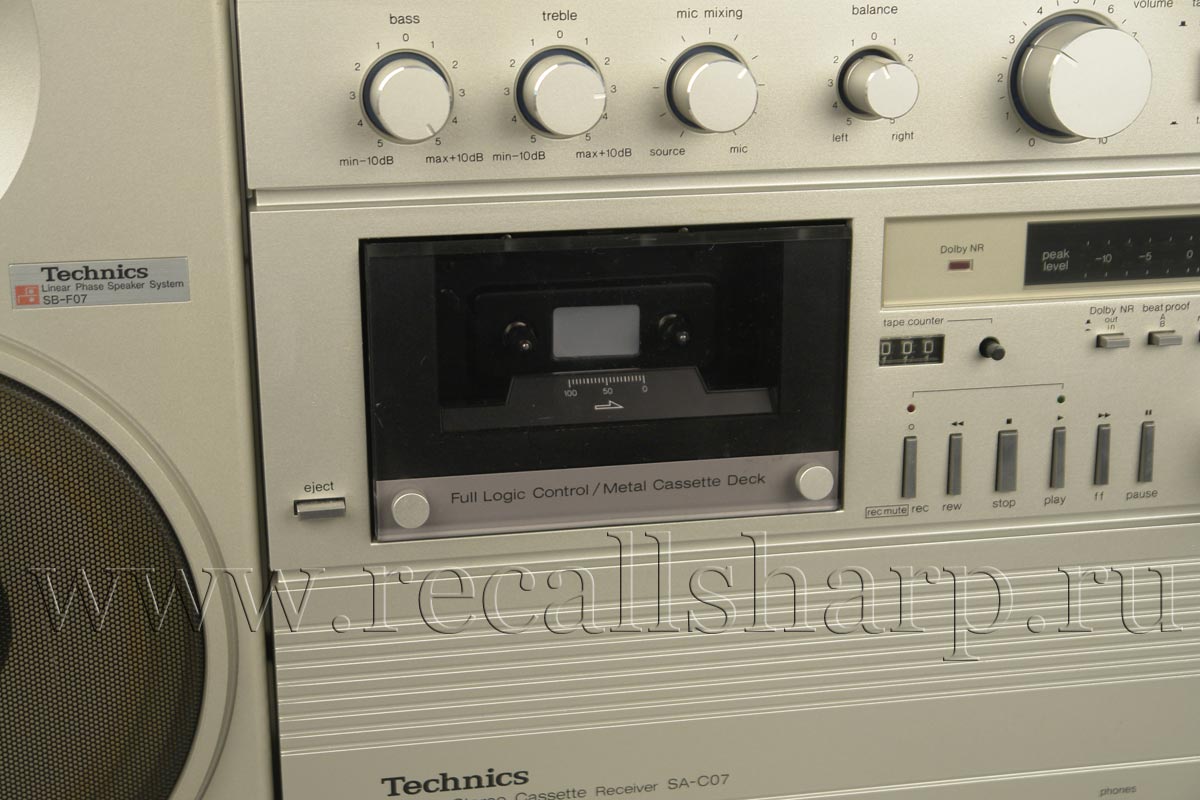

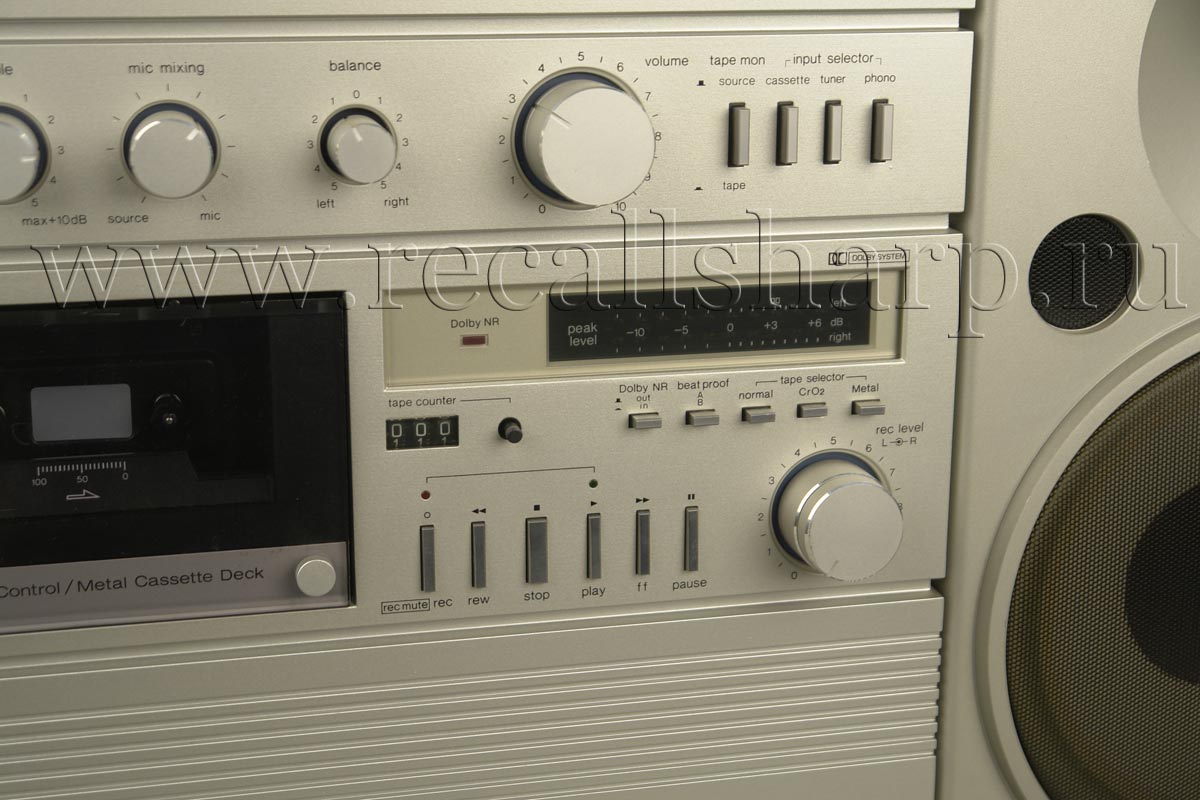

CASSETTE DECK SECTION
Deck system Stereo cassette deck
Track system 4-track, 2-channel
Heads
REC/PLAY SP (solid permalloy) head
Erasing 3-gap ferrite head
Motors 2-motor system
1- Electronically controlled DC motor
for capstan drive
1- Electronically controlled DC motor
for reel drive
Recording system AC bias
Bias frequency 85 kHz
Erasing system AC erase
Tape speed 4.8 cm/sec
Frequency response (w/o Dolby N.R.)
METAL 20 Hz~17 kHz
Cr02 20 Hz~16 kHz
NORMAL 20 Hz~15 kHz
S/N (signal level = max recording level, Cr02 type tape)
DOLBY NR in 66 dB (above 5 kHz)
DOLBY NR out 56 dB
Wow and flutter 0.05% (WRMS)
GENERAL
Power consumption 265W
Power supply AC110\120\220\240 V, 50/60 Hz
Dimensions (WXHXD) 329 X 320 X 211 mm
Weight 10.6 kg (15.8 lb.)

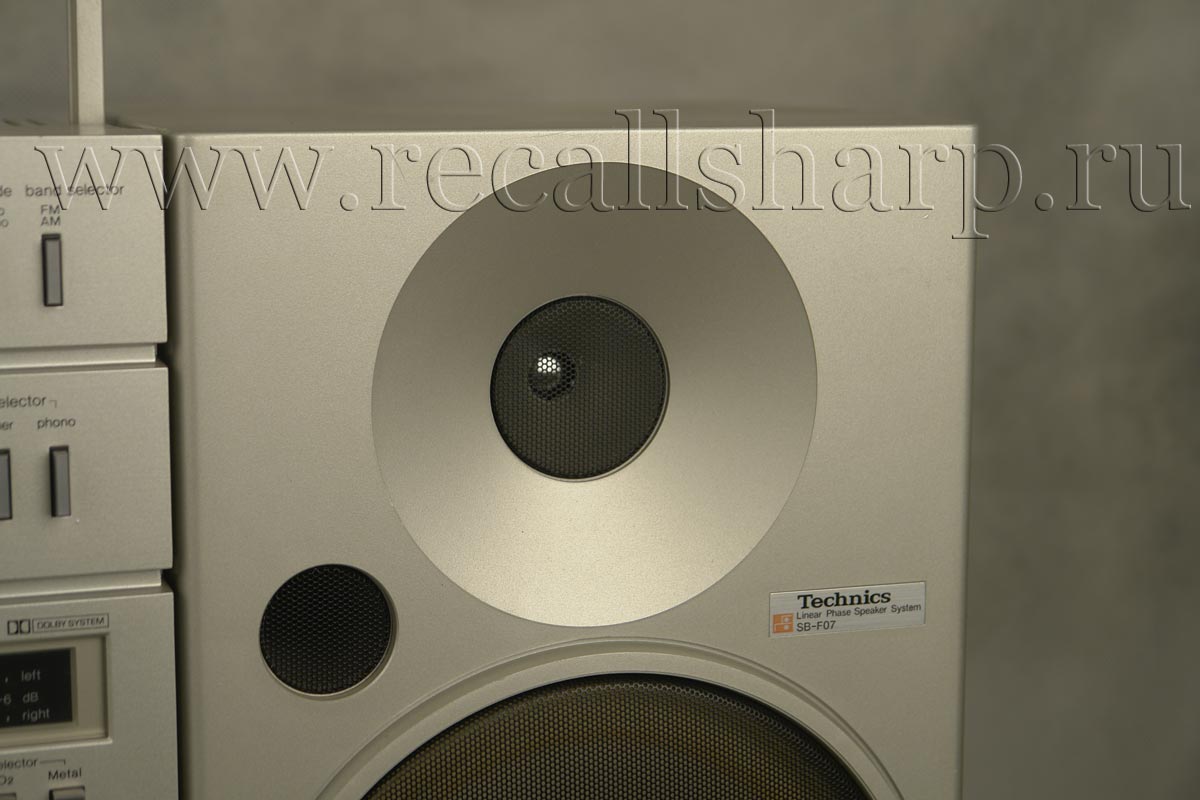

Speaker sections- SB-F07
Configurations 2-way, 2 speaker bass-reflex
Speaker units Woofer:18cm cone type
Tweeter: Horn type
Input Power Music 30 watts, 20 watts DIN
Output level 91dB\W(1.0 m)
Crossover frequency 6kHz
Frequency range 70 Hz-20,000 Hz(-16dB)
Impedance 4 ohms
Dimensions Approx. 200x320 x178mm (w/h/d)
Weight Approx. 2.6 kg net per unit
