Panasonic Corporation , . 2007 59- Fortune Global 500. 1 2008 Matsushita Electric Industrial Co., Ltd.

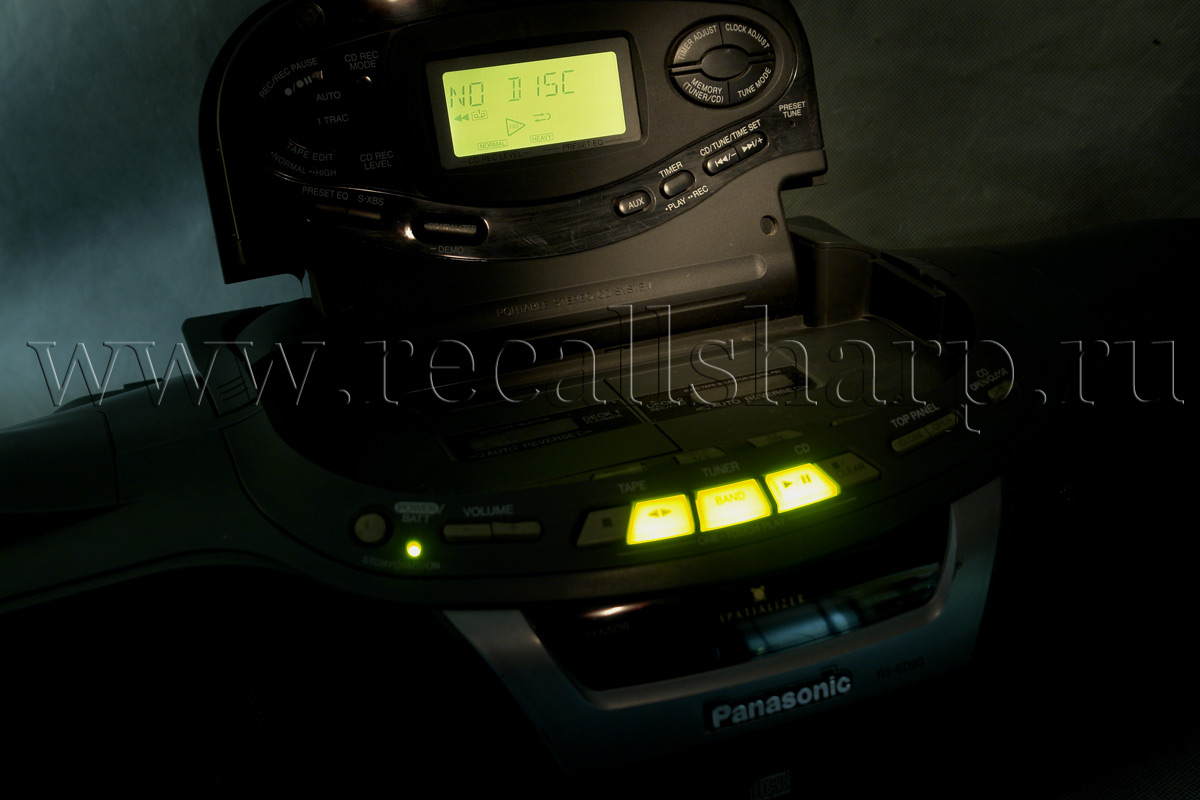

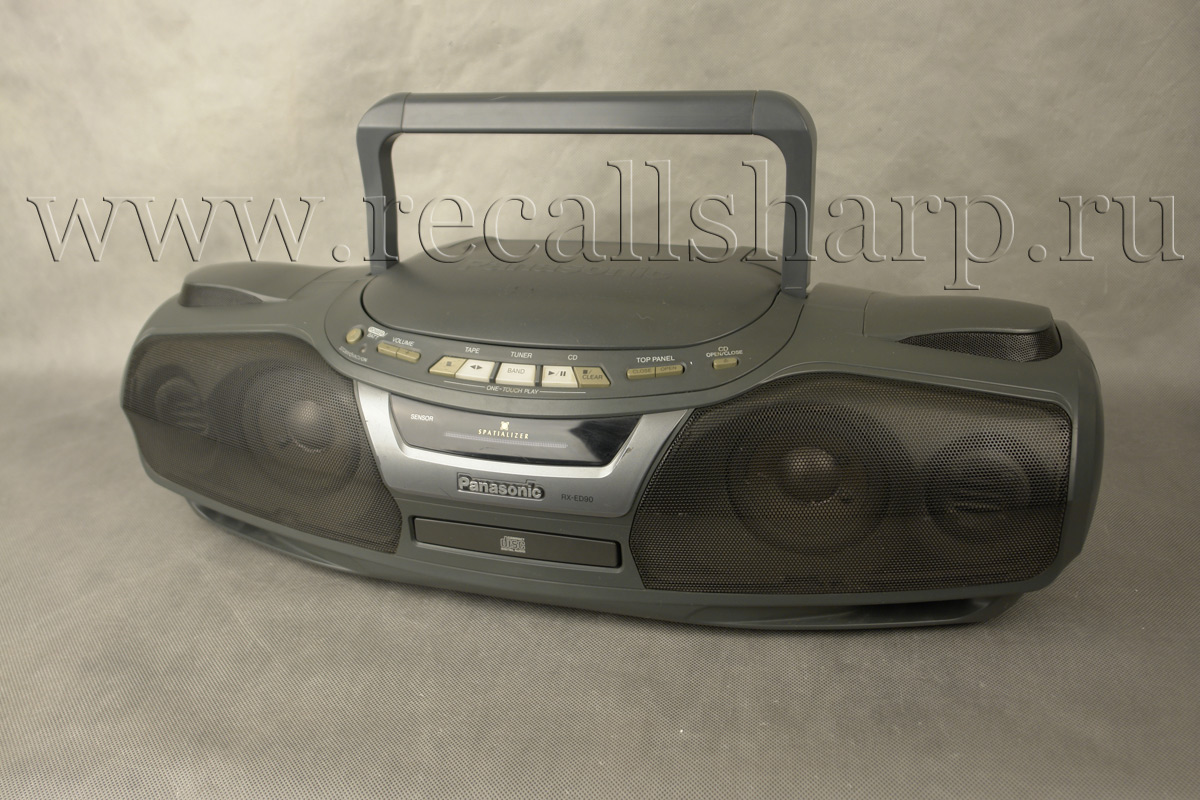

Panasonic RX-ED 90



: 1996


Radio Frequency range
FM 87.50-108.00 MHz
LW 144-288 kHz
MW 522-1611 kHz

CD player
Sampling frequency 44.1kHz
Decoding 16 bit linear
Beam source Semiconductor laser (wavelength 780 nm)
No. of channels 2 channel, stereo
Frequency response 20 Hz-20 kHz
Wow and flutter Less than possible measurement data
D/A converter MASH (1 bit DAC)

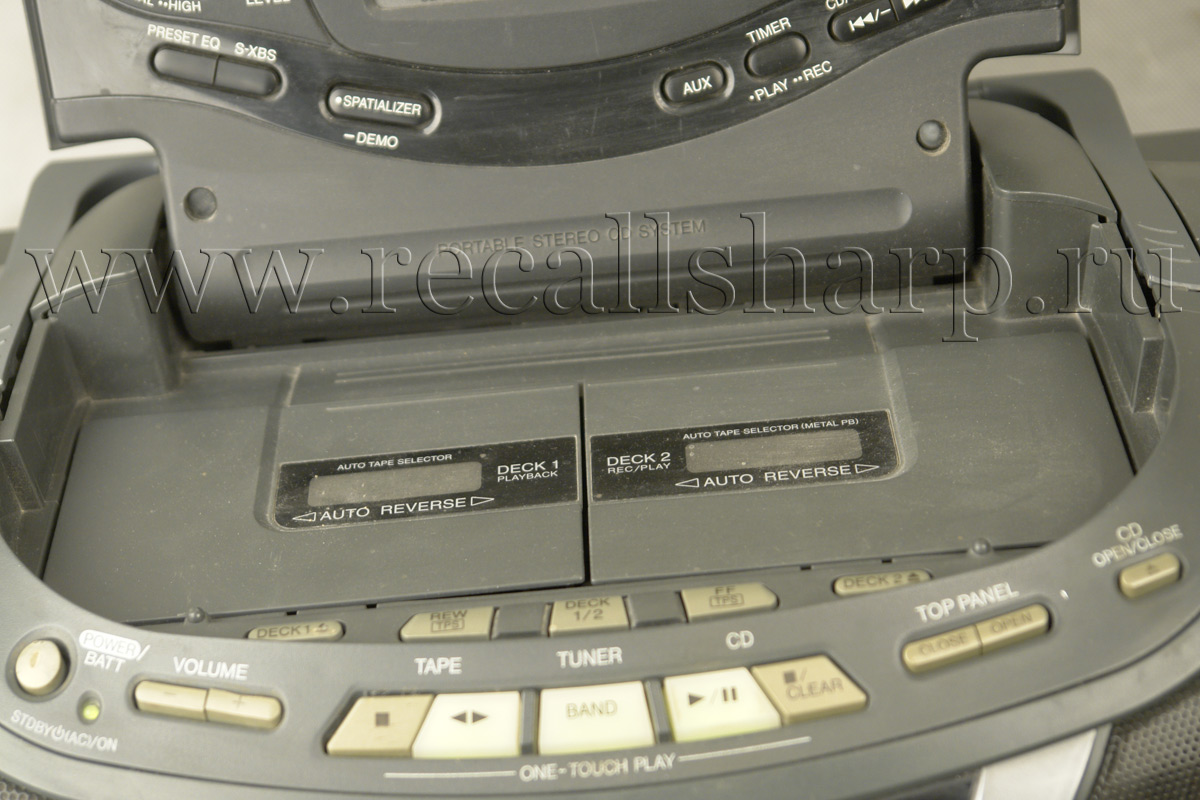

Tape recorder
Track system 4 track, 2 channel, stereo
Recording system AC bias
Erasing system AC erase
Monitor system Variable sound monitor
Frequency range
Normal 30-16000 Hz
Cr02 30-17000 Hz

General
Power requirement
AC 230-240 V, 50 Hz,
Power consumption; 86 W
Battery 15 V (Ten UM-1, R20/LR20 batteries)
Memory back-up for computer/clock
6 V (Four UM-3, R6/LR6 batteries)
Power output 30 W(15Wx2 ) (DIN)
100W (PMPO)

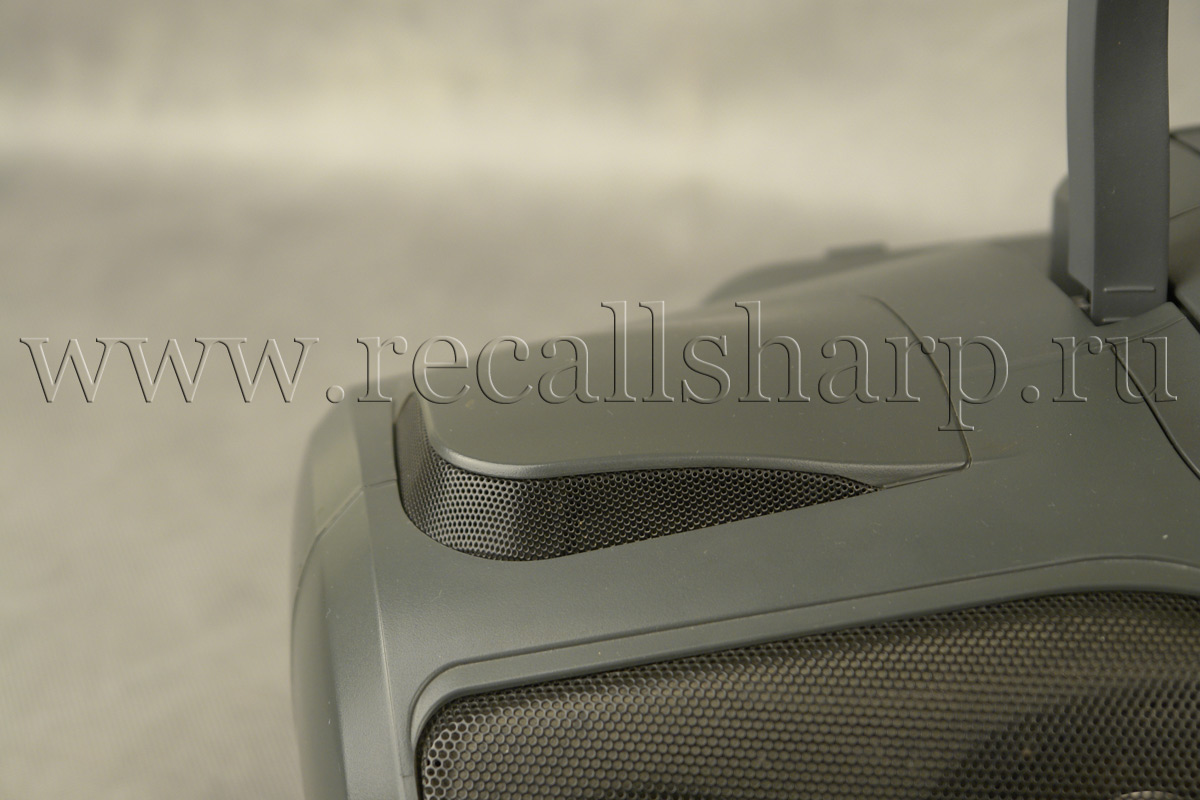

Speakers
2 Woofer 10 cm
2 Midrange 8 cm
2 Tweeter 2 cm Ceramic speakers
Jacks Input MIC; 2.5 mV (4.7 kΩ)
AUX; 200mV(47kΩ)
Output HEADPHONES; 32Ω Ø3.5 mm
CD OUT; 1.0V(CD 0dB)
Dimensions (WXHXD) (Top panel closed) 650x187x292mm
Weight 7.0 kg without batteries
