Год начала выпуска: 1984
Регион: СССР

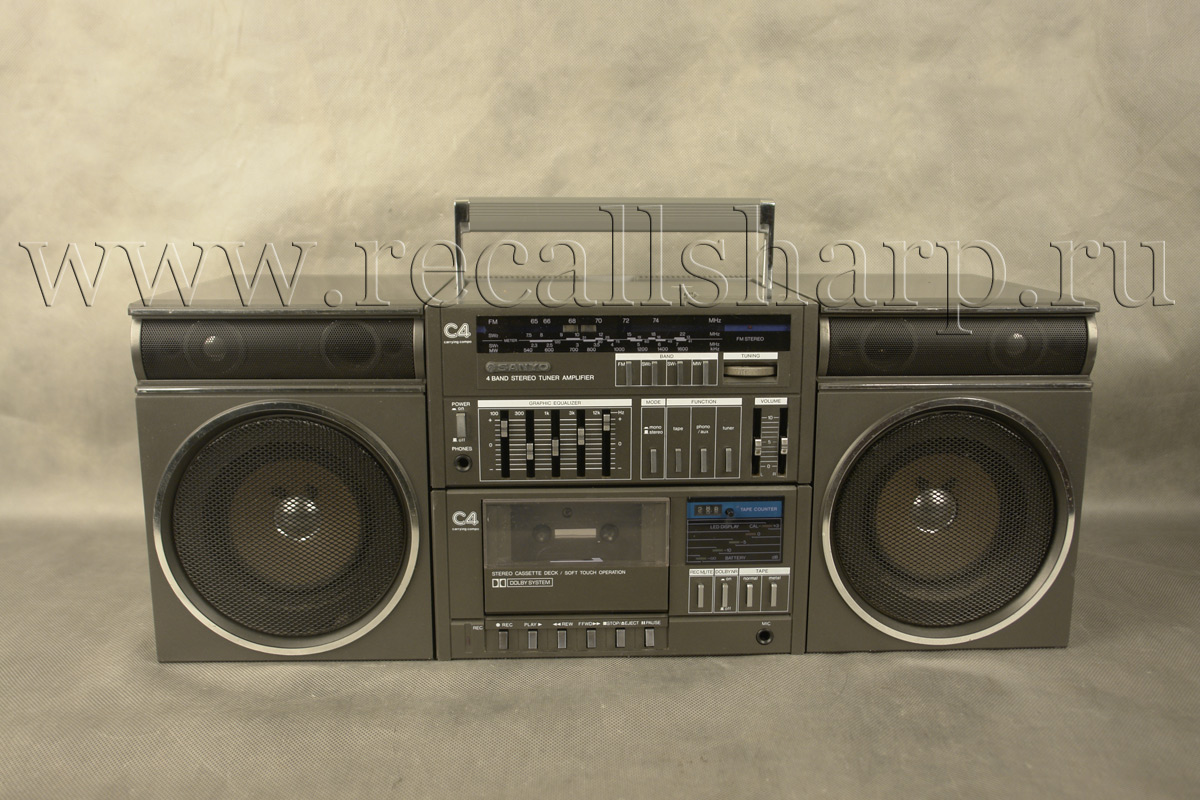

SPECIFICATIONS

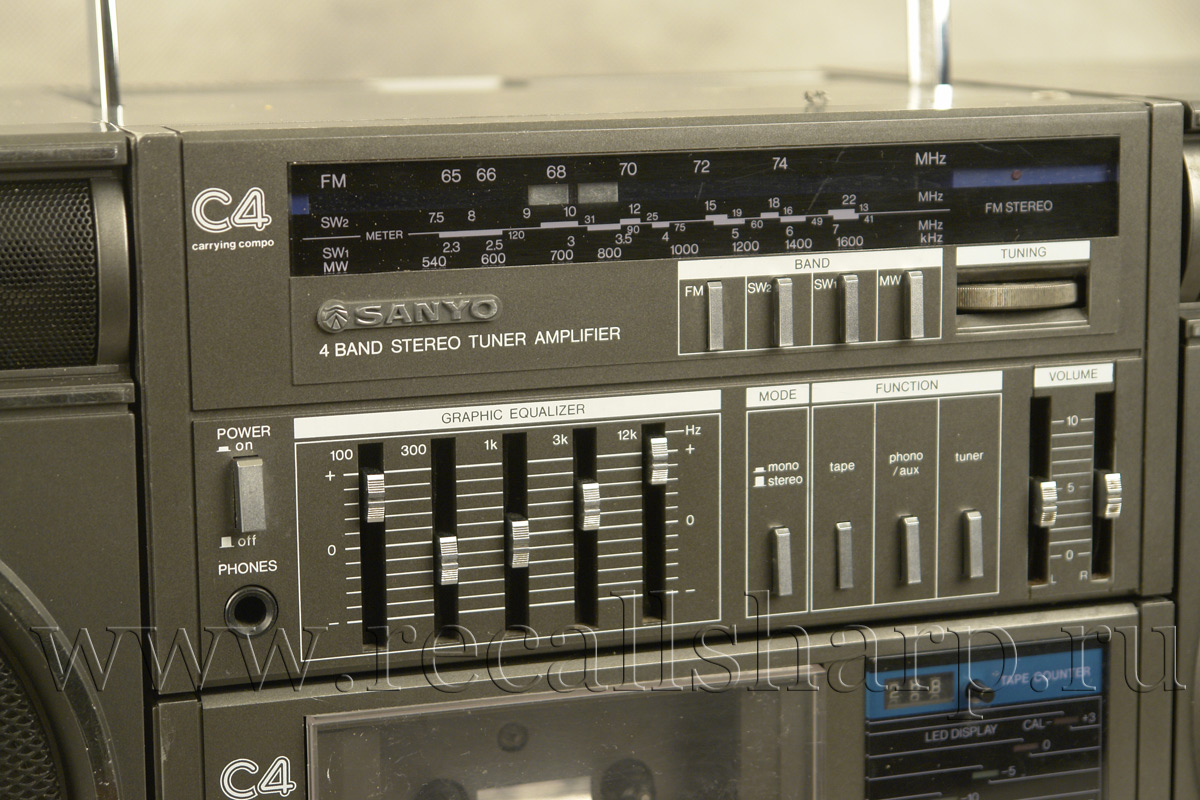

C4R TUNER/AMPLIFIER
FM section
Frequency range................................................. 64 — 75 MHz
Usable sensitivity............................................... 2.0 μV/300Ω (mono)
Signal to noise ratio (1 mV ANT.)...................... 80 dB (mono)
Harmonic distortion (1 kHz)............................... 0.5% (mono)
Aerial input............................................................ 300 ohms balanced
MW/SW1/SW2 section
Frequency range . . . . MW: 531 - 1602 kHz
SW1: 2.3 - 7.3 MHz
SW2: 7.3 - 22 MHz
Sensitivity...................................... 300 μ/m (MW), 250μ/m (SW1), 10μV (SW2)
Signal to noise ratio (10 mV/m) 50 dB (MW)
Aerial Ferrite bar aerial and external aerial terminal
Amplifier section
Output power ..................................................... 50 W (P.M.P.O.)
.................................. 12Wx2 maximum music power
Inputs ................................................................. PHONO: 3.5 mV/47 kohms
..................................................................... AUX: 450 mV/47 kohms
..................................................................... TAPE PLAY: 450 mV/47 kohms
Outputs............................................... TAPE REC: 450 mV
.................................................... SPEAKER: 3-8 ohms
.................................................... PHONES: 8 ohms to 10 kohms
Graphic equalizer.................................. ±8 dB (100/300/1 k/3 k/12 kHz)
Frequency response .............................. ±3 dB (70 Hz - 30 kHz)
Signal to noise ratio ............................... 76 dB (PHONO)
General
Power requirements .............................. AC: 120/220/240 V, 50/60 Hz
Power consumption ............................... 14 W
Dimensions (Approx.)............................. 230 (W) x 200 (D) x 110 (H) mm
.................................................... (9-1/16" x 7-7/8" x 4-5/16")
Weight (Approx) ................................... 2.4 kg (5 lbs. 5 ozs.)

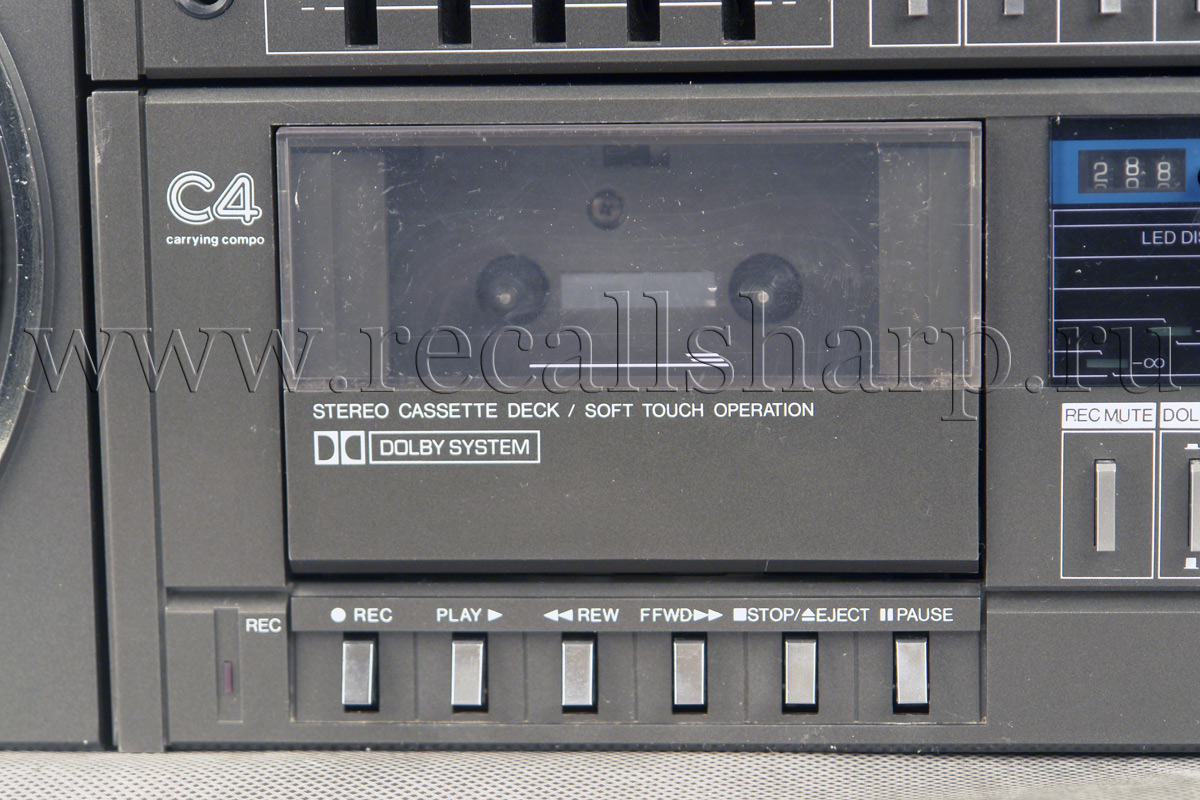

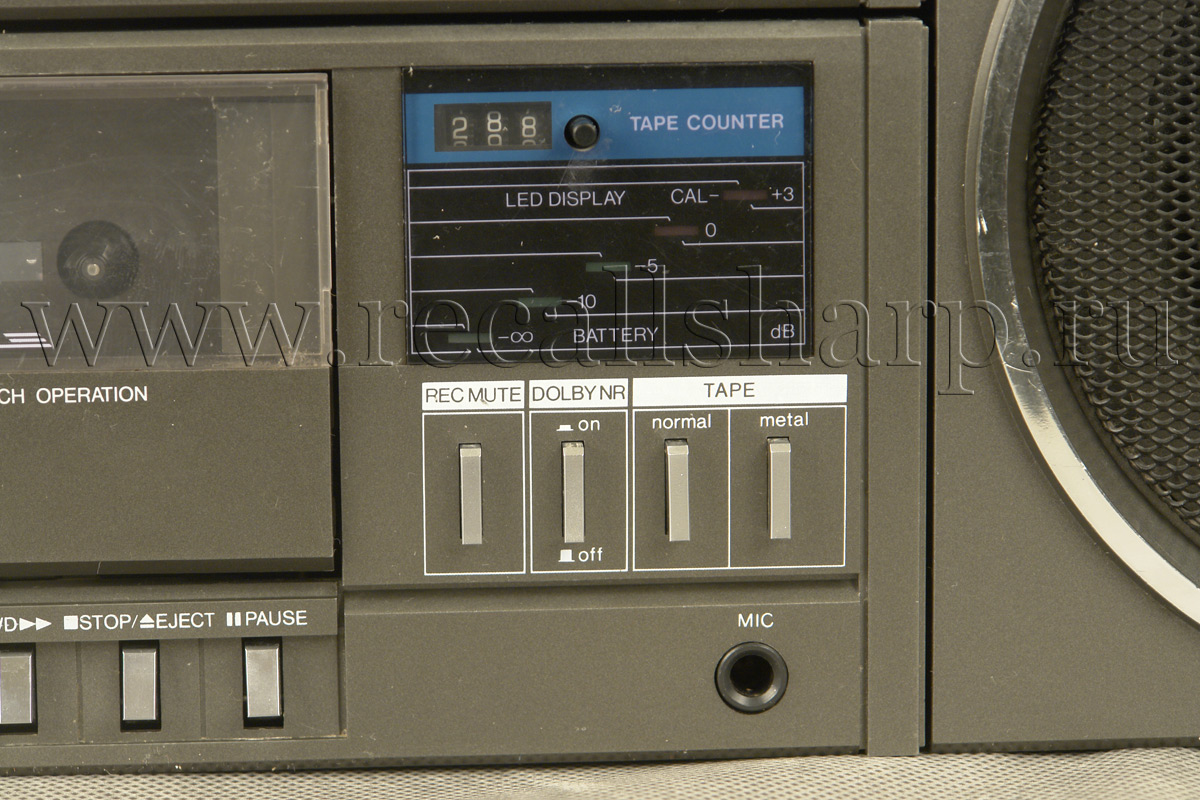

C4D CASSETTE DECK
Tape .................................................. Metal, normal tape
Recording system.................................. AC bias, 4-track stereo
Erasing system...................................... AC erasing, 2-track
Tape speed ......................................... 4.75 cm/sec. (1-7/8 i.p.s.)
Rewind and fast forward time................... Approx. 110 sec. (C—60)
Wow and flutter..................................... 0.07% (WRMS)
Frequency response ............................... 40 - 17,000 Hz (metal)
.................................................... 40 - 14,000 Hz (normal)
Signal to noise ratio (metal tape)............... 65 dB (Dolby NR on)
.................................................... 55 dB (Dolby NR off)
Inputs ................................................ MIC: 1.5 mV/10 kohms
.................................................... LINE IN: 300 mV/60 kohms
Outputs............................................... LINE OUT: 400 mV/2 kohms
Power requirements .............................. DC SOCKET: 12 V (supplied from the tuner/amplifier)
.................................................... DC: 12 V car battery adaptor
.................................................... DC: 12 V "D" (UM—1) x8
Dimensions (Approx.).............................. 230 (W) x 200 (D) x 110 (H) mm
.................................................... (9-1/16" x 7-7/8" x 4-5/16")
Weight (Approx.)................................... 3.5 kg (7 lbs. 11 ozs.) including batteries
C4S SPEAKER SYSTEM
Type........................................ . 2 way speaker system, bassreflex type:
Tweeter 2 cm. Woofer 12 cm
Impedance .............................. . . 3 ohms
Input power ............................ .. 10 W (maximum)
Dimensions (Approx.).................. . 170 (W) x 200 (D) x 222 (H) mm
.. (6-11/16" x 7-7/8" x 8-3/4")
Weight (Approx.)....................... . . 1.3 kg. (2 lbs. 14 ozs.) x 2
Total dimensions of the system C4 . . 570 (W) x 200 (D) x 222 (H) mm
. . (22-7/16" x 7-7/8" x 8-3/4")
Total weight of the system C4 . . . . . 8.7 kg. (17 lbs.) including batteries
* Specifications subject to change without notice.
|
