Год начала выпуска: 1985
Регион: Америка

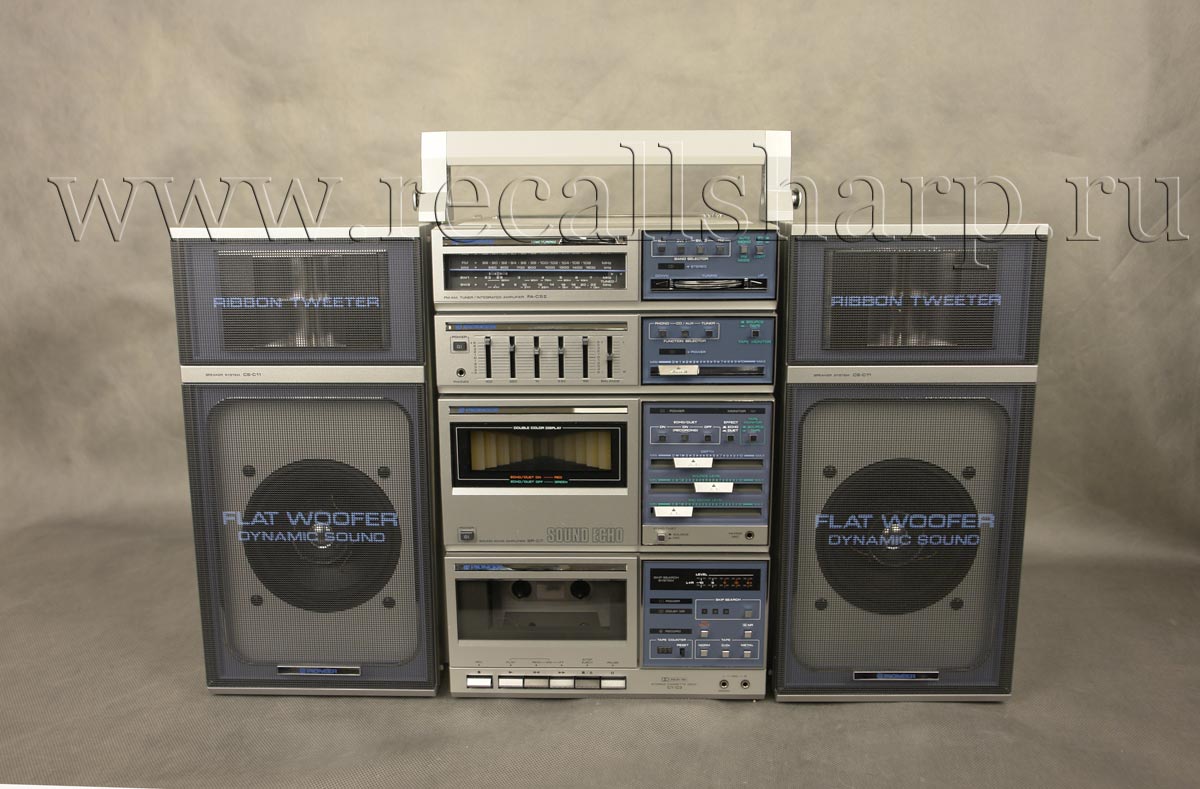

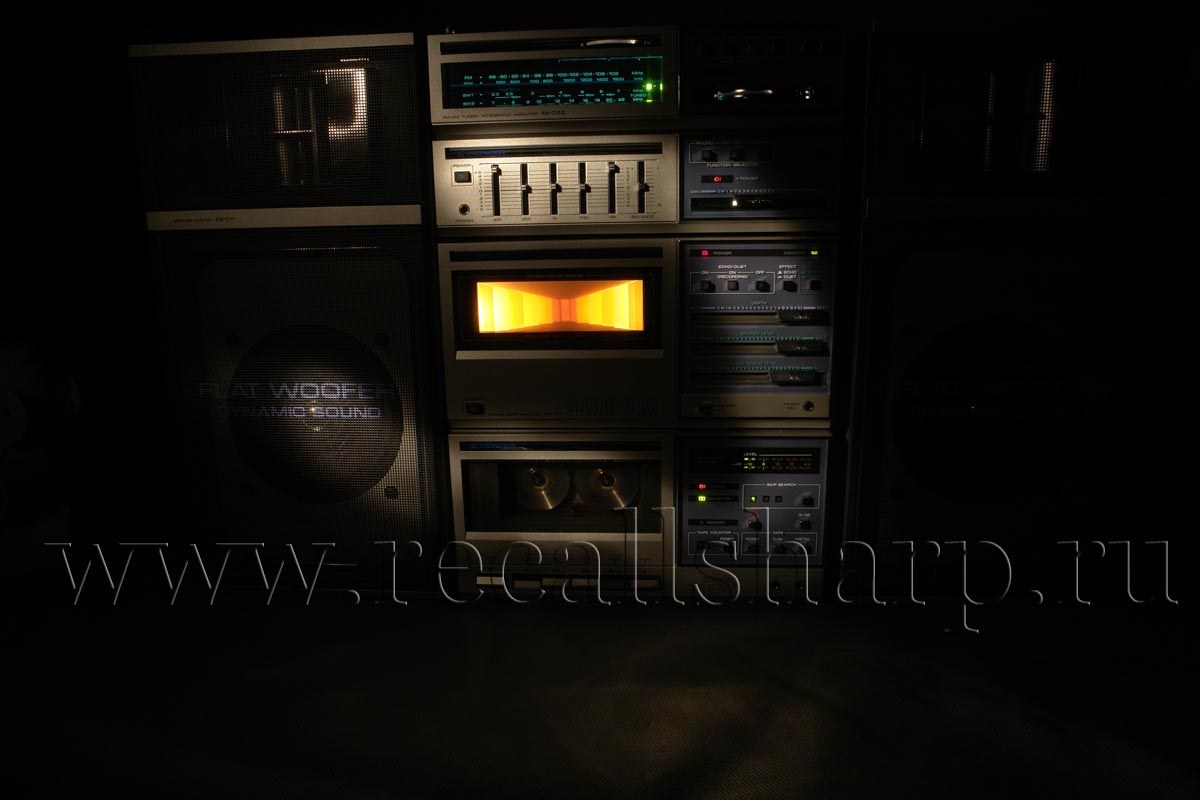

Specifications
When all components are connected
Power source......................... 120/220/240V AC 50/60Hz
1 5V DC (ten size "D" batteries) EXT DC 12-15V
Power consumption................ 70W/AC
Dimensions (WXHXD). . . 559 X 392 X 1 50mm
(When all components are connected, including the handle but not including protrusions)
Gross weight.......................... Approx. 13.7kg
(without batteries) Accessories • Owner's manual

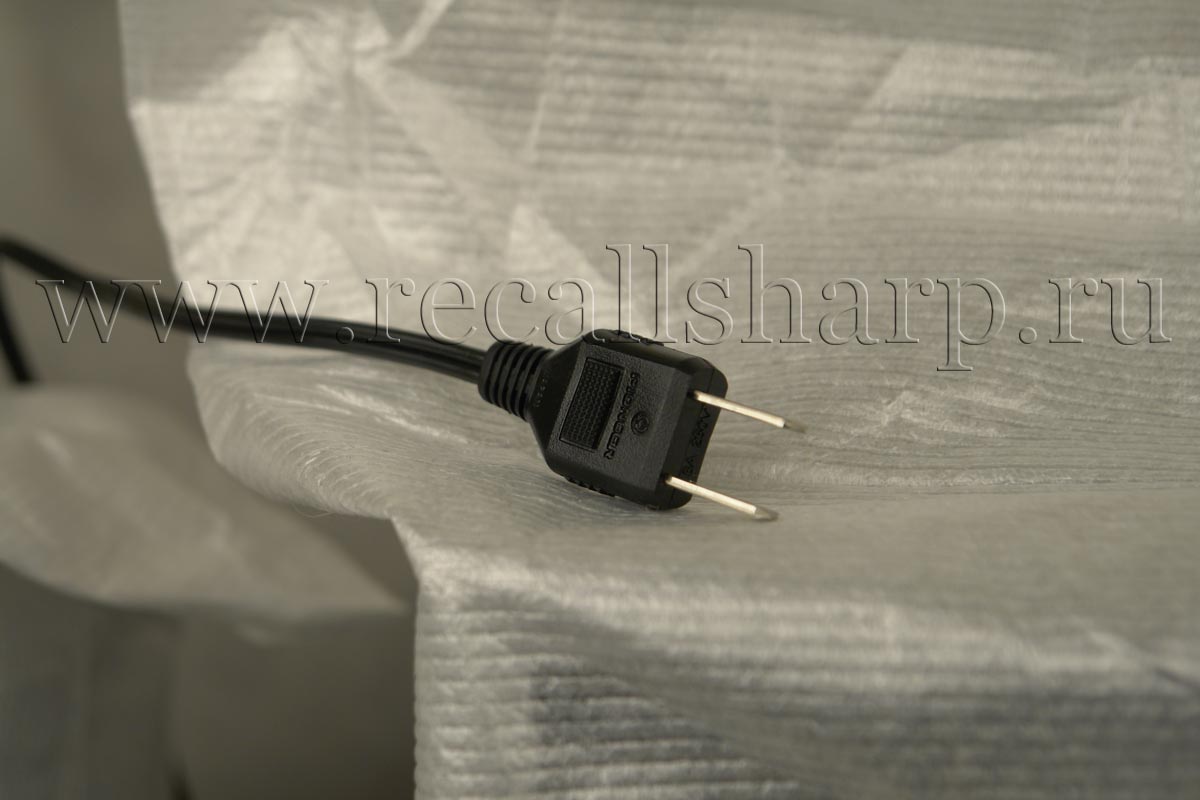

• AC cord X 2
• 11 p Connection cord (600mm) x 2
• 11p Connection cord (45mm) X 2
• Handle

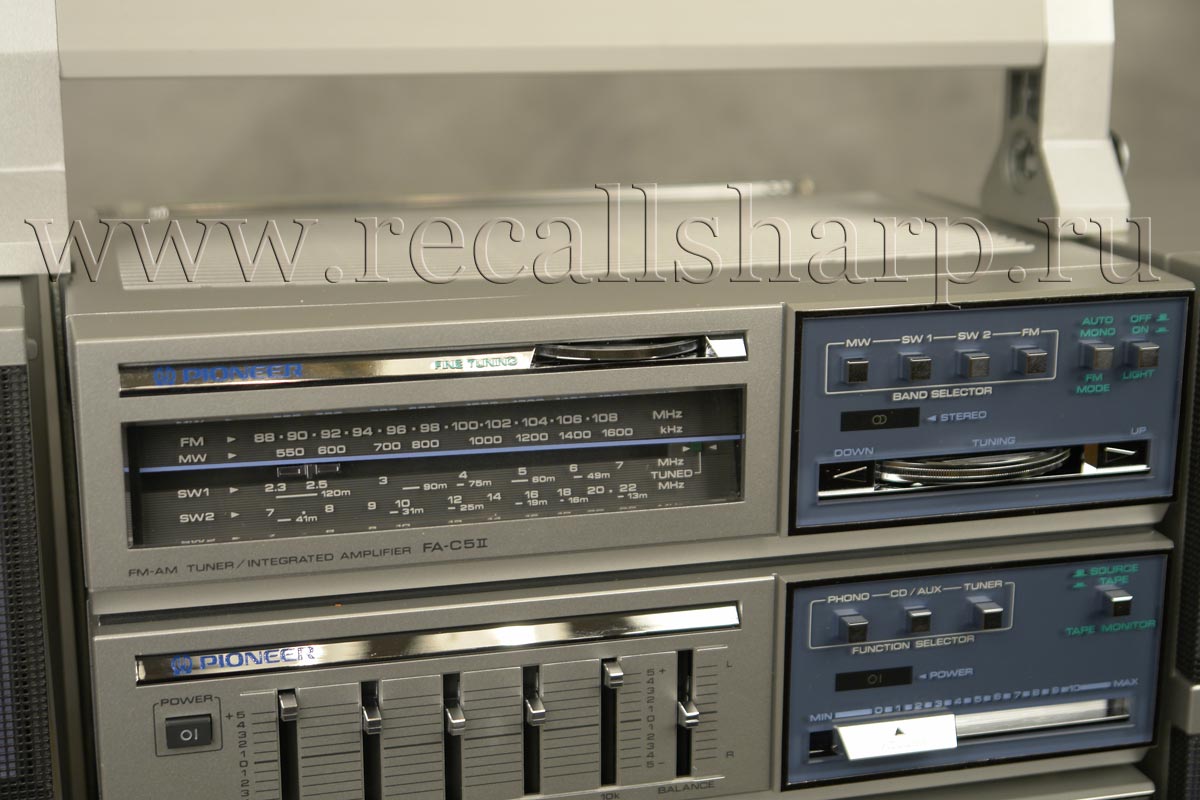

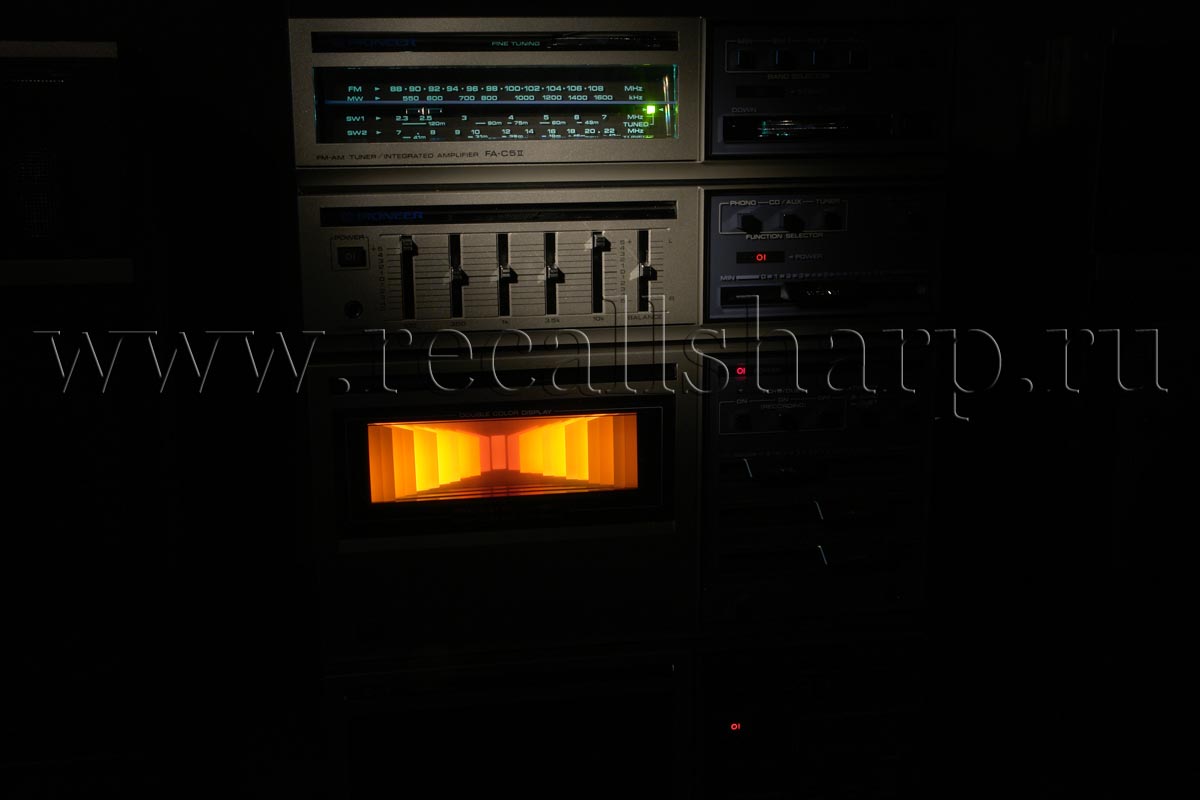

Tuner/amplifier unit (FA-C5FII) (Tuner section)
Frequency range.................... FM: 88 —108MHz
SW2: 7-22MHz
SW1 : 2.3 — 7MHz
MW: 530-1,600kHz
(Amplifier/common section)
Maximum output power. . . Total music power 36W (10%
THD)

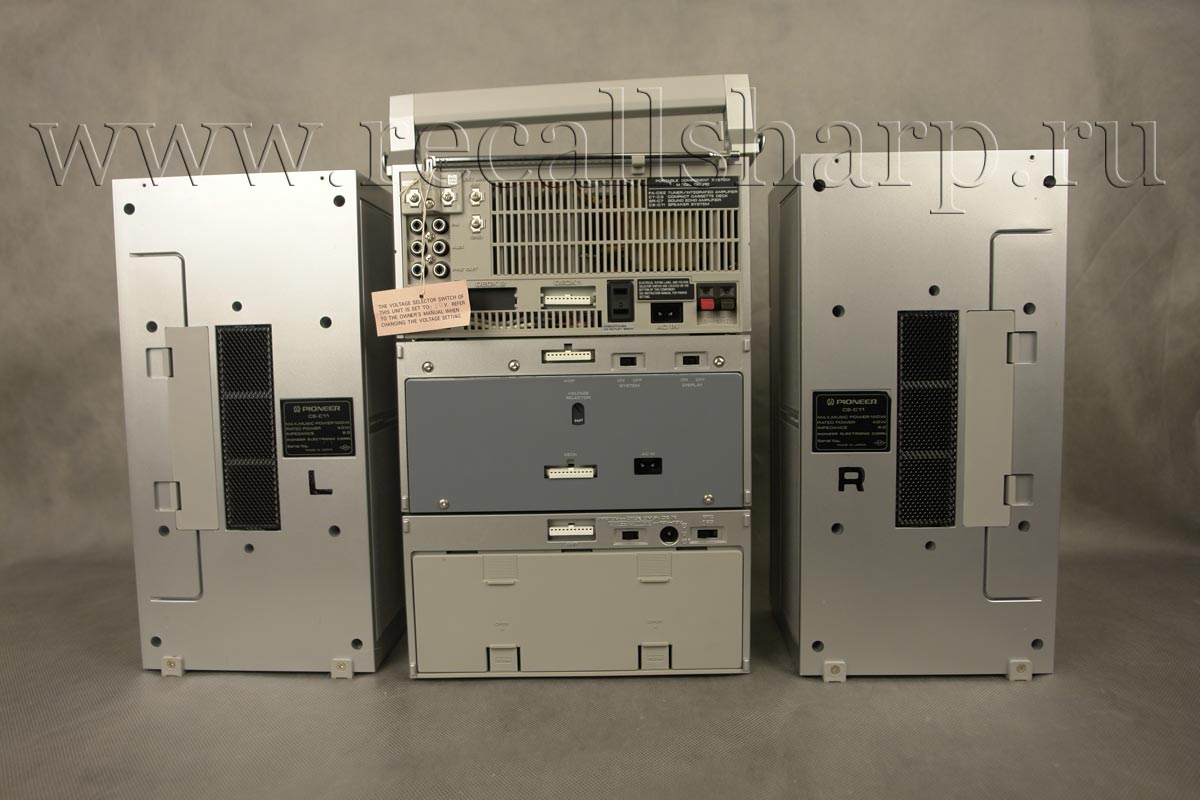

Input terminals....................... • MONITOR IN (System only)
• DC IN (System only)
• PHONO
• AUX
• EXT ANT
• AC IN
Output terminals..................... • PRE OUT
• EXT SP
• PHONES
• REC OUT (System only)
• DC OUT (System only)
• AC OUT
Power source......................... 120/220/240V AC 50/60Hz
15V DC (System only/deck power supply)
Dimensions (WX HX D). . . 225 x 110 X 150mm
(Not including protrusions)
Weight................................... Approx. 3.3kg
Subfunctions.......................... • 5-band graphic equalizer
(100Hz, 350Hz, 1kHz, 3.5kHz, 10kHz)
• Dial light
Indicators............................... STEREO (red LED
TUNED (green LED) POWER (red LED)

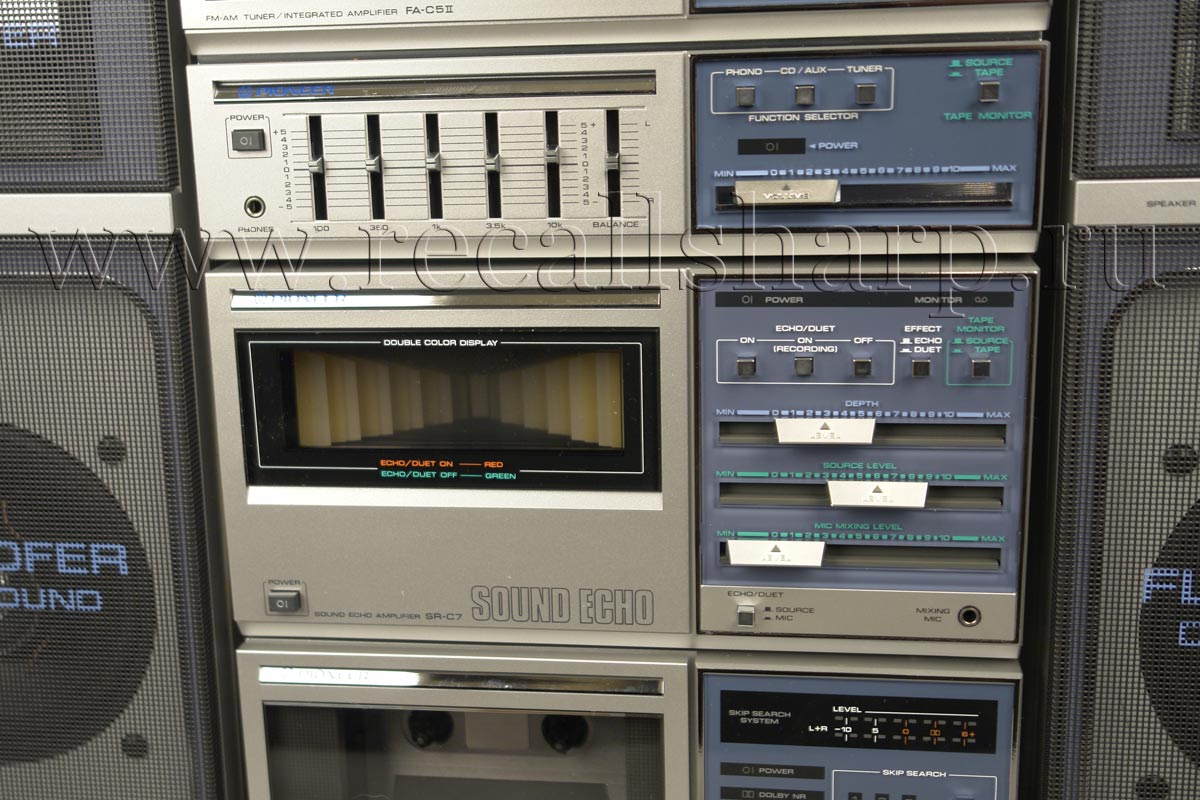

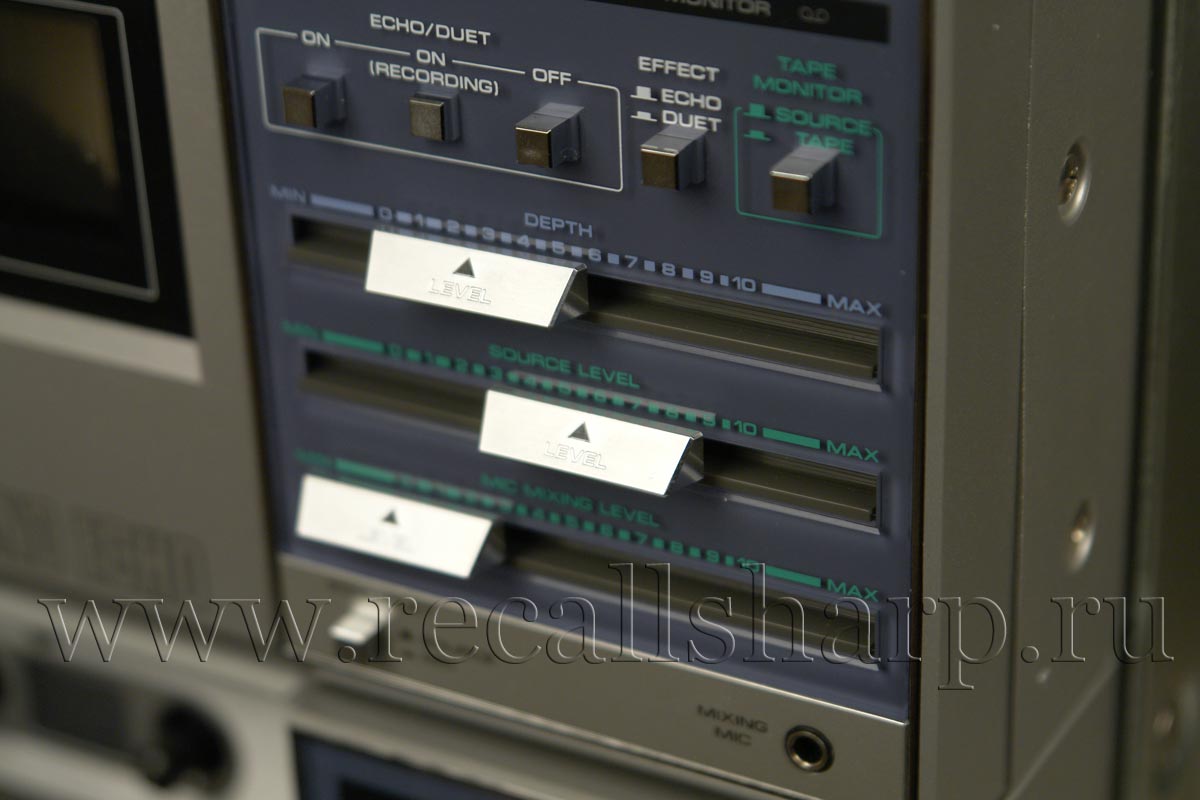

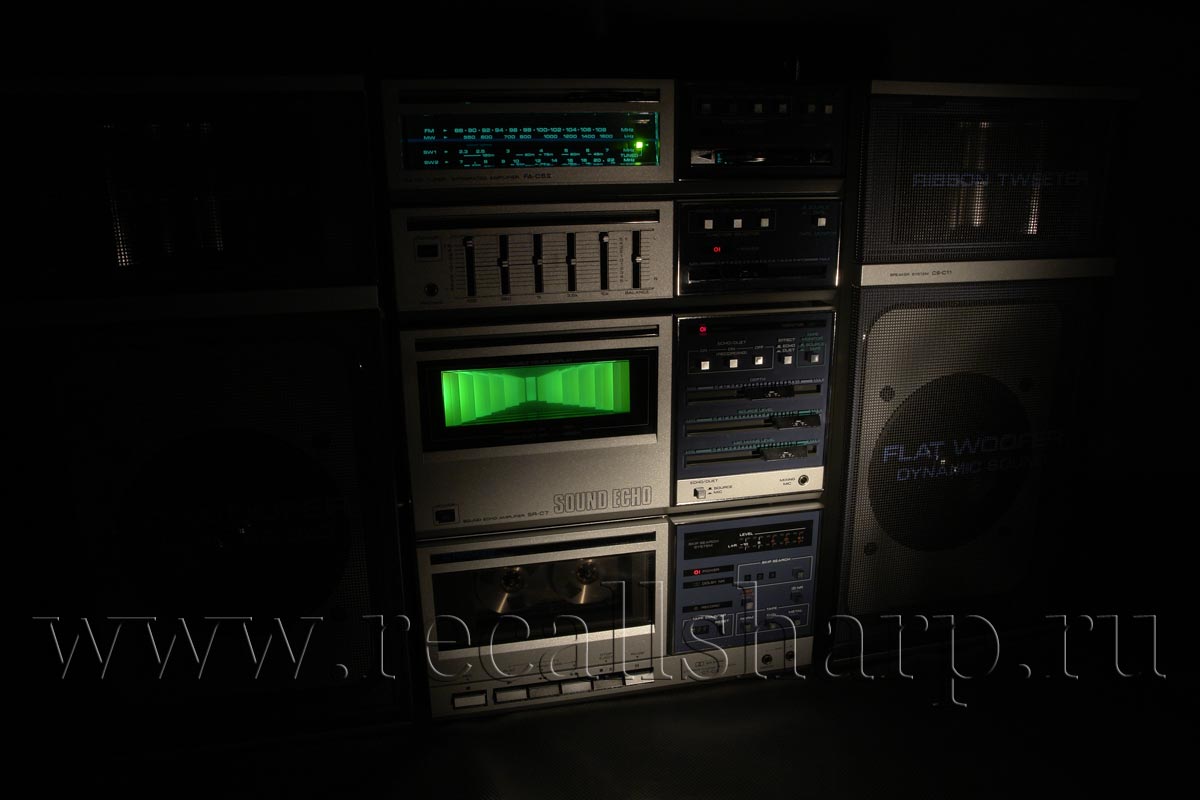

Sound echo amplifier unit (SR-C7) (Electrical, etc.)
Power source voltage............ 120/220/240V AC 50/60Hz
DC 12V (When used as system)
Power consumption............... 13W
Dimensions (WXHXD). . . 225 X 110 x 150mm
(Not including protrusions)
Weight................................... 2.1kg

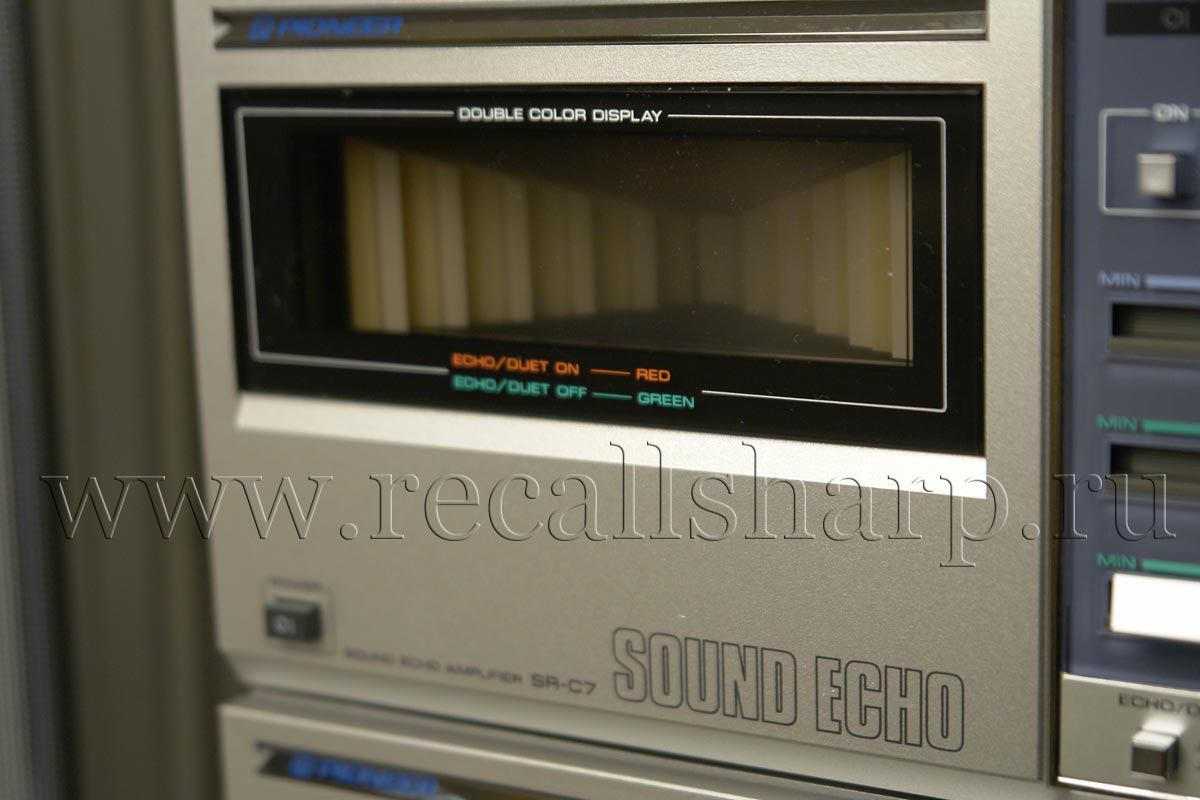

Indicators............................... • Multi-color display
Red, orange, yellow (ECHO ON)
Green (ECHO OFF)
• POWER (Red LED)
• TAPE MONITOR (Green LED) Subfunctions
• EFFECT (Echo, duet)
BBD 2,048 step
• Echo level control
(Source)
Input (Sensitivity/
Input impedance) .................. 150mV/56kΩ (Source)
150mV/56kΩ (TAPE)
Reverberation period
(ECHO).................................... 0 — 2sec
Delay period (DUET)............... 100msec
Output (Output/
Output impedance)................ 150mV/1.5kΩ (LINE OUT)
150mV/2.2kΩ (REC OUT)
(Microphone mixing)
Input (Sensitivity/
Input impedance).................. 0.775mV/5.6kΩ

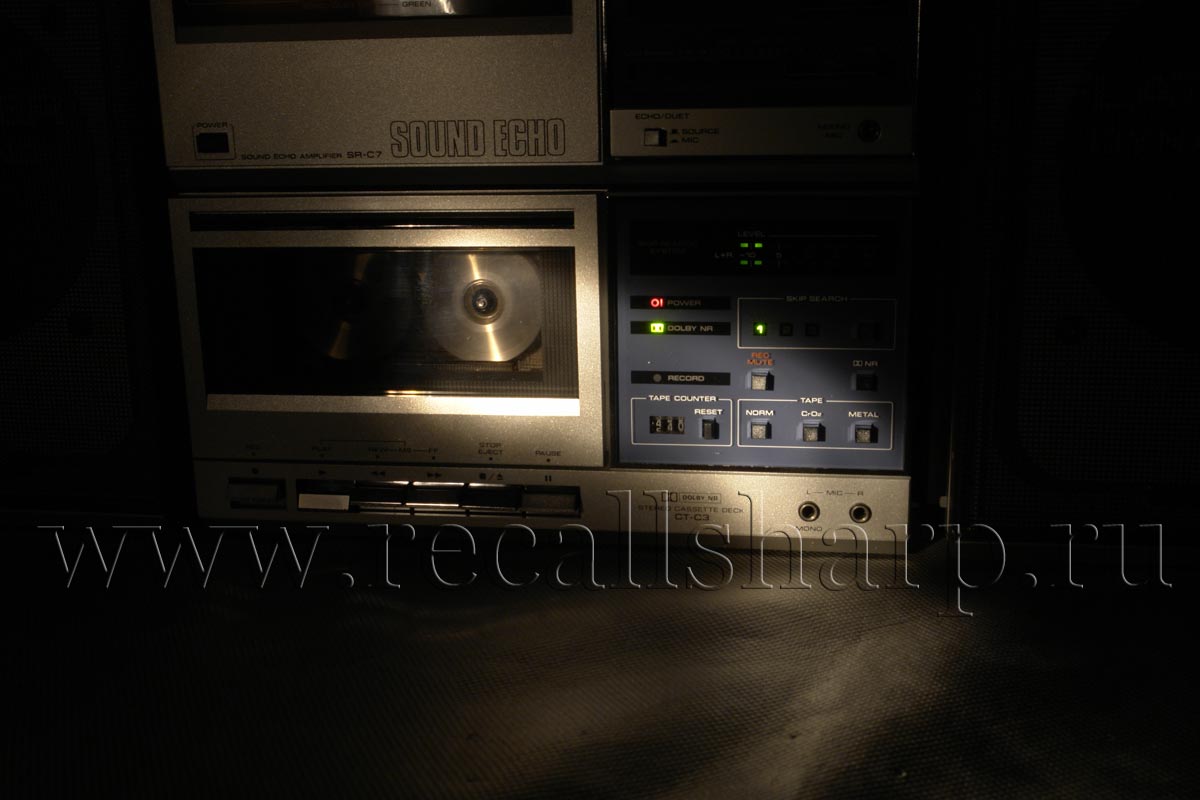

Cassette deck unit (CT-C3)

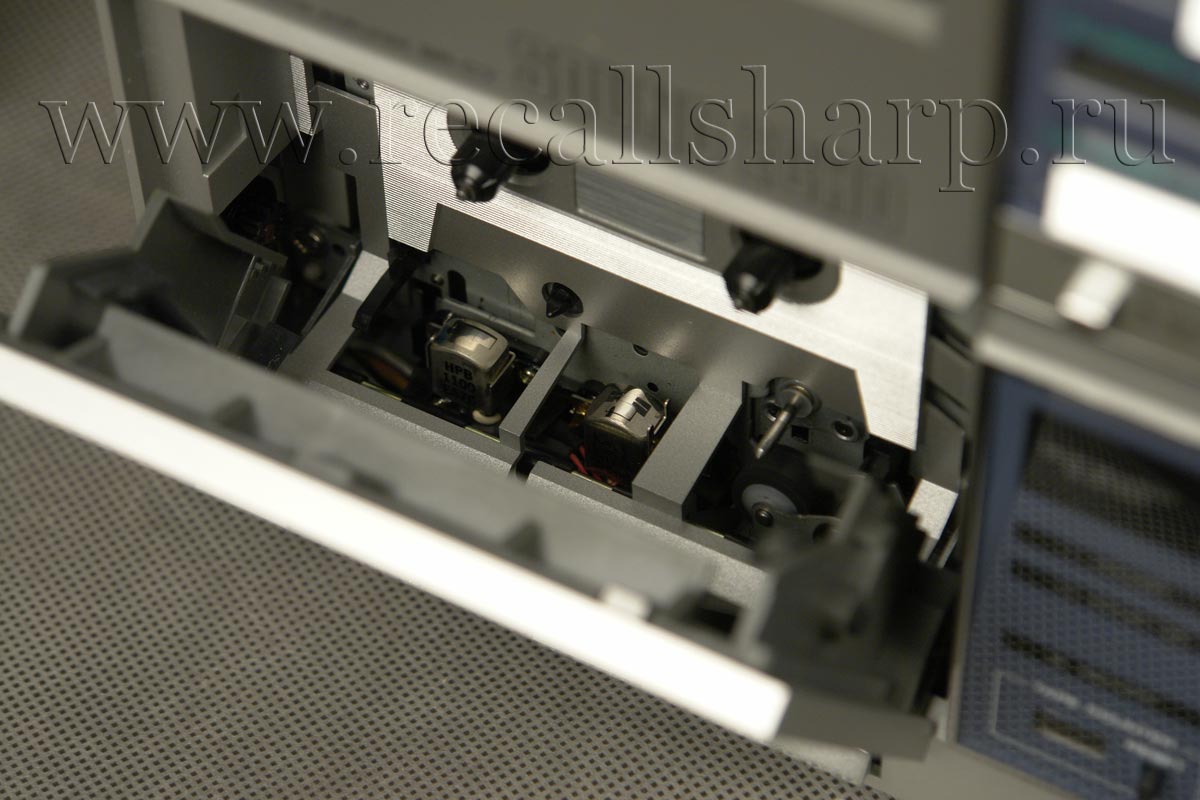

Heads..................................... Record/playback x 1, Erase x 1
Motor.................................... Electronic governor DC motor X 1
Wow and flutter.................... 0.06% (WRMS)
Frequency range.................... Normal tape: 35Hz— 15,000Hz
Chrome tape: 35Hz - 15,500Hz
Metal tape: 35Hz - 16,000Hz
S/N ratio
(record/playback)................... 47dB
55dB (Dolby NR ON)
Input terminals
• EXT MIC (3.5Ø mini jack)
• LINE IN (System only)
• DC IN (System only)
• DC IN
Output terminals................... • LINE OUT (System only)
• DC OUT (System only) Power source 1 5V DC (ten size "D" batteries)
EXT DC 12V-15V Dimensions (WX HX D). . . 225 x 110 X 150mm
(Not including protrusions)
Weight................................... Approx. 1.6kg (without batteries)
Approx. 2.6kg (with batteries)

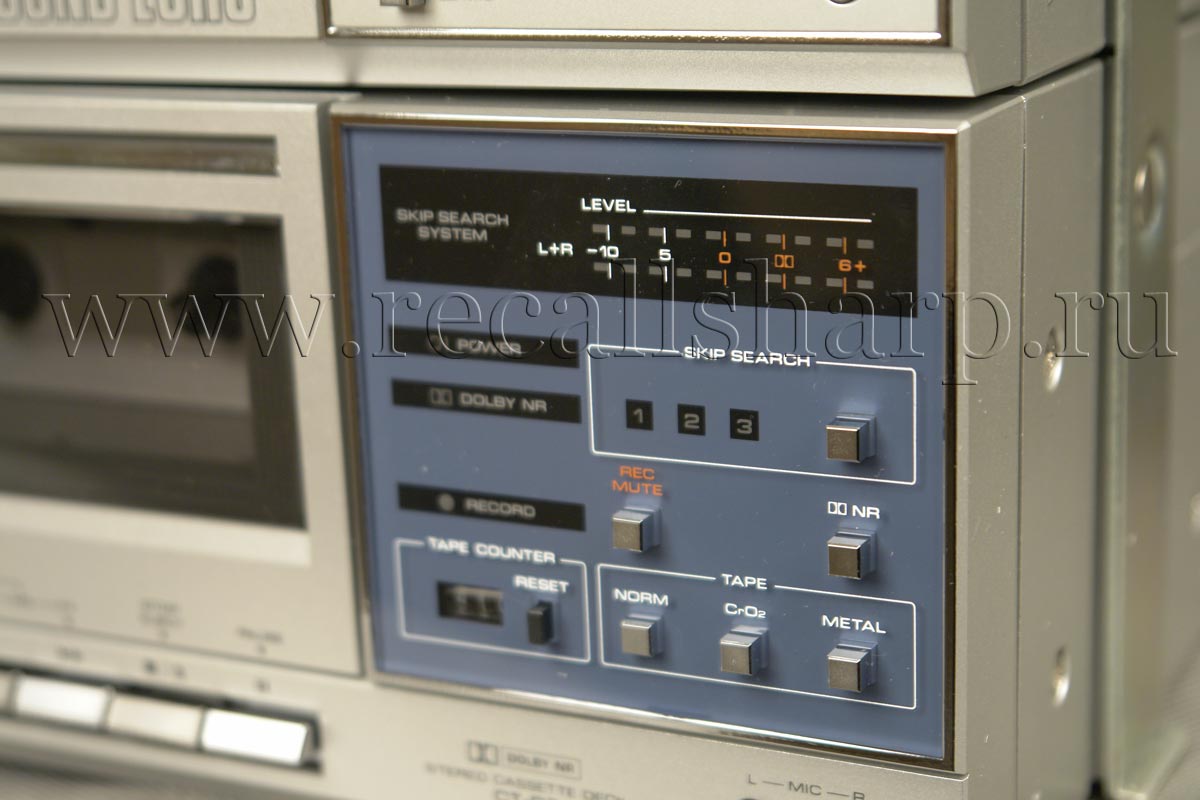

Subfunctions • DOLBY NR (B type)
• Tape selector (metal/CrO2/ Norm)
• 3-selection skip search
• Auto recording level control system
Indicators.............................. • LEVEL METER (green LED X
2, red LED X 3)
• DOLBY NR (green LED)
• REC (red LED)
• SKIP SEARCH (green LED x 3)
• POWER (red LED)

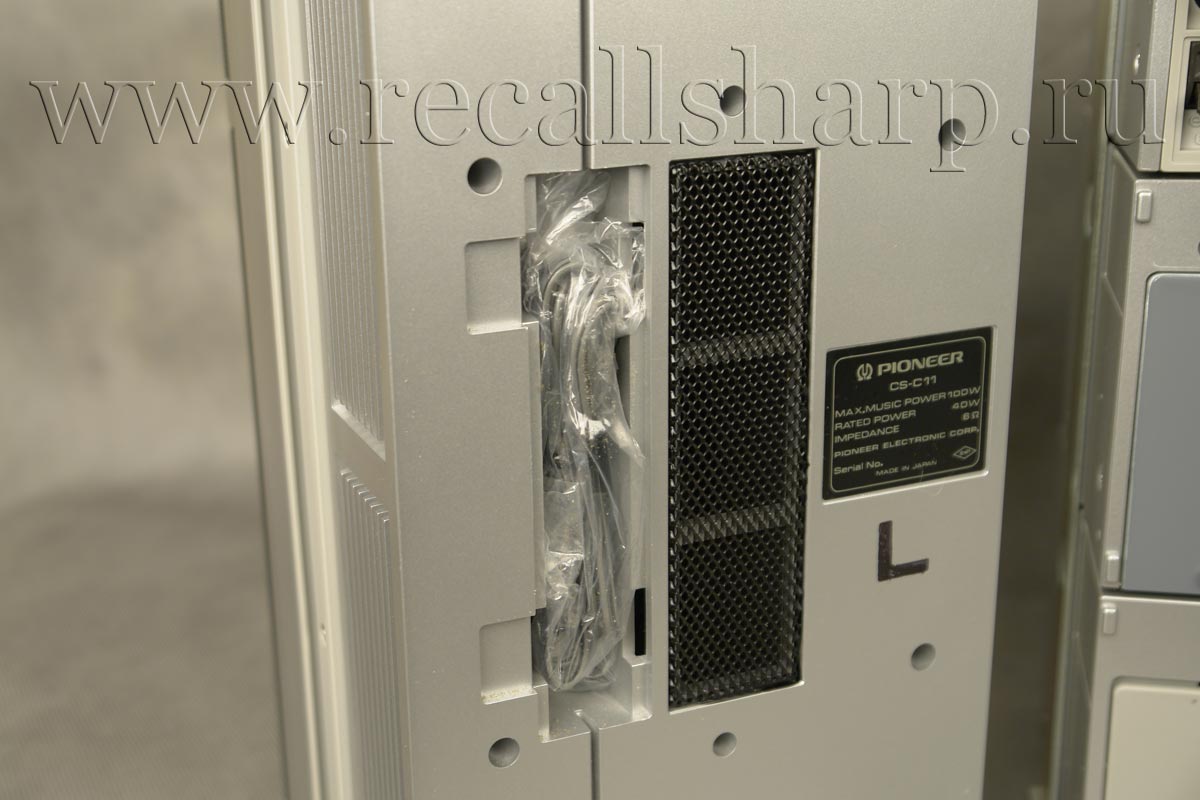

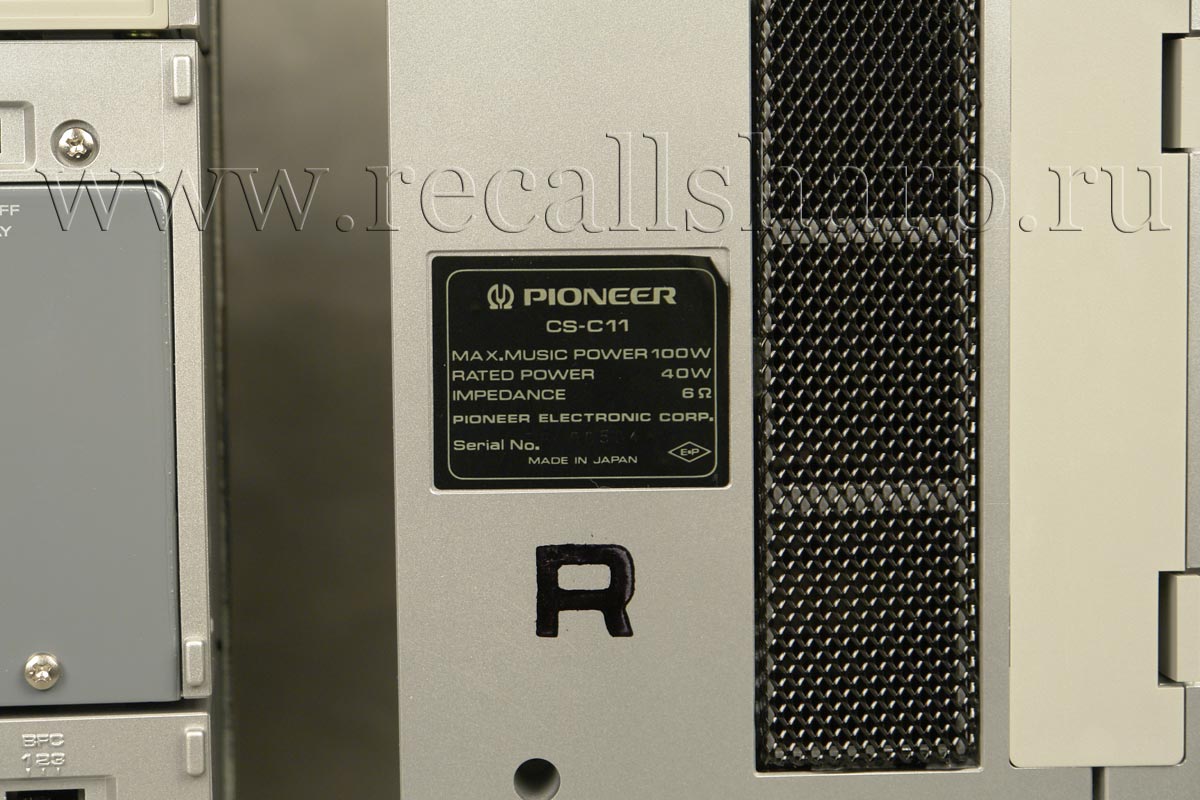

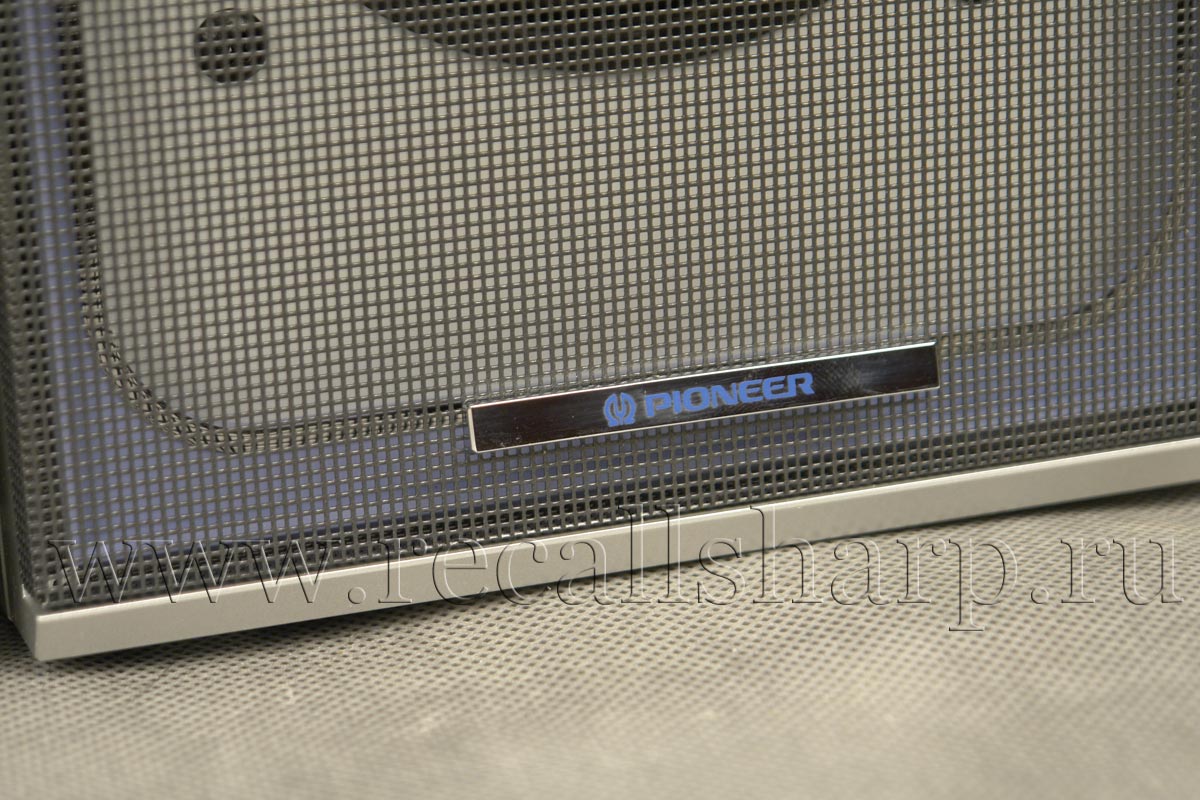

Speaker section (CS-C11)
Type...................................... Open rear system with acoustic
damper

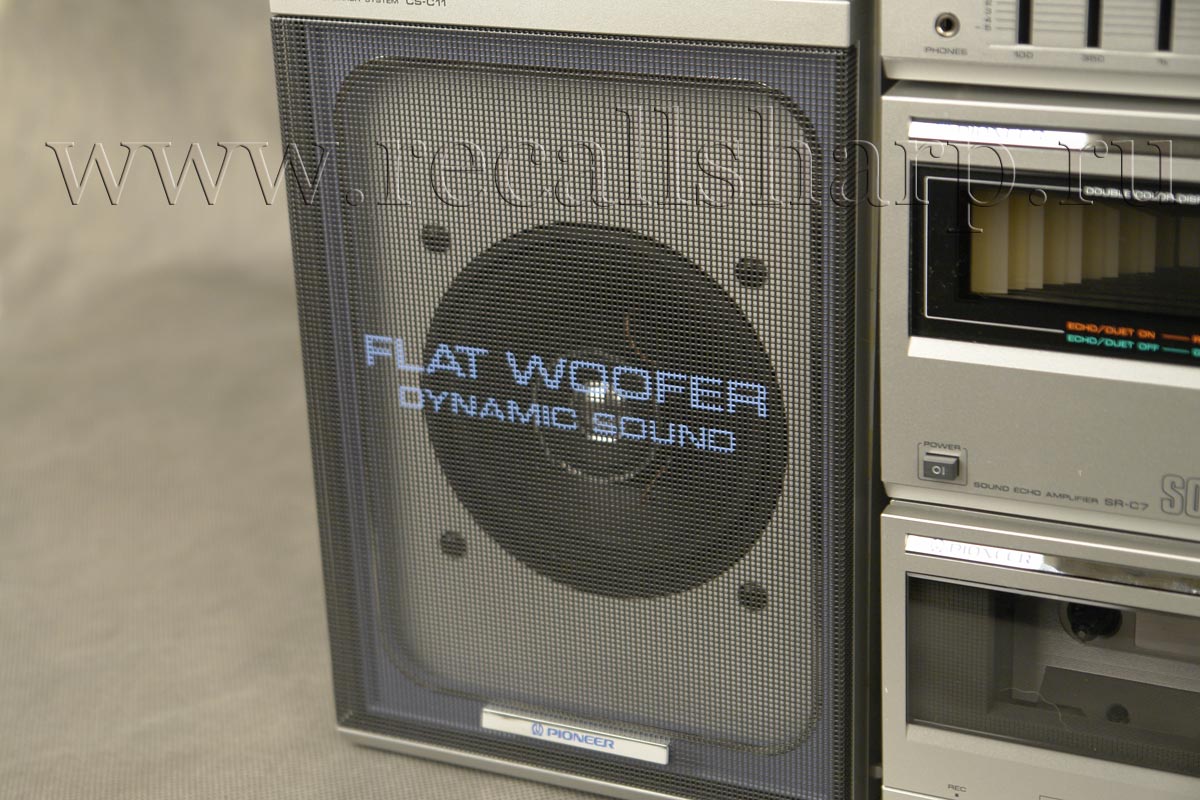

Speakers.............................. Woofer: 15cm X 21cm flat type

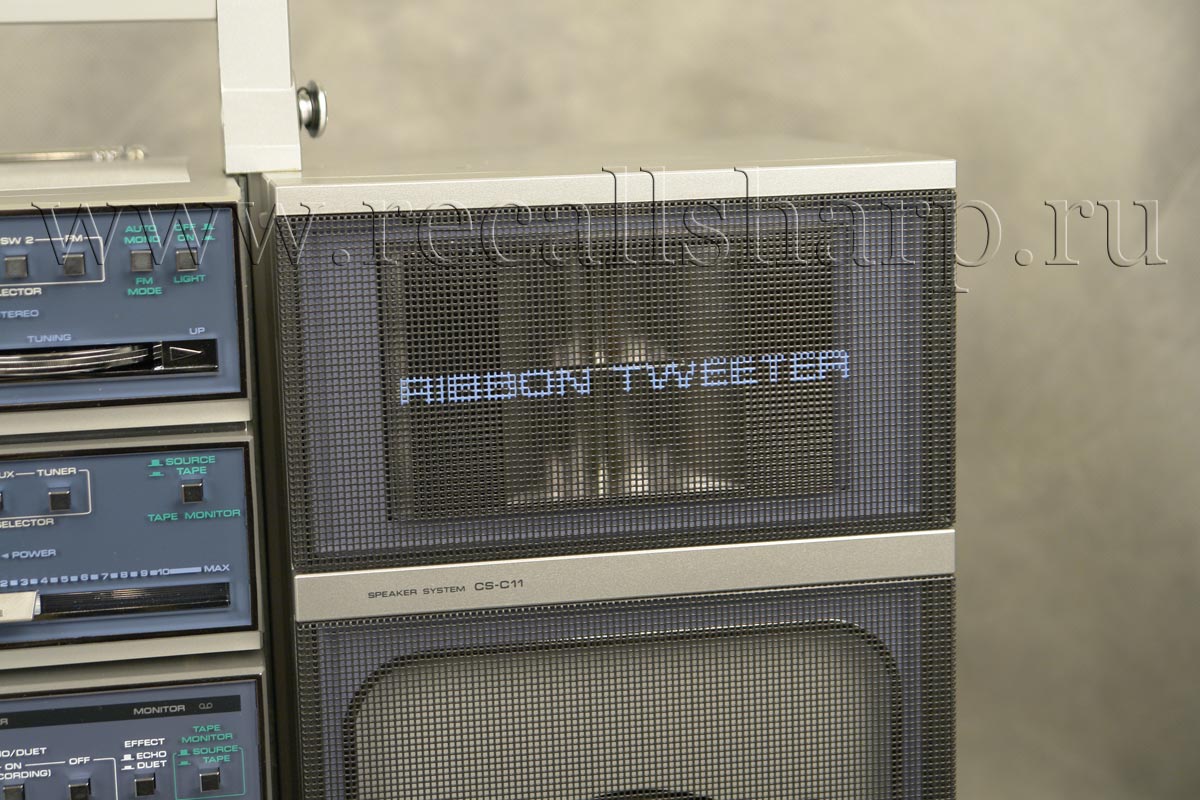

(equivalent to 22cm diameter round type) Tweeter: 9cm cone type Super tweeter: Ribbon type
Nominal impedance............ 6Ω
Frequency range.................. 30 — 50,000Hz
Sensitivity............................. 90dB/W (1m)
Rated input power.............. 40W
Maximum instantaneous
input power......................... 100W
Dimensions (WXHXD). . . 168 X 336 x 150mm Weight Approx. 3.1kg (each one)
Note: Specifications and design are subject to change without notice.
|
