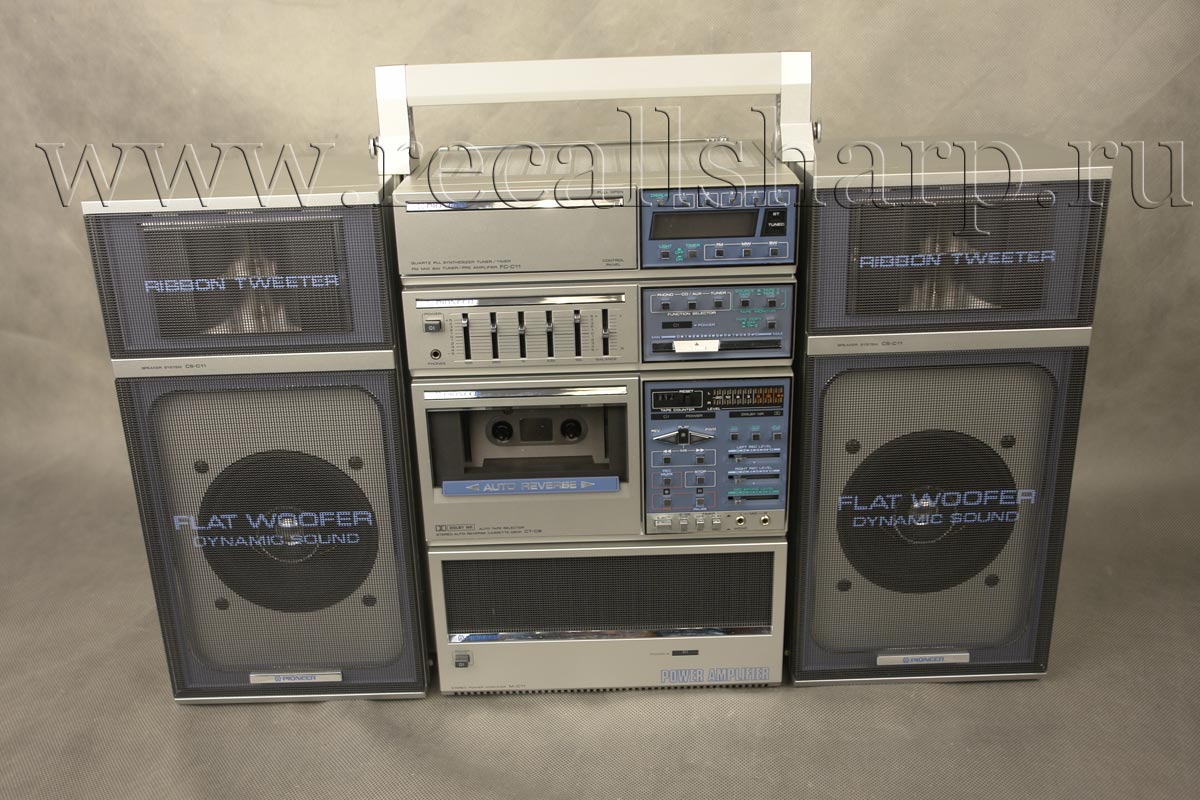

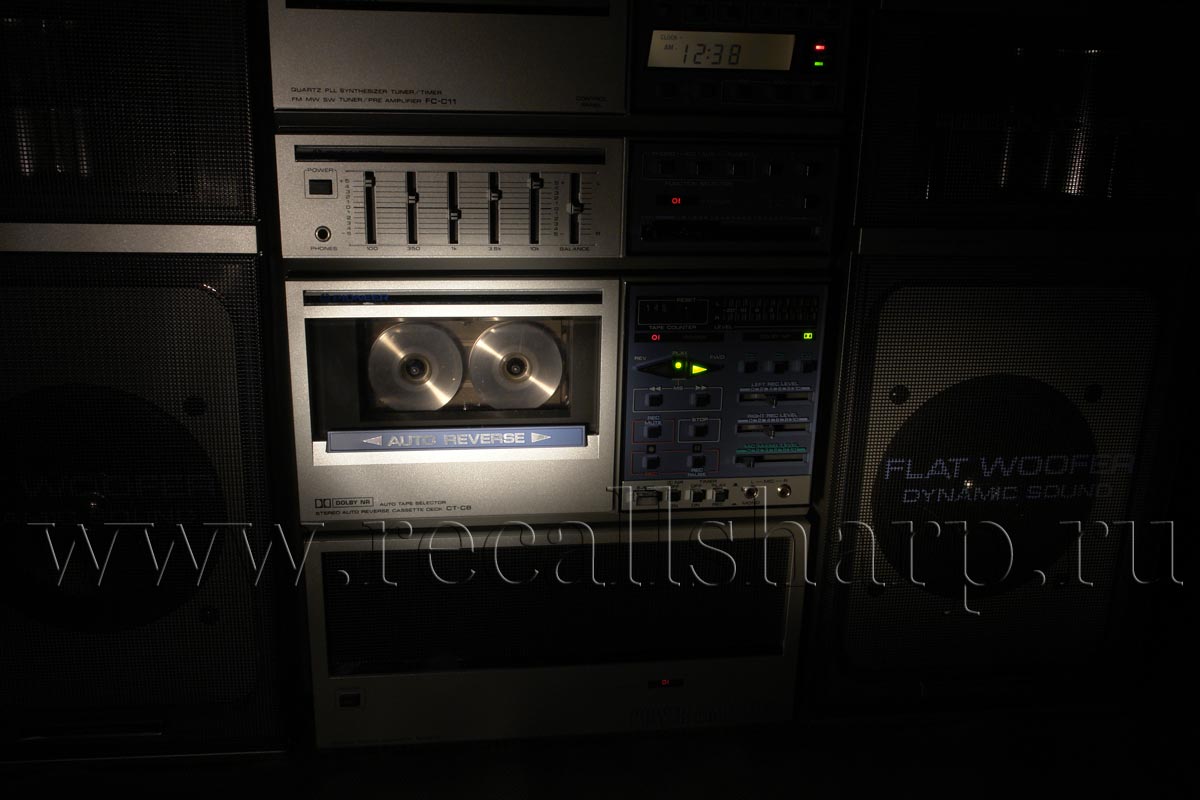

Pioneer CK-R11
В мою коллекцию    Сравнить

Specifications

When all components are connected

Power source......................... 120/220/240V AC 50/60Hz

                   15V DC (ten size "D" batteries) EXT DC 12-15V

Power consumption............... 58W/AC

Dimensions (WX HX D). . .     559 X 392 X 192mm

                 (When all components are con­nected, including the handle but not including protrusions)

Gross weight.......................... Approx. 15 kg

                 (without batteries)

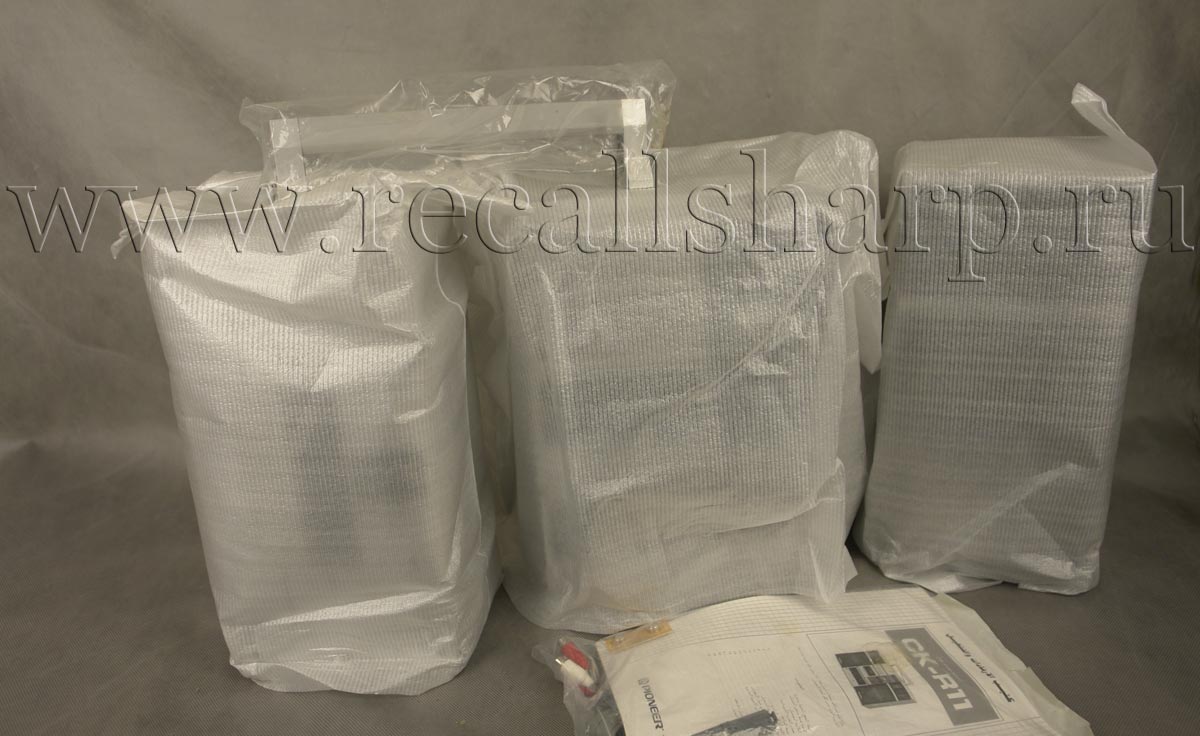

Accessories

• Owner's manual

•    Connection cord (600mm)

11p with cord securing clip

•    Connection cord (45mm)

•    Connection cord (600mm)

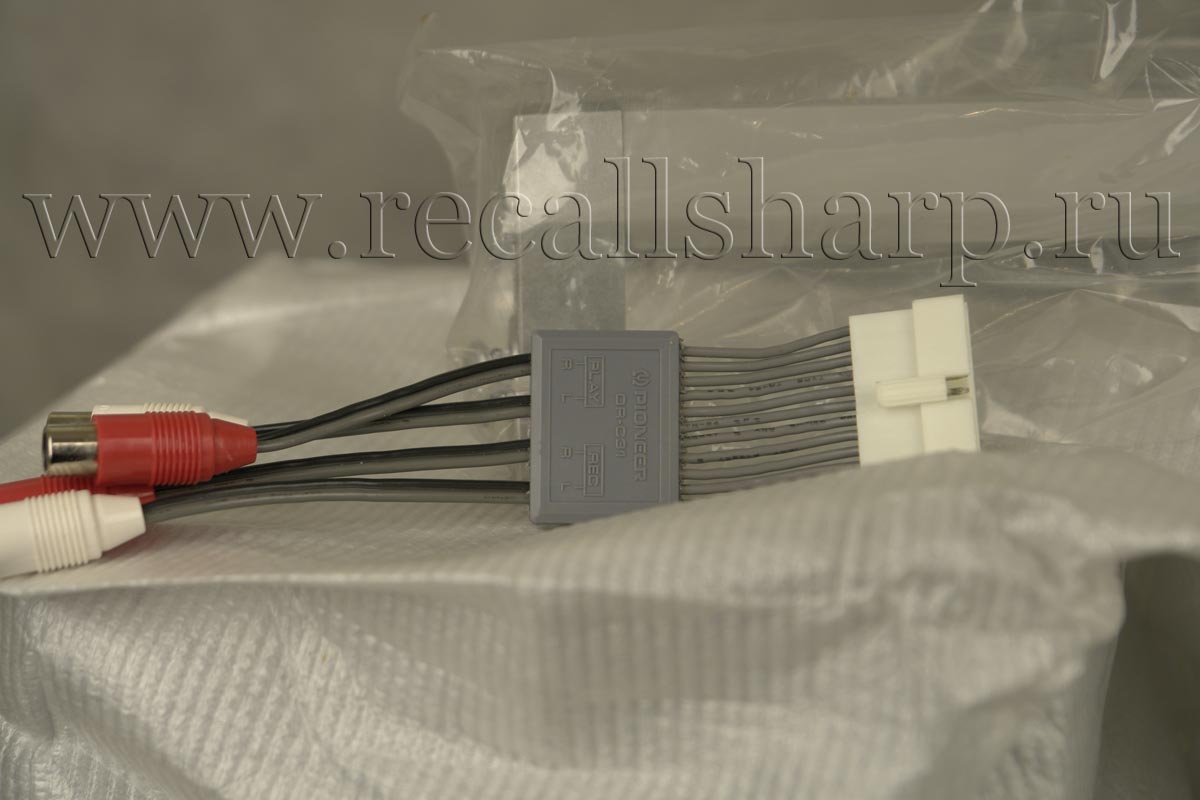

•    Pin connection cord

•    Conversion cord (lip — RCA pin terminals)

•    Handle

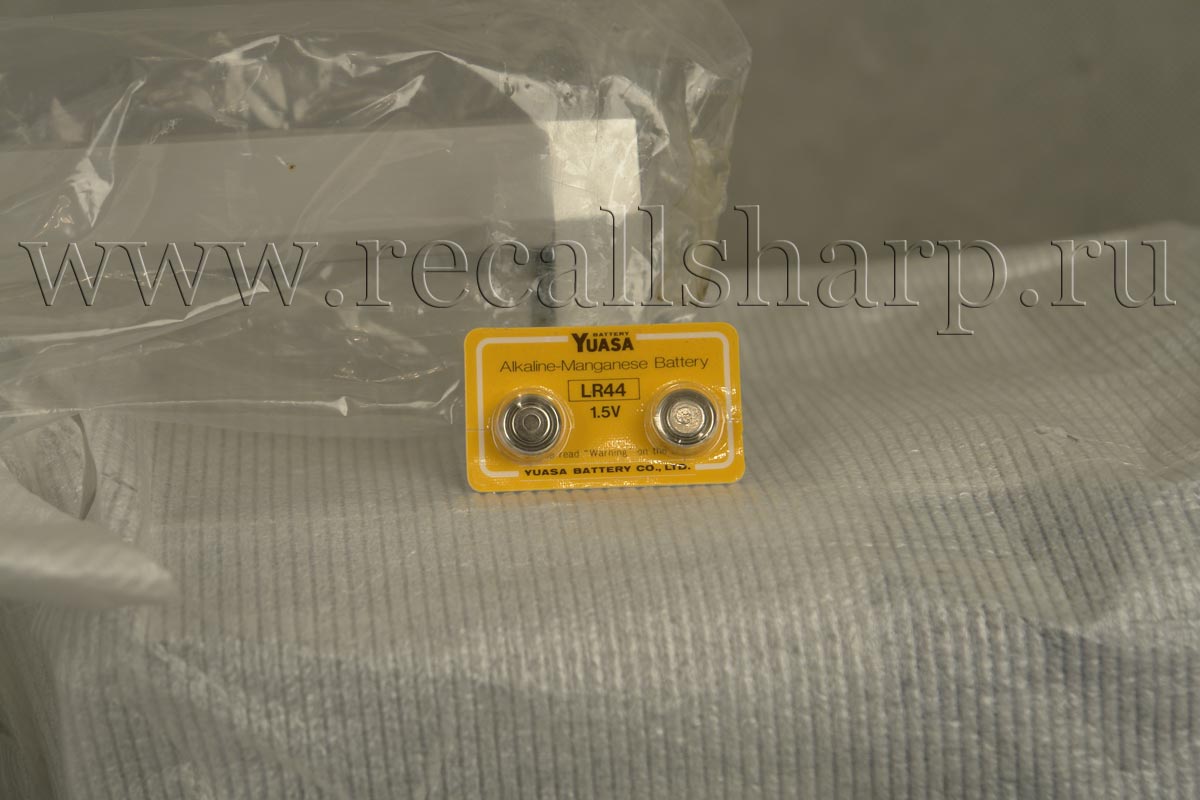

•    Micro batteries (LR-44 type) x 2

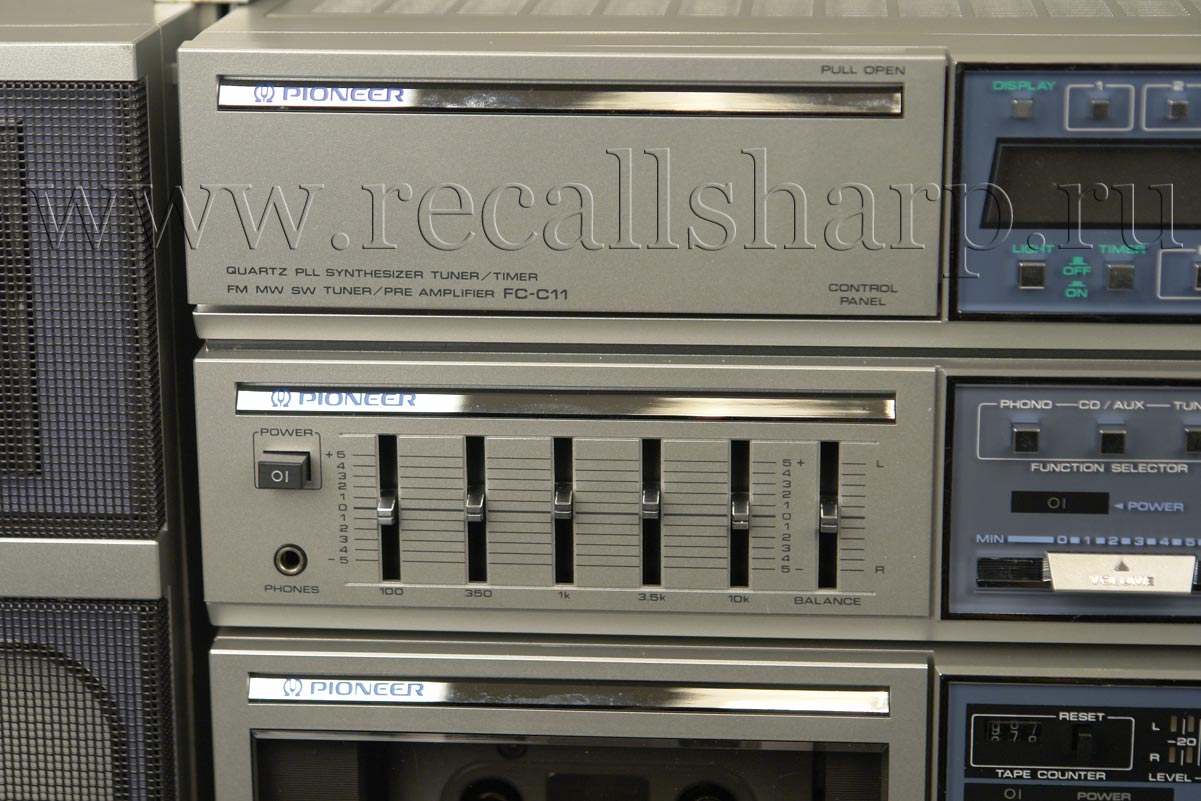

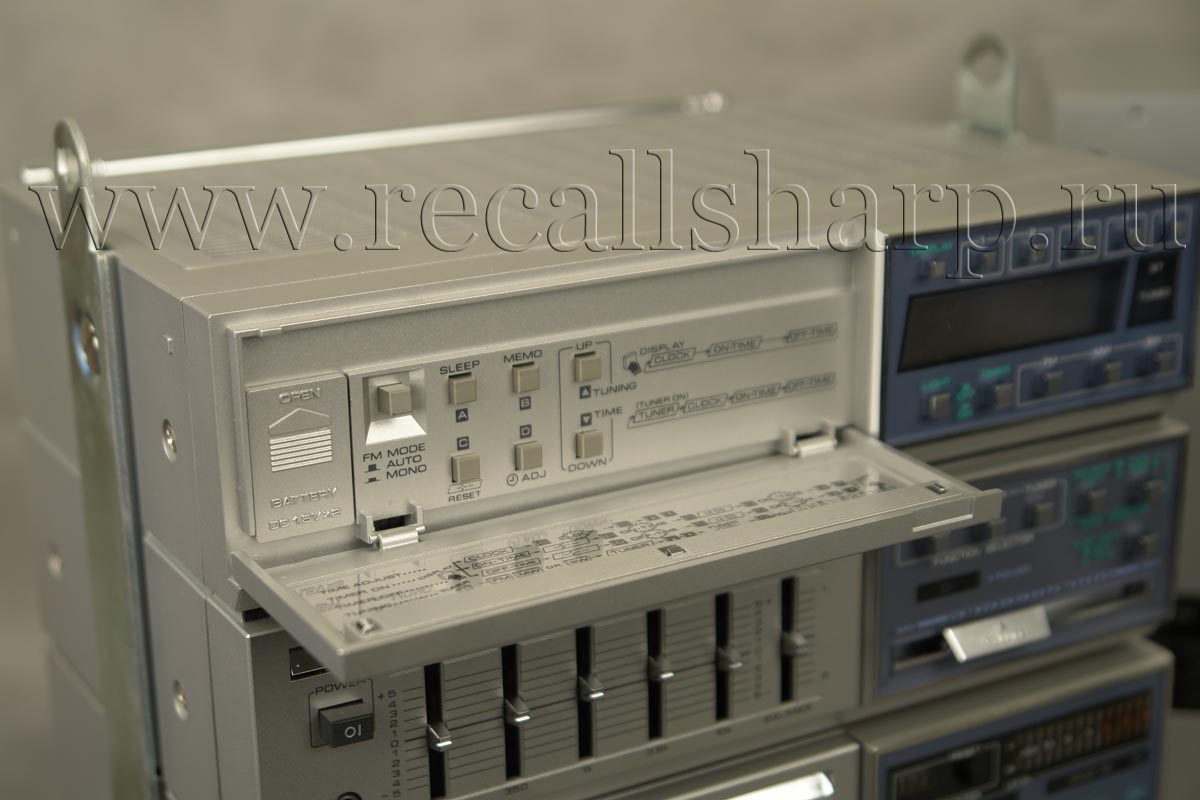

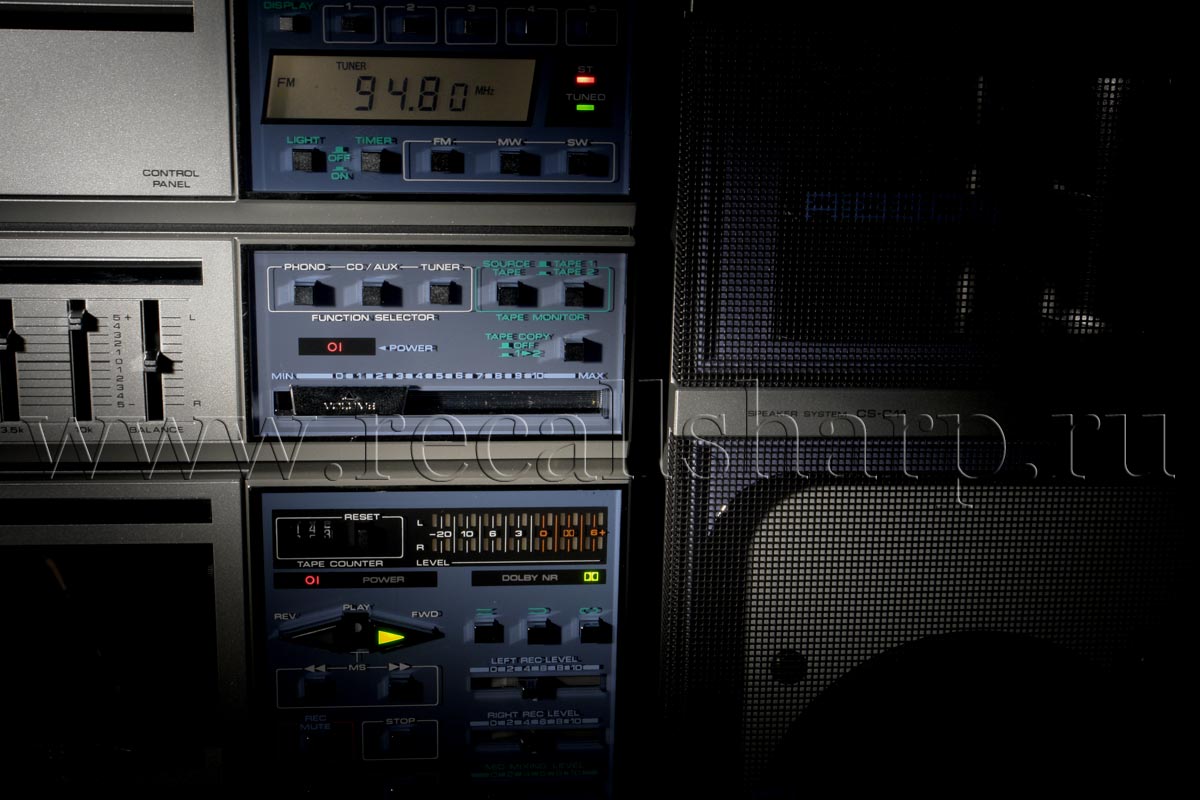

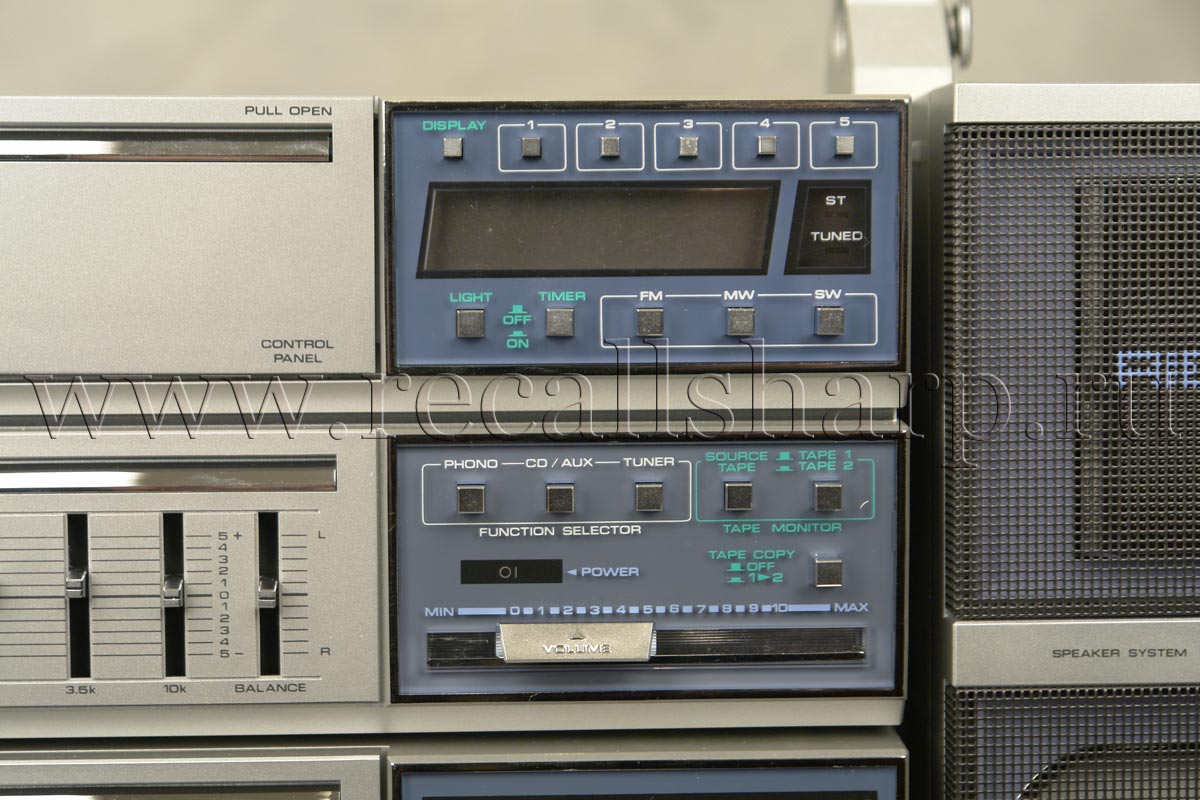

Tuner/pre-amplifier unit (FC-C11T) (Tuner section)

Frequency range................... FM: 88— 108MHz

                                              MW: 531 -1,602kHz

                                              SW: 5.8-15.5MHz

System.................................. Liquid crystal digital display and

                quartz PLL synthesizer

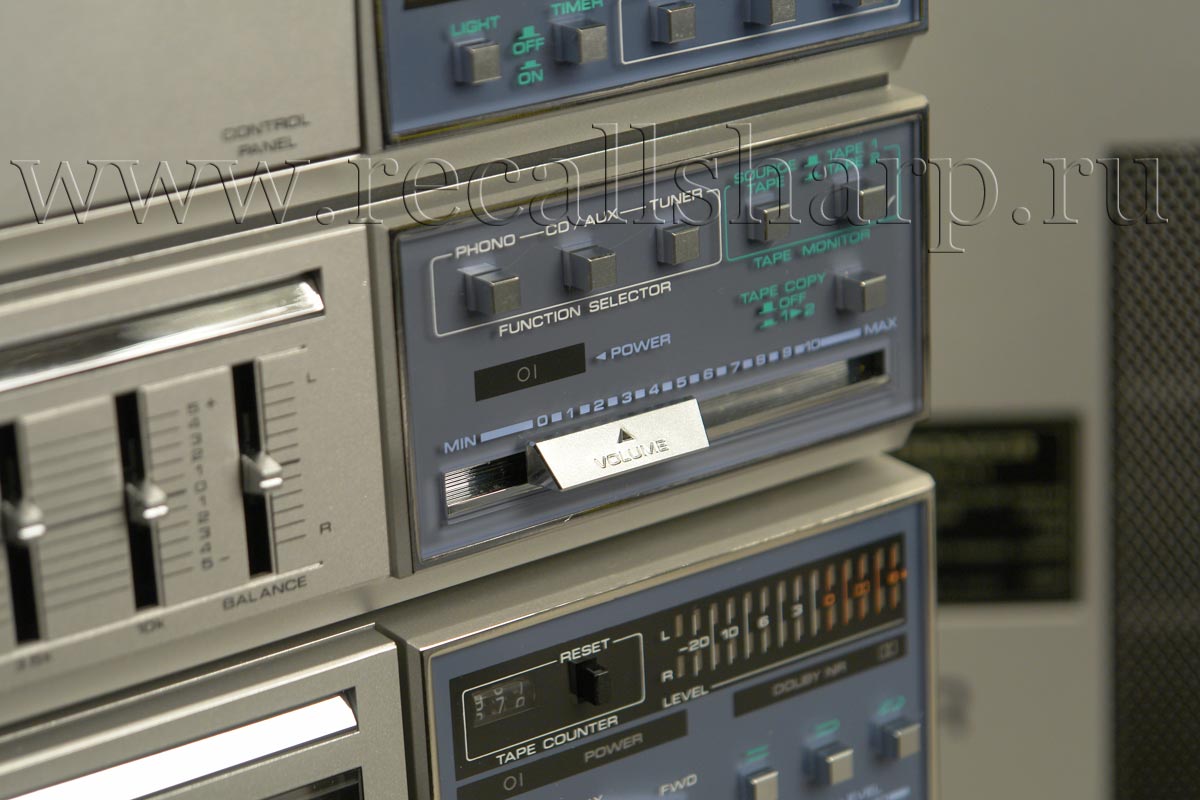

(Amplifier/common section)

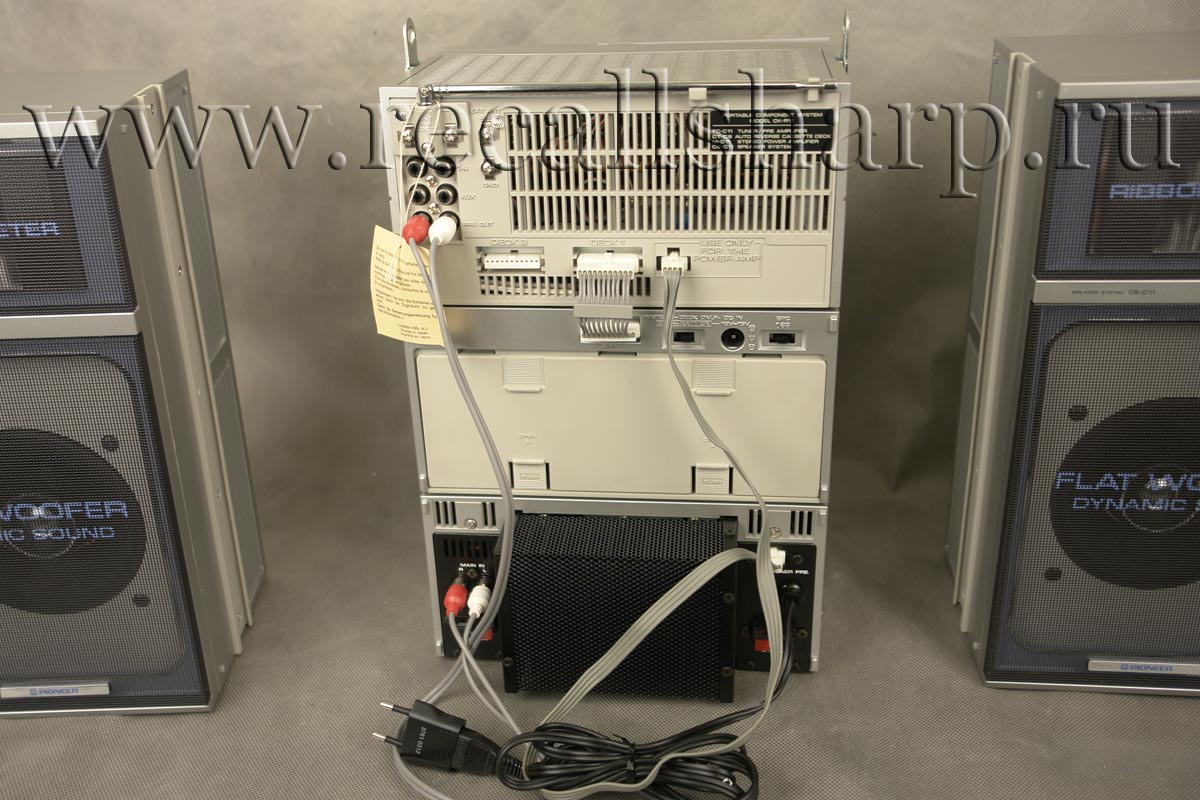

Input terminals....................... • MONITOR IN (System only)

                  •    DC IN (System only)

                  •    PHONO

                  •    AUX

                 •    EXT ANT

Output terminals.................... • PRE OUT

                  •    PHONES

                  •    REC OUT (System only)

                  •   DC OUT (System only)

Power source 15V DC (System only/deck

power supply)

Dimensions (WX HX D)... 225 X 1 10 X 150mm

(Not including protrusions)

Weight................................... Approx. 1.6kg

Subfunctions......................... • 5-band graphic equalizer

                  (100Hz, 350Hz, 1kHz, 3.5kHz, 10kHz)

                •  2-deck tape dubbing function

               •    Dial light

                •    15 preset stations (5FM, 5MW, 5SW)

                •    Clock: Liquid crystal digital display AM/PM 12-hour quartz type clock

                •    Timer: Liquid crystal digital display, one time action mode ON/OFF, sleep time 60 minutes

Indicators............................... STEREO (red LED)

                                               TUNED (green LED)

                                               POWER (red LED)

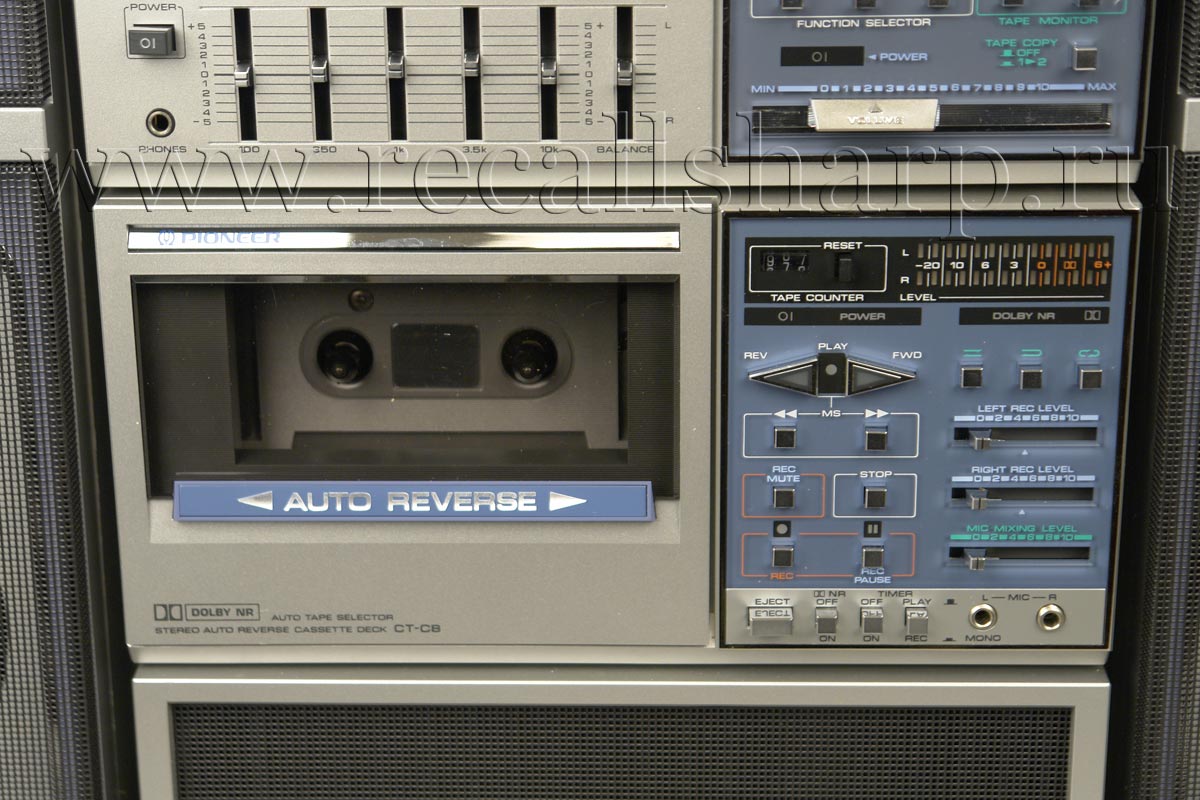

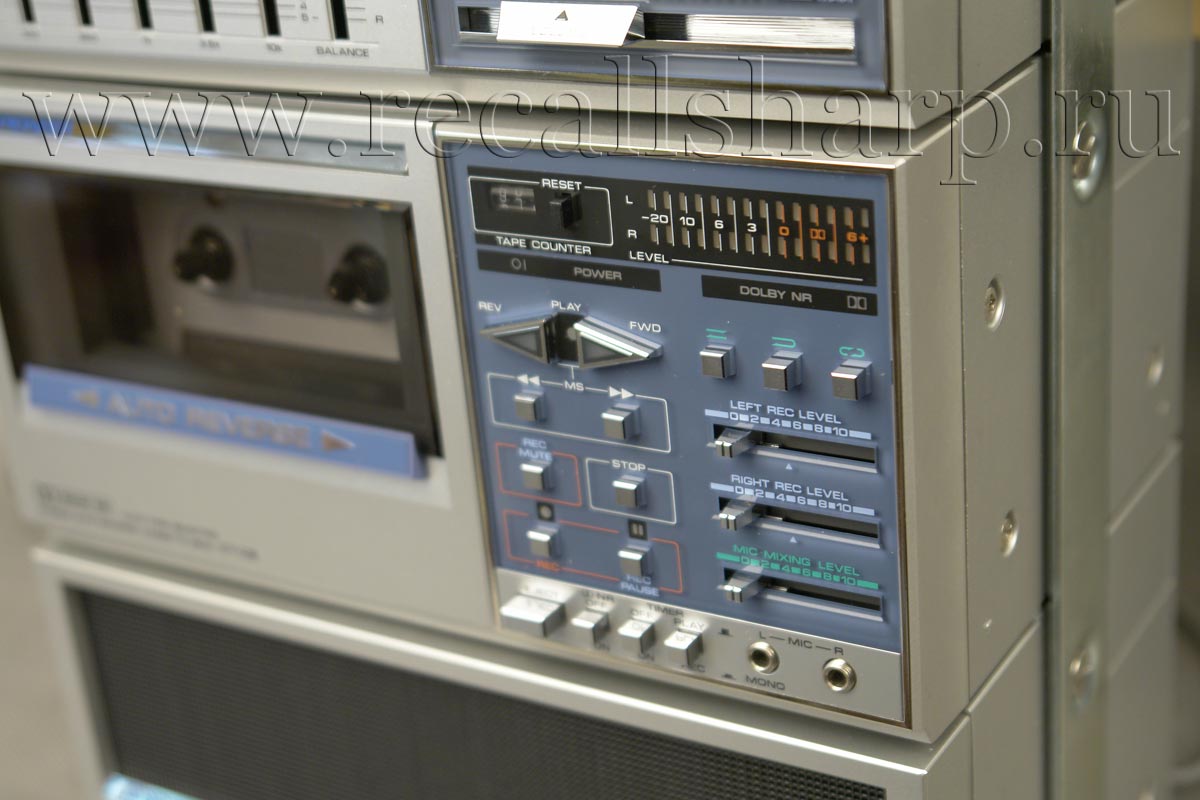

Cassette deck unit (CT-C8)

Heads................................... Rotating reversible record/play­back head X 1 Erase X 1

Motors................................... Electronic governor DC motor X1

                                               DC motor X 2

Wow and flutter..................... 0.06% (WRMS)

                                               ±0.12% W. Peak

Frequency range................... Normal tape: 50Hz— 15,000Hz

                                              Chrome tape: 50Hz- 1 5,500Hz

                                               Metal tape: 50Hz- 1 6,000Hz

S/N ratio

(record/playback).................. 50dB

57dB (Dolby NR ON)

 Input terminals     • MIX MIC (3.50 mini jack)

                              •   LINE IN (System only)

                             •   DC IN

Output terminals.................... • LINE OUT (System only)

Power source........................ 15V DC (ten size "D" batteries)

                                               EXT DC 12V-15V

Dimensions (WX HX D)... 225 X 110 X 150mm

(Not including protrusions)

Weight................................... Approx. 2.1kg

(without batteries)

Subfunctions......................... • Auto-reverse record/playback

                                               (Quick-reverse)

•   Tape transport mode switch (one-side, both-sides, auto-repeat)

•   One touch operation

•   Music search function

•   Auto tape selector (Metal/Cr0₂/Normal)

•    DOLBY NR (B type)

•   Auto REC mute

•   Manual recording level adjust­ment

•   Left/right independent VU meters (7-point LED)

•   Microphone mixing

•  Timer recording and playback

Indicators

• LEVEL METER (green LED X

4, red LED X 3) X 2

•   DOLBY NR (green LED)

•    REC (red LED)

•   REC PAUSE (red LED)

•   POWER (red LED)

•    PLAY (green LED)

•    DIRECTION (green LED X 2)

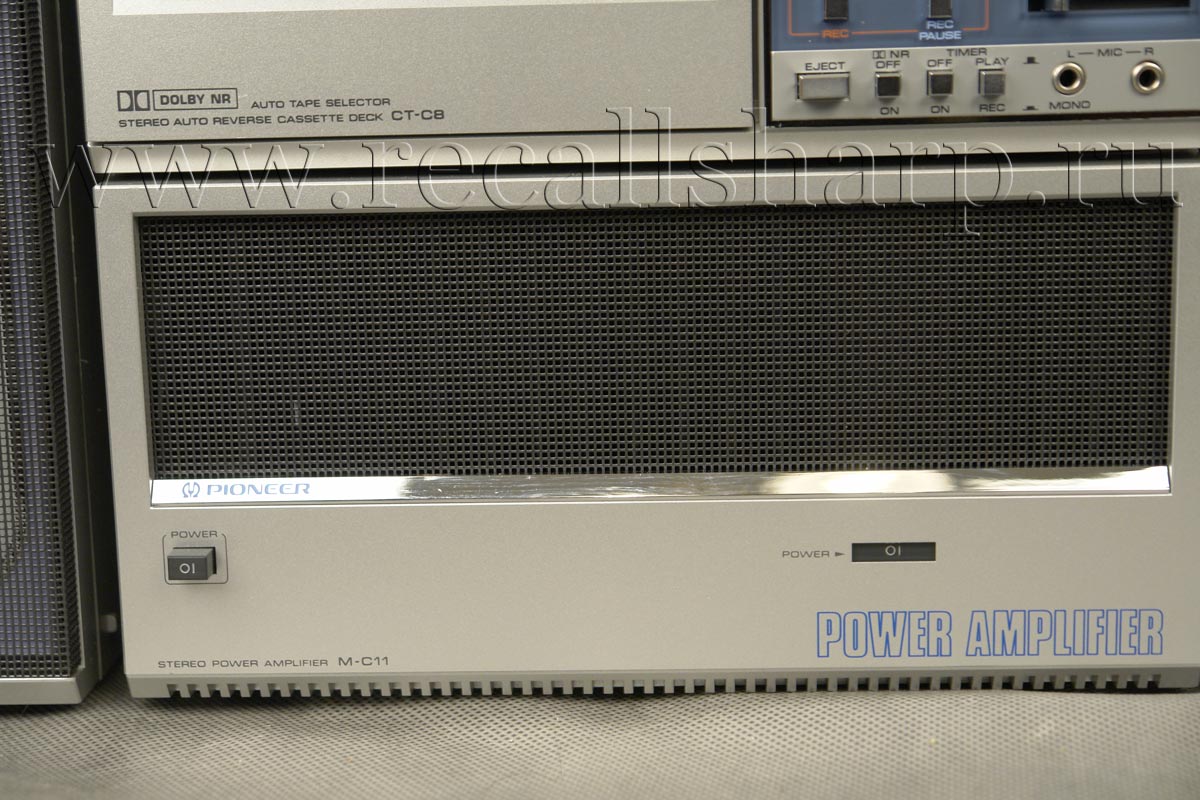

Power amplifier unit (M-C11)

Maximum output power. . . Total music power 110W (10% THD)

Input terminals...................... • MAIN IN (pin jack)

Output terminals................... • EXT SP (load impedance 6 Ω  to 16 Ω)

                 • DC OUT (System only 4P)

Power source........................ 120/220/240V AC 50/60Hz

Dimensions (WX HX D)... 225 X 110 X 192mm

(Not including protrusions)

Weight.................................. Approx. 4.6kg

Indicators.............................. POWER (red LED)

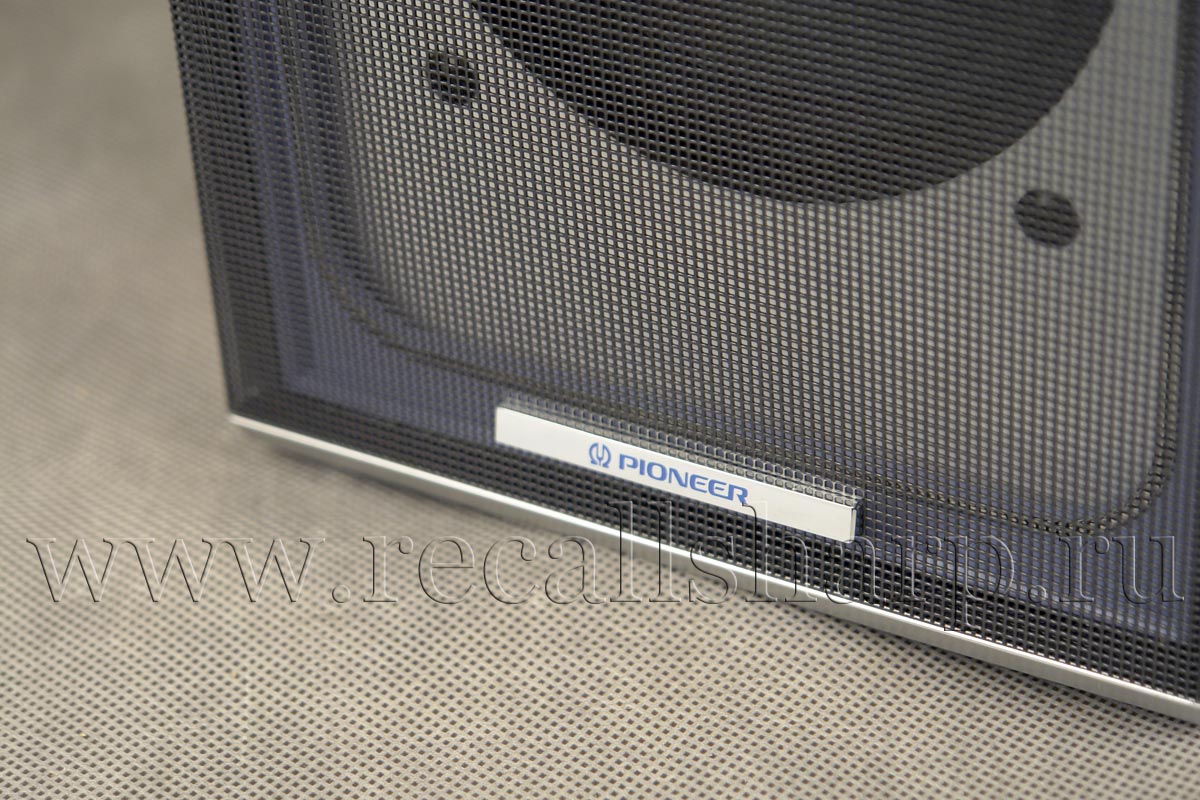

Speaker section (CS-C11)

Type...................................... Open rear system with acoustic damper

Speakers................................ Woofer: 15cm X 21cm flat

                   type (equivalent to 22cm diame­ter round type)

                  Tweeter: 9cm cone type

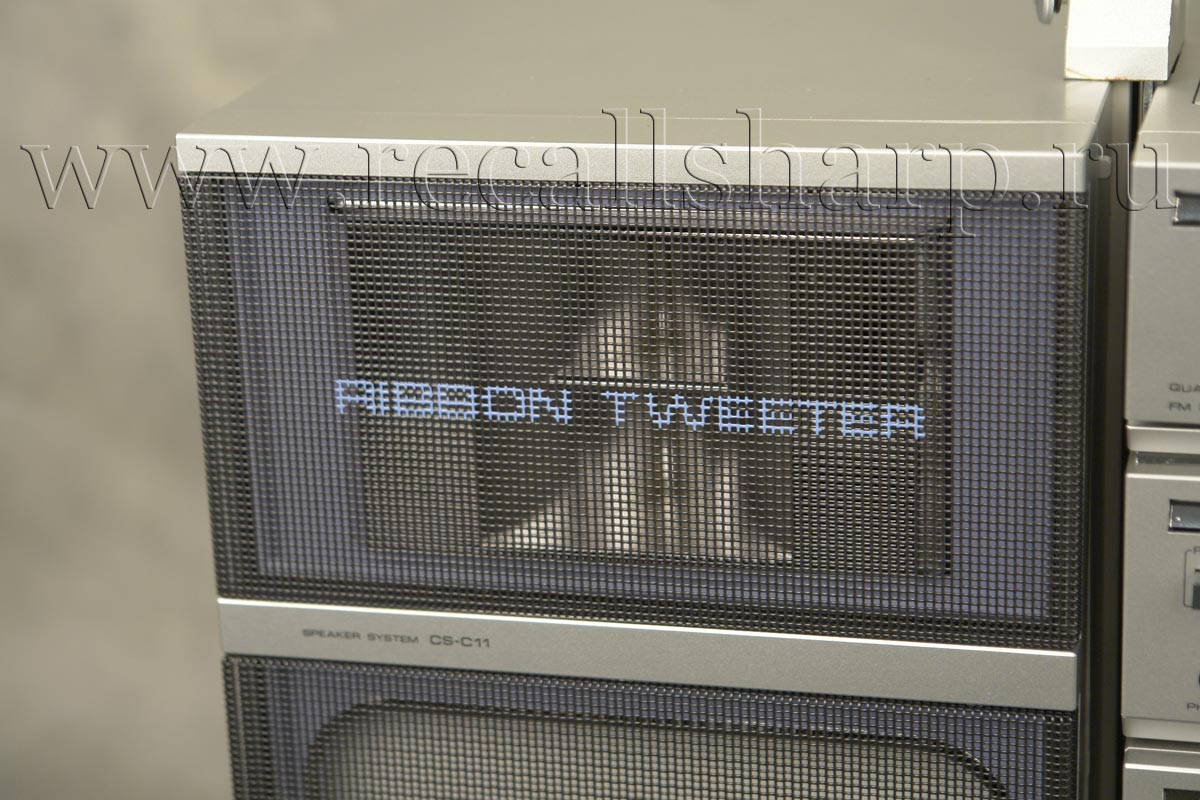

                  Super tweeter: Ribbon type

Nominal impedance.................... 6Ω

Frequency range.................... 30—50,000Hz

Sensitivity.............................. 90dB/W (1m)

Rated input power................... 40W

Maximum instantaneous

input power.......................... 100W

Dimensions (WXHXD). .. 168 X 336 X 150mm

Weight            Approx. 3.1kg (each one)

Note: Specifications and design are subject to change without notice.
