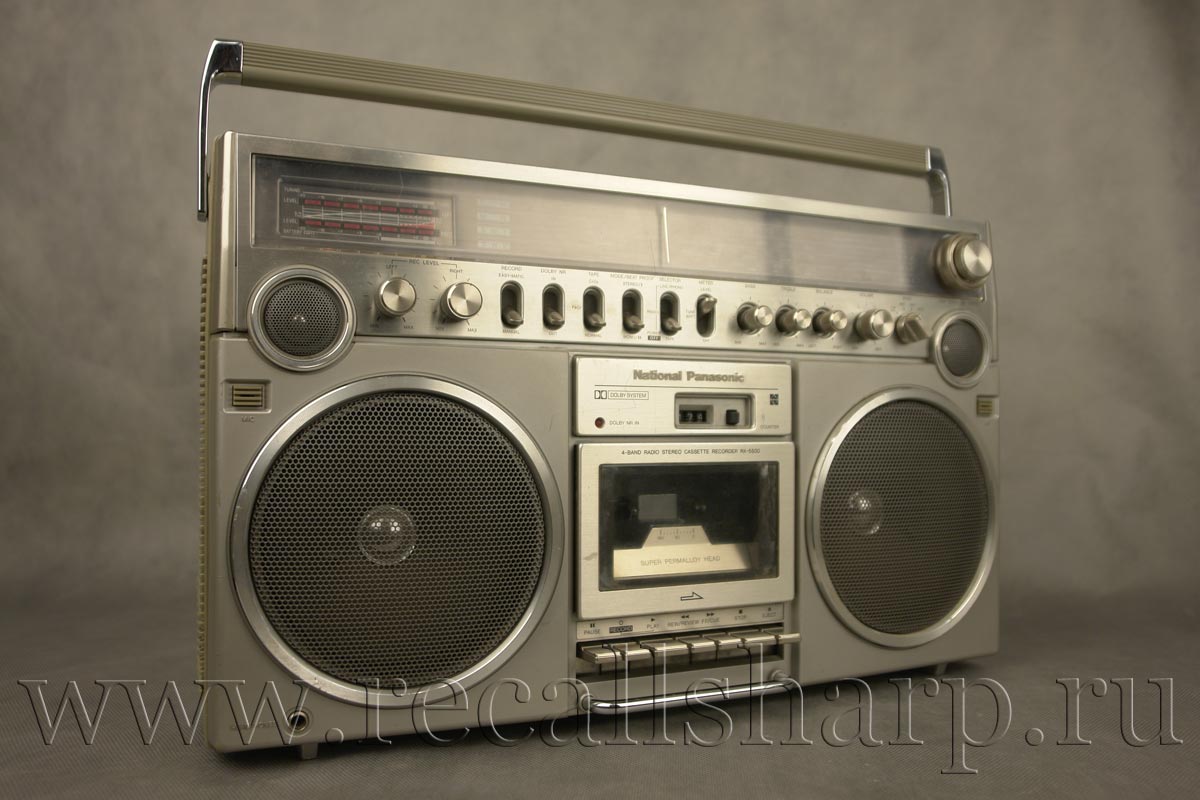

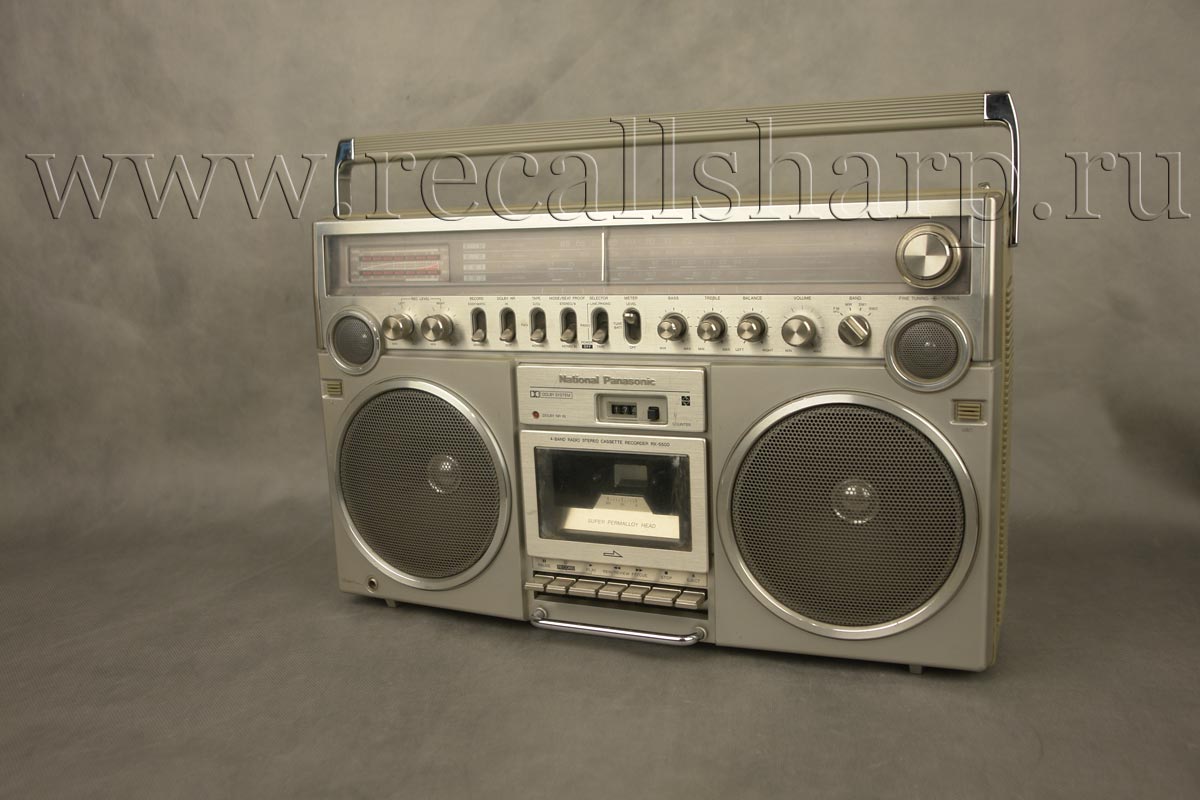

National Panasonic RX-5500 F FM 65-74 MHz



: 1979


SPECIFICATIONS

RADIOFREQUENCYRANGE: FM; 65-74 MHz


MW; 525-1605 kHz


SW1; 2.3-7.0 MHz



SW2; 7-22 MHz


POWER REQUIREMENT: AC; 100-110/115-127/200-220/230-250 V, 50/60 Hz


RX-5500FA is 240 V, 50 Hz only.


Power consumption; 23 WBattery; 12 V (eight-UM-1, D size dry batteries)


Car/boat battery; with optional car/boat adaptor


RP-952



POWER OUTPUT: 15.0 W (7.5 Wx2).. .RMS (max.)


SPEAKERS: Woofer;16 cmPM dynamic speaker


Tweeter; 3 cmPM dynamic speaker


FREQUENCYRANGE: 40-12.000 Hz (with normal tape)


40-14.000 Hz (with tape corresponding to Cr02 type)


40-14.000 Hz (with FeCr tape)




RECORDING SYSTEM: AC bias, AC erase



TAPE SPEED: 4.8 cm/s


PROGRAM TIME: 1 hour with C-60 cassette tape


FAST FORWARD and


REWIND TIME: Approx. 90 seconds with C-60 cassette tape


TRACK SYSTEM: 4-track 2-channel stereo recording and playback


JACKS:


INPUT; MIC; sensitivity 0.26 mV/applicable microphone



impedance 200Ω-1 kΩ(recommended microphone RP-8135)

LINE; sensitivity 100 mV/47 kΩover


PHONO; sensitivity 2 mV/25 kΩ


DC IN; 13.2 V

OUTPUT;


LINE; sensitivity 0.41 V/2 kΩover


EXT SP; 3-8Ω


HEADPHONES;8Ω


OTHERS;


REMOTE; for start and stop at hand


DIMENSIONS:47.8 cm(W)x29.3 cm (H)x16.3 cm(D)




WEIGHT:6.75 kg(14 lbs13 oz) without batteries


Specifications are subject to change without notice.


:
National Panasonic RX-5500 F
Panasonic RX-5500 LS
