Aiwa 1951 . 1967 . 2002 Aiwa - Sony, .

, ...

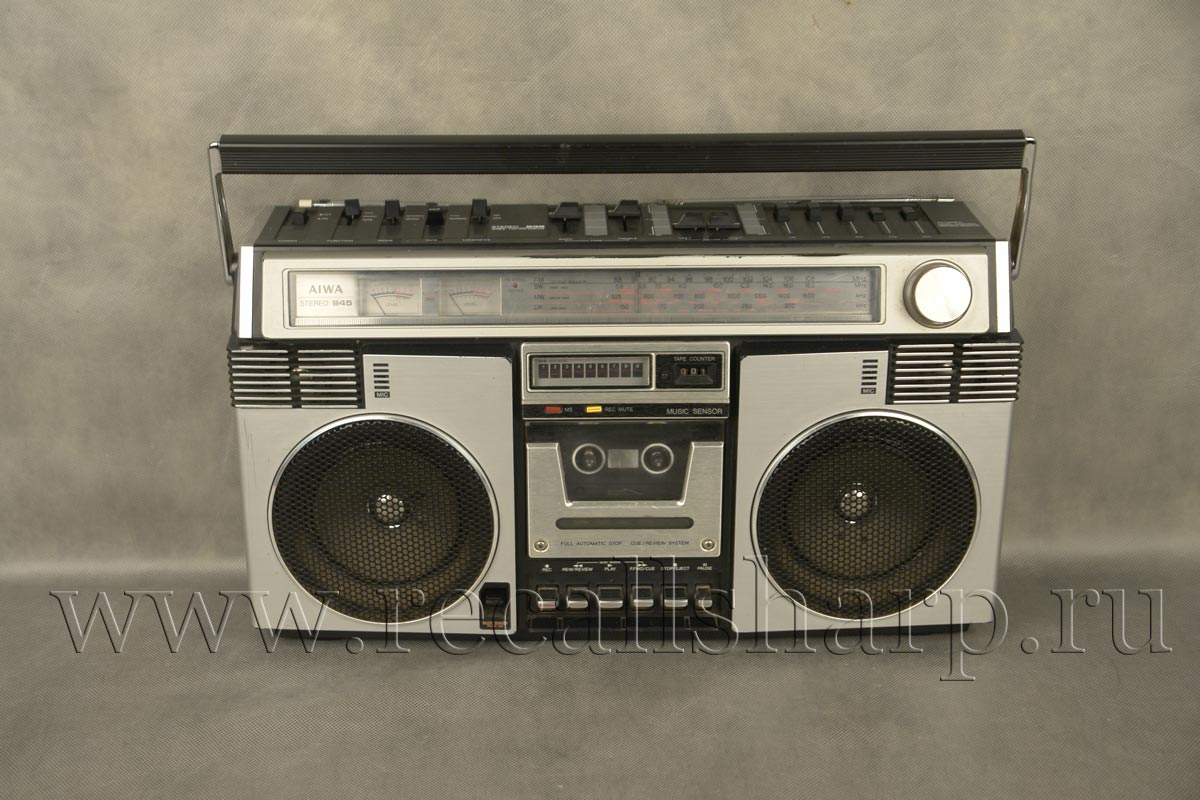

Aiwa TPR-945 K



: 1979


SPECIFICATIONS (AIWA TPR-945H)

Type Stereo multiband radio cassette recorder

Circuitry 39 transistors, 19 diodes, 11 IC's, 10 LED's, 1 FET

(9 transistors, 2 diode, 6 IC's for turier section)

Power source Batteries, DC 12V (UM-1 x 8)

AC 110-120 V/220—240 V (switchable) 50/60 Hz,

pre-set for 110-120 V

Power output 3.2 watts per channel, Min. RMS at 4 ohms,

from 60 Hz to 10 kHz, with no more than 10% Total Harmonic Distortion.

Power consumption 14 W

Speakers 120 mm (4-3/4") round (2)

40 mm (1-5/8") round (2)

TAPE RECORDER SECTION

Built-in microphones Electret condenser microphones

Tape speed 4.8 cm/sec. (1-7/8 ips.)

Recording system AC bias

Erasing system AC erase

Recording time90 minutes (C-90 cassette, both directions)

Frequency Normal tape: 40-12,500 Hz

Cr02 tape: 40-15,000 Hz

Signal to noise ratio 53 dB

Wow and flutter 0.07% (WRMS)

Frequency ranges FM: 87.5-108 MHz

MW: 525-1605 kHz

SW1: 2.3-7 MHz

SW2: 7-22 MHz

Antennas Whip antenna for FM and SW2

Ferrite bar antenna for MW and SW1

Dimensions (WxHxD) 490 x 273 x 165 (mm)

(19-3/8" x 10-3/4" x 6-1/2")

Weight 5.7 kg (12.5 lbs)

Accessories AC power cord x 1

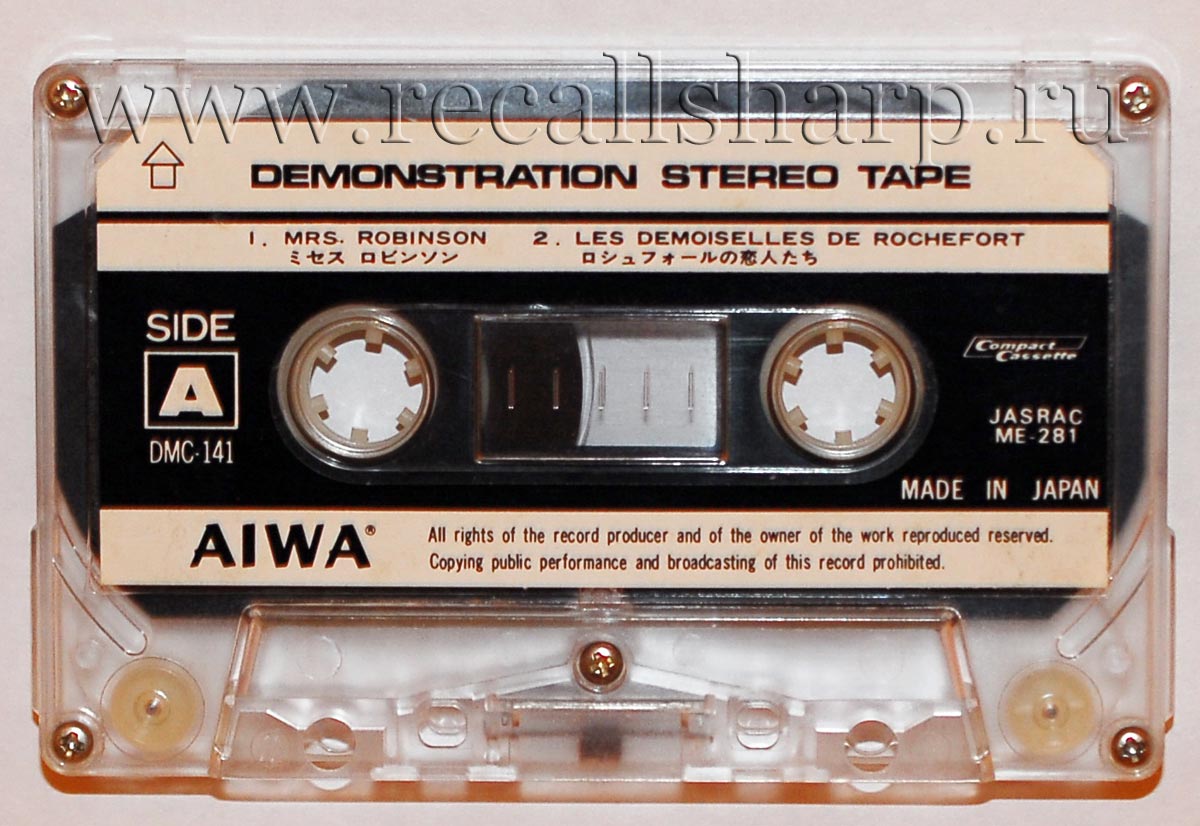

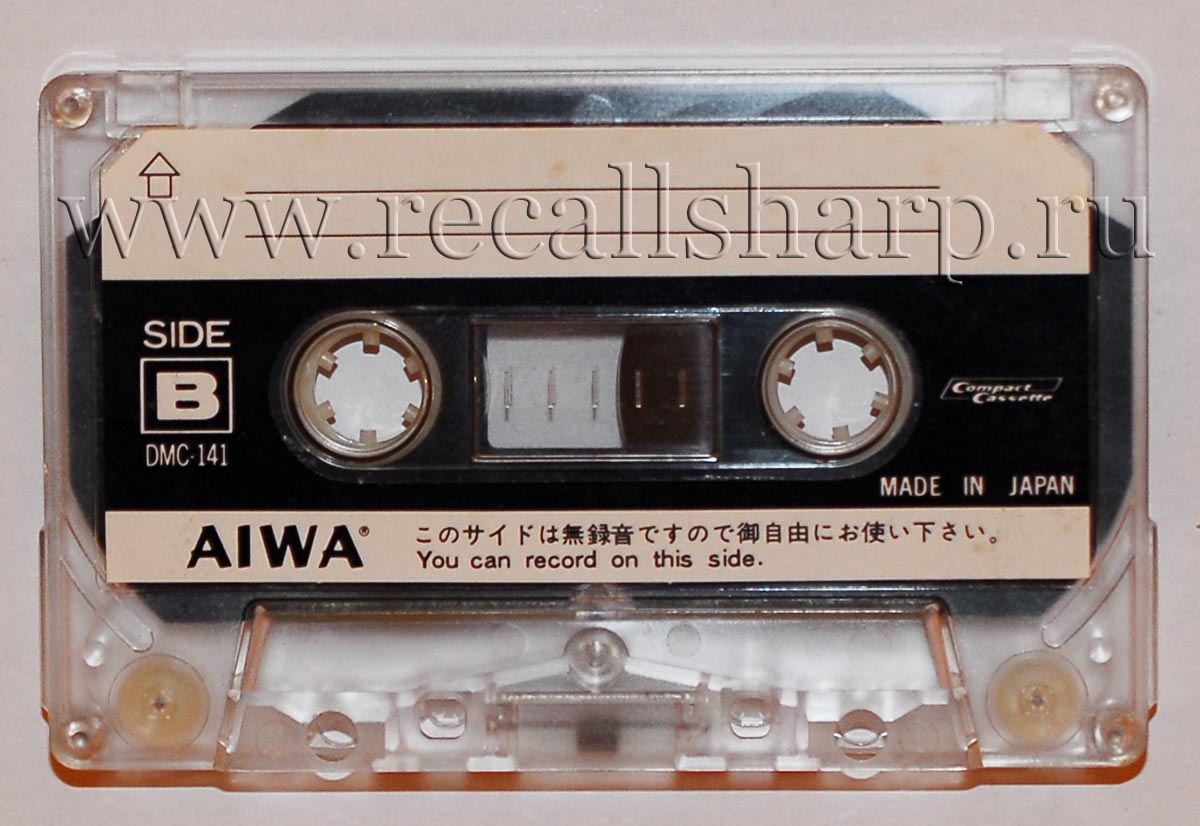

Cassette tape x 1

The specifications and external appearance of this set are subject to change without prior notice.
