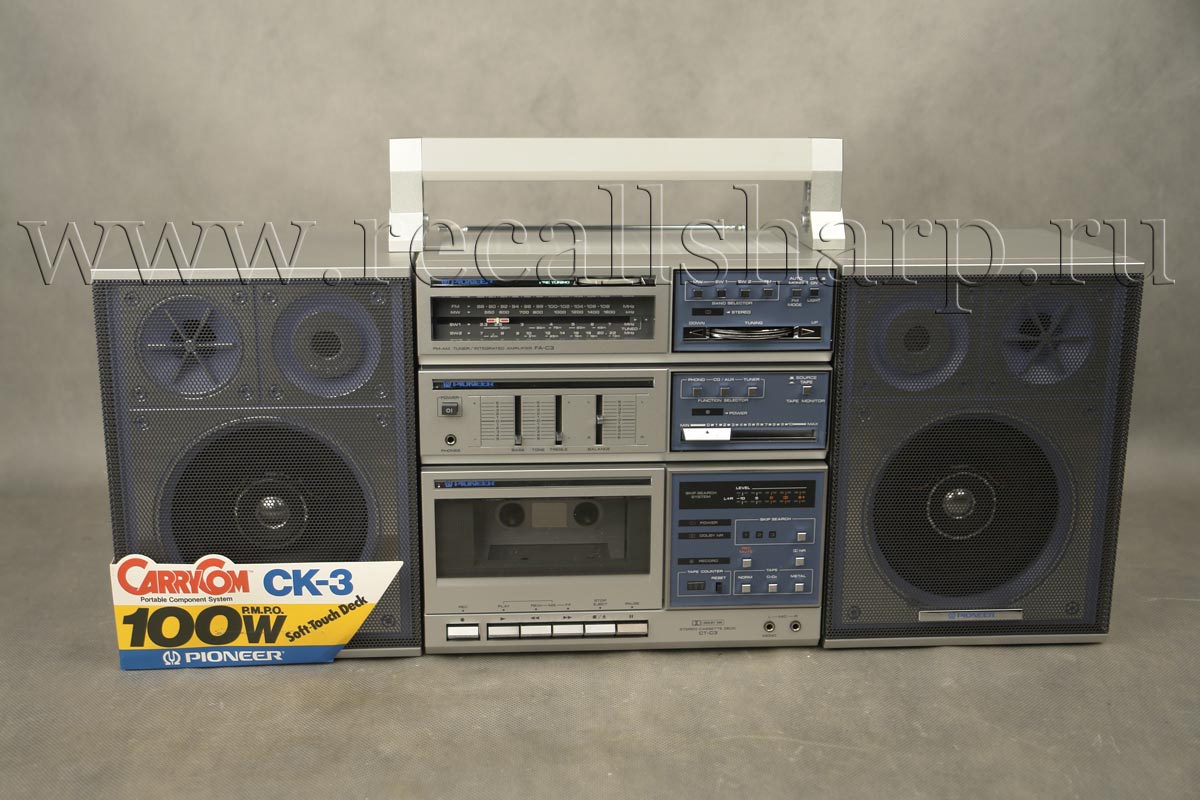

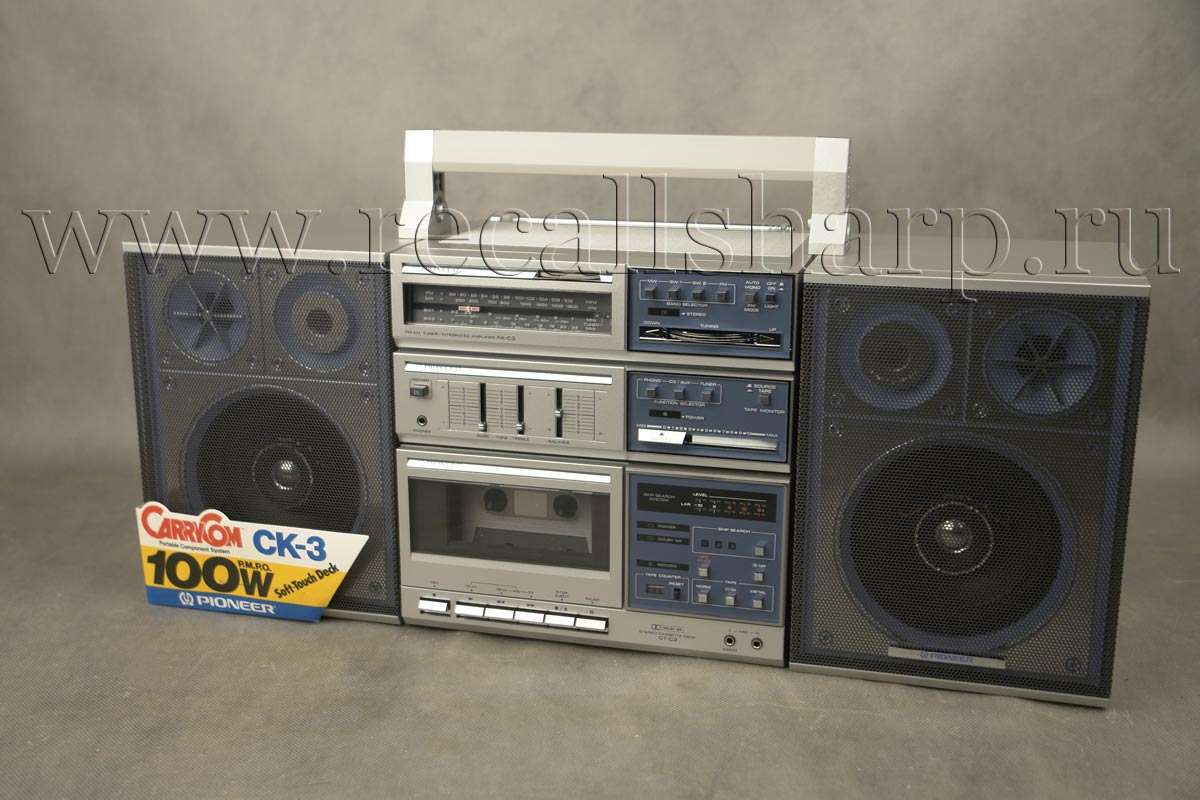

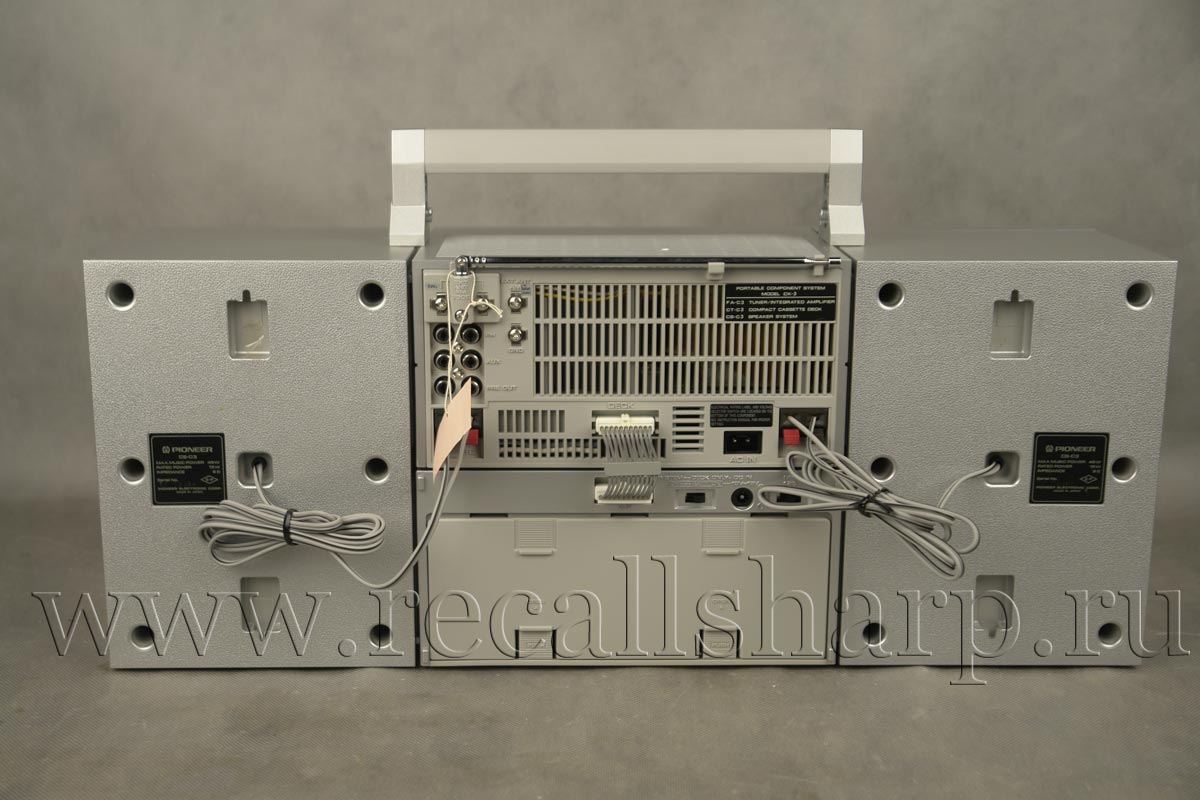

Specifications
When all components are connected
Power source 120/220/240V AC 50/60Hz
15V DC (ten size "D" batteries)
EXT DC 12-15V
Power consumption 55W/AC
Dimensions (WXHXD). . . 559 X 272 X 150mm
(When all components are connected, including
the handle but not including protrusions)
Gross weight Approx. 8.6kg
(without batteries)
Accessories • Owner's manual
AC cord
Connection cord (600mm)
11p with cord securing clip
Connection cord (45mm)

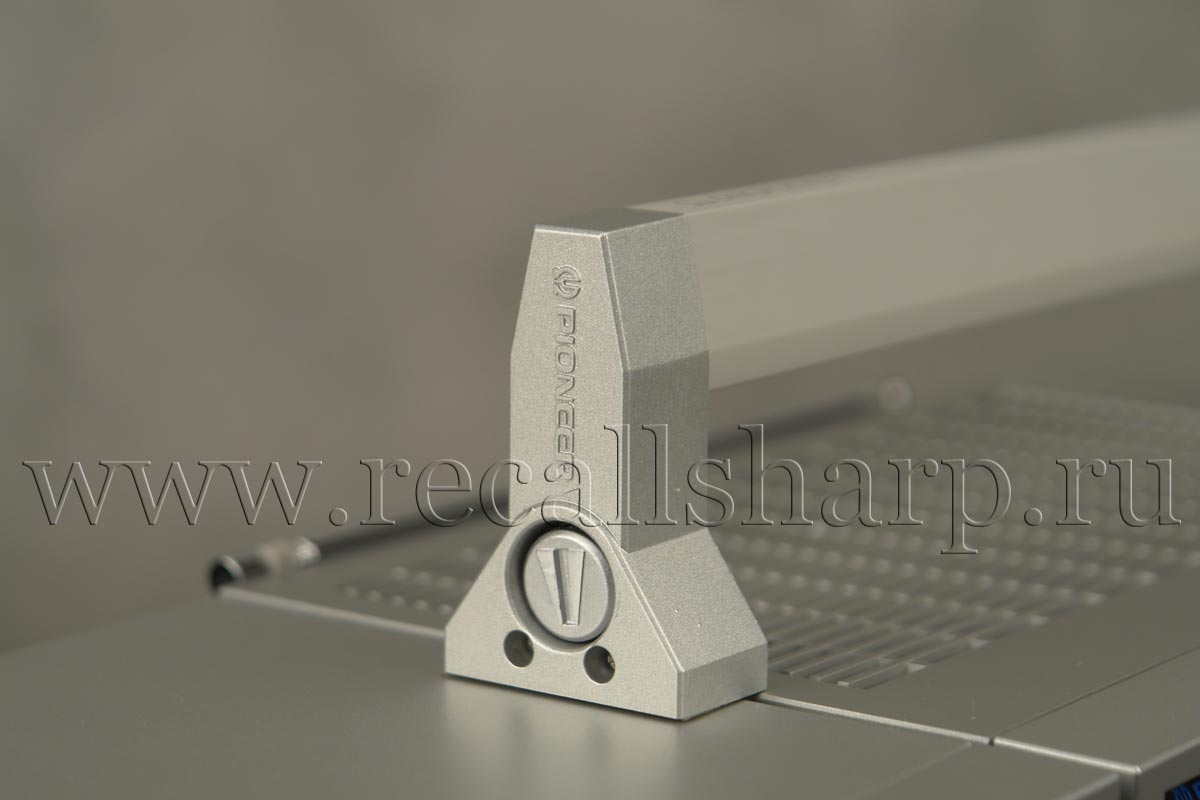

Handle

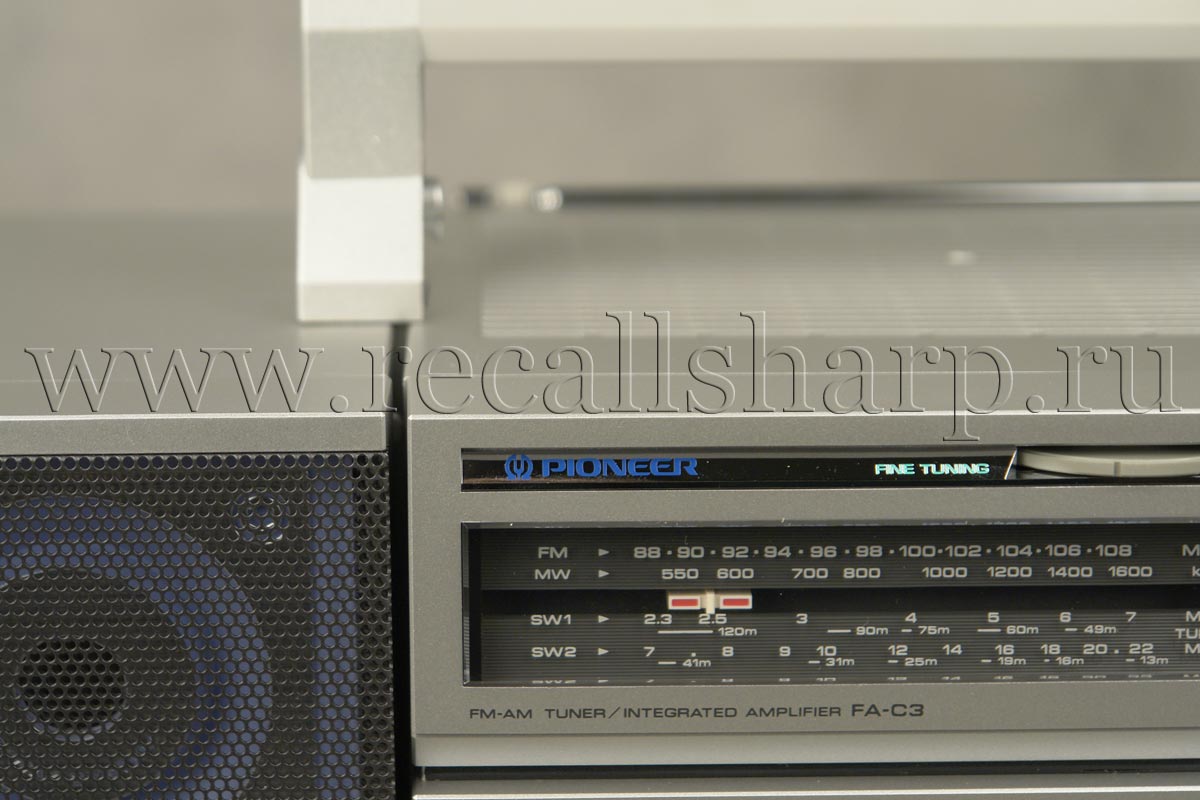

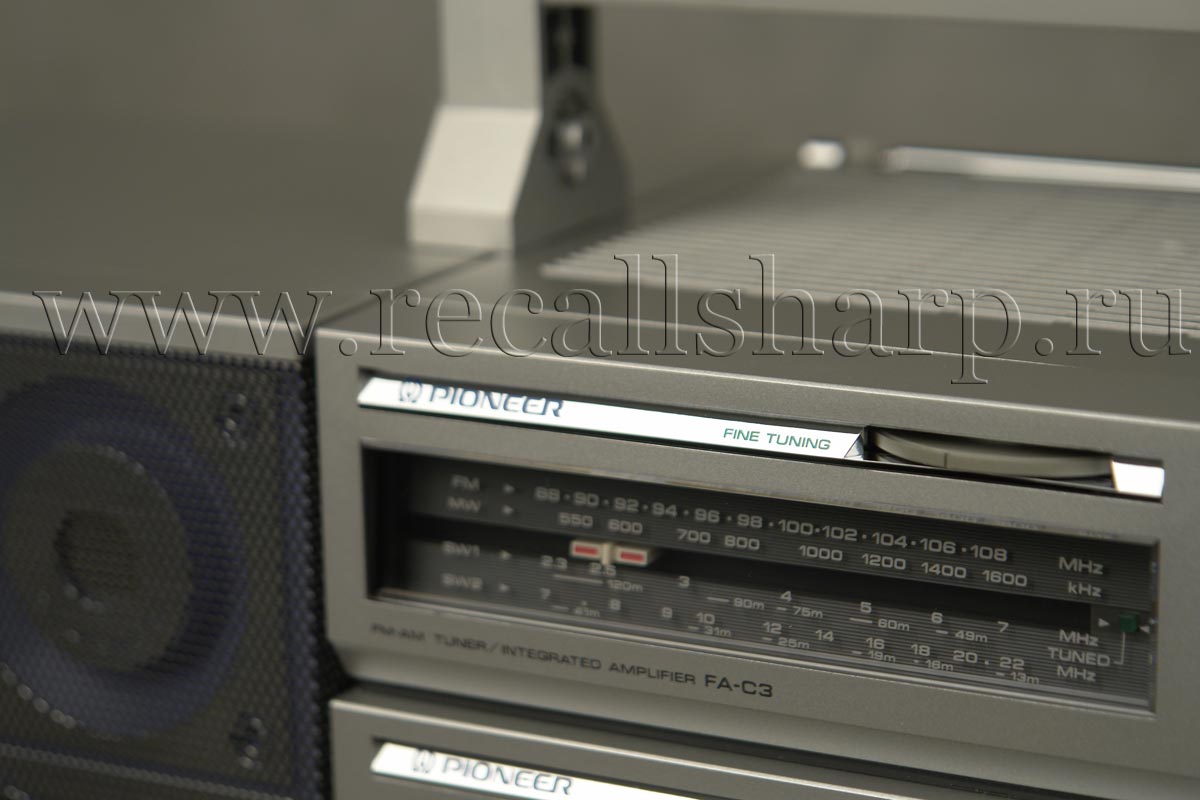

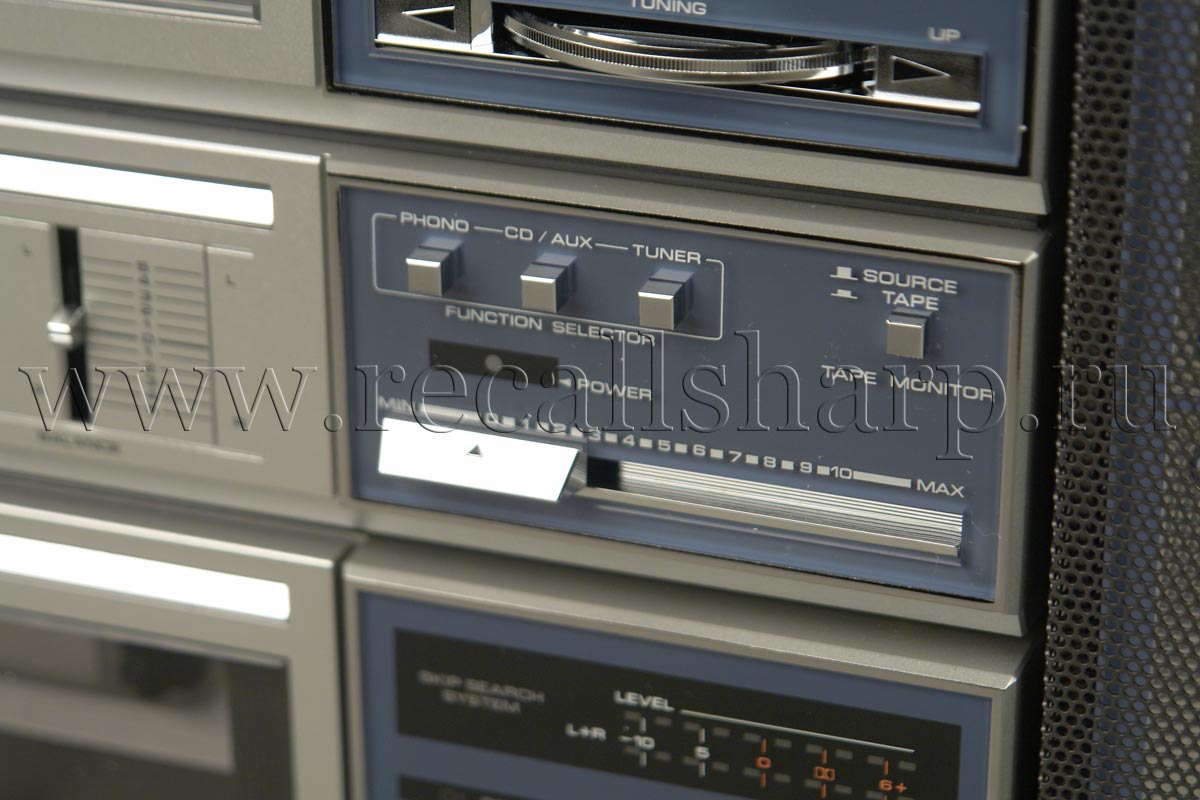

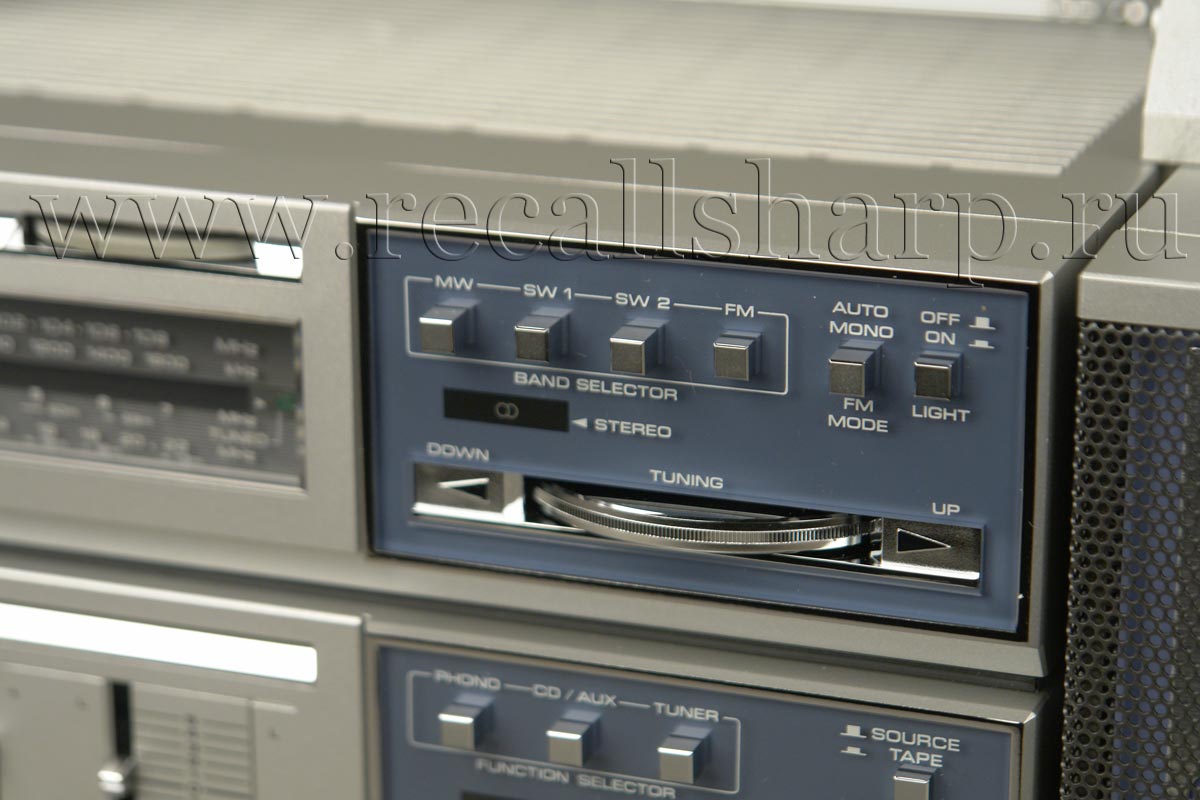

Tuner/amplifier unit (FA-C3F)
(Tuner section)
Frequency range FM: 88-108MHz
SW2: 7.0-22MHz
SW1: 2.3 — 7.0MHz
MW: 530- 1,600kHz
(Amplifier/common section)
Maximum output power. . . Total music power 36W
(10% THD)
Input terminals • MONITOR IN (System only)
DC IN (System only)
PHONO
AUX
EXT ANT
AC IN
Output terminals • PRE OUT
EXT SP
PHONES
REC OUT (System only)
DC OUT (System only) Power source 120/220/240V AC 50/60Hz
15V DC (System only/deck power supply)
Dimensions (WX HX D) . . . 225 X 1 10 X 150mm
(Not including protrusions)
Weight Approx. 3.2kg
Subfunctions • Bass/treble tone control

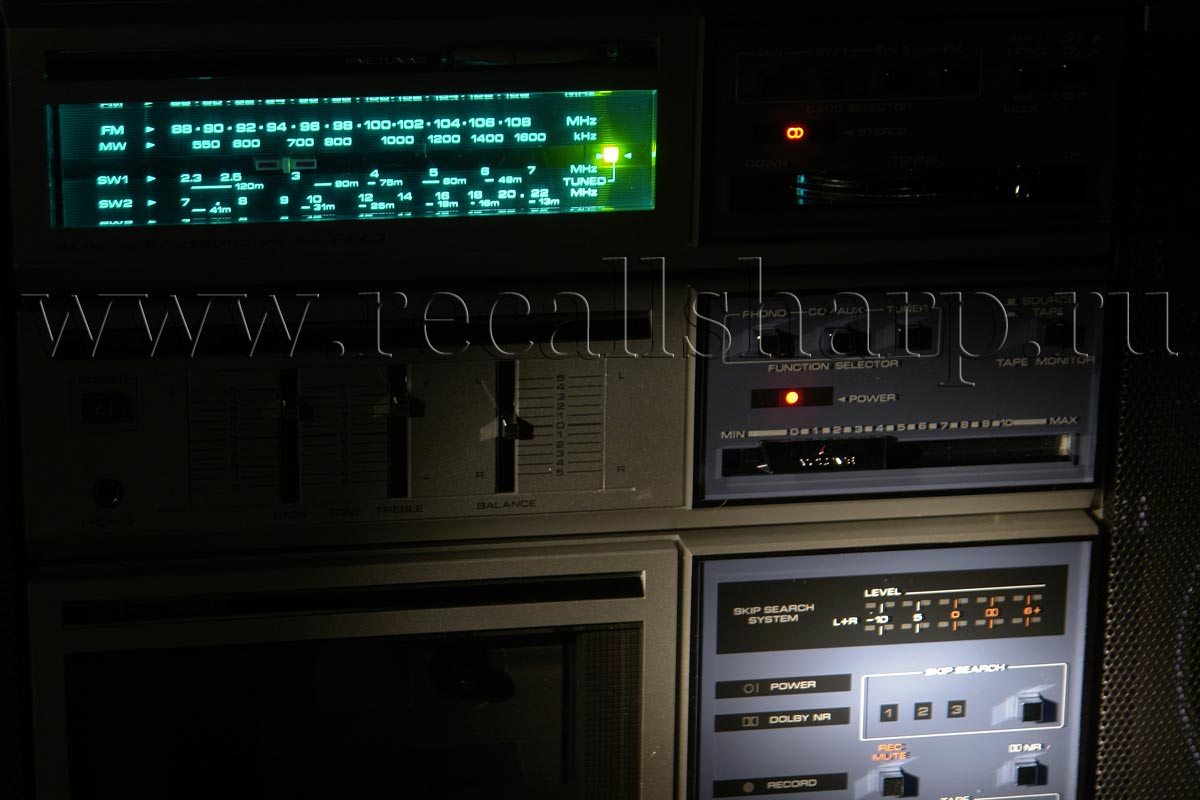

Dial light
Fine tuning Indicators
STEREO (red LED)
TUNED (green LED)
POWER (red LED)

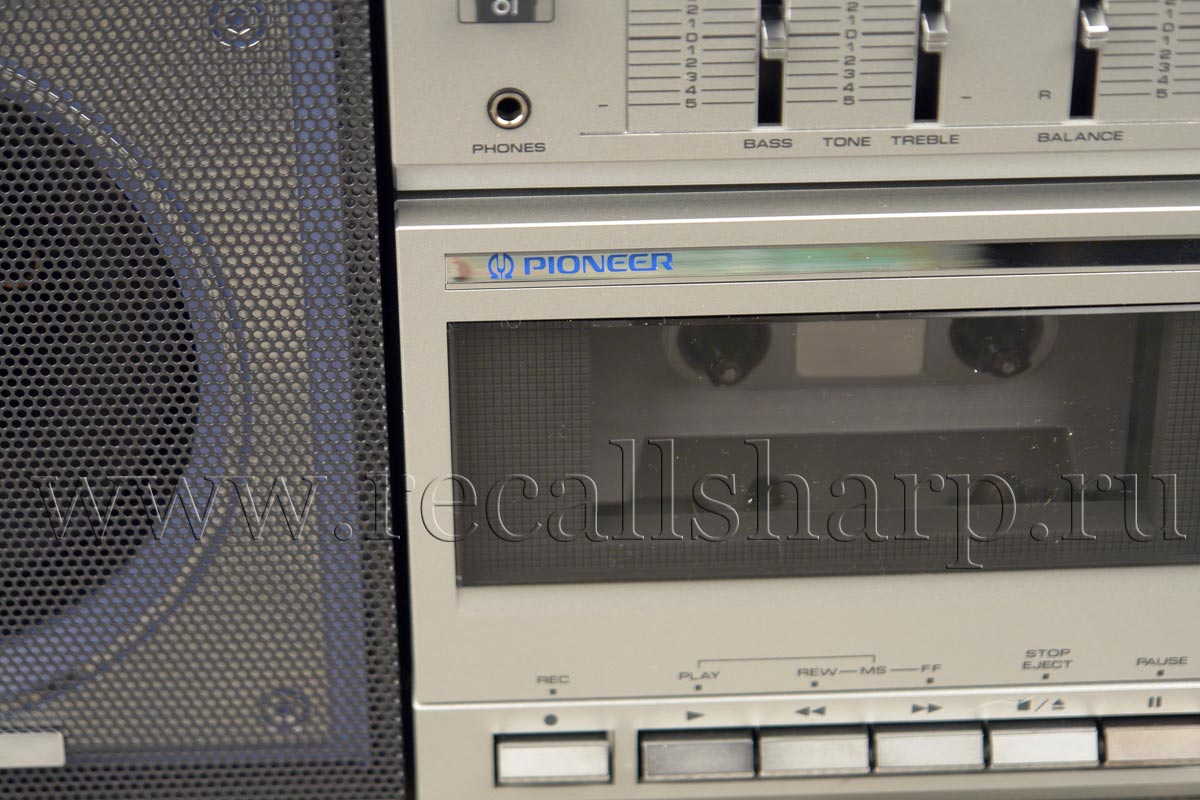

Cassette deck unit (CT-C3)
Heads Record/playback x 1, Erase X1
Motor Electronic governor DC motor X1
Wow and flutter 0.06% (WRMS)
Frequency range Normal tape: 35Hz- 15,000Hz
Chrome tape: 35Hz- 15,500Hz
Metal tape: 35Hz- 16,000Hz
S/N ratio
(record/playback) 47dB
55dB (Dolby NR ON)
Input terminals • EXT MIC (3.5Ø mini jack)
LINE IN (System only)
DC IN (System only)
DC IN
Output terminals • LINE OUT (System only)
DC OUT (System only)
Power source 15V DC (ten size "D" batteries)
EXT DC 12V-15V
Dimensions (WX HX D). . . 225 X 1 10 X 150mm
(Not including protrusions)
Weight Approx. 1,6kg (without batteries)
Approx. 2.6kg (with batteries)
Subfunctions • DOLBY NR (B type)
Tape selector (metal/Cr02/ Norm)
3-selection skip search
Auto level control system
Indicators • LEVEL METER (green LED X
2, red LED X 3)
DOLBY NR (green LED)
REC (red LED)
SKIP SEARCH (green LED X 3)
POWER (red LED)

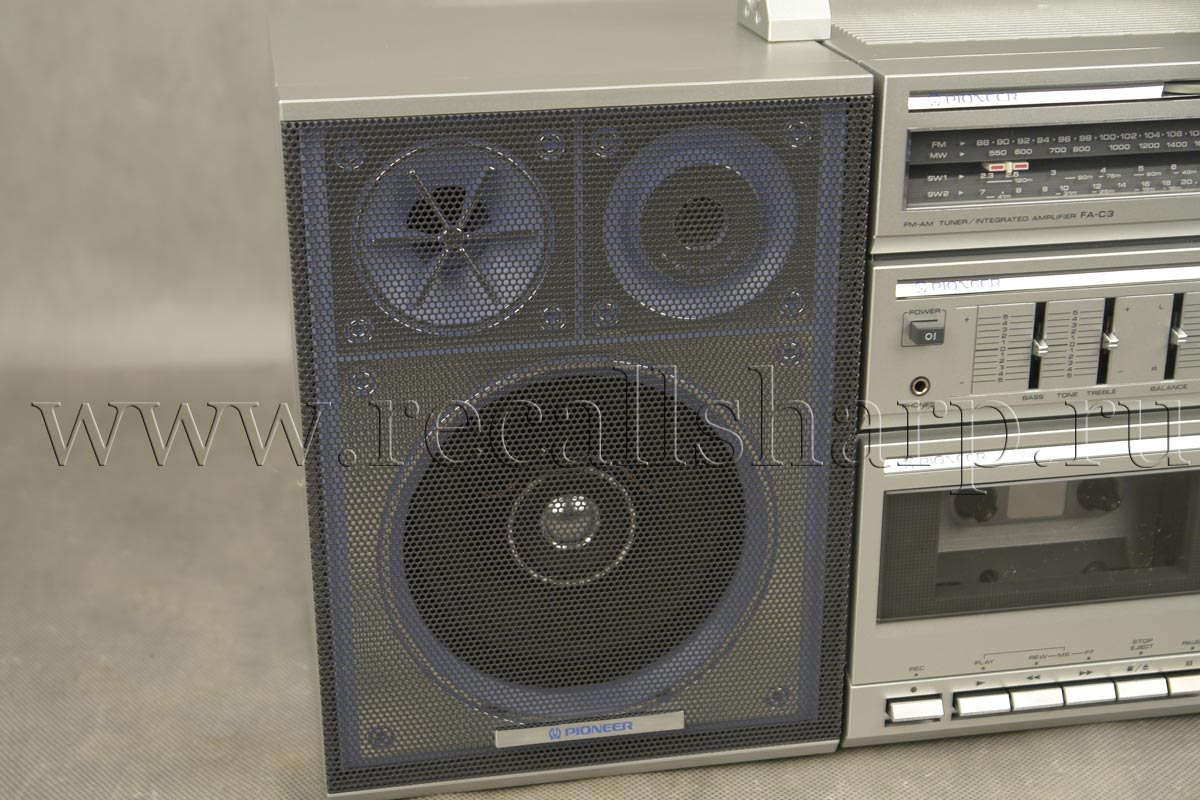

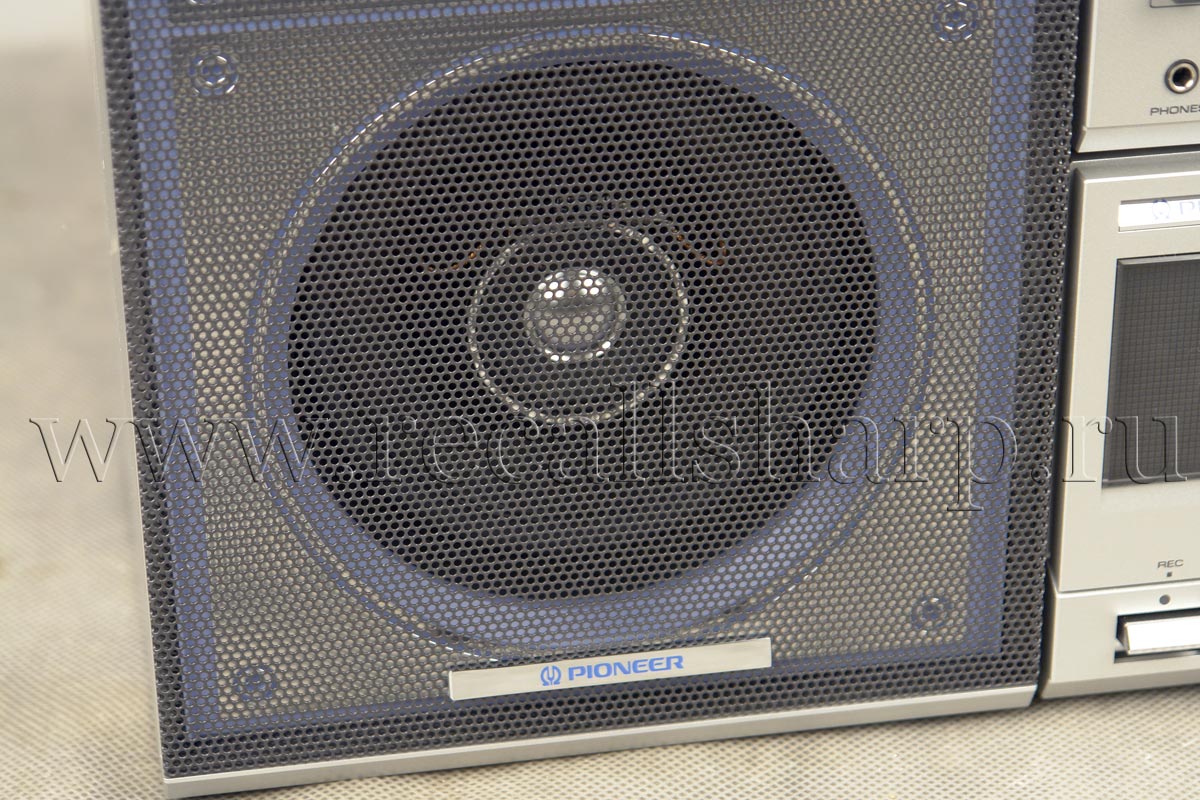

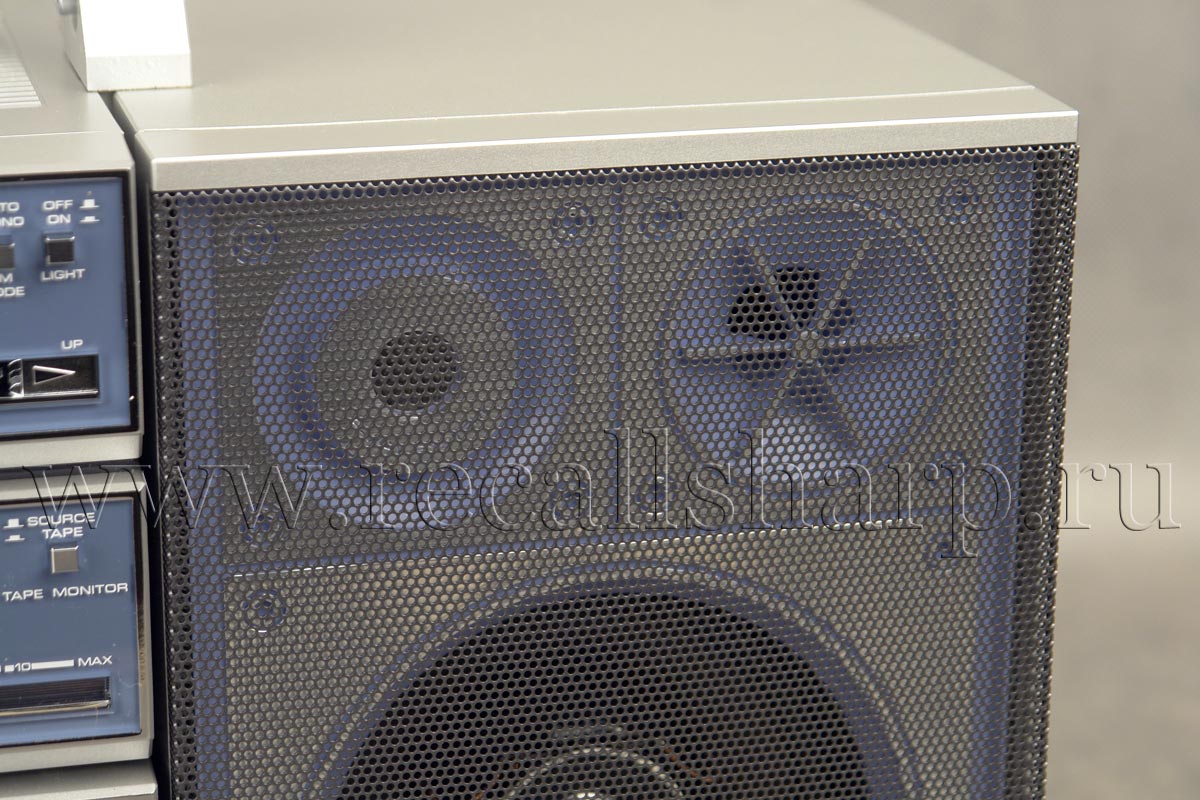

Speaker section (CS-C3)
Type Bass-reflex type
Speakers Woofer: 12cm Cone type
Tweeter: 2.5cm Ceramic tweeter
Nominal impedance 6Ω
Frequency range 50 —20,000Hz
Sensitivity 90dB/W (1m)
Rated input power 15W
Maximum instantaneous
input power 45W
Dimensions (WXHXD) . . . 168 X 226 X 150mm
Weight Approx. 1.6kg (each one)
Note: Specifications and design are subject to change without notice.
