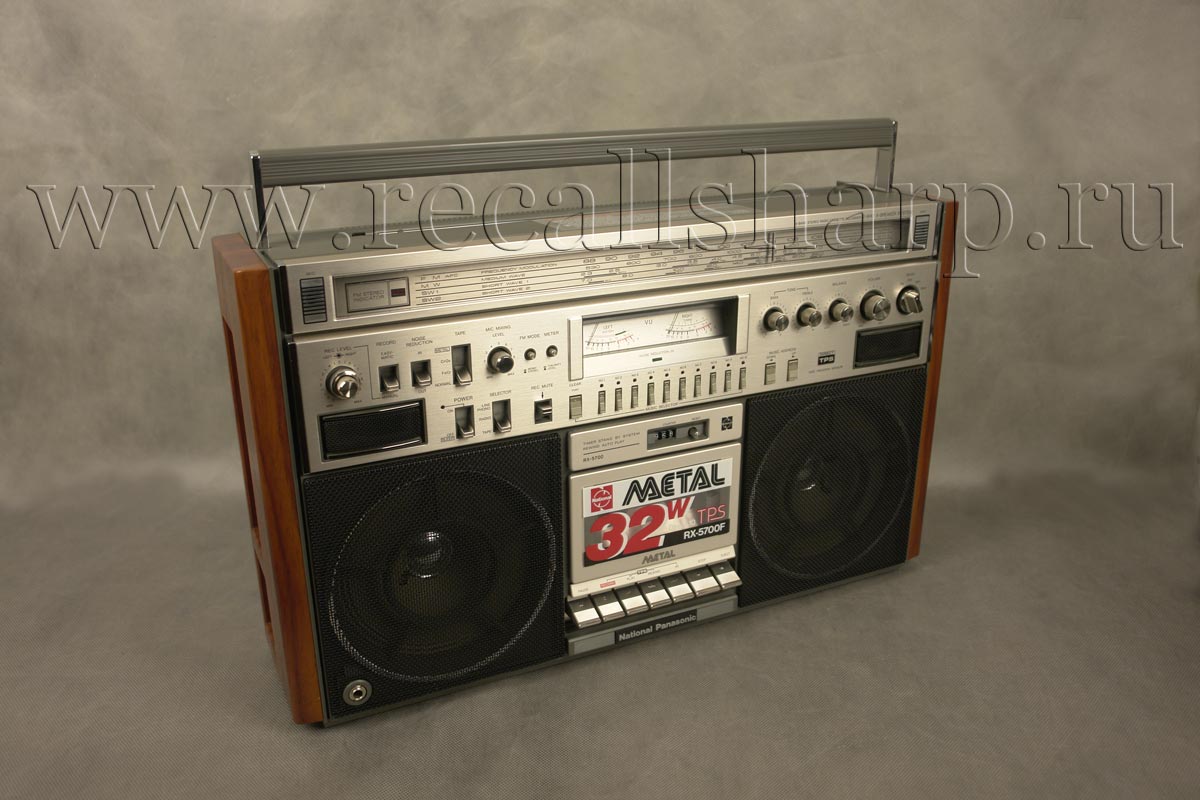

National Panasonic RX-5700F



: 1979


SPECIFICATIONS
National Panasonic RX-5700 F

RADIO FREQUENCY RANGE: FM; 88-108MHz
MW; 525-1605 kHz
SW1; 2.3-7.0 MHz
SW2; 7-22 MHz
POWER REQUIREMENT: AC; 100-110/115-127/200-220/230-250V,50/60Hz
Power consumption; 35 W
Battery; 15 V (ten-UM-1, "D" size batteries)
Car battery; with optional car battery cord RP-9550
POWER OUTPUT: 32 W (16 Wx2)... PMPO
22 W (11 Wx2)... RMS (max.)

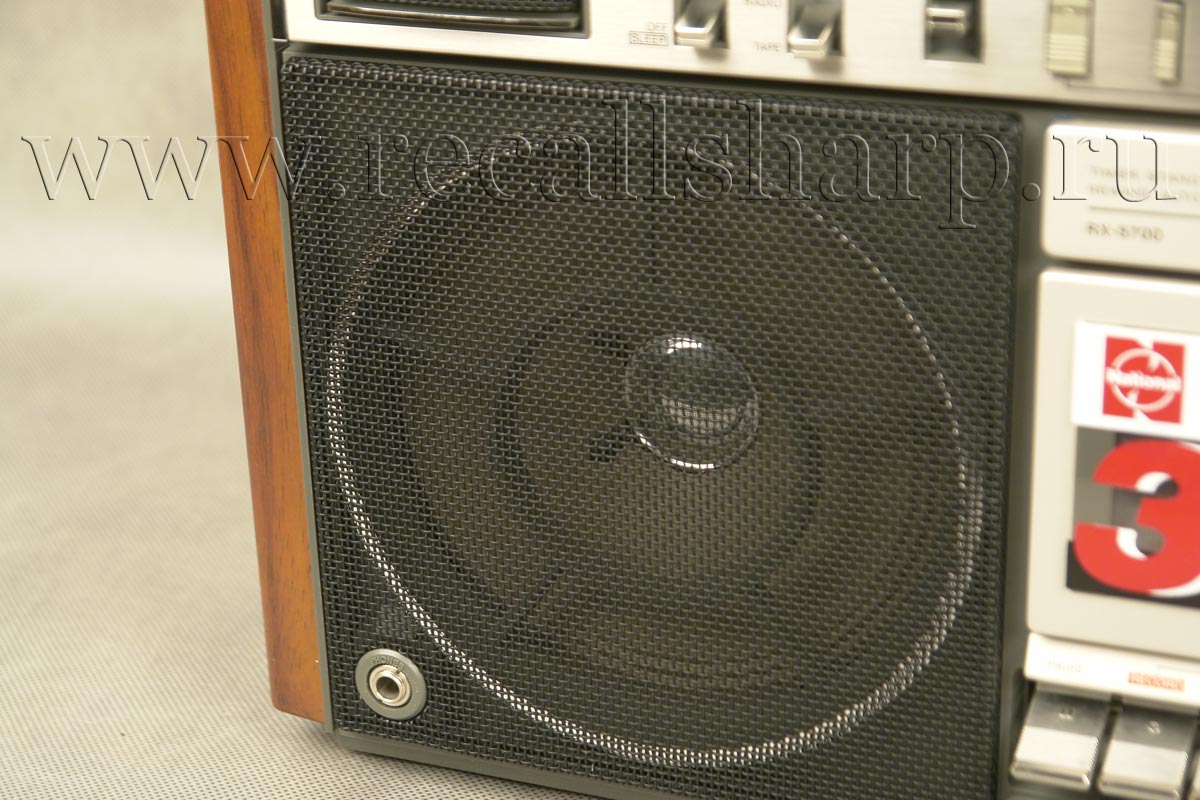

SPEAKERS: Woofer; 16 cm PM dynamic speaker
Tweeter; 5 cm PM dynamic speaker
FREQUENCY RANGE: 40-14,000 Hz (with normal tape)
40-15,000 Hz (with FeCr tape)
40-15,000 Hz (with tape corresponding to CrO2 type)
40-17.000 Hz (with METAL tape)
RECORDING SYSTEM: AC bias, AC erase
TAPE SPEED: 4.8cm/s.
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 90 seconds With C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback

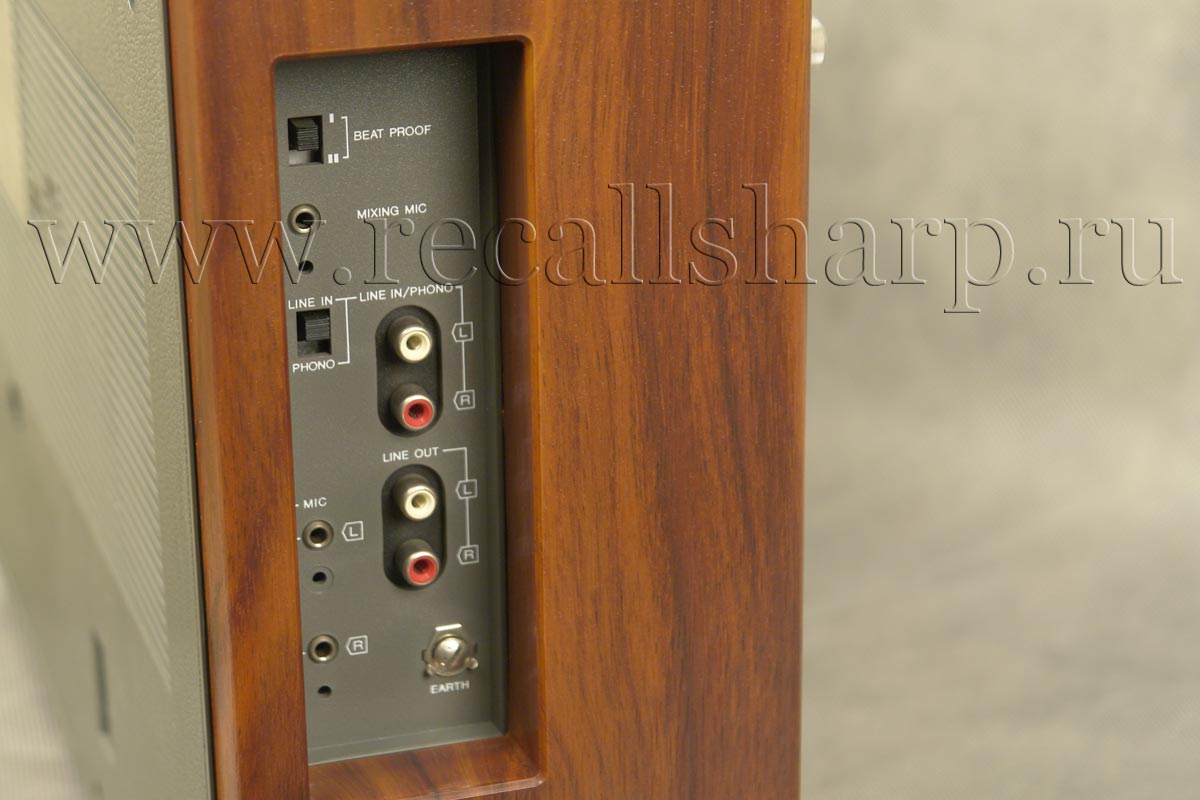

JACKS:
INPUT; MIC; sensitivity 0.25 mV/applicable microphone impedance
200
Ω-600Ω (recommended microphone RP-8135)
MIX MIC; sensitivity 0.8 mV/applicable microphone impedance
200-600
Ω(recommended microphone WM-2298)
LINE IN; sensitivity 130 mV/47 k
Ω over
PHONO; sensitivity 3.9 mV/47 k
Ω over
OUTPUT; LINE OUT; sensitivity 0.42 V/2.2k
Ω under
EXTSP;3-8
Ω

HEADPHONES; 8Ω
OTHERS; DC IN; 13.2V (12-15 V)
AC IN
EXT ANTENNA and EARTH
PHONO EARTH
DIMENSIONS: 55.7 cm (W) x 32.2 cm (H) x 15.0 cm (D)
21 15/16" (W)x 12 11/16 " (H) x 5 15/16" (D)
WEIGHT: 8.5kg (18 lbs 12 oz) without batteries
Specifications are subject to change without notice.


:
