Год начала выпуска: 1980
Регион: Япония
SPECIFICATIONS

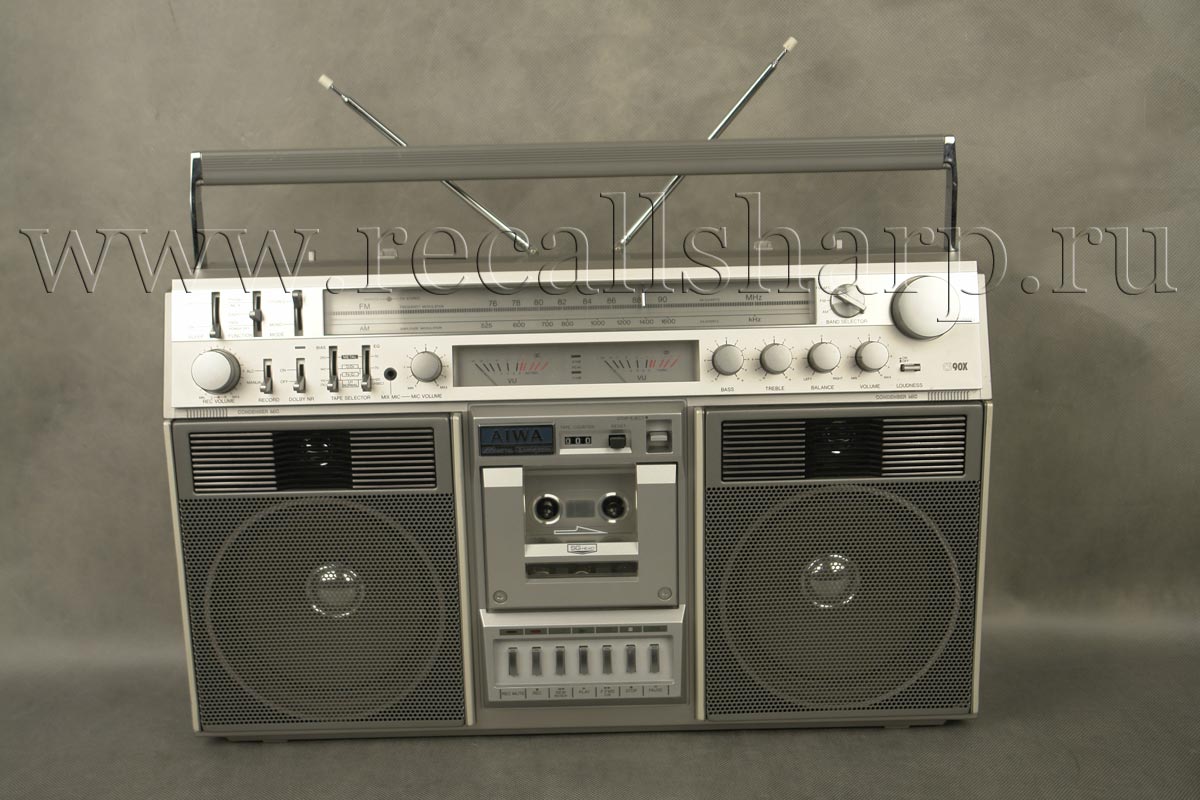

Type Stereo multiband radio cassette recorder
Power source Batteries,
DC 12 V (UM-1 x 8)
AC 100 V 50—60 Hz
Car battery (thru car adaptor)
Output 20 W maximum (10 W + 10 W)
Power consumption 20W
Speakers
160 mm cone (2)
50 mm dome (2)
Tape Recorder Section

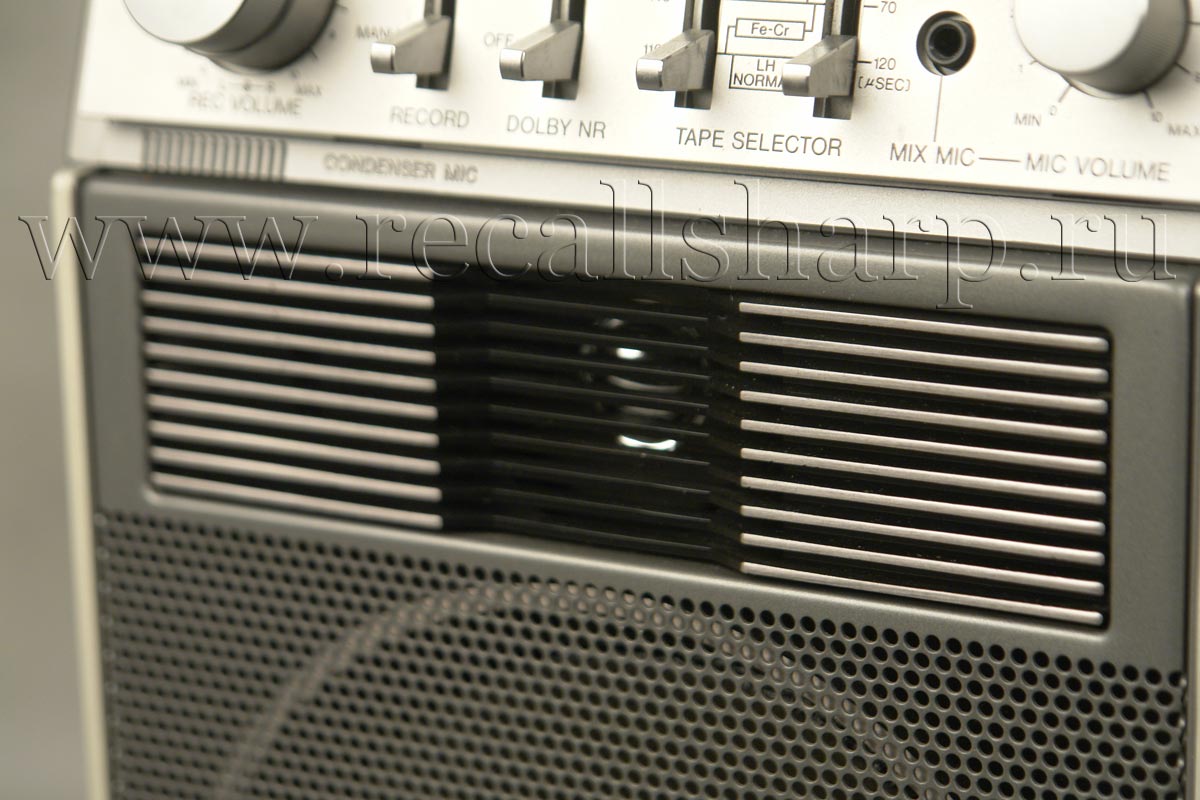

Built-in microphones Electret condenser microphones
Tape speed 4.8 cm/sec
Recording system AC bias
Erasing system AC erase
Recording time 90 minutes (C-90 cassette, both directions)
Frequency response(-20 VU)
LH tape: 45—16 000 Hz ±3dB
Cr02 tape: 45—17 000 Hz ±3dB
Fe-Cr tape: 45—17 000 Hz ±3dB
METAL tape: 45—18 000 Hz ±3dB
Signal-to-noise ratio
53 dB (LH tape, Dolby NR OFF) (PEAK LEVEL) 65 dB
(METAL tape, Dolby NR ON)
Wow and flutter 0.07% (WRMS)
Radio Section Frequency ranges
FM: 76—90 MHz
AM: 525—1605 kHz
Antennas Whip antenna for FM Ferrite bar antenna for MW External antenna terminals for FM
Dimensions (WxHxD)514 x 383 x 139 (mm)
Weight 7.7 kg
Accessories
AC power cord 1
Cassette tape 1
The specifications and external appearance of this set are subject to change without prior notice.
|
