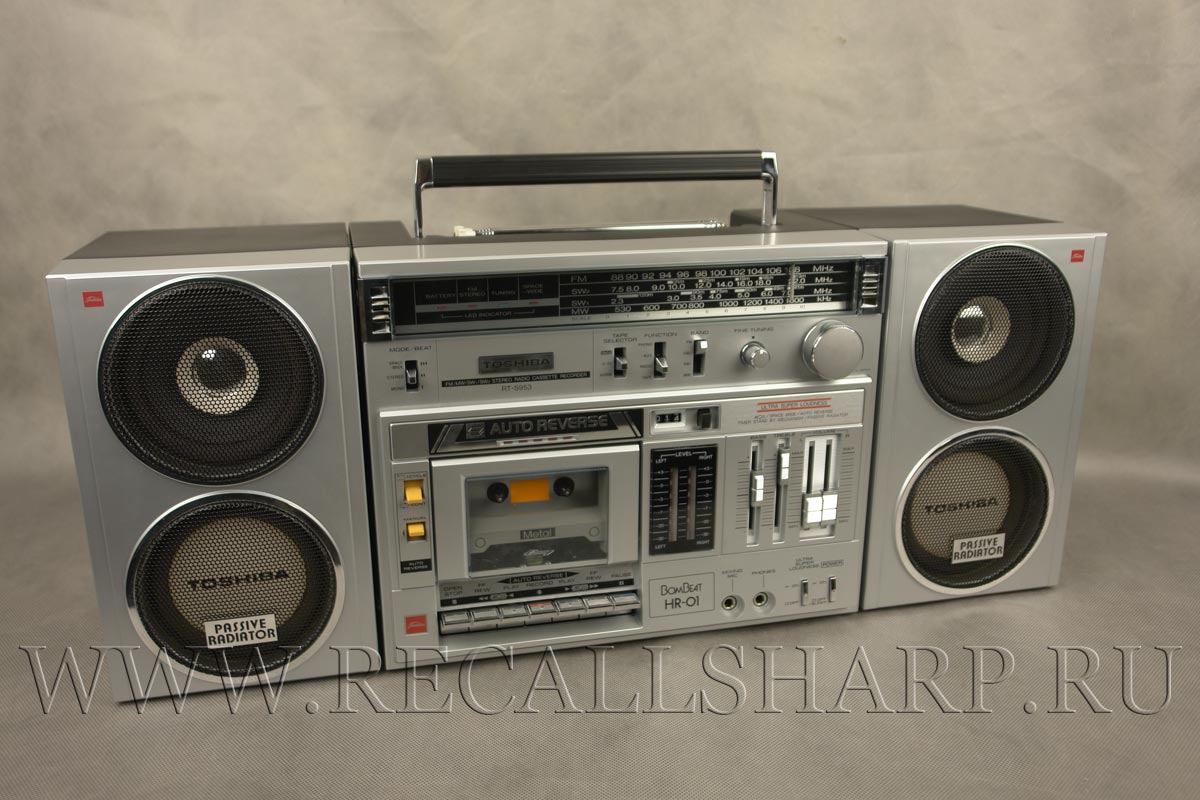

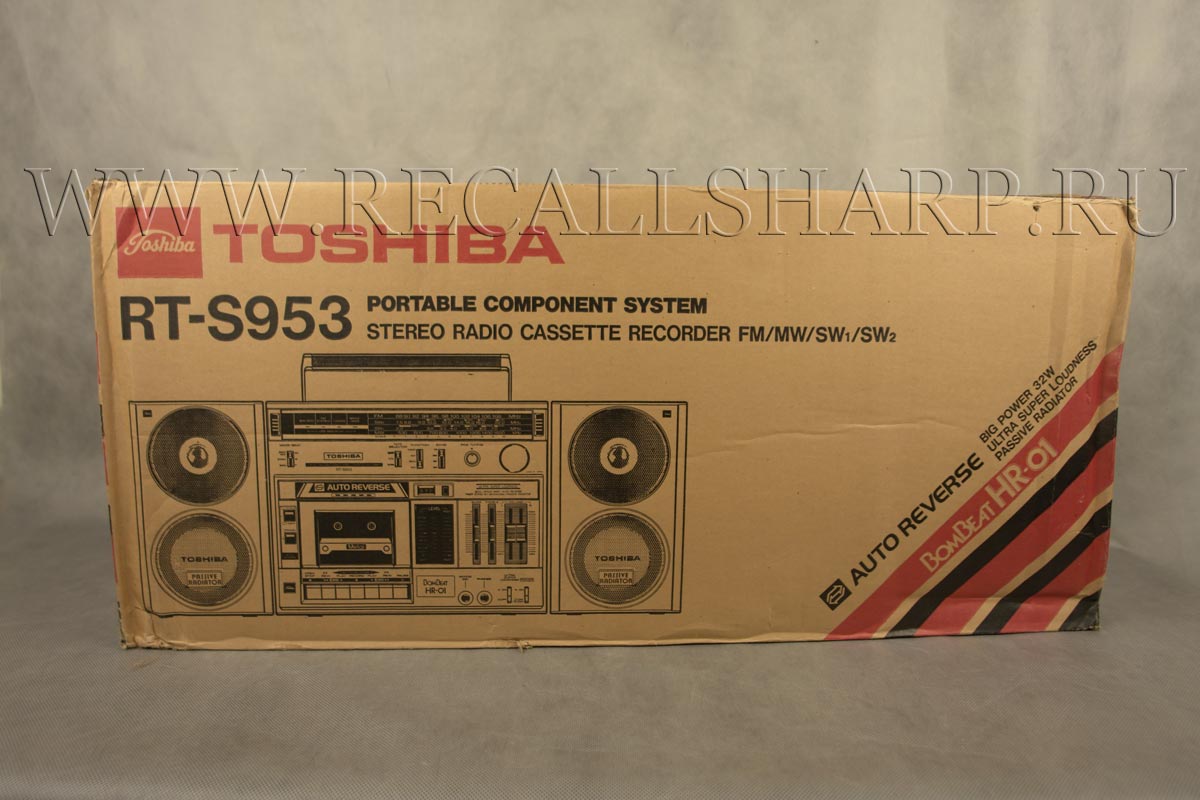

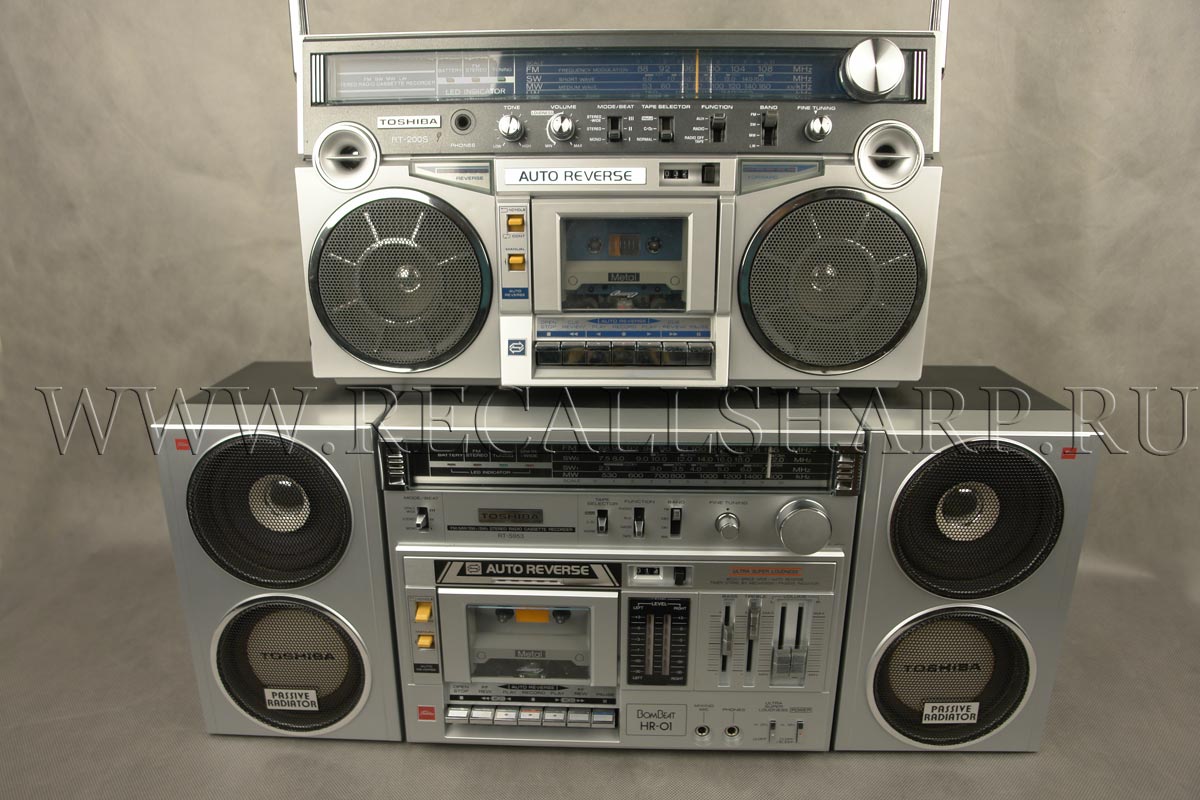

Toshiba RT-S953 BomBeat HR-01



: 1983

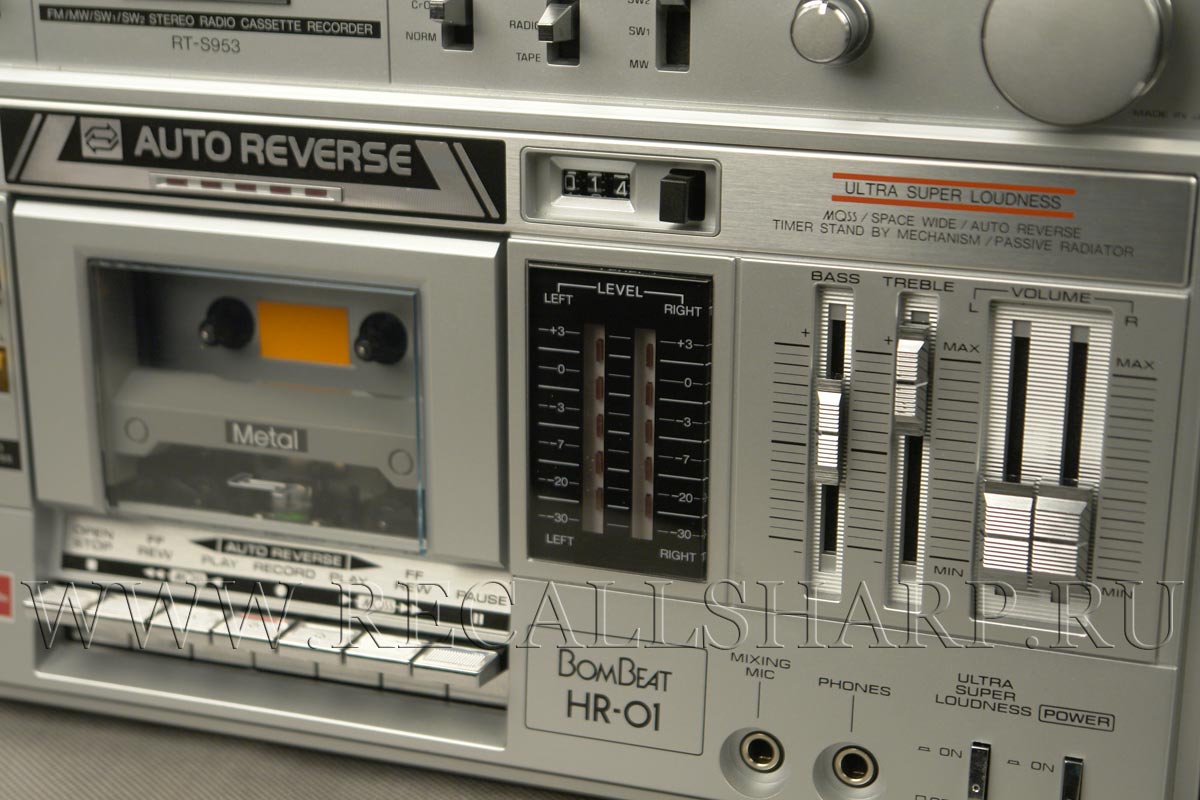

Cassette Tape Use
Normal: C-30,C-60,C-90,C-120
Chrome: C-45,C-60,C-90
Metal: C-46.C-60.C-90
Tape Speed 4.8 cm/sec.
Track System Four-track two-channel stereophonic
Recording System AC bias (85 kHz)
Erasing System AC erasing
Frequency Response Normal: 80Hz to 10kHz
Metal: 80Hz to 12kHz

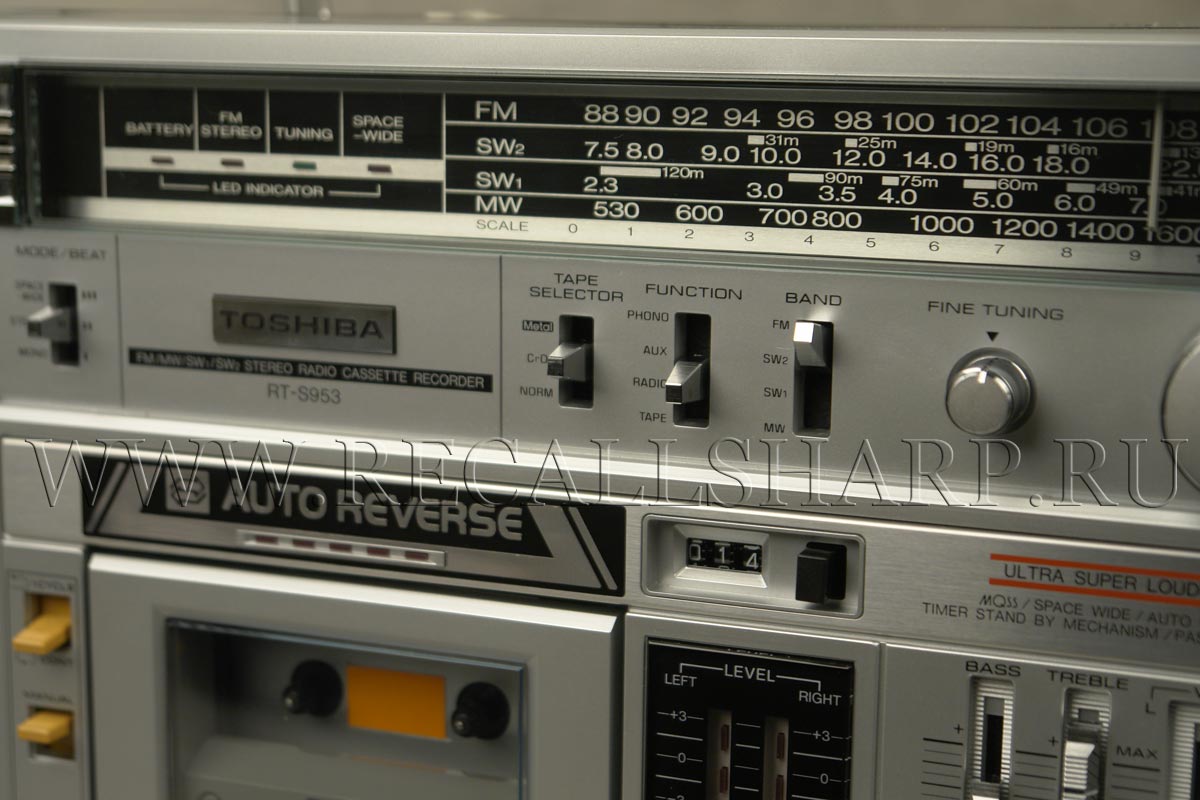

Receiving Frequency
FM: 88 MHz to 108 MHz
SW2: 7.5MHz to 22 MHz
SW1: 2.3MHz to 7.5 MHz
MW: 525 kHz to1605 kHz
Intermediate Frequency
FM: 10.7 MHz
MW, SW1, SW2,: 455 kHz

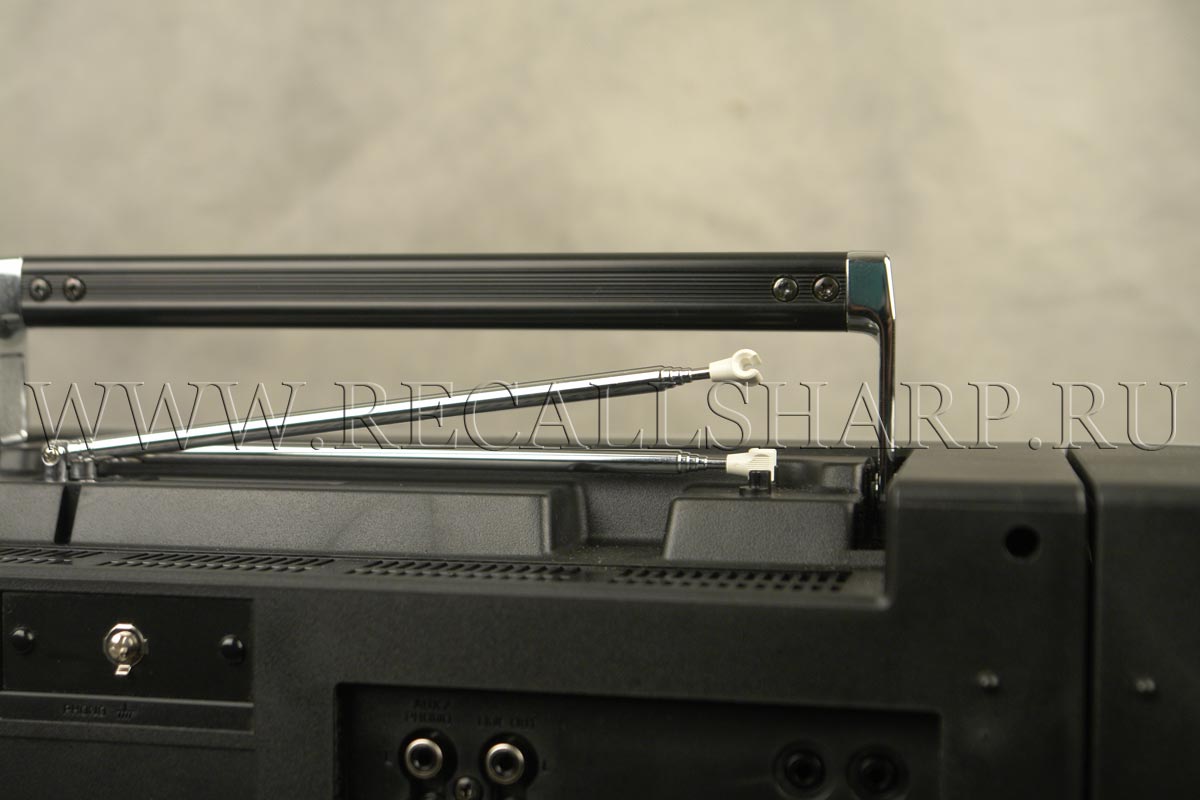

Antenna FM, SW2, SW1: telescopic antennas
MW: ferrite-core antenna

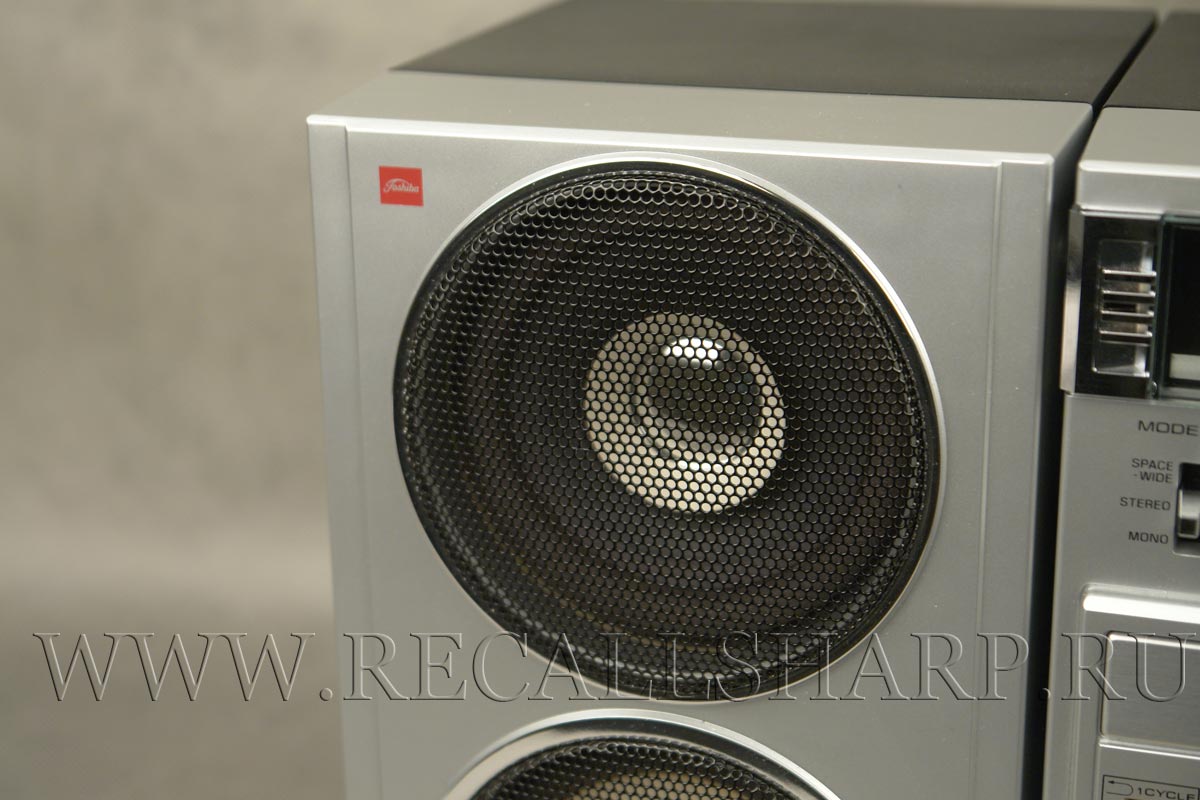

Speakers 120 mm (dia.) dynamic x 2

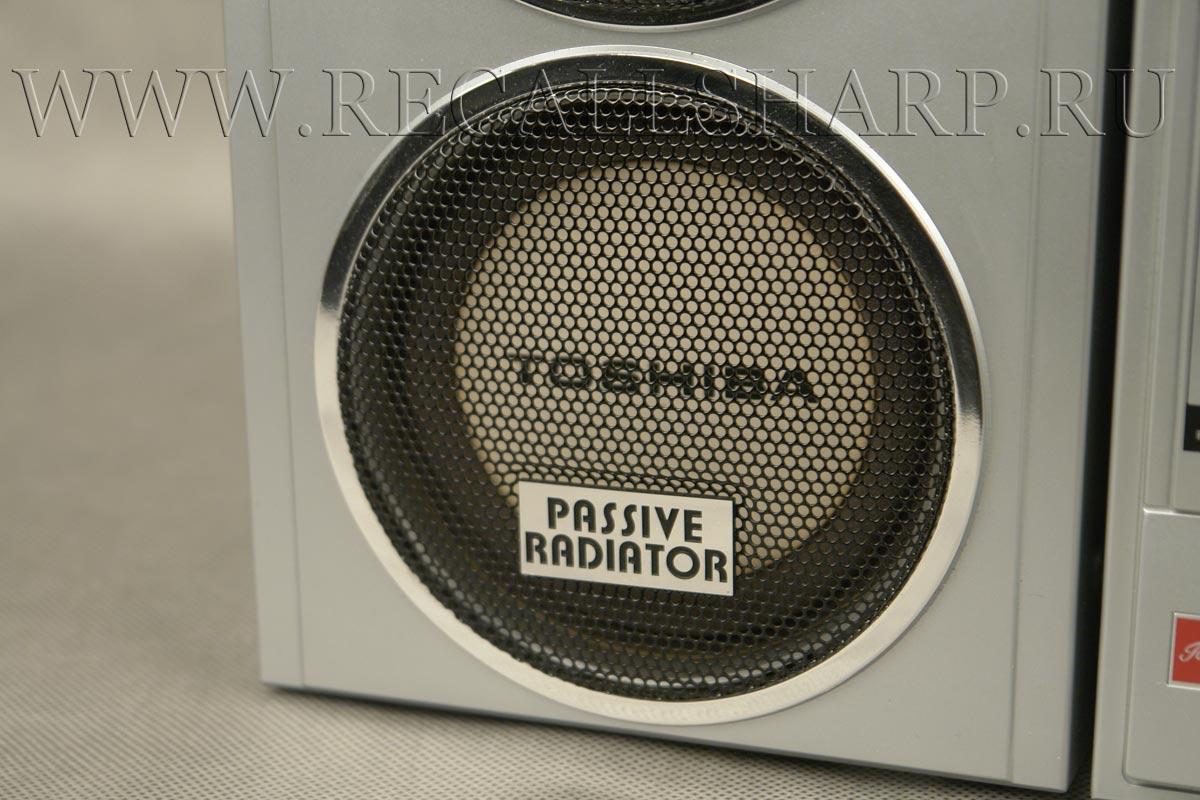

Passive radiator (120 mm dia.) x 2

Jacks
[MIC] jack x 2,
impedance 200 ohm to 2 Kohm Ø3.5 mm
[MIXING MIC] jack x 1 impedance 200 ohm to 2 Kohm, Ø6.3 mm
[AUX/PHONO] jack x 2, impedance 20 Kohm, pin-type
[LINE OUT] jack x 2, impedance 4.7 Kohm, pin-type.
[SPEAKER) jack x 2, impedance2.5 ohm to 8 ohm Ø3.5 mm
[PHONES] jack x 1, Ø6.3 mm


Power Supply AC 100 to 115V, 120 to 127V, 200 to
220 V, 230 to 250 V, 50/60 Hz
DC 15V (SUM-1 "D" size x10)
External DC power [DC 12-15V) jack, (5.0 mm dia.)
center pin "positive" pole.
Power Consumption40 W
Dimensions (W) 649mm x (H)263 mm x (D) 200mm
Weight 9.4 kg (without batteries)
Specifications are subject to change for improvement


:
Toshiba RT-S95
