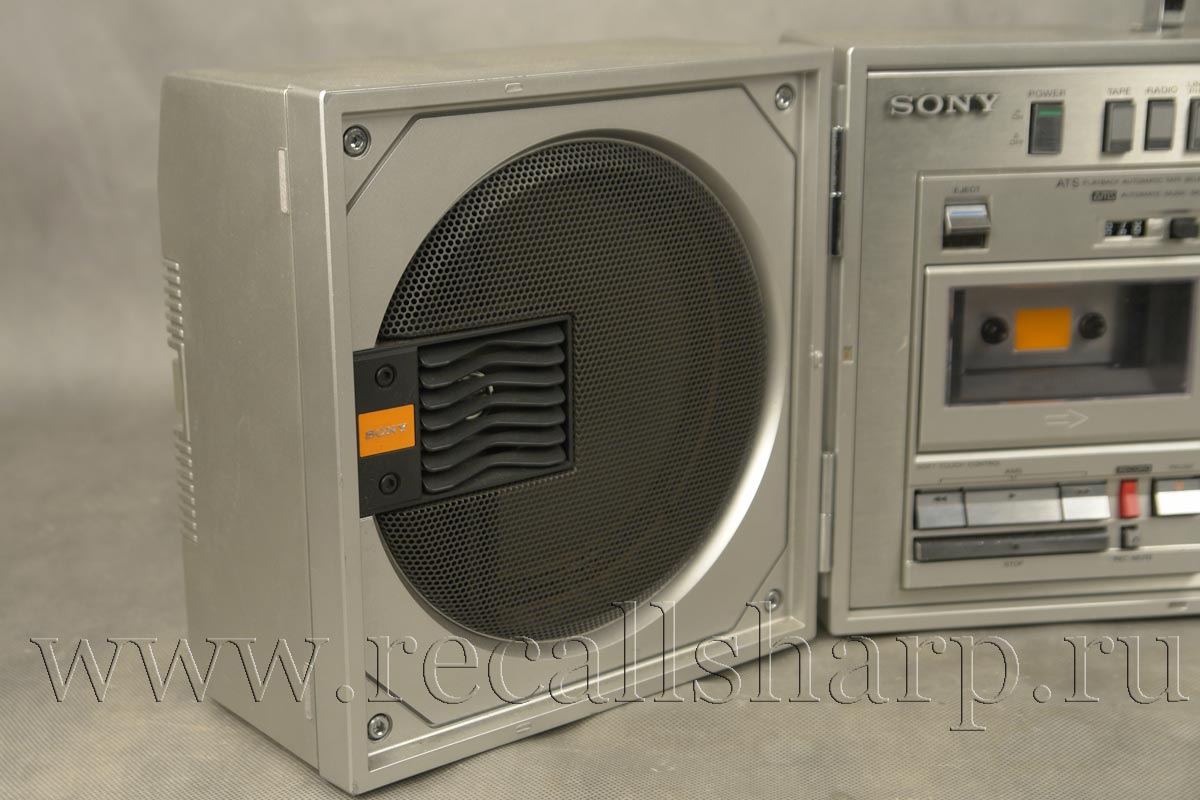

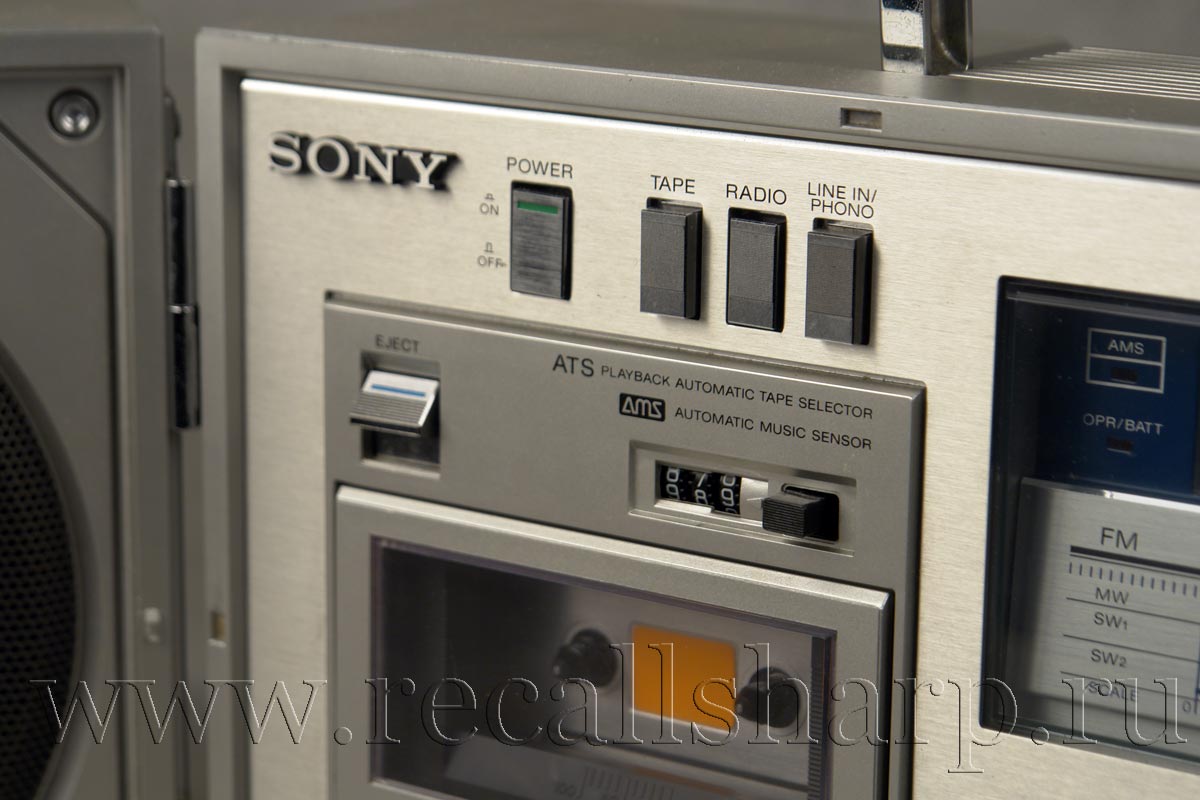

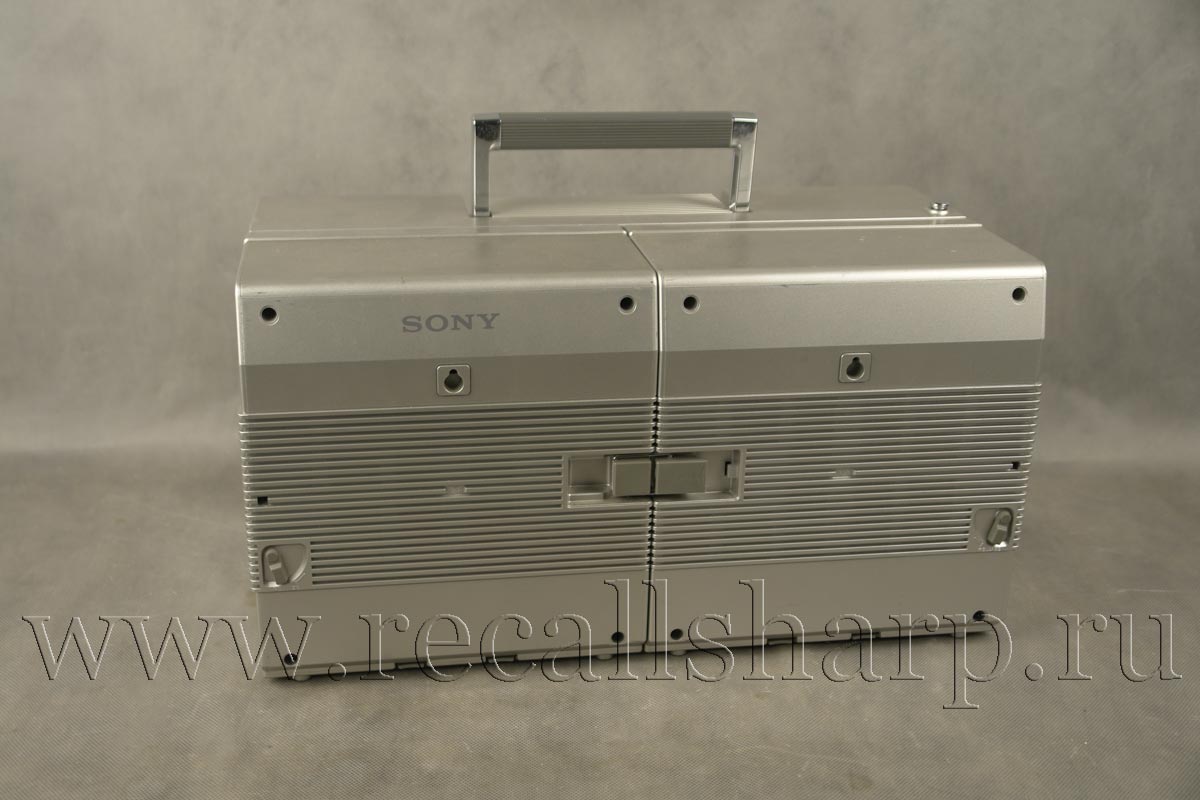

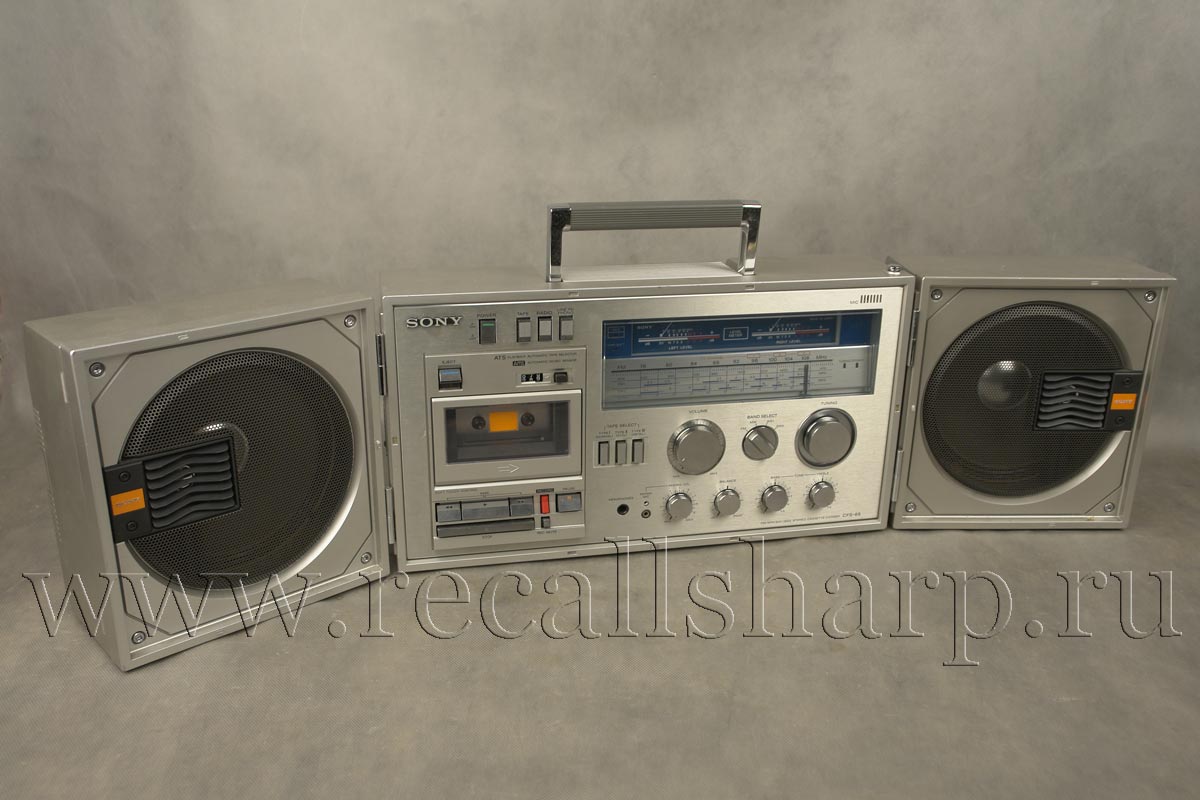

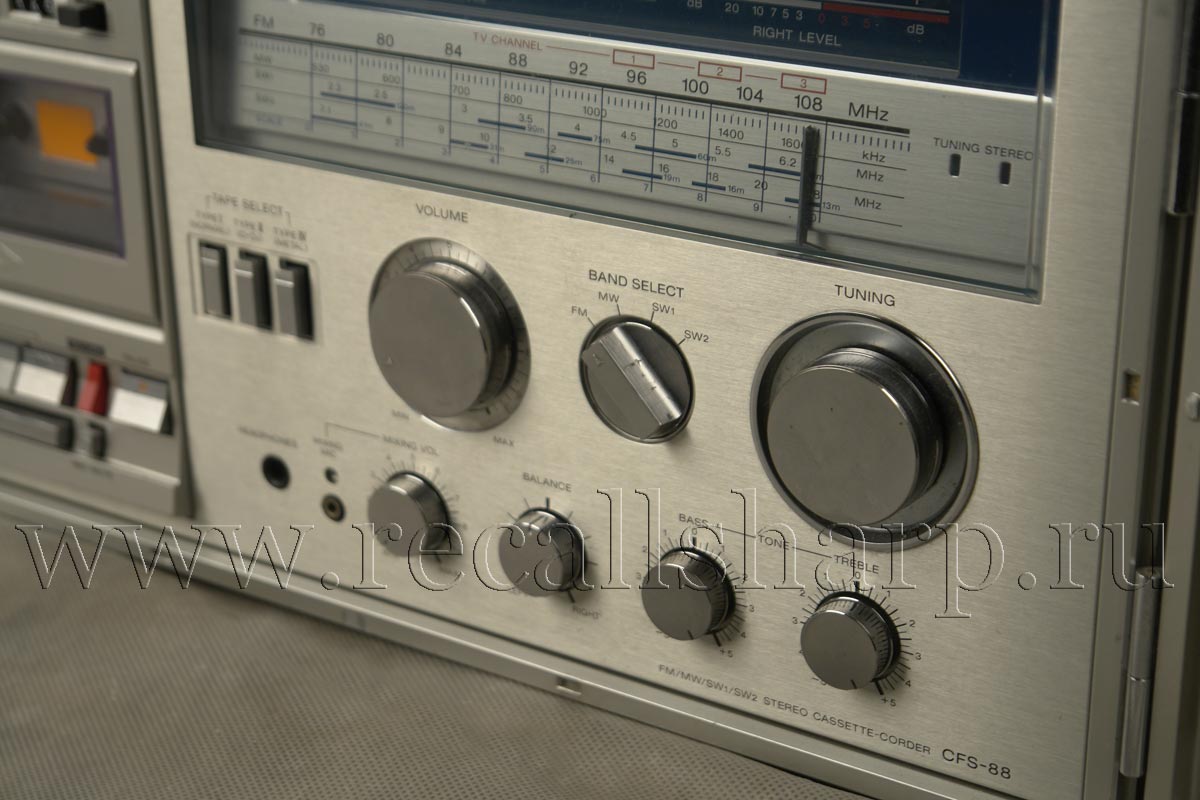

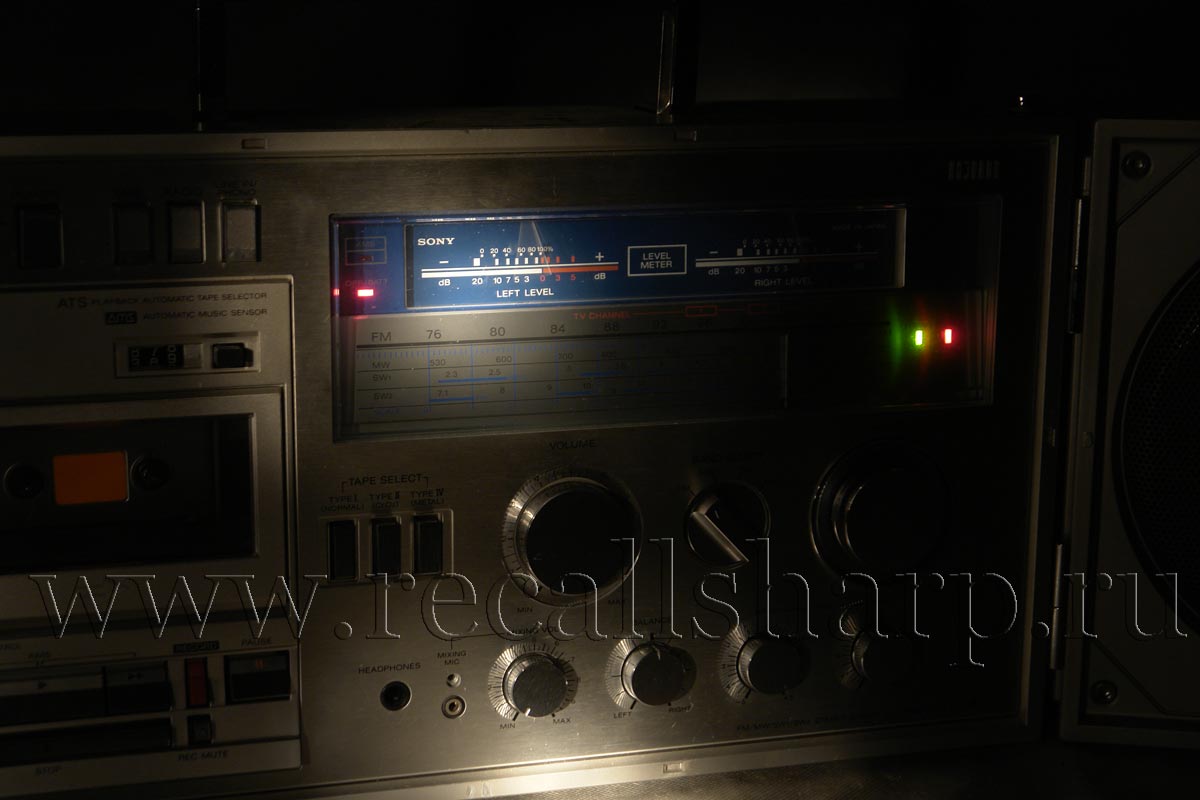

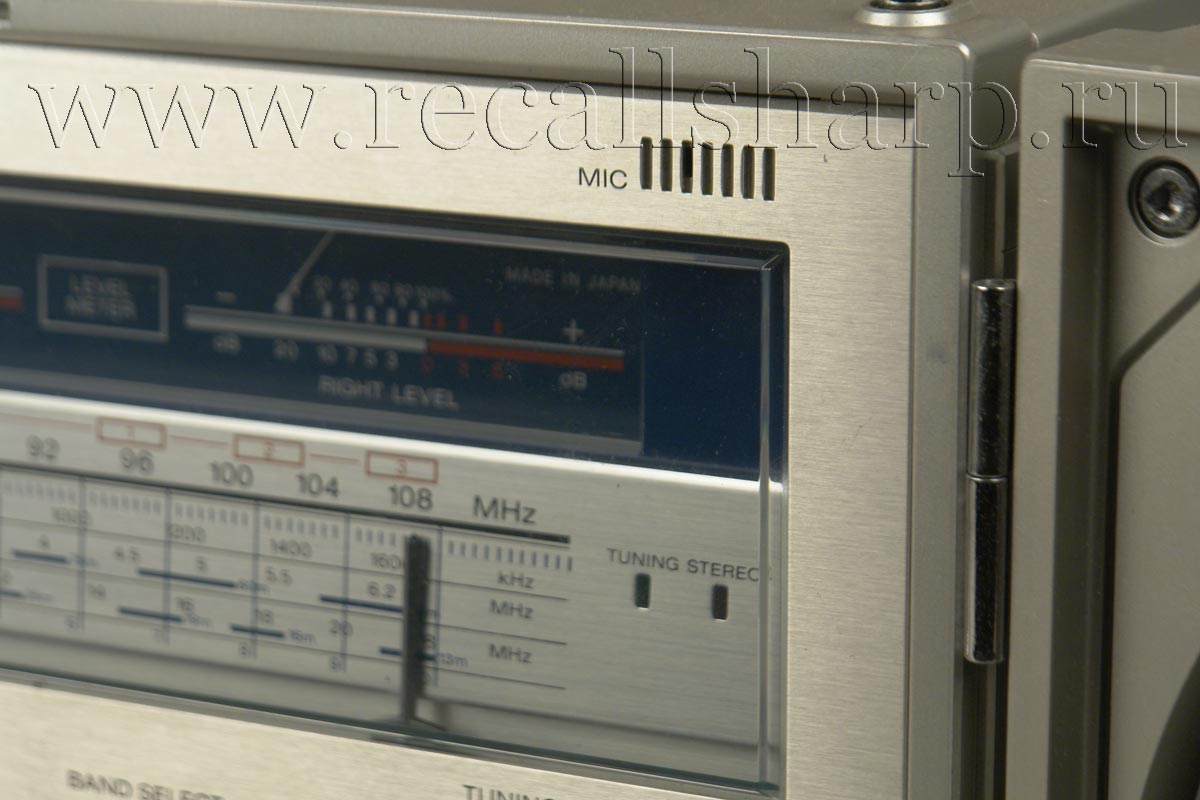

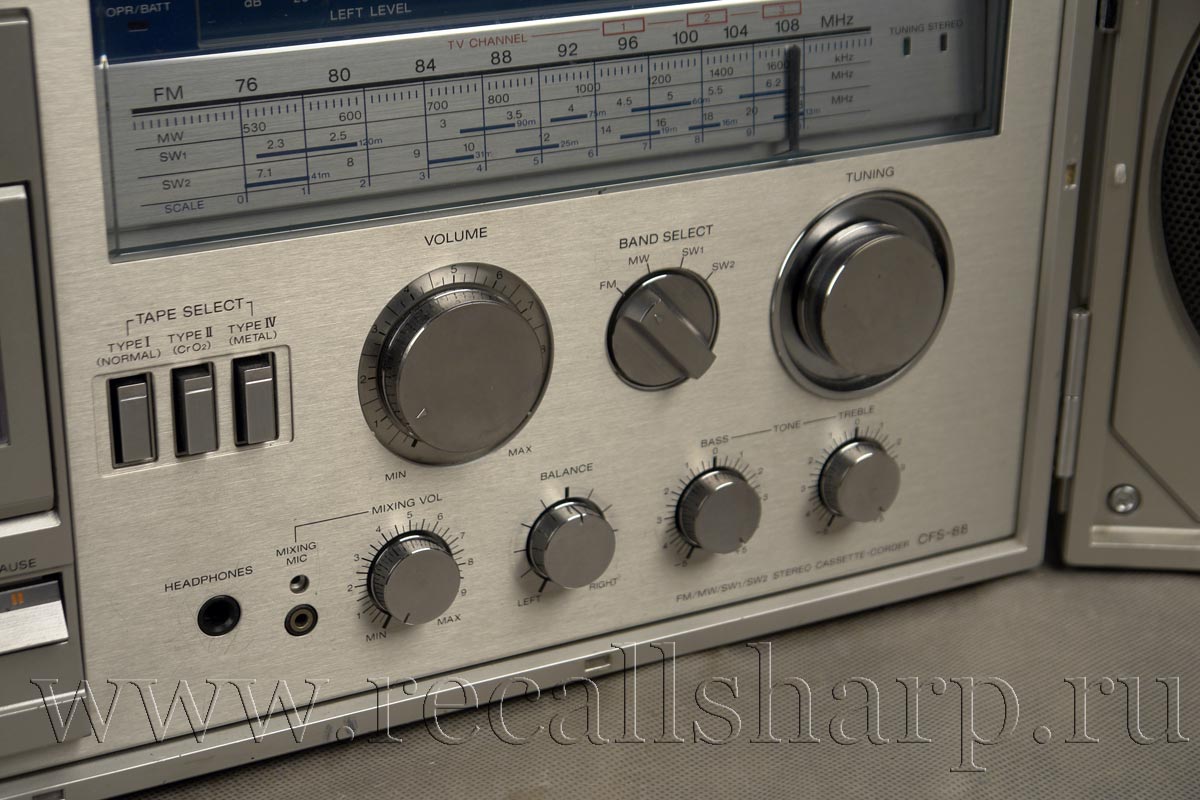

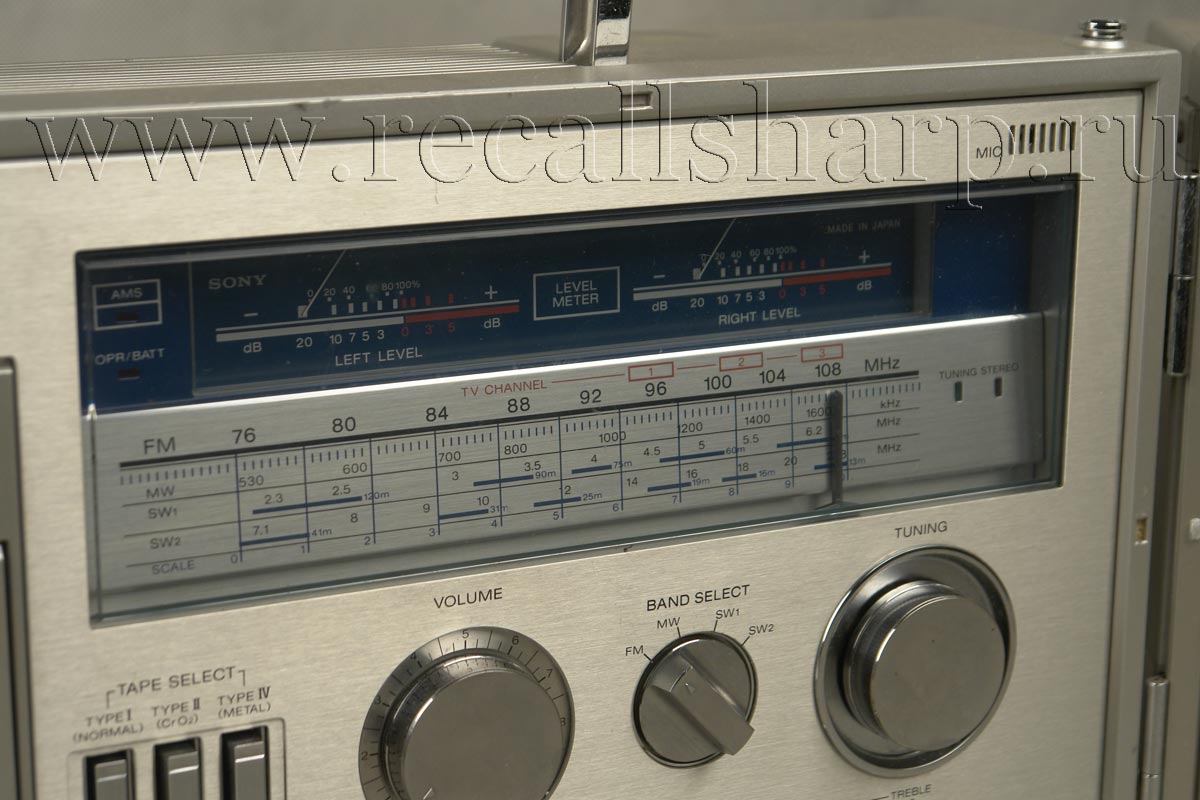

Sony CFS-88 L



: 1981


SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 3.2-ohm loads, both channels driven, from 150-13,000 Hz; rated 5 watts per channel minimum RMS power, with no more than 10% total harmonic distortion.
OTHER SPECIFICATIONS
Radio section
Frequency range FM 87.5-108 MHz
SW 6-18 MHz
LW 150-350 kHz
MW 530-1,605 kHz (566-187 m)
Antennas FM/SW: Telescopic antenna
FM: 75-ohm external antenna jack (minijack)
MW: Built-in ferrite bar antenna
Tape recorder section and general
Recording system 4-track 2-channel stereo
Fast winding time Approx. 1 min. 30 sec. with Sony Cassette C-60
Frequency response 60-10,000 Hz with standard cassette, with
the TYPE I (NORMAL) button depressed
60-12,000 Hz with chromium dioxide cassette, with
the TYPE II (Cr02) button depressed
60-13,000 Hz with Sony metal cassette, with
the TYPE IV (METAL) button depressed
S/N 40 dB
Wow and flutter 0.08% (WRMS)
Speakers Two-way.
Approx. 20 cm (7 3/4 inches) dia. woofer
Approx. 5 cm (2 inches) dia. tweeter
Inputs Two microphone input jacks (minijacks)
sensitivity 0.2 mV (-72 dB) for low impedance microphone
Two line input/phono input jacks (phono jacks)
• sensitivity 0.25 V (-10 dB) input impedance 47 kilohms
(with LINE IN/PHONO selector set to LINE IN)
• sensitivity 2.8 mV (-49 dB) input impedance 47 kilohms
(with LINE IN/PHONO selector set to PHONO)
Outputs Two line output jacks (phono jacks)
load impedance 10 kilohms or higher rated output 0.44 V (-5 dB)
at load impedance 47 kilohms
Two external speaker jacks (minijacks)
for 3.2-8-ohm impedance speaker
Headphones jack (stereo binaural jack)
for 8-ohm impedance headphones
Power requirements 220 V ac adjustable,
50 Hz
15 V dc, ten batteries size D (IEC designation R20)
12 V car battery with optional Sony DCC-16AW Car Battery Cord
Power consumption 42 W ac
Battery life Approx. 15 hours of recording using Eve-
ready No. 1250 Heavy Duty Batteries (when
recording FM programs for four hours
a day while listening to them from the speakers at a normal volume)
Dimensions Approx. 921 x 254 x 127 mm (w/h/d)
(36 3\8 x 10 x 5 inches) incl. projecting parts and controls
with the Carrying Handle pushed down
Weight Approx. 10 kg (22 lb 1 oz)
incl. batteries
Accessories supplied
AC power cord (1)
Design and specifications subject to change without notice.

:
