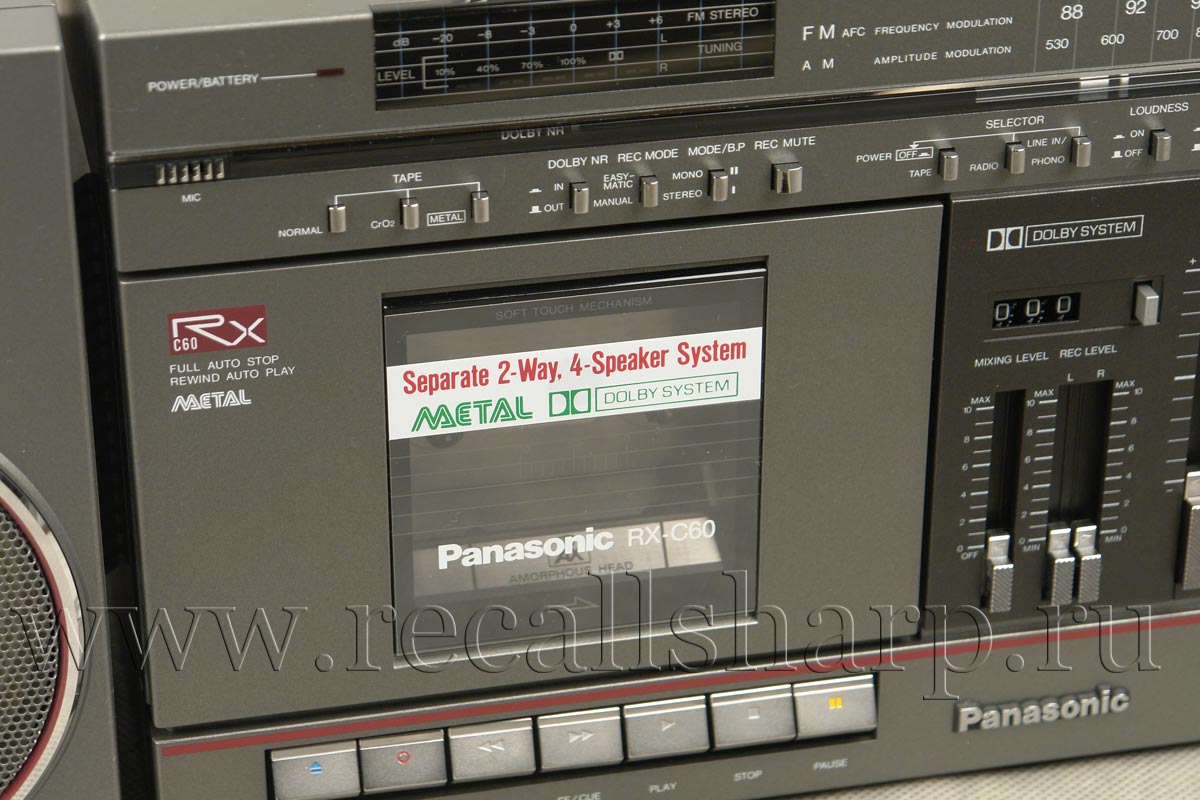

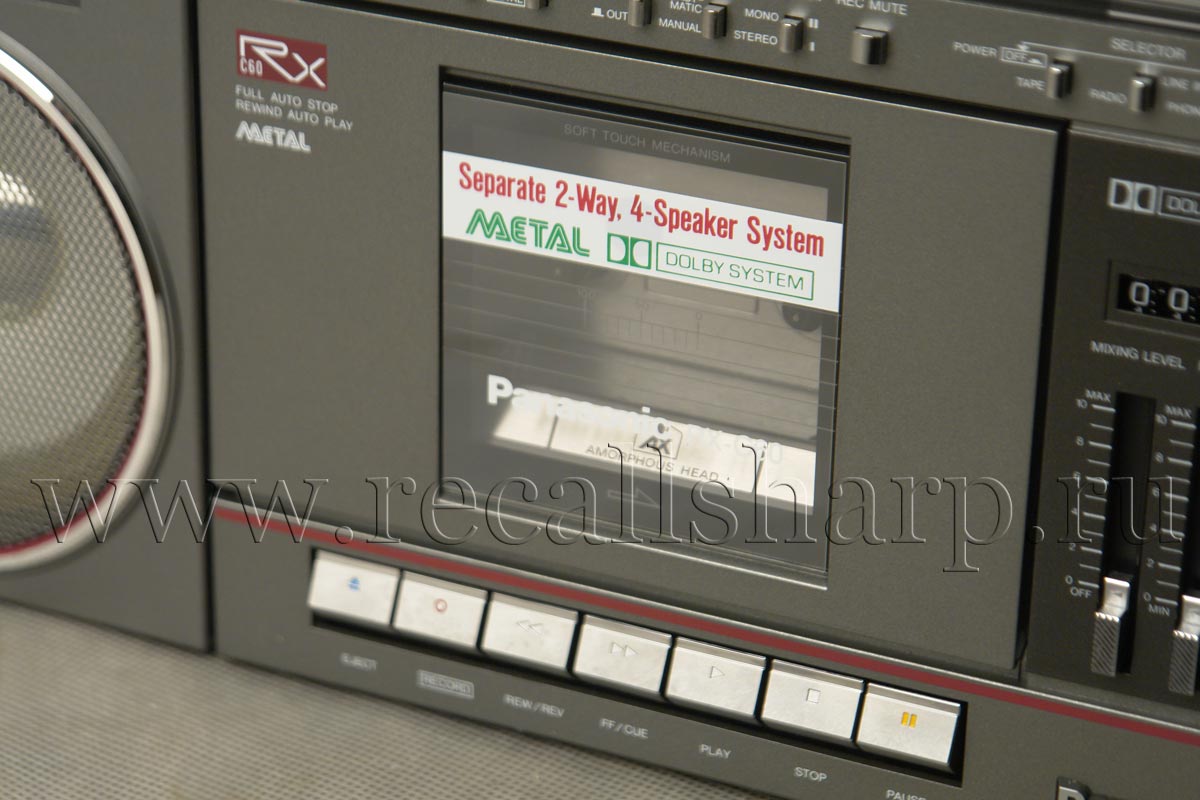

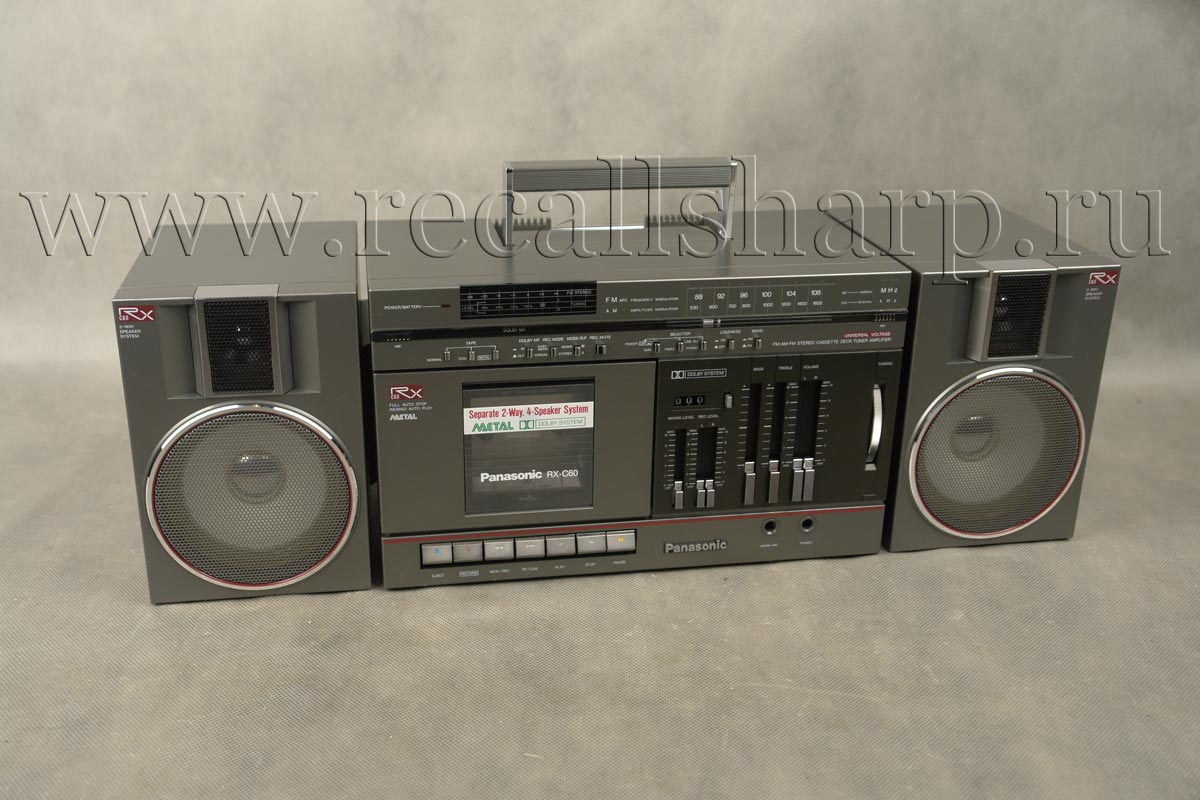

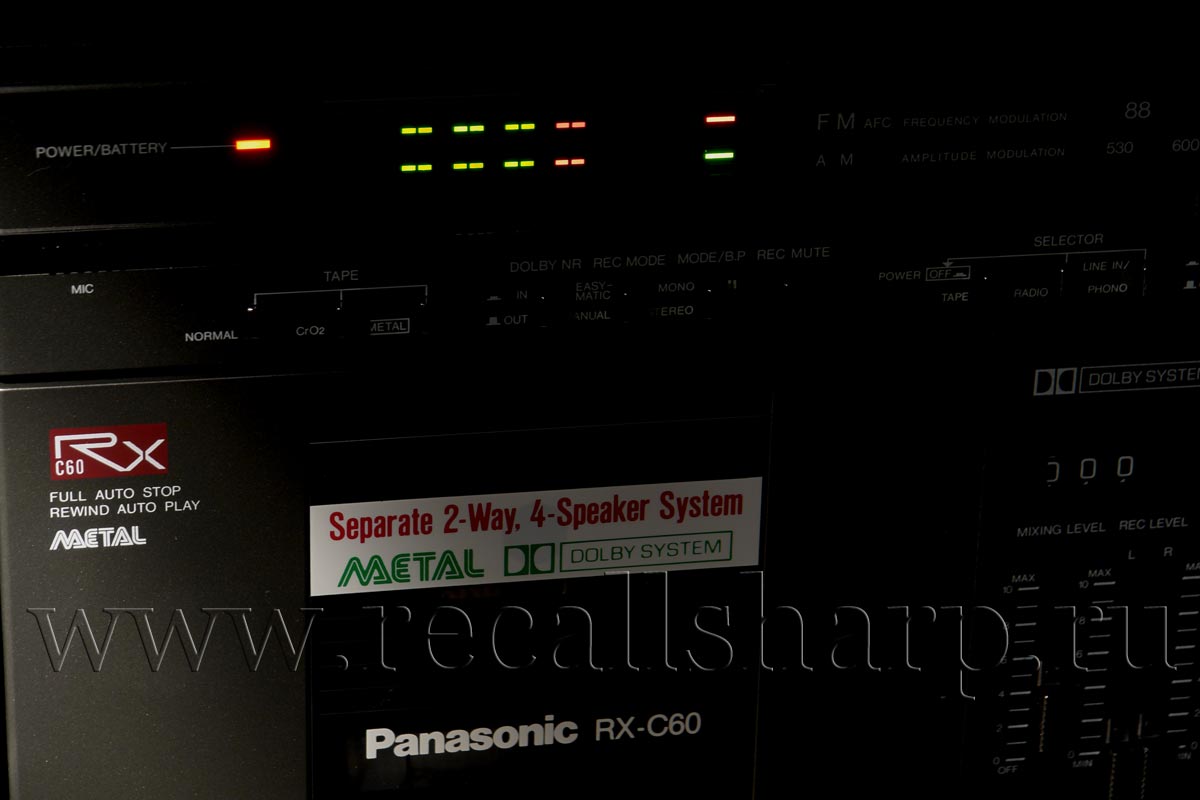

Panasonic RX-C60



: 1982


Specifications
General
Power requirement: AC;110-115/115-127/200-220V,
230-250V 50Hz\60Hz

Battery; 12V (eight- "D" size Flashlight batteries)
Panasonic UM-1 or equivalent
Car battery; with optional car adaptor RP-952
Power consumption; 25 W (AC only)
Power output: 15W (7.5Wx2) ... RMS (max)

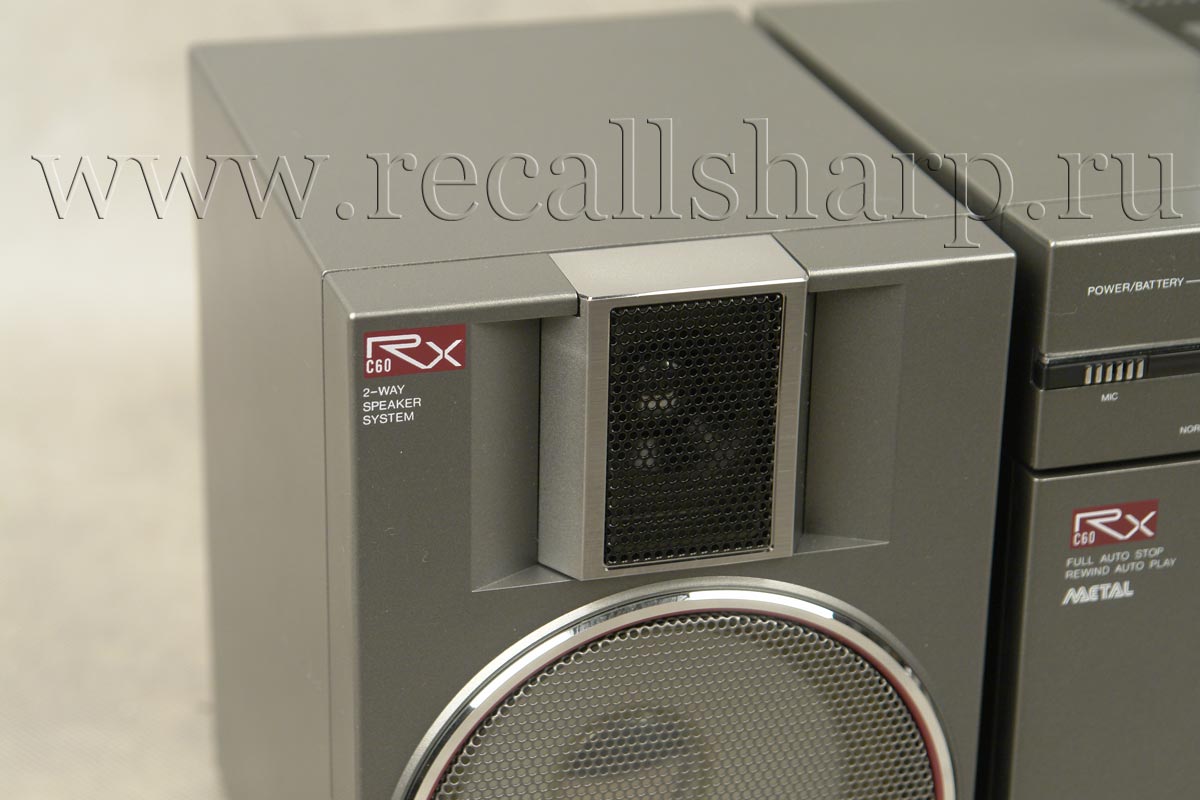

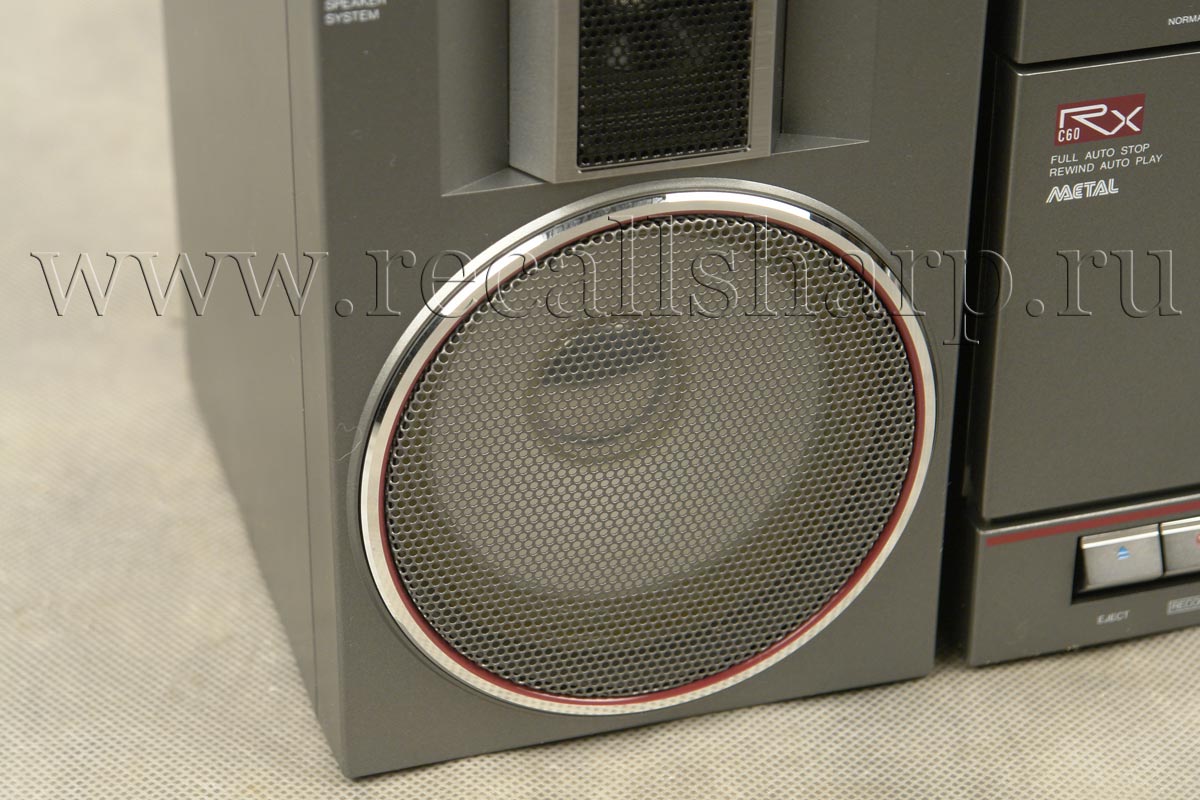

Speakers: Woofer 10cm(4") PM dynamic speaker (3Ω)
Tweeter 3cm(1
¼") Ceramic Speaker (1.3kΩ)
Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ω
MIXING MIC
sensitivity 0.8mV/applicable microphone
impedance 200-600Ω
PHONO
sensitivity 2.5mV/47kΩ
LINE IN; sensitivity 100mV/47kΩ
DC IN:13.2V
Output: LINE OUT;sensitivity 420mV/4,7kΩ under Speaker
3Ω- 8Ω
Headphones:8Ω

Dimensions: Total size
524mm(W) x 172mm(H) x 176mm(D)
Main unit
298mm(W) x 172mm(H) x 176mm(D)
Speaker box
118mm(W) x 172mm(H) x 157mm(D)
Weight: 6.4kg (without batteries)

Radio section

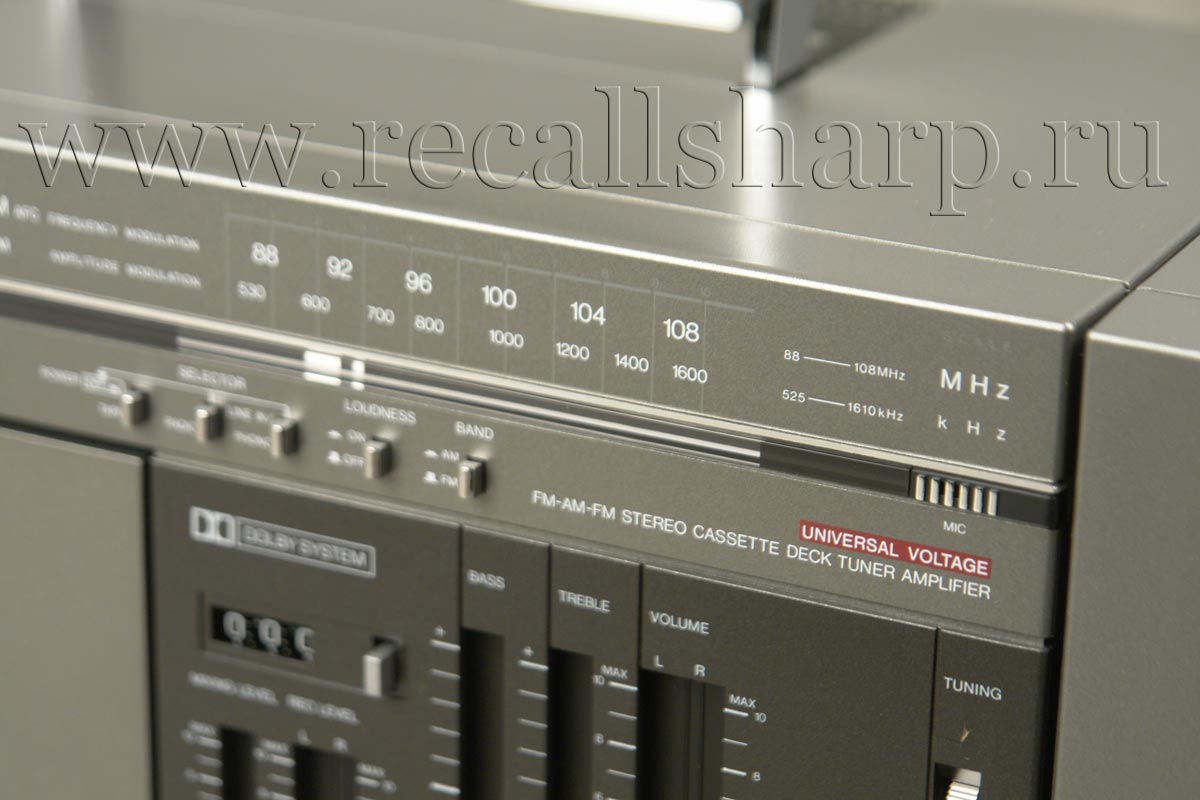

Radio frequency range: FM; 88MHz ~ 108MHz

AM; 525-1610kHz

Intermediate Frequency (IF): FM 10.7MHz
AM 455kHz

Sensitivity: FM 3μV /500mW output

M W 32μV/m/50mW output


Tape Deck Section
Frequency responce:
40-12,000 Hz(with normal tape)
40-14,000 Hz(with CrO2 tape)
40-16,000Hz (with Metal tape)

Recording system; AC bias, AC erase

Tape speed: 4.8cm/s
Wow&Flutter 0.05%(WRMS)
Program time: 1 hour with C-60 cassette tape

Track system: 4-track stereo recording and playback

:
National RX-C60
Panasonic RX-C60 L
