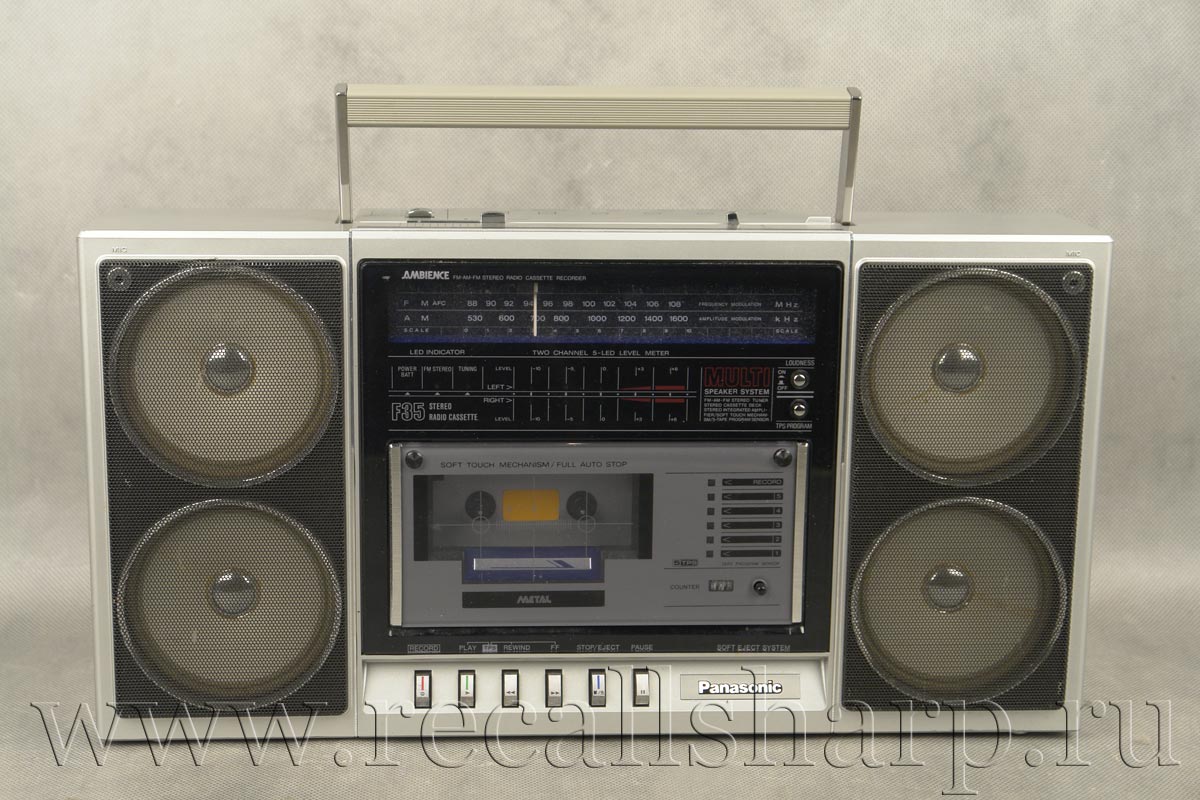

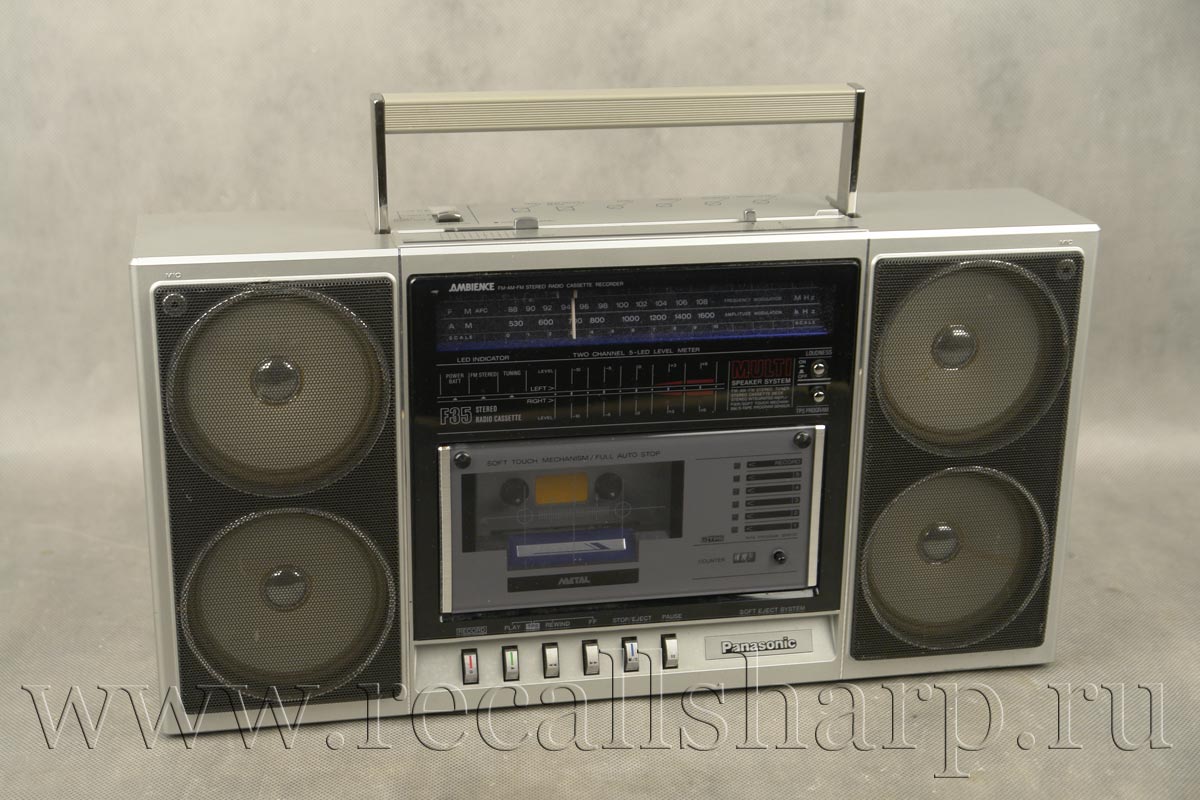

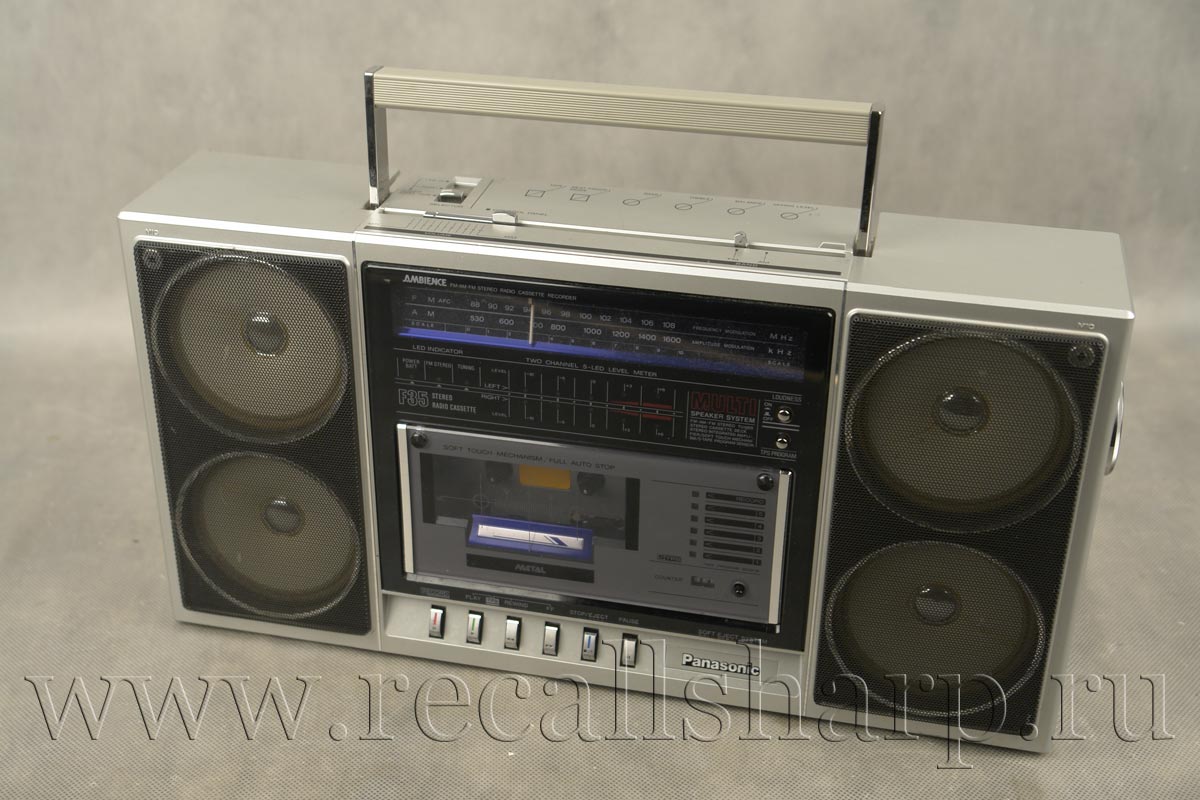

Panasonic RX-F35



: 1983


Specifications
General
Power requirement: AC;120V 60Hz

Battery; 12V (eight- "C" size Flashlight batteries)

Car/boat battery; with optional car/boat
adaptor RP-952
Power consumption; 13 W (AC only)
Power output: 20W (10Wx2) ... RMS (max)

20W (10Wx2) ... MPO (max)

Speakers: 9cm PM dynamic speaker (6Ω)

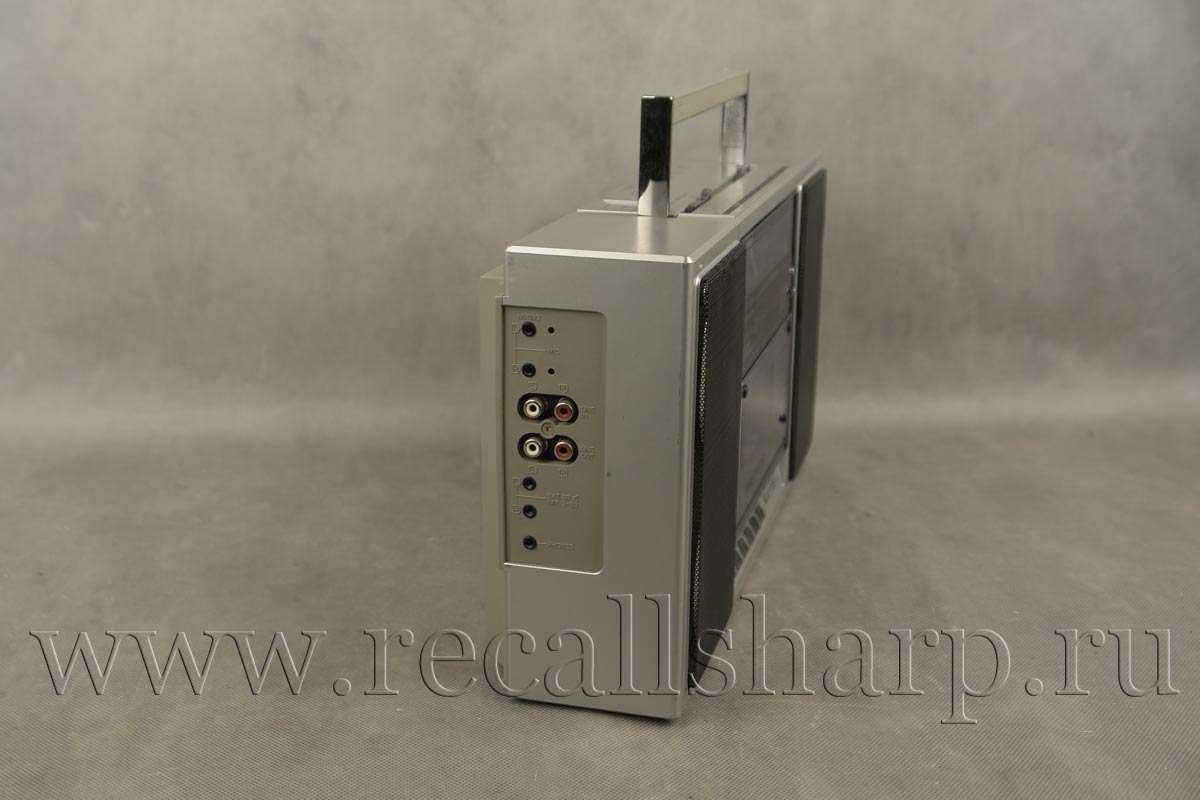

Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ω
LINE IN; sensitivity 200mV/50kΩ
DC IN:12V
Output: LINE OUT;sensitivity 420mV/47kΩ
EXT SP:3-8Ω

HEADPHONES; 32Ω
Dimensions: 418mm(W) x 220mm(H) x 110mm(D)
Weight: 4.15kg (without batteries)

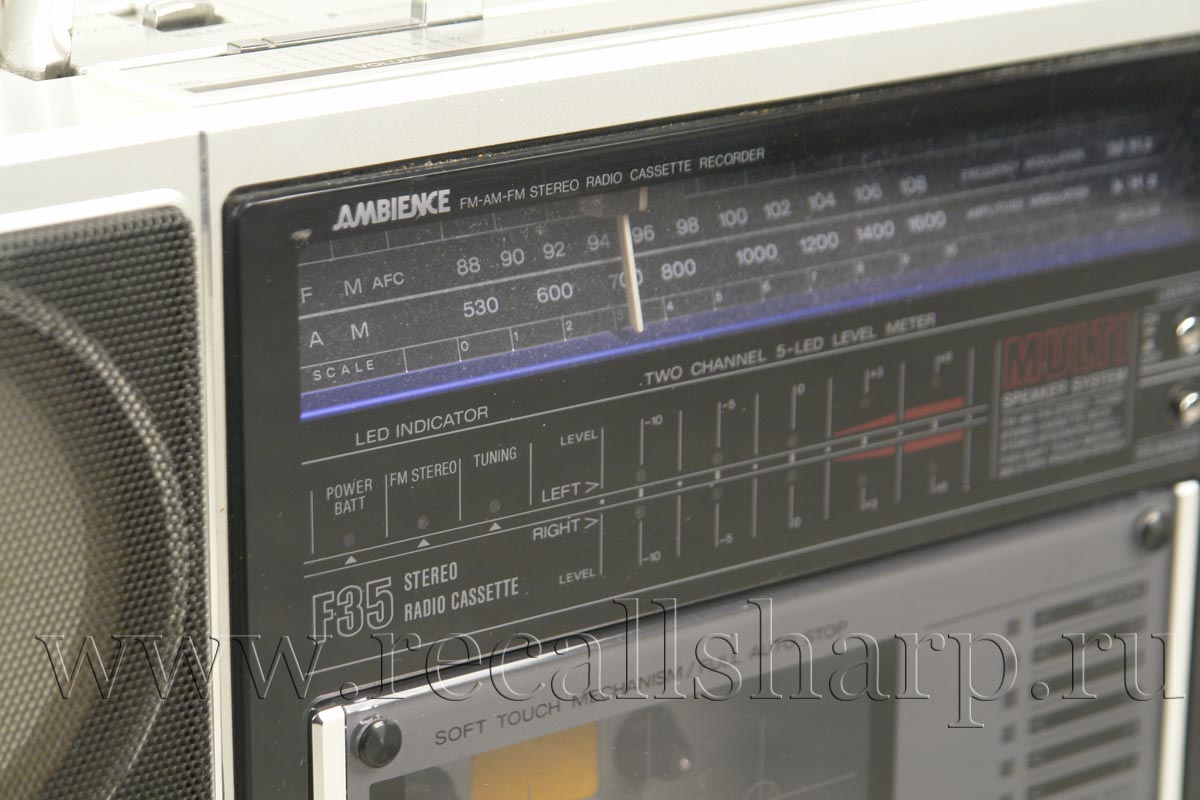

Radio section

Radio frequency range: FM; 87.5MHz ~ 108MHz

AM; 520-1610kHz(577m ~ 186m)

Intermediate Frequency (IF): FM 10.7MHz
AM 455kHz

Sensitivity: FM 1.8μV /500mW output

AM 141μV/50mW output

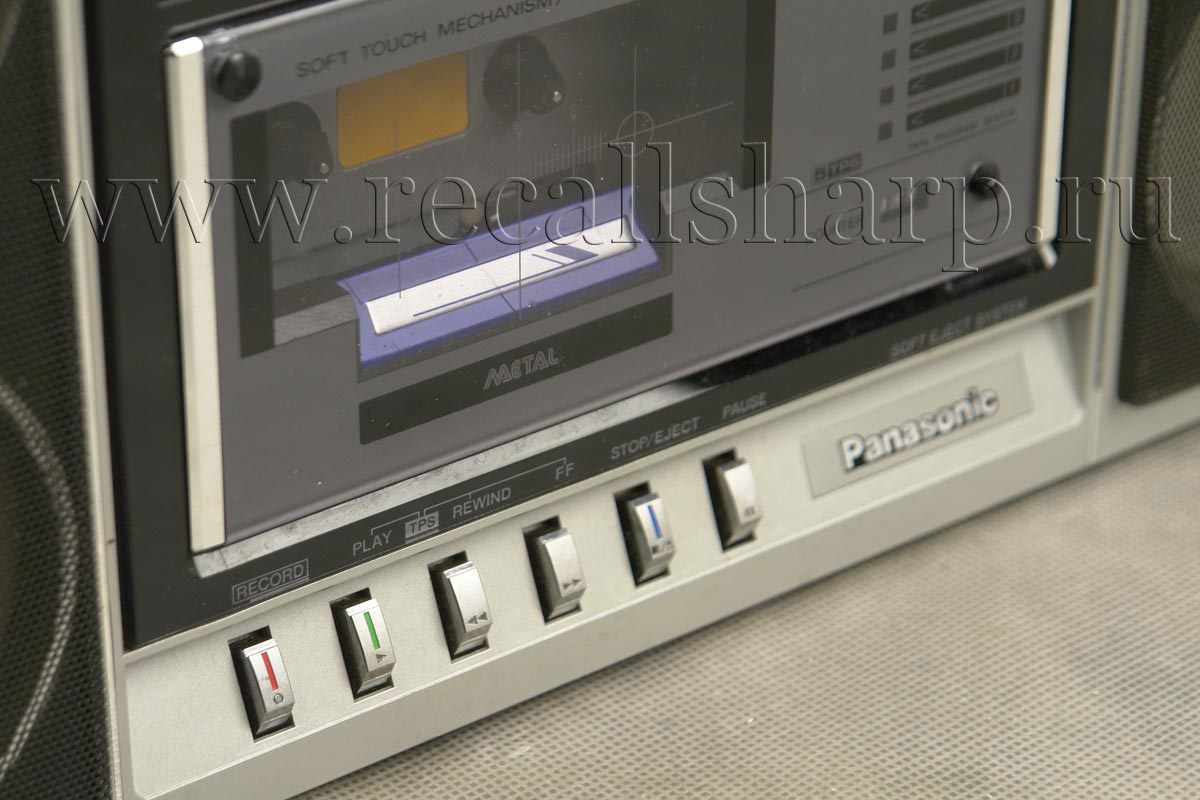

Tape Deck Section
Frequency range:
60-14,000Hz (with Metal tape)
60-12,000 Hz(with normal tape)
Recording system; AC bias, AC erase

Tape speed: 4.8cm/s
Wow&Flutter 0.2%(WRMS)
Program time: 1 hour with C-60 cassette tape

Track system: 4-track stereo recording and playback

:
