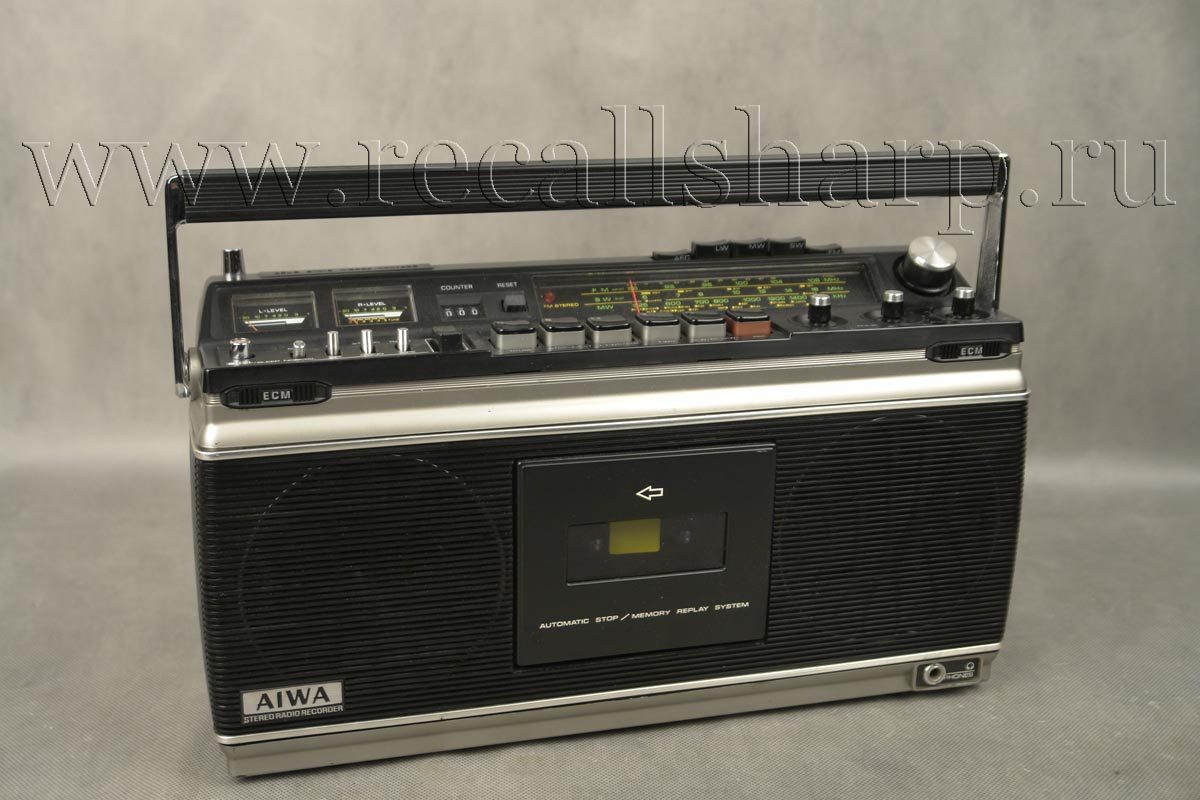

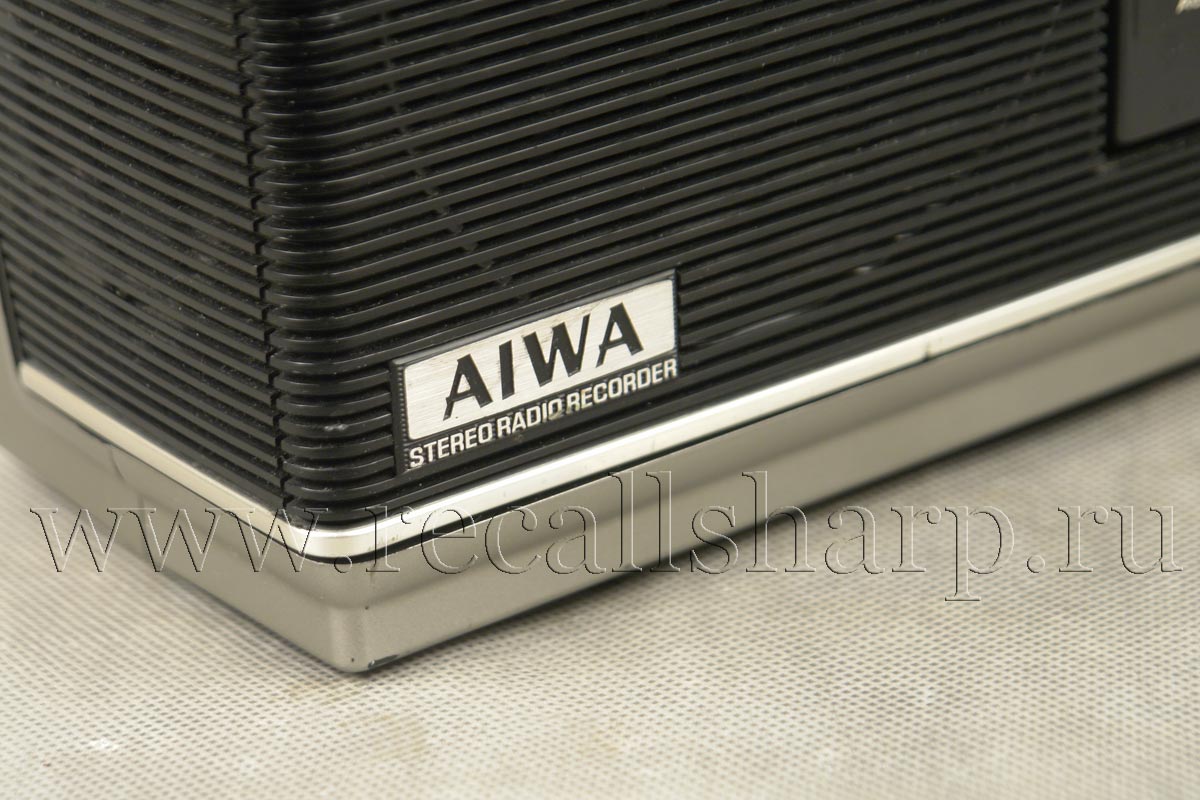

Aiwa TPR-930



: 1976


MAIN SPECIFICATIONS
Type; Compact cassette/FM Multiplex/
4-band/stereo radio-recorder
Circuit: 11-transistor radio, 30 auxiliary
transistors, 27 diodes, 2 thermistors
Power source: Dry cells, DC 9V (UM-1 x 6)
TPR-930H,HR:
House current,
AC 110~120V/220~240V
switch changeable
TPR-930C:
House current, AC-120V 60Hz
Car battery, 9V (thru car battery adaptor)
Frequency response: 50~13,000 Hz
Speakers: 120 mm
, 8Ω type x 2
66 x 103 mm 8
Ω type x 2
Output: 4,000 mW, Total. (2000 mW + 2000 mW)

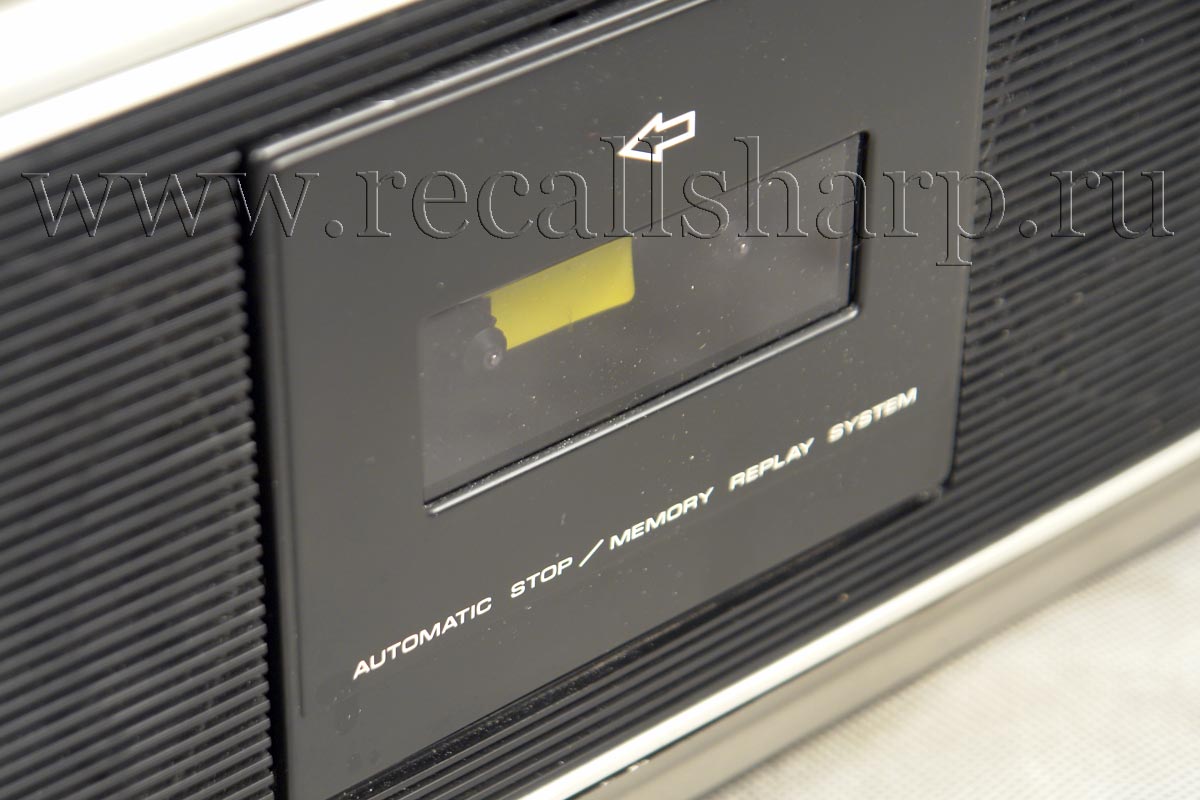

<Tape Recorder Section>

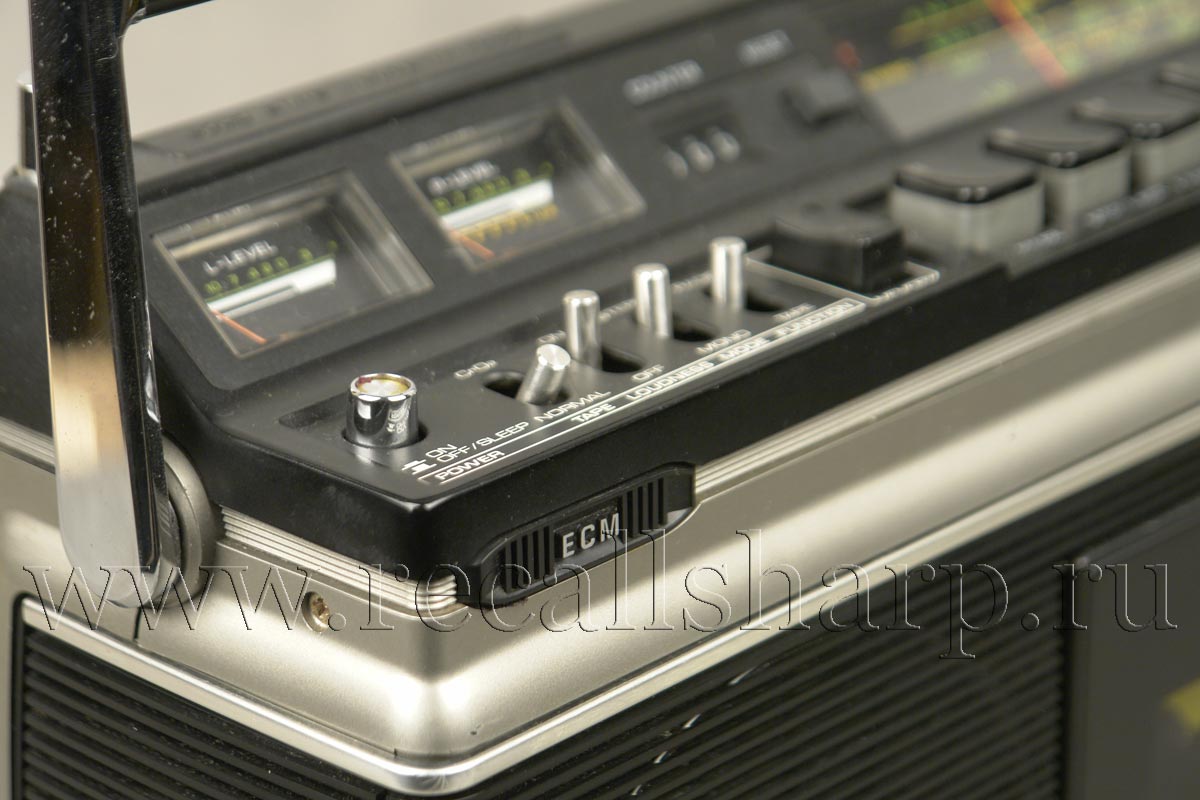

Built-in microphones: Electric condenser microphone x 2.
Tape speed: 4.8 cm/sec. (1-7/8 i.p.s.)
Recording system: AC bias
Erasing system: AC erasure
S/N ratio: 55 dB
Wow & flutter: 0.15%
F. FWD time: 140 sec. (w/C-60 cassette)
Rewind time: 120 sec. (w/C-60 cassette)

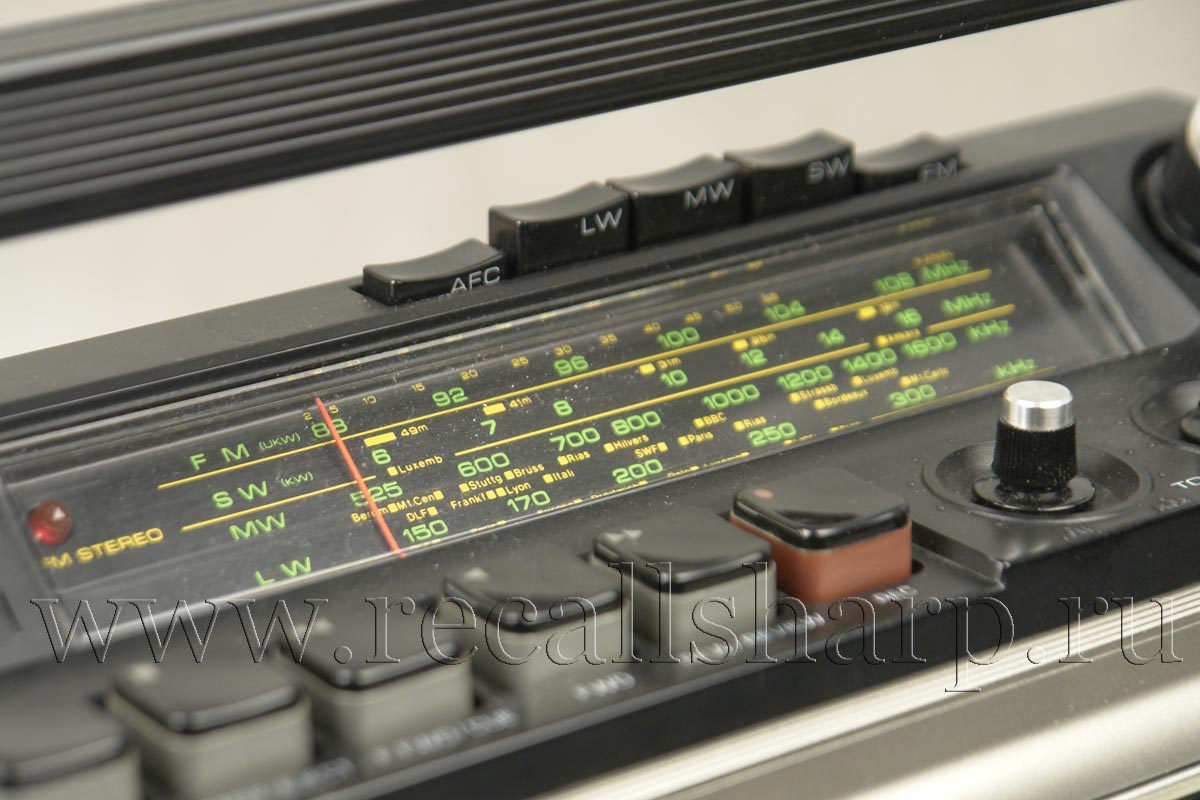

<Radio Section
>
Circuitry: Superheterodyne
Frequency range: TPR-930H, C:
FM, 87.5-108 MHz
MW, 525-1,605 kHz
SW-1, 2.3-7 MHz
SW-2, 7~22 MHz
TPR-930HR:
FM 65-73 MHz
MW 525-1,605 kHz
SW-1,2.3-7 MHz
SW-2,7~22 MHz
Antennas: Whip antenna for FM, SW-1 & SW-2
Ferrite bar antenna for MW.
Dimensions: 392(W) x 213(H) x 114(D) mm
(16-7/16" x 8-6/16" X 4-8/16")
Weight: 4.5 kg (9.9 ibs.) w/o batteries.
Accesories: Battery (UM-1) x 6
Cassette tape x 1
Shorting plug x 2
AC power cord x 1
Cleaning stick x 1
* The specifications and external appearance of this set
are subject to change without prior notice.

:
Aiwa TPR-930 H
