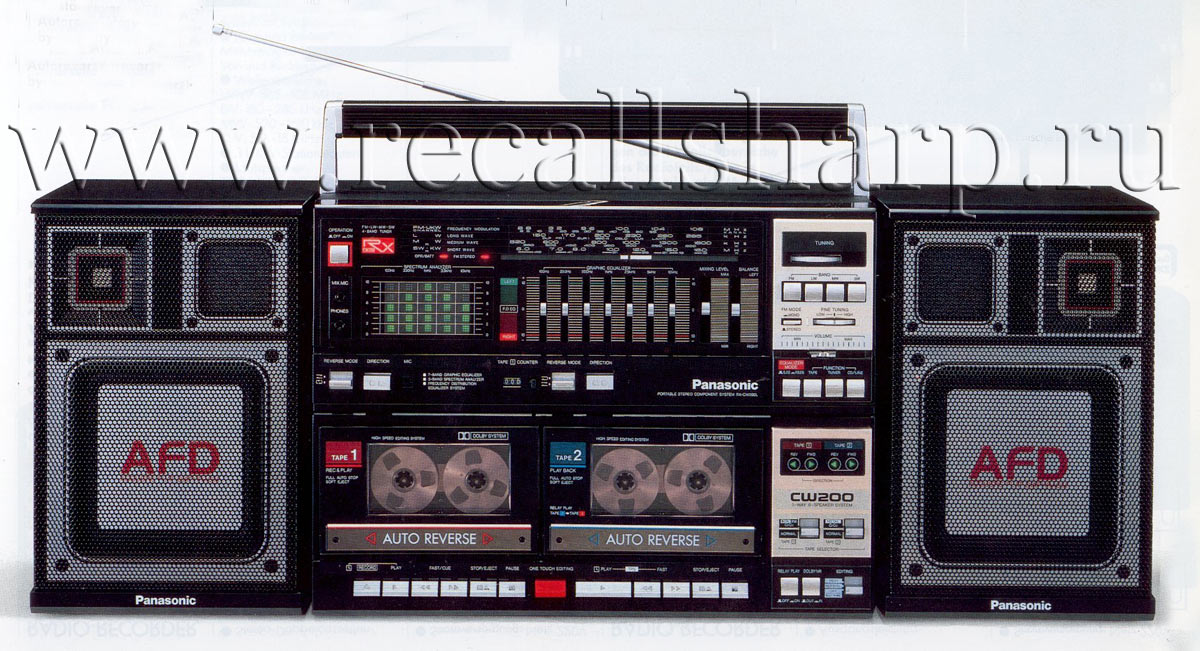

Panasonic RX-CW 200 L FM 88-108 MHz



: 1986


SPECIFICATIONS
Radio Frequency Range: FM; 87.5-108 MHz
LW; 150-285 kHz
MW; 520-1610 kHz
SW; 5.9-18.0 MHz
Power Requirement: AC; 220 V, 50 Hz
(or 220 V, 50 Hz)
Power consumption; 70 W for 220 V, 50 Hz areas)
Battery; 15 V (ten UM-1, "D" size batteries)
Car Battery; with optional car battery cord RP-9550
Power Output: 100 W (50 W+50 W)...PMPO
50 W ( 25 W+25 W).. .RMS (max.)
Speakers: Woofer; (12 cm x 12 cm AFD speaker)x2
Squawker; 5 cm speakerx2
Tweeter; 2 cm speakerx2
Frequency Range: 55-15,000 Hz (with normal tape)
55-16,000 Hz (with CrO2 tape)
Recording System: AC bias, AC erase
Tape Speed: 4.8 cm/s
Track System: 4-track 2-channel stereo
Jacks:

Input;

MIX MIC; sensitivity 1.6 mV/applicable microphone impedance

200 Ohm-600 Ohm(recommended microphone RP-V305)
CD/LINE IN; sensitivity 316 mV/47 kOhm.

Output;

EXT SP; 8 Ohm

HEADPHONES; 32 Ohm.
Dimensions: 660x300x193 mm (Handle included)
(WxHxD) Main unit; 339x245x193 mm
Speaker box; 165x244x 175 mm
Weight: 8.4 kg without batteries

:
Panasonic RX-CW 200 L FM 65-107 MHz
