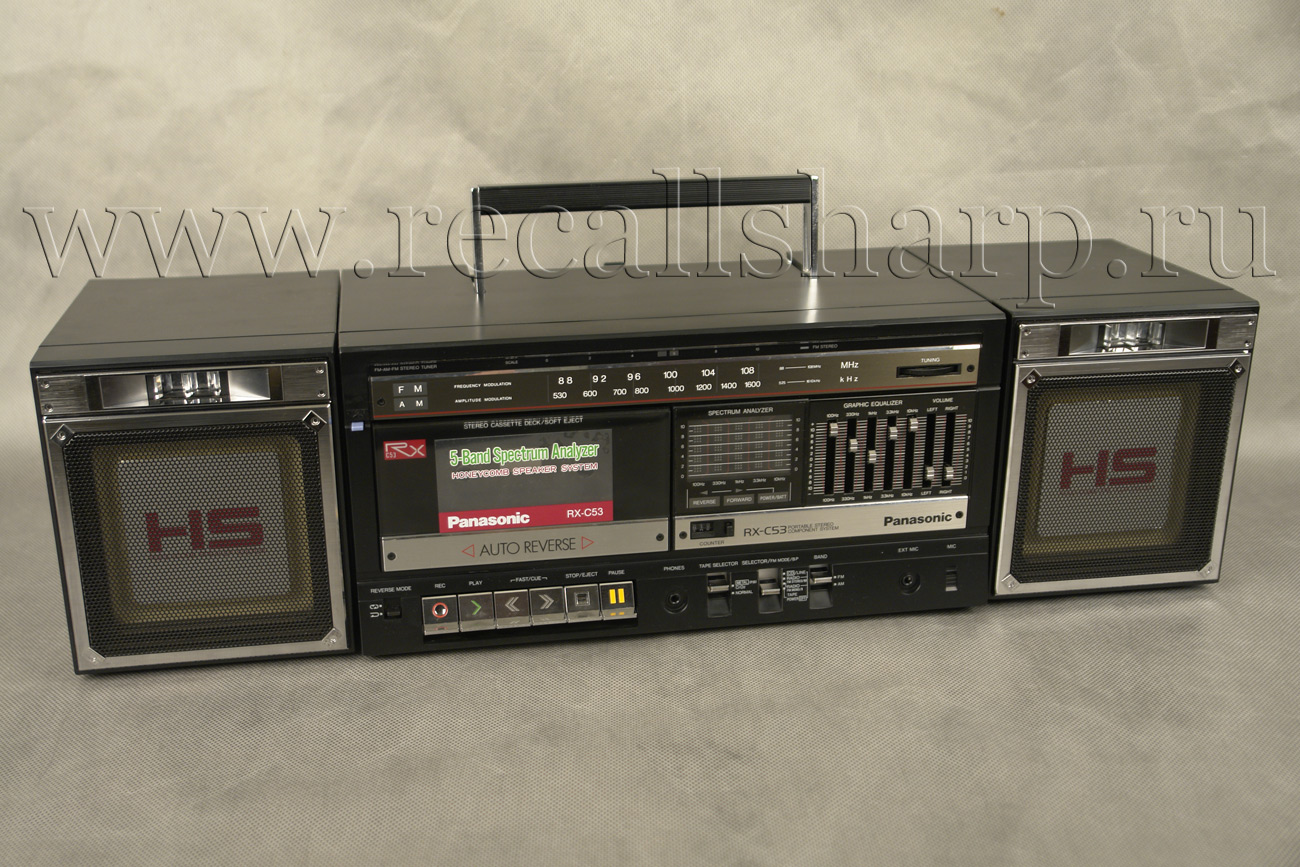

Panasonic RX-C 53



: 1986


SPECIFICATIONS

<GENERAL>
Power Requirement: AC; 120 60 Hz
Power consumption; 29 W (AC only)
Battery; 12 V (eight "D" size batteries)

Power Output: 15W(7,5Wx2)...RMS(max.)
Speakers: Woofer;4"(10 cm)x
4"(10 cm) PM
Dynamic Speaker(2.7
Ω)
Tweeter; 3/4" (2 cm)x 2" (5cm)
Ceramic Speaker (5 kΩ)


Input;
MIX MIC; sensitivity
4 mV/applicable microphone impedance
200-600 Ohm
CD/LINE IN; sensitivity
400 mV/47 kOhm.
DC IN 13.2V
O
utput; EXT SP; 2.7 Ohm
HEADPHONES; 32 Ohm
∅3.5
Dimensions: (WxHxD)579x158x193 mm
Main unit; 322x
158x193 mm
Speaker box; 133x158x186 mm
Weight: 5.1 kg without batteries
<RADIO>
Radio Frequency
Range:
FM; 88-108 MHz
AM; 525-1610 kHz
Intermediate

Frequency FM; 10.7 MHz

AM; 455 kHz
<TAPE RECORDER>-
Frequency Responce:
60-12000 Hz (with normal tape)
60-13000 Hz (with CrO2 type tape)
Recording System: AC bias, Magnet erase
Tape Speed: 4.8 cm/s
Track System: 4-track 2-channel stereo





:
Panasonic RX-C 53 L
