Год начала выпуска: 1981
Регион: Япония
Cassette Tape Used Normal: C-30, C-60, C-90, C-120
Chrome: C-45, C-60, C-90
Metal: C-46, C-60, C-90
Tape Speed 4.8 cm/sec.
Track System Four-track two-channel stereophonic
Recording System AC bias (85 kHz)
Erasing System AC erasing
Frequency Response Normal: 30 Hz to 12 kHz
Cr02: 30 Hz to 14 kHz
Metal: 30 Hz to 16 kHz
Power output 6W+6W EIAJ/DC
Receiving Frequency FM: 76 - 108 MHz
AM: 525 - 1605 kHz
Intermediate Frequency FM: 10.7 MHz
AM: 455 kHz
Antenna FM: telescopic antennas
AM: ferrite-core antenna
Speakers Woofer (180 mm dia. dynamic) x 2
Tweeter (40 mm dia. dynamic) x 2

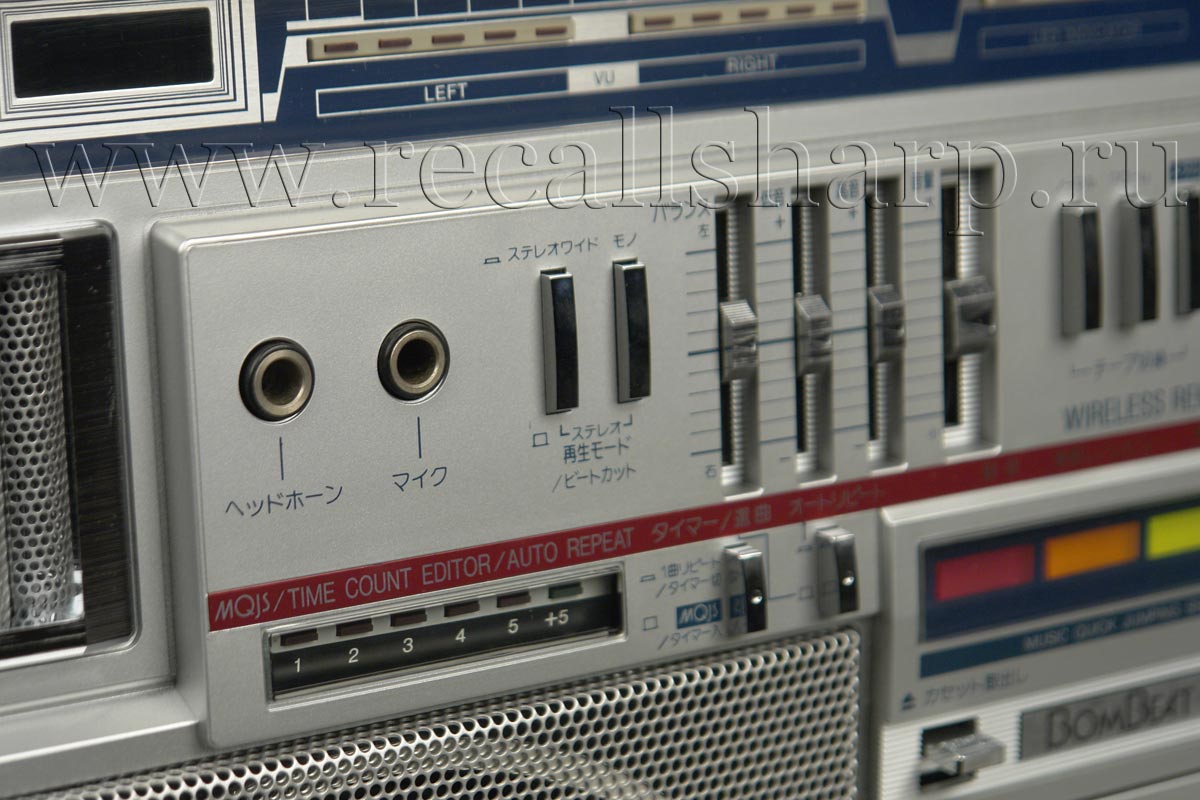

Jacks [MIC] jack x 2, Impedance 200 ohm to 2k ohm, ∅3.5 mm
[MIXING MIC] jack x 1, impedance 200 ohm to 2 k ohm, ∅6.3 mm
[AUX/PHONO] jack x 2, Impedance 20k ohm, pin-type
[LINE OUT] jack x 2, Impedance 4.7 k ohm, pin-type
[SPEAKER] jack x 2, Impedance 3.2 ohm to 8 ohm, ∅3.5 mm
[PHONES] jack headphone, ∅6.3 mm
Power Supply AC 100 V, 50/60 Hz
DC 13.5 V (SUM-1 "D" size x 9)
Power Consumption 18 W
Dimensions 520 (W) x 307 (H) x 172 (D) mm
Weight 7.4kg (with batteries)
Specifications are subject to change for improvement.
|
