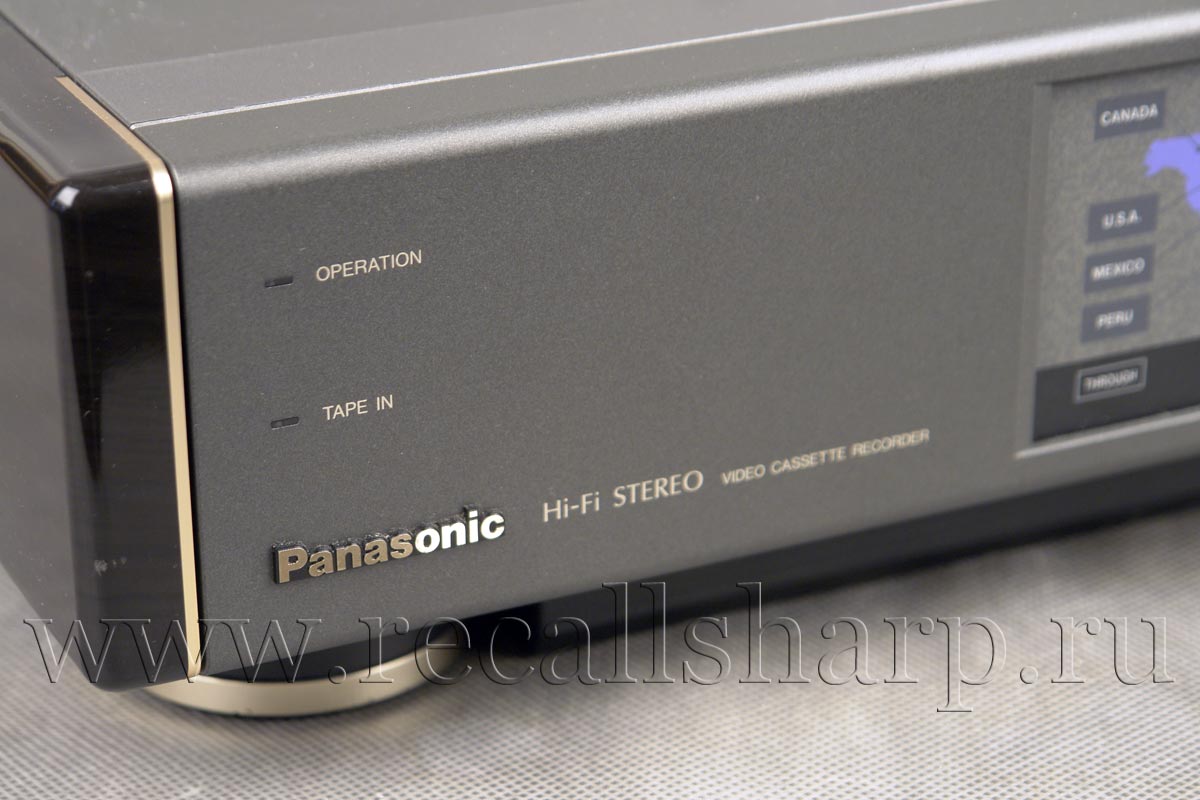

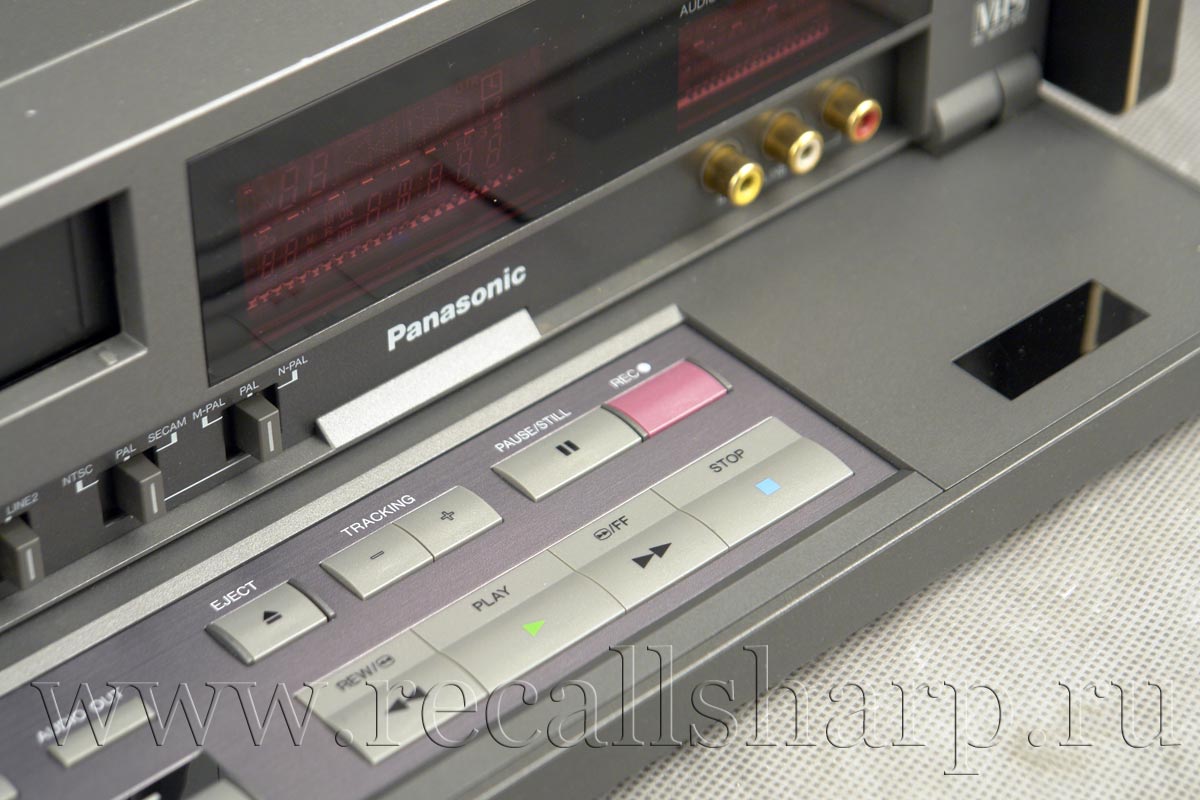

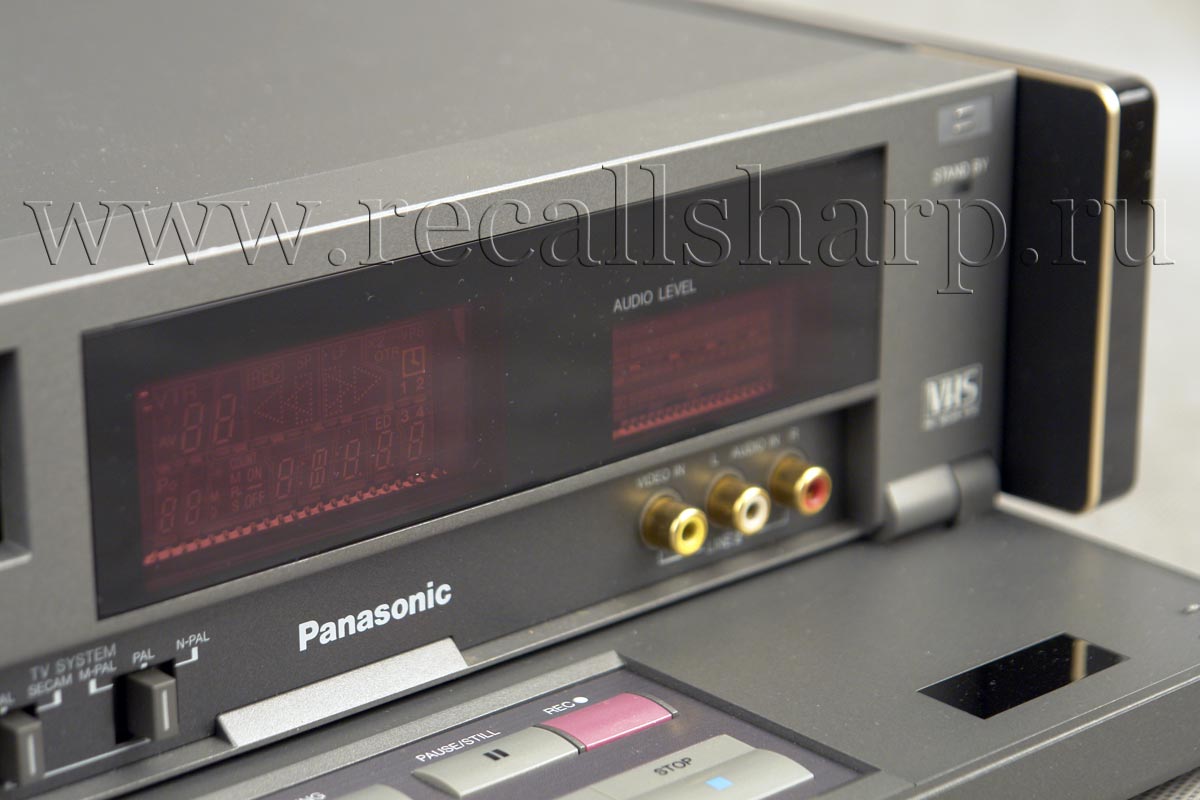

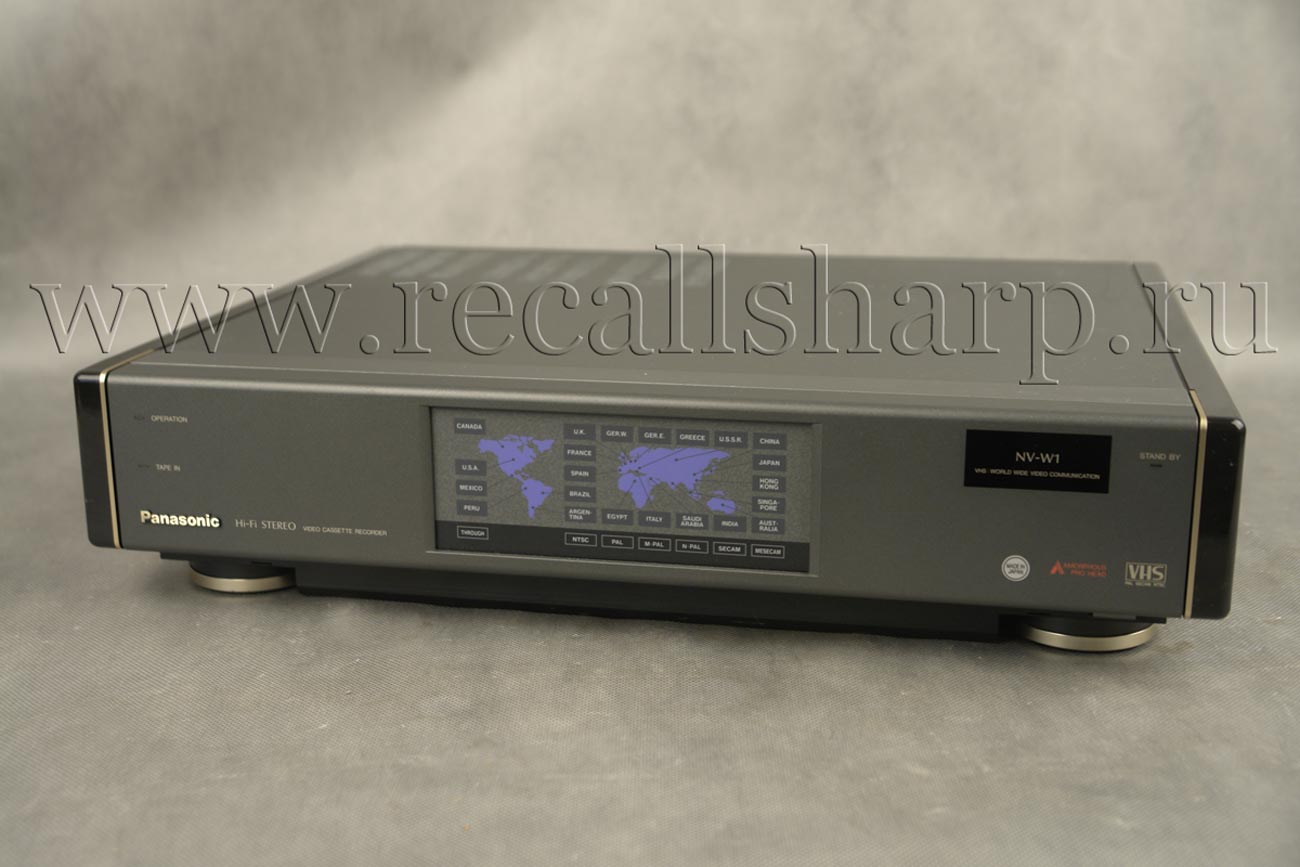

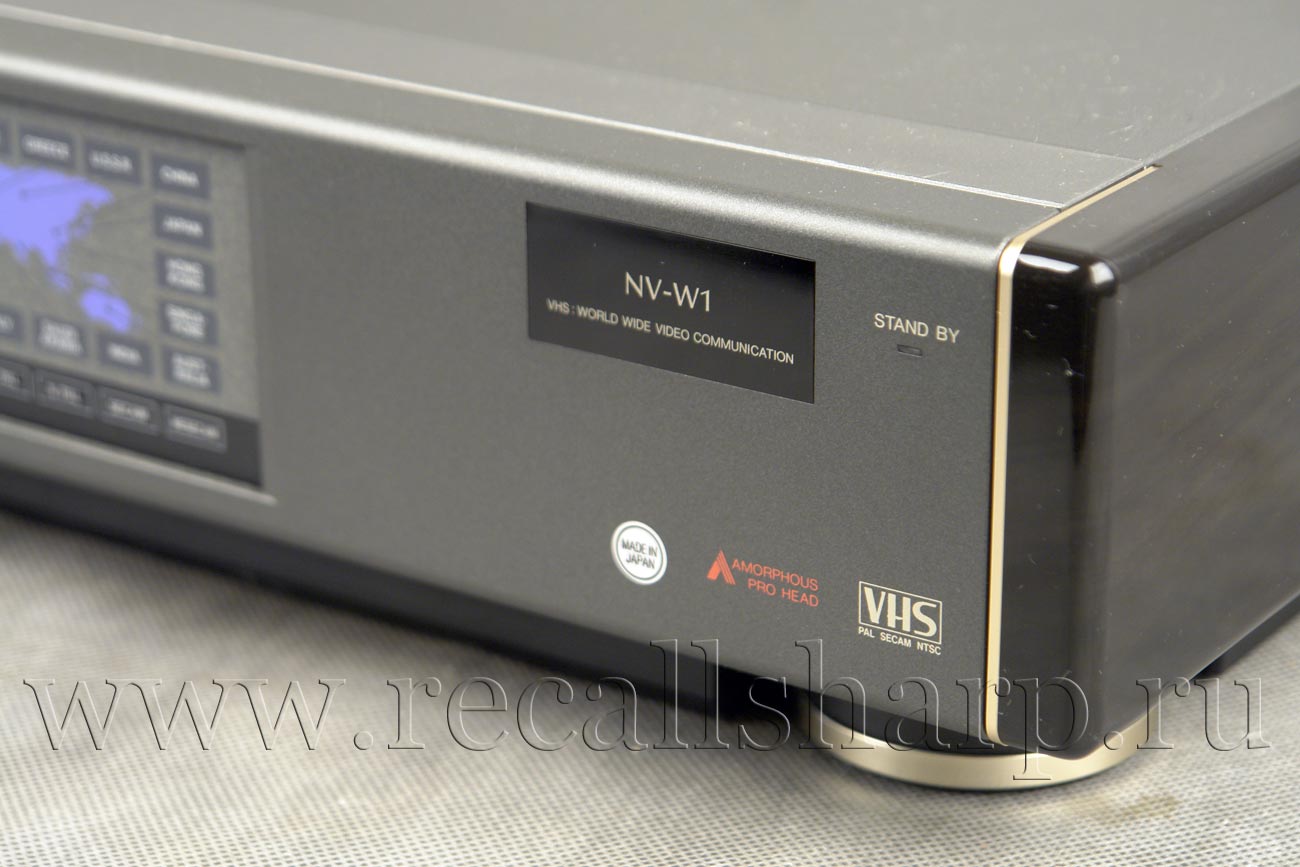

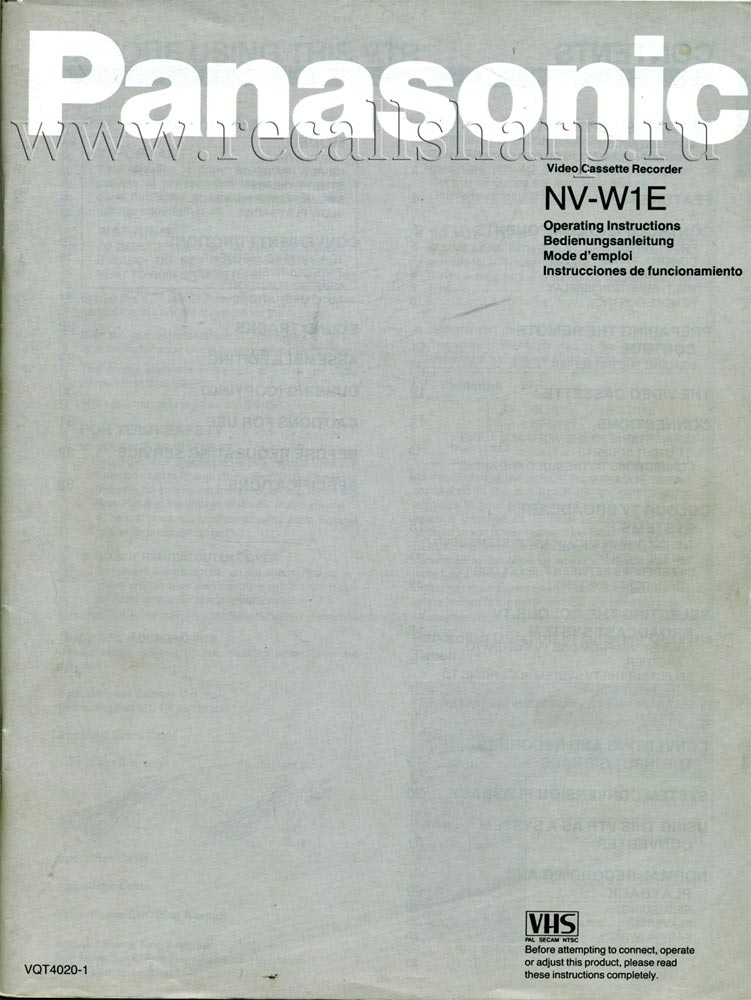

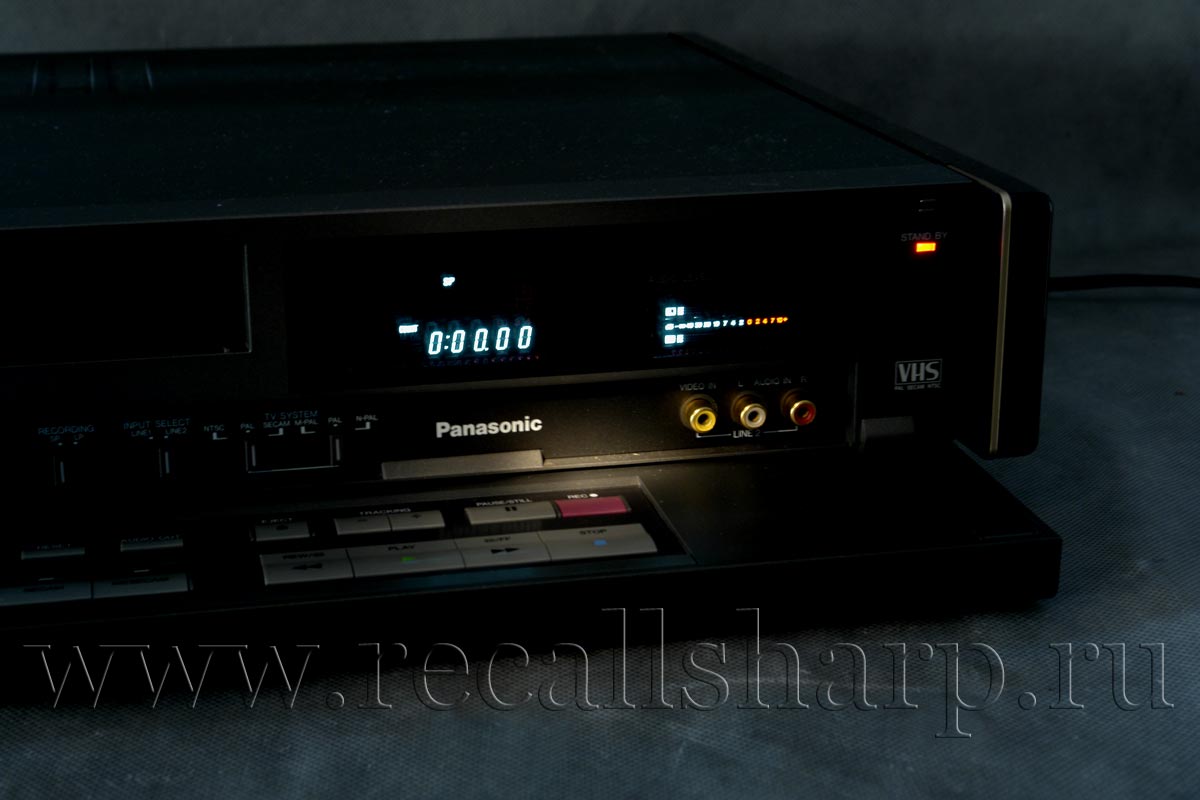

Panasonic NV-W1E



: 1990


SPECIFICATIONS
Power Source: AC 110-127/220-240 V ±10%, 50/60 Hz ±0.5%
Power Consumption: Approx. 42 watts (8 watts in standby mode)
Video Recording System: 2 rotary heads, azimuth recording system, VHS standard

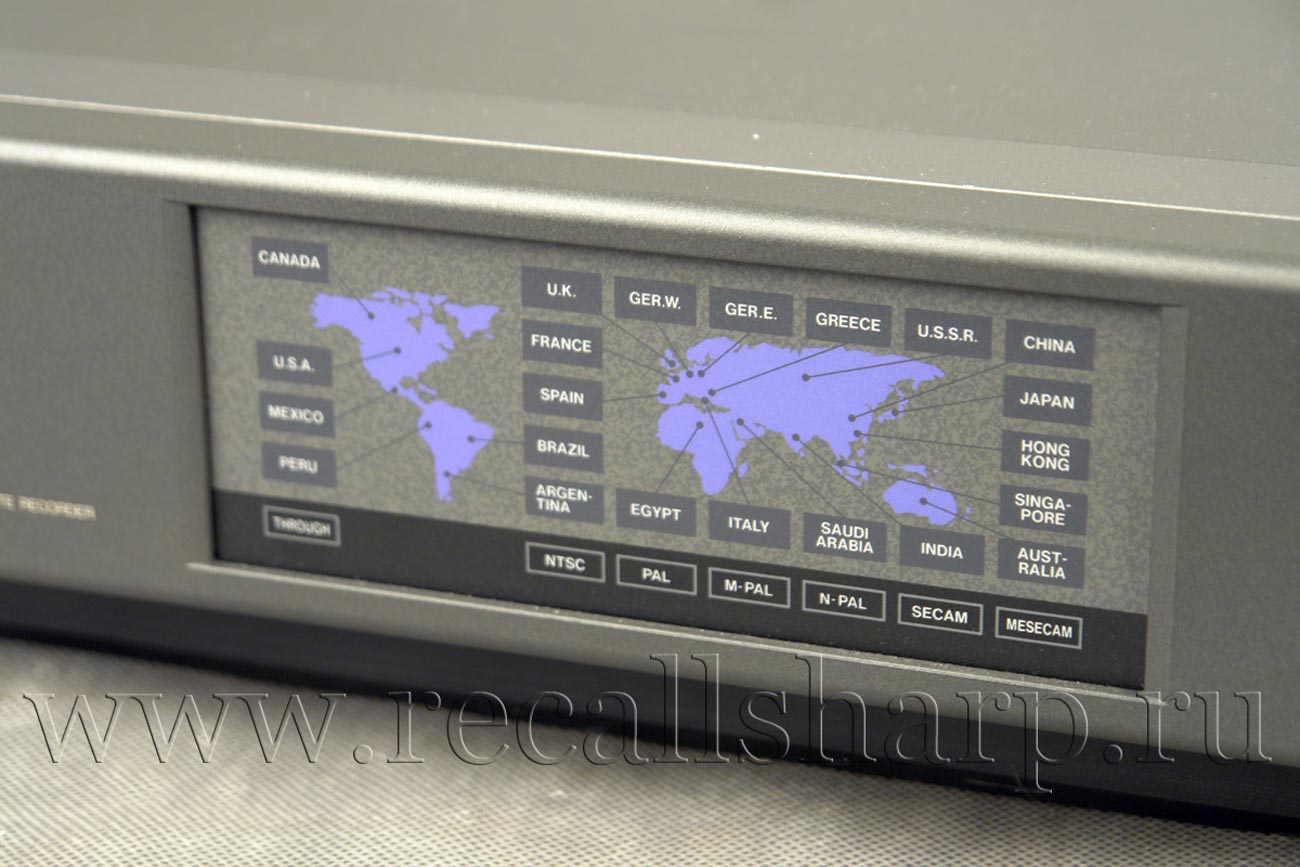

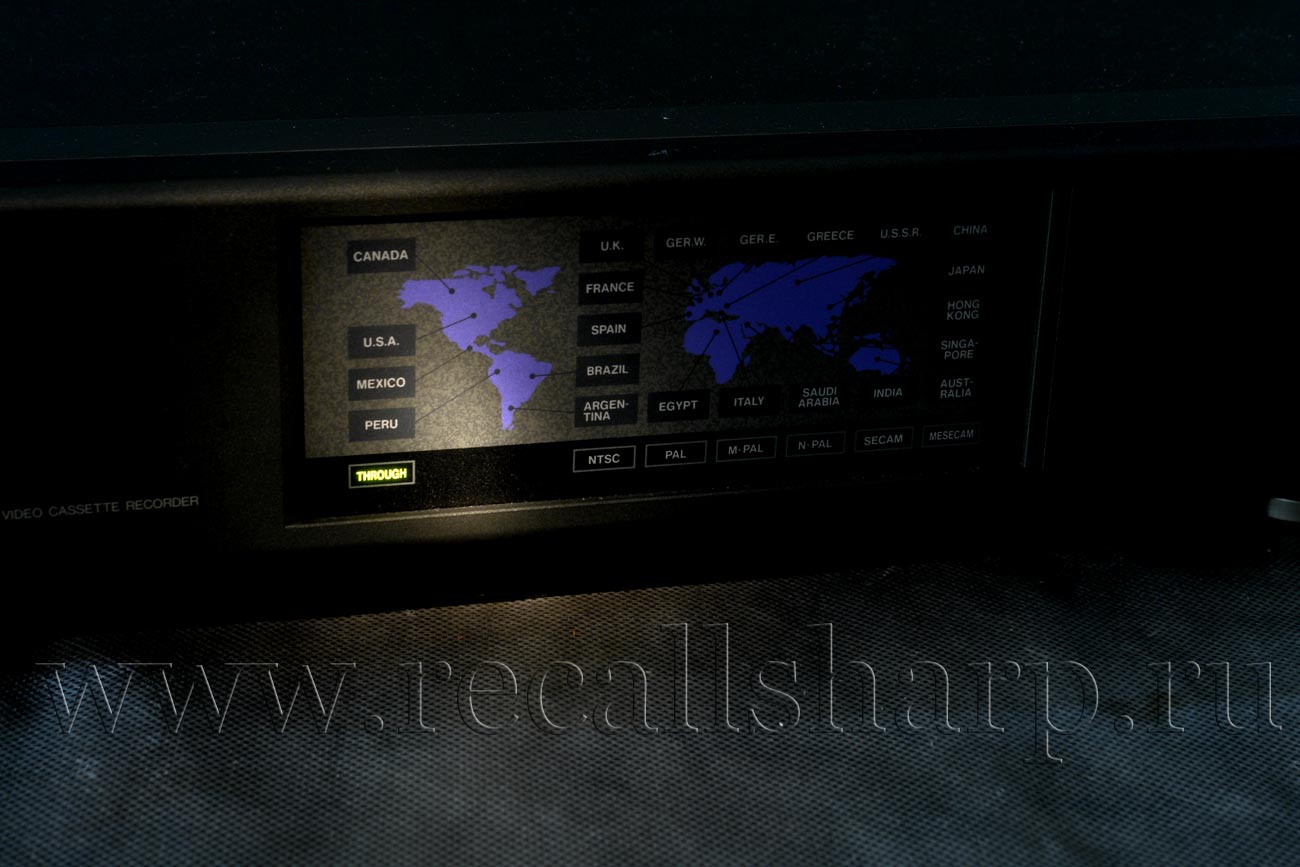

TV System: NTSC/M-PAL PAL/N-PAL SECAM
625 lines/50 fields 525 lines/60 fields 625 lines/50fields
Tape Speed:
SP: 33.35 mm/sec. SP: 23.39 mm/sec. SP: 23.39 mm/sec.
EP: 11.12 mm/sec. LP: 11.7 mm/sec LP: 11.7 mm/sec.
Tape Format 12.7 mm wide high density video tape (1/2")
VHS video cassette (with easy playback function for S-VHS cassettes)
Record/Playback Time: Maximum 8 h. with NV-T160 Maximum 8 h. with NV-E240 Maximum 8 h. with NV-E240
FF/REWTime: Less than 51/2min. with NV-T120/NV-E180

Modulation Luminance;
FM azimuth recording FM azimuth recording FM azimuth recording
System: Colour signal; converted subcarrier phase converted subcarrier phase 1/4 countdown
shift recording shift recording
Input Level: (Pin Jack) 1.0 Vp-p, 75 ohm
Output Level:
1.0Vp-p,75ohm
(Pin Jack)
Audio Input Line: -10dBV, more than 50kohm
Audio Line Output: -8 dBV, less than 1 kohm
Audio Track: Hi-Fi stereo; 2 channels, Normal mono; 1 track
Hi-Fi Sound Specifications: Dynamic Range; more than 90 dB, Frequency Range; 20 Hz~20 kHz
Wow & Flutter; less than 0.005%
Dimensions: 464 (W)x 105.5 (H)x392.5 (D) mm
Weight: Approx. 8.2 kg
Operating Temperature: 5°C-40°C
Operating Humidity: 35% -80%
Special Playback Speeds:
Speed Search: NTSC/M-PAL about 11 x (in SP mode 5x)

PAL/N-PAL/SECAM/MESECAM approx. 9xin SP mode 7x) noise lock
Slow : 1/301/5x
