SPECIFICATIONS
<RADIO>

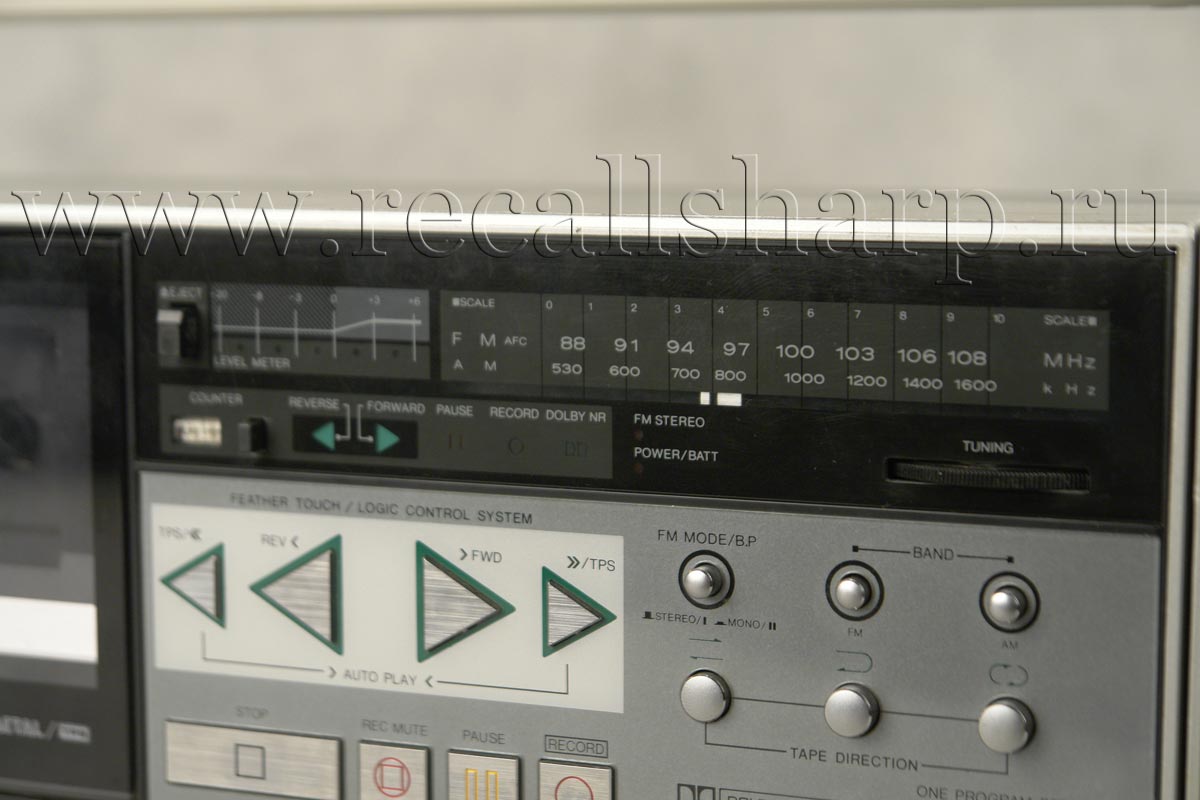

Radio Frequency Range: FM; 88-108 MHz
AM; 520-1610 kHz
Frequency Range:
40-12,000 Hz (with normal tape)
40-16,000Hz(with Metal tape)
Recording System: AC bias,
Erasing system AC erase
Track System: 4-track 2-channel stereo recording and playback
Tape speed: 4.8 cm/s
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape
Power Requirement:
<GENERAL>
Power Requirement:
AC; 110-115/115-127/200-220 V, 50/60 Hz
Power consumption; 23W (AC only)
Battery; 12 V (eight "UM-1", D size batteries)
Car Battery; with optional car battery cord RP-952
Power Output: 15W (7.5Wx2)…(RMS max)

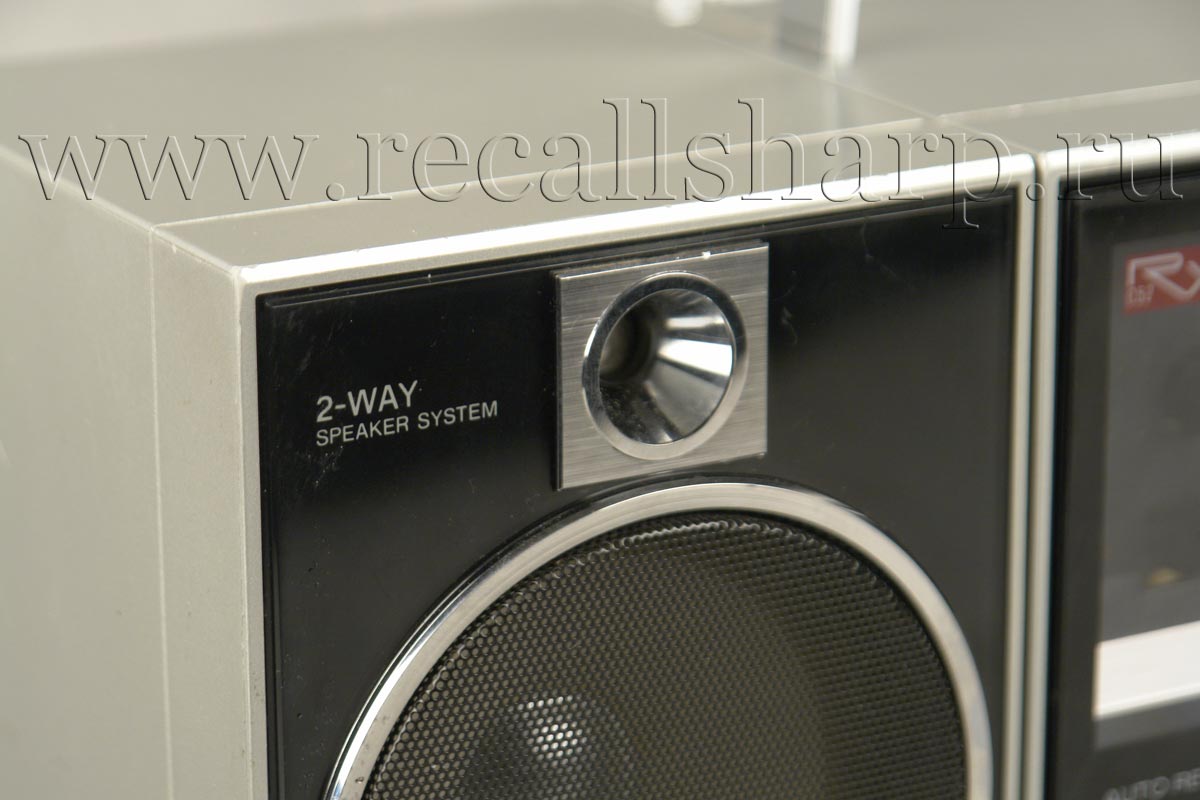

Speaker: Woofer;10cm PM Dynamic Speaker 3Ω
Tweeter; 3cm Ceramic Speaker(400Ω)
Jacks:
Input;
MIC; sensitivity 0.25 mV/applicable microphone impedance
200-600 Ohm
PHONO; sensitivity 5mV/47kΩ over
DC IN;13.2V
LINE IN; sensitivity 200 mV/47 kOhm.
Output; LINE OUT; sensitivity 360 mV/4.7 kOhm
EXT SP; 3-8 Ohm
HEADPHONES; 32 Ohm
Dimensions: Total Size
(WxHxD) 549x153x152 mm
Main unit
321(W)x153(H)x152(D)
Speaker Box
120(W)x153(H) x134(D)
Weight: 5.2 kg without batteries
(not included)
