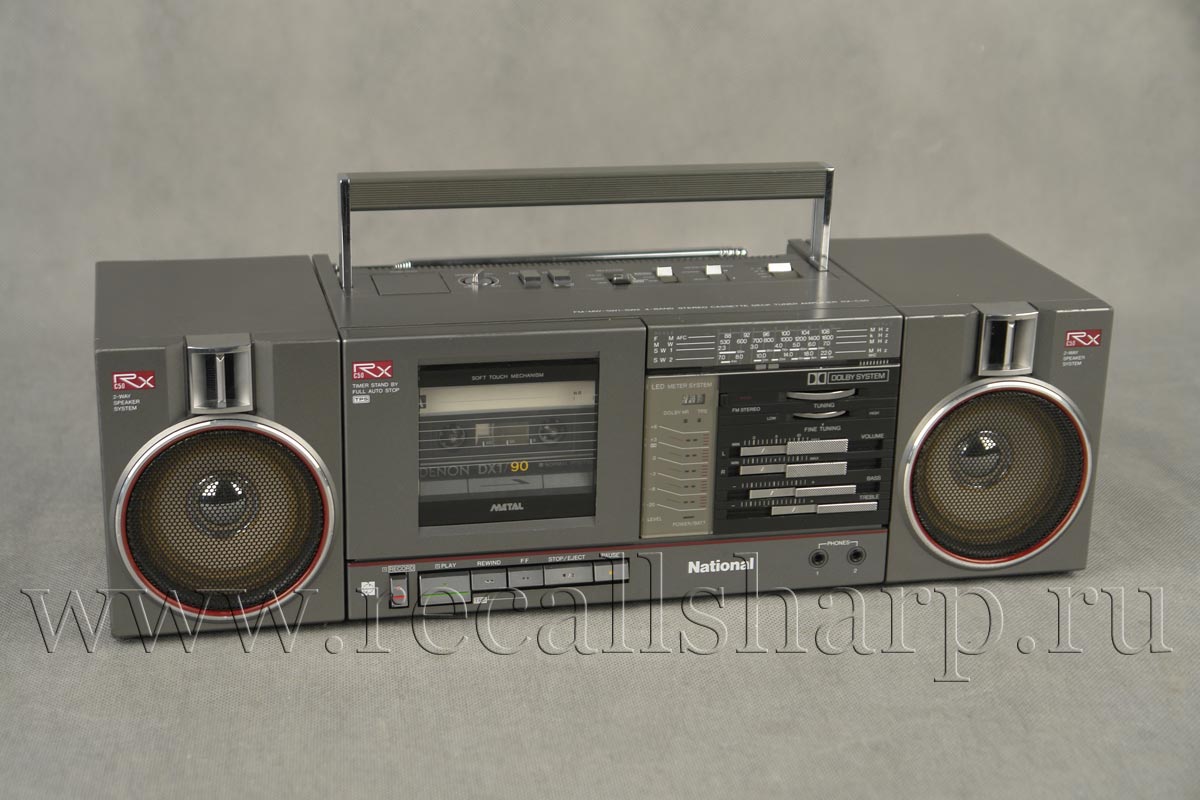

National RX-C50 F



: 1982


Specifications
General
Power requirement: AC;110-115/115-127/200-220V,
230-250V 50Hz\60Hz

Battery; 12V (eight- "D" size Flashlight batteries)
Panasonic UM-1 or equivalent
Car battery; with optional car adaptor RP-952
Power consumption; 34 W (AC only)

Power output: 12W (6Wx2) ... RMS (max)

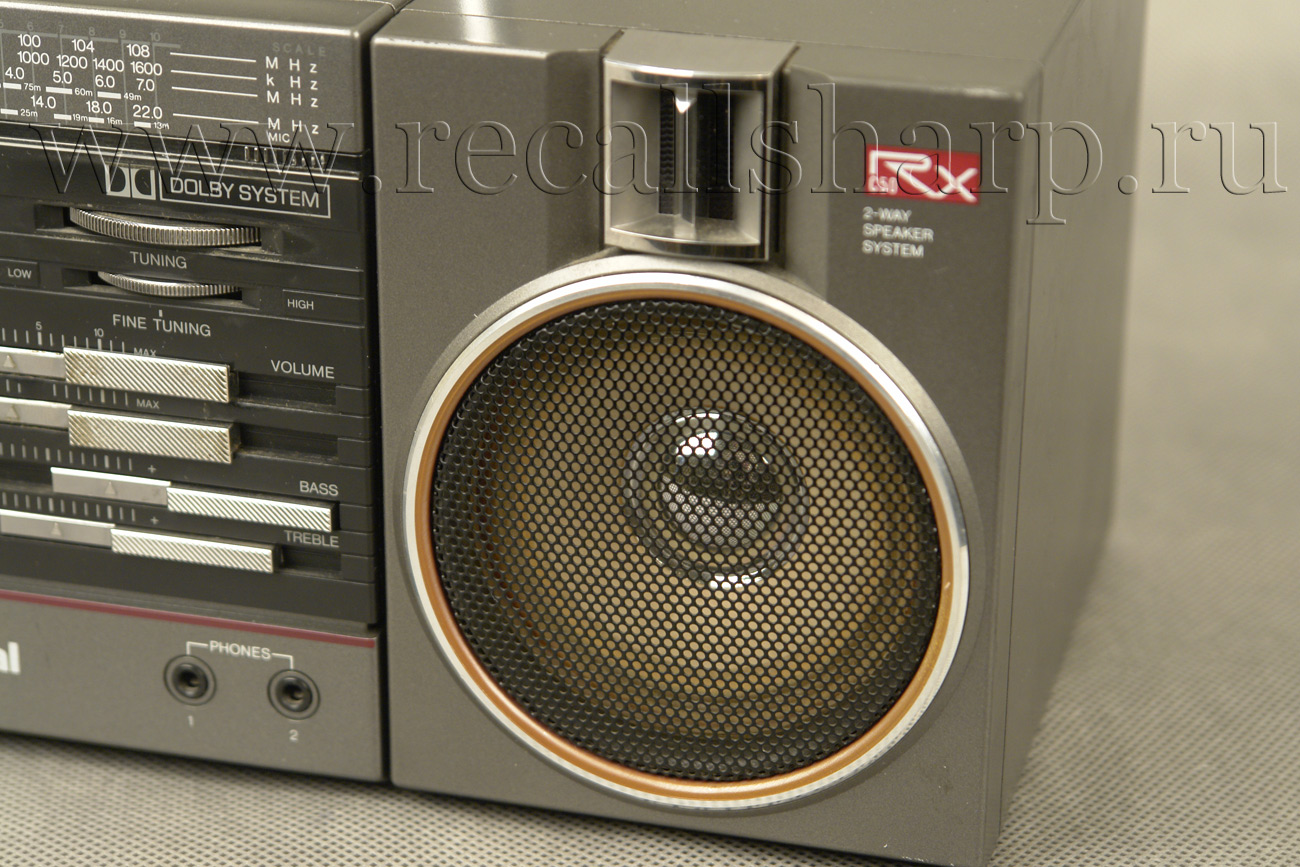

Speakers: Woofer 8cm(3") PM dynamic speaker (3Ω)
Tweeter 2cm(3/4") Ceramic Speaker (2kΩ)

Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ω

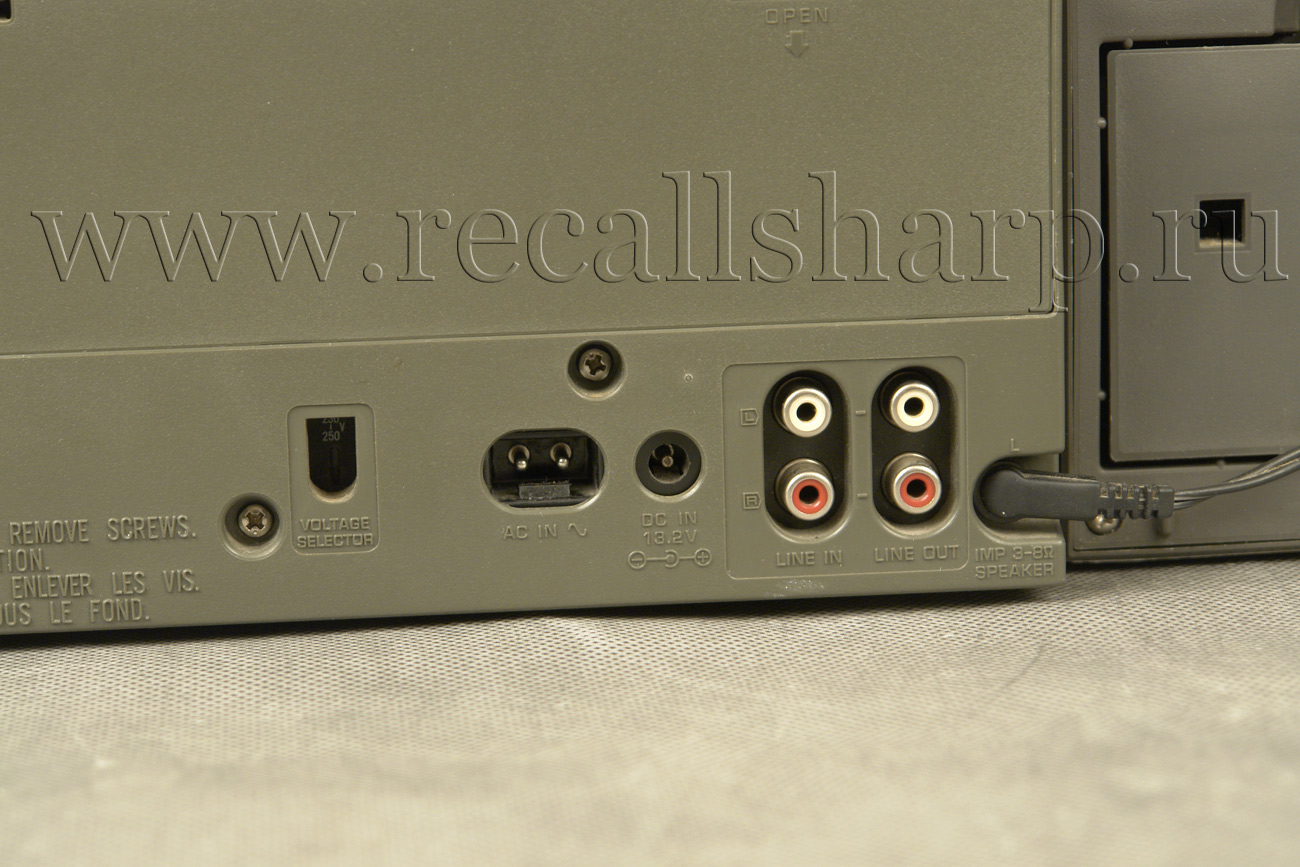

LINE IN; sensitivity 200mV/50kΩ
DC IN:13.2V

Output: LINE OUT;sensitivity 360mV/4,7kΩ under
Speaker 3-8Ω
Headphones:32Ω

Dimensions: Total size
432mm(W) x 133mm(H) x 166mm(D)
Main unit
243mm(W) x 133mm(H) x 166mm(D)
Speaker box
96mm(W) x 128mm(H) x 143mm(D)
Weight: 4.5kg (without batteries)

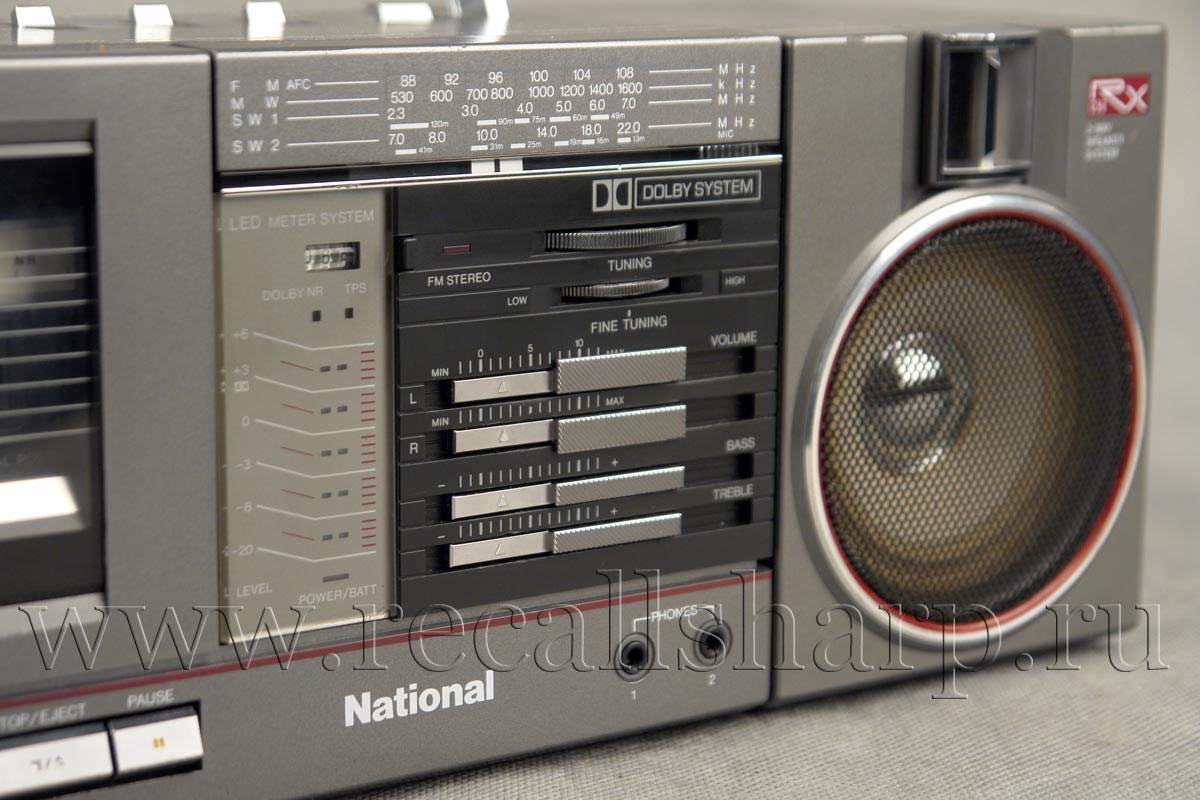

Radio section

Radio frequency range:

FM; 88-108 MHz


MW; 525-1605 kHz


SW1; 2.3 -7.0 MHz


SW2; 7.0 -22.0 MHz



Intermediate Frequency (IF): FM 10.7MHz
AM 455kHz

Sensitivity: FM 2.5μV /50mW output

M W 71μV/m/50mW output

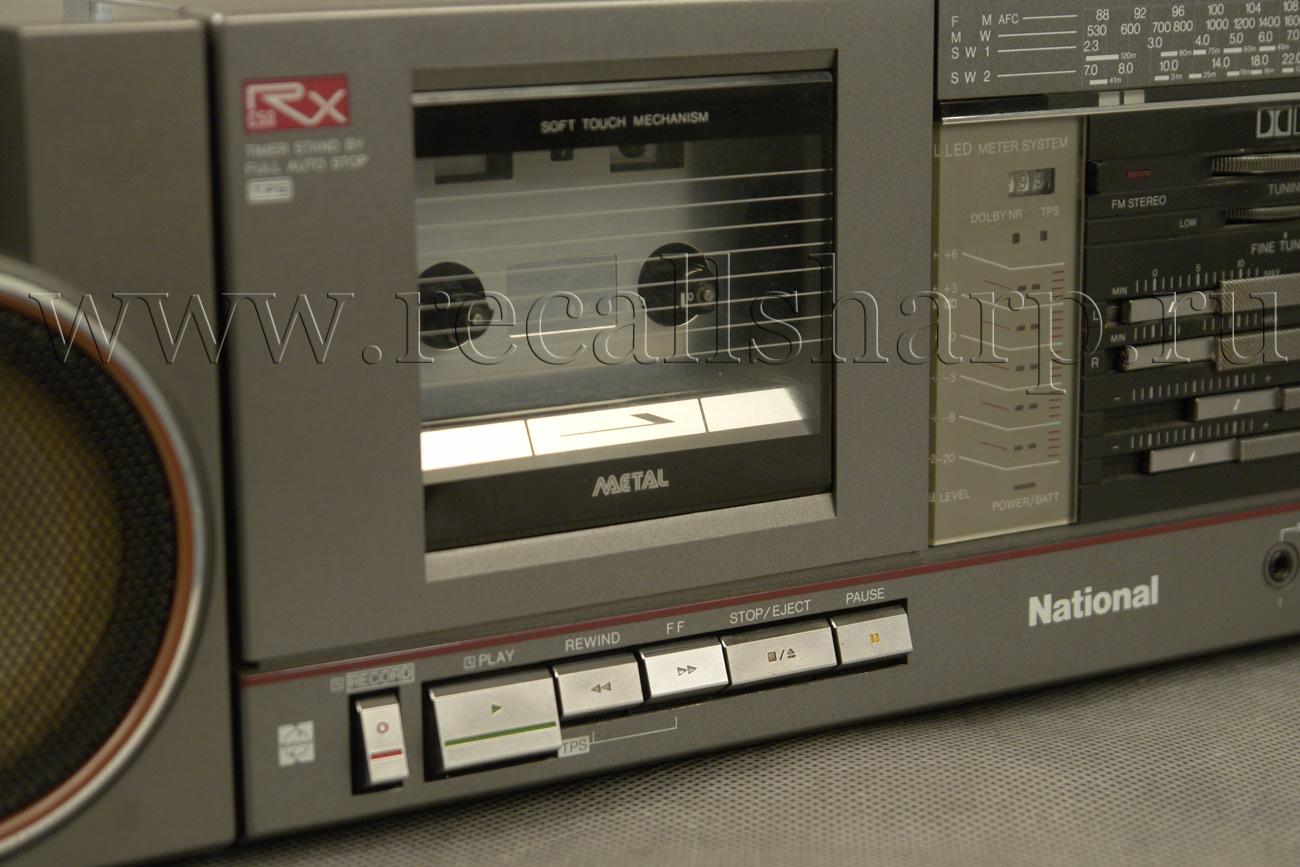

Tape Deck Section
Frequency responce:
40-12,000 Hz(with normal tape)
40-14,000 Hz(with CrO2 tape)
40-15,000Hz (with Metal tape)

Recording system; AC bias, AC erase

Tape speed: 4.8cm/s
Wow&Flutter 0.07%(WRMS)
Program time: 1 hour with C-60 cassette tape

Track system: 4-track stereo recording and playback


:
