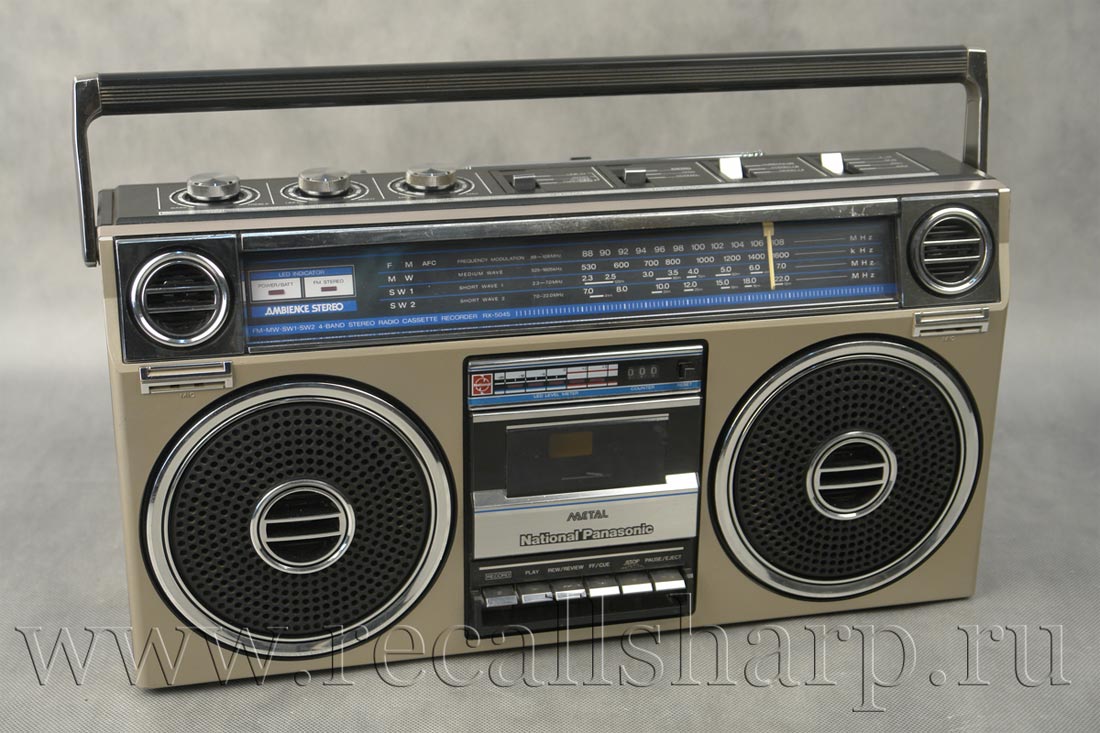

National Panasonic RX-5045 F



: 1982


■ SPECIFICATIONS
Power Requirement; AC; 110
115/115~127/200~220/
230-250V 50/60Hz
Battery; 9V (Six "D" Size Flashlight Batteries)
(National UM-1 or equivalent)
Power Consumption: 14W(AC only)
Power Output: 12W (6Wx2)...PMPO
7W (3.5Wx2)...RMS (max.)
Speaker: Woofer; 12cm (5" PM Dynamic)
Speaker (3
Ω)
Tweeter; 2cm (25/32") Ceramic
Speaker (300
Ω)
Input:
MIC; sensitivity 0.25mV/applicable
microphone Impedance 200-600
Ω
Line in: sensitivity 200mV/50k
Ω
over
Output:
Line out; sensitivity 0.42V/10k
Ω
Ext SP; 3
Ω~8 Ω
Headphones; 1.25mW, 8
Ω
Dimensions: 484mm(Wx249mm(H)x157mm(D)
Weight: 3.65kg (8 lb. 3 oz.) without batteries
Radio Section:
Radio Frequency Range;
FM; 88-108MHz
MW; 525~1605kHz (571m
187m)
SW1; 2.3~7MHz (130
42.9m) ..
SW2; 7~22MHz (42.9
13.6m)
Intermediate Frequency: FM; 10.7 MHz
AM (MW\SW1\SW2); 455kHz
Sensitivity: FM: 2.8
μV/50mW output
MW; 178
μV/m/50mW output
SW1;126
μV/m/50mW output
SW2; 10
μV/50mW output
Tape Deck Section:
Frequency Response:
80-10,000Hz (with normal tape)
60~10.000Hz (with CrO2 tape)
60~12,000Hz (with Metal tape)
Recording System: AC bias, AC erase
Tape Speed: 4.8cm(17/8 ips)
Program Time: 1 hour with C-60 cassette tape
Track System: 4-track 2 channel stereo recording
and playback
