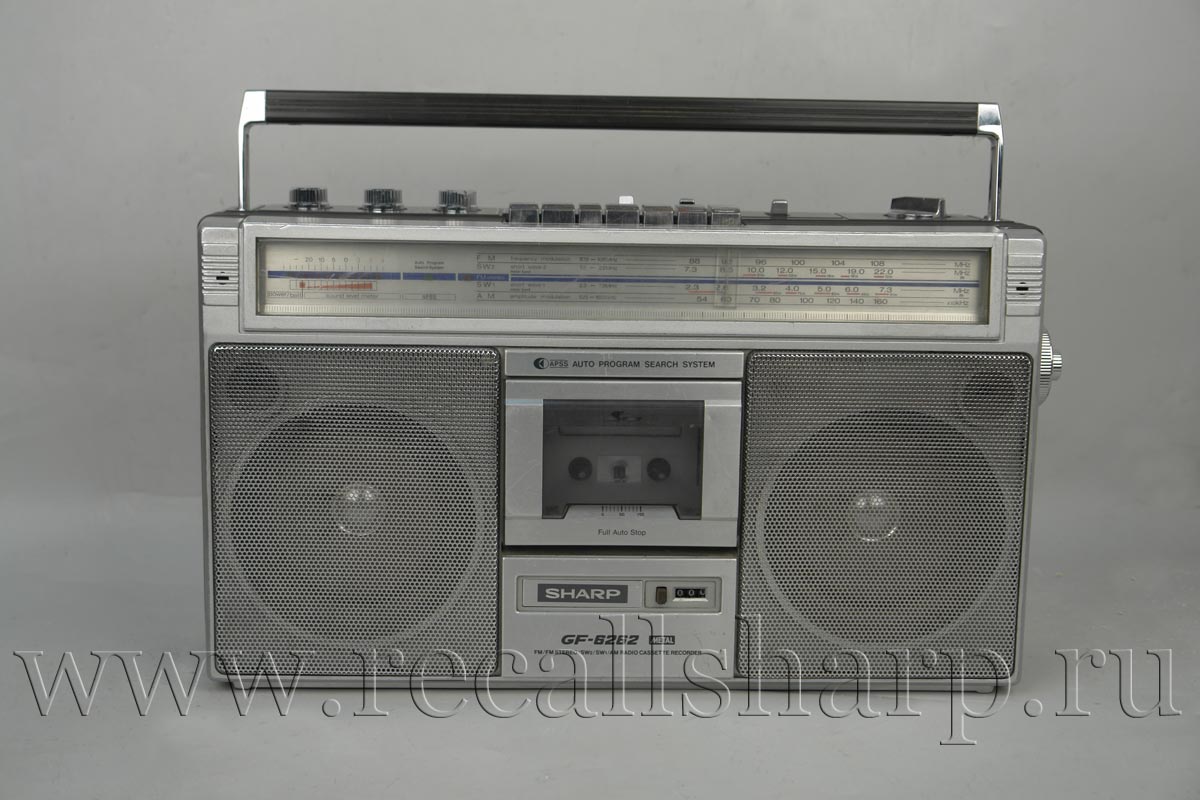

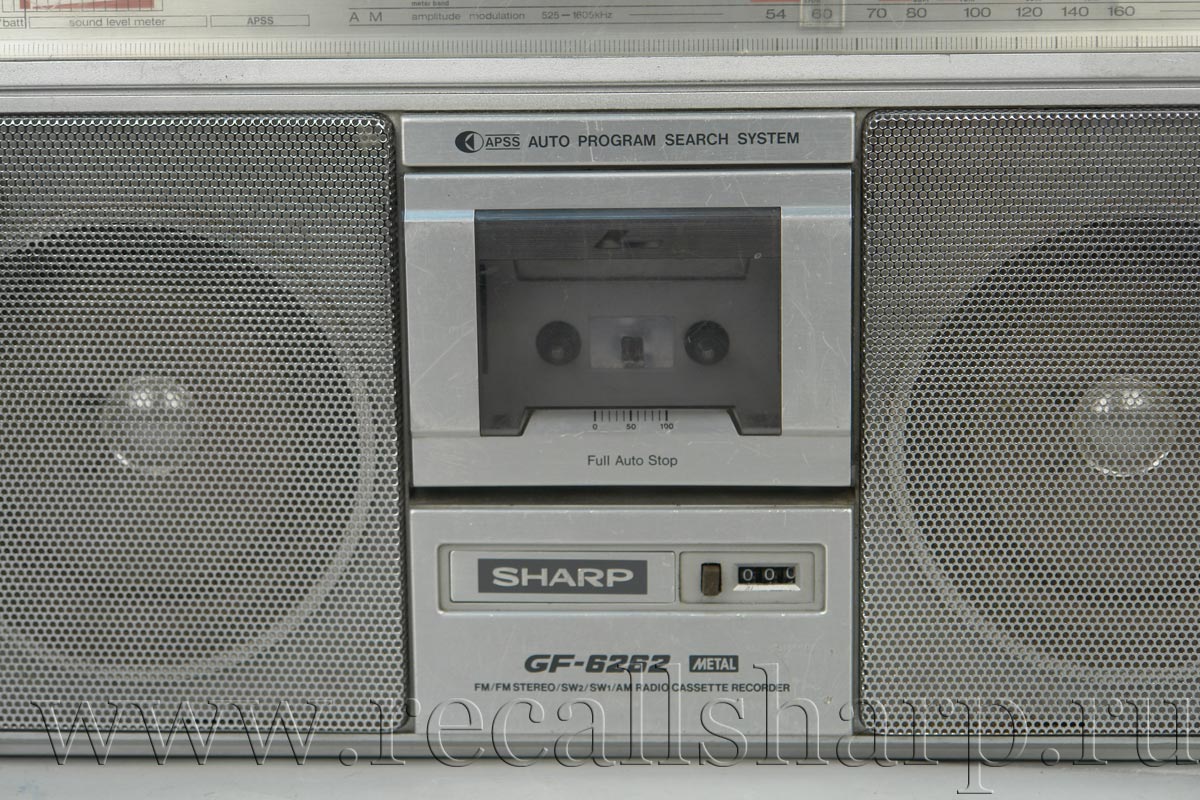

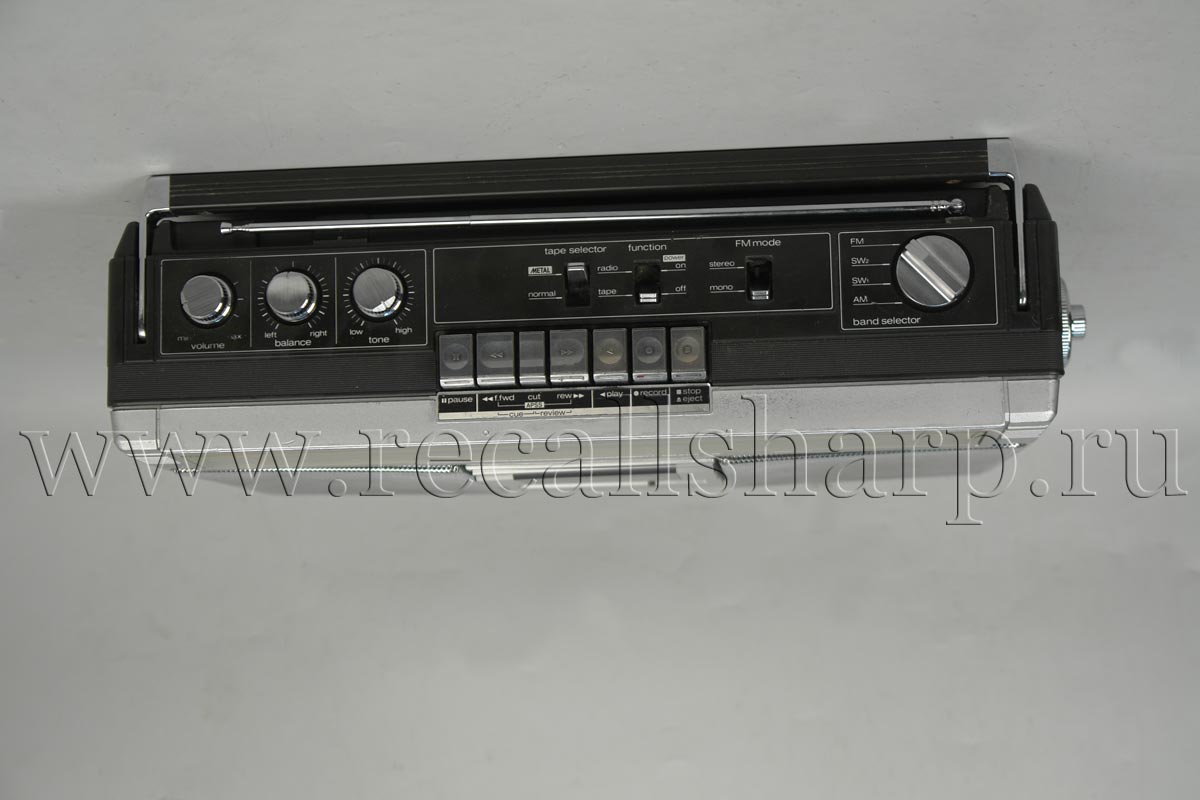

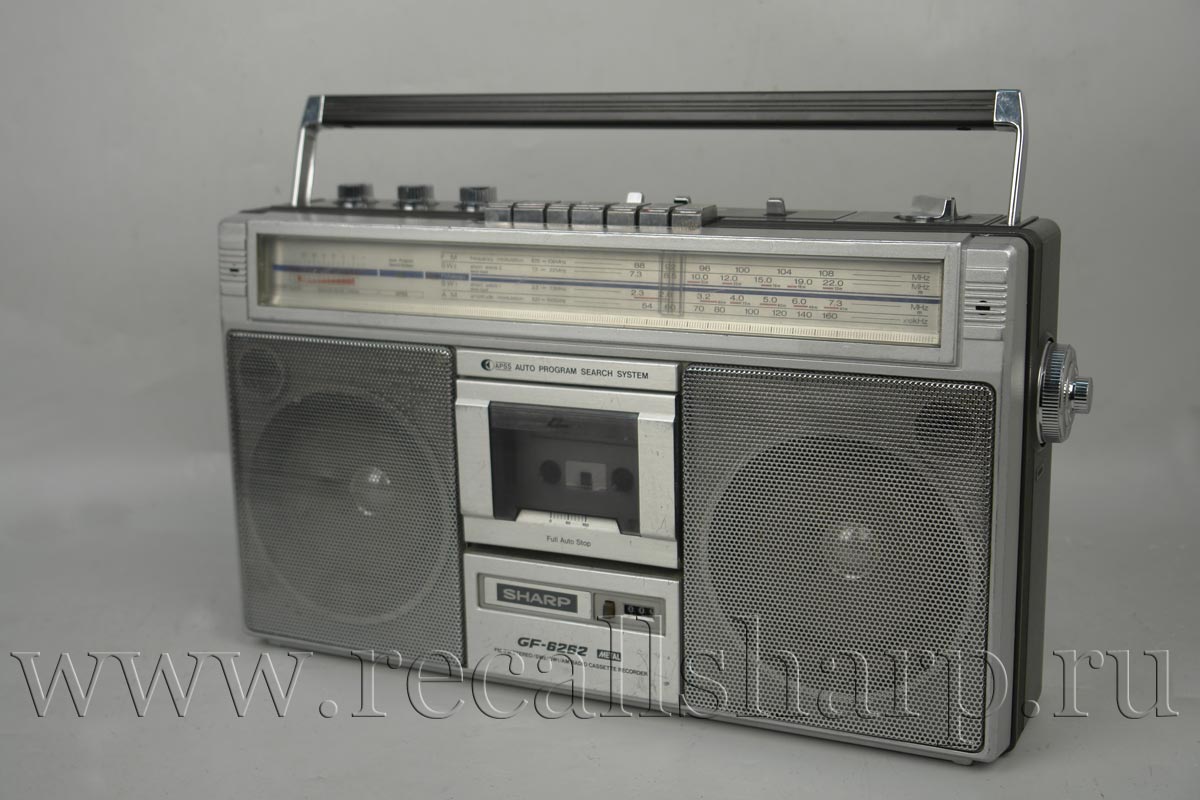

Sharp GF-6262 Z



: 1982



GENERAL
Sharp GF-6262

Power source: AC 110
120V/220 240V,

50/60Hz
DC 12V (Eight UM/SUM-1 batteries)
DC External 12V

Speakers: 12cm(Woofer) x 2
Horn Type(Tweeter) x 2
Output power: 2.5W minimum RMS per channel at 4Ohms
from 100Hz to 20kHz
with no more than 10% total harmonic distorsion
Semiconductors: 4-IC (Integrated circuit) + 1 Aux.IC
8-Transistors + 10 Aux.Transistors

20-Diodes
8-LED's
Dimensions:
Width: 450mm
Height: 258mm
Depth: 125mm
Weight: 5kg (Without batteries)

TAPE RECORDER SECTION
Tape: Philips type compact cassette tape
Frequency response: 50 ~ 13000Hz using METAL tape

S/N ratio: 50dB
Wow & flutter: 0.10% W.R.M.S.

Input impedance: External mic; 600 ohms

Mixing Mic; 600 ohms

Output impedance:

Headphones; 8 ohms - 25 ohms

External speakers; 3.2 ohms - 8ohms

RADIO

Frequency range: AM; 525 kHz - 1,605 kHz

SW1 ; 2.3 MHz - 7.3 MHz

SW2; 7.3 MHz-22 MHz

FM; 87.6 MHz - 108 MHz
