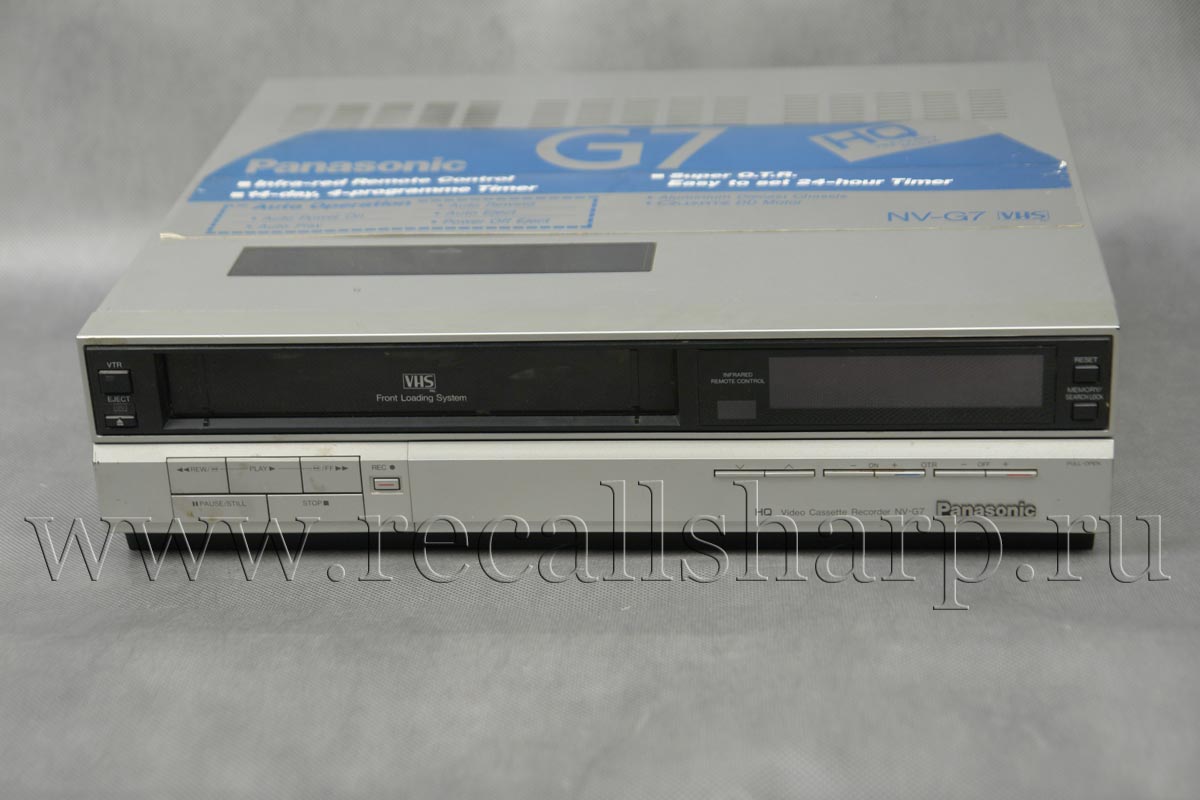

Panasonic NV-G7 EE



: 1986

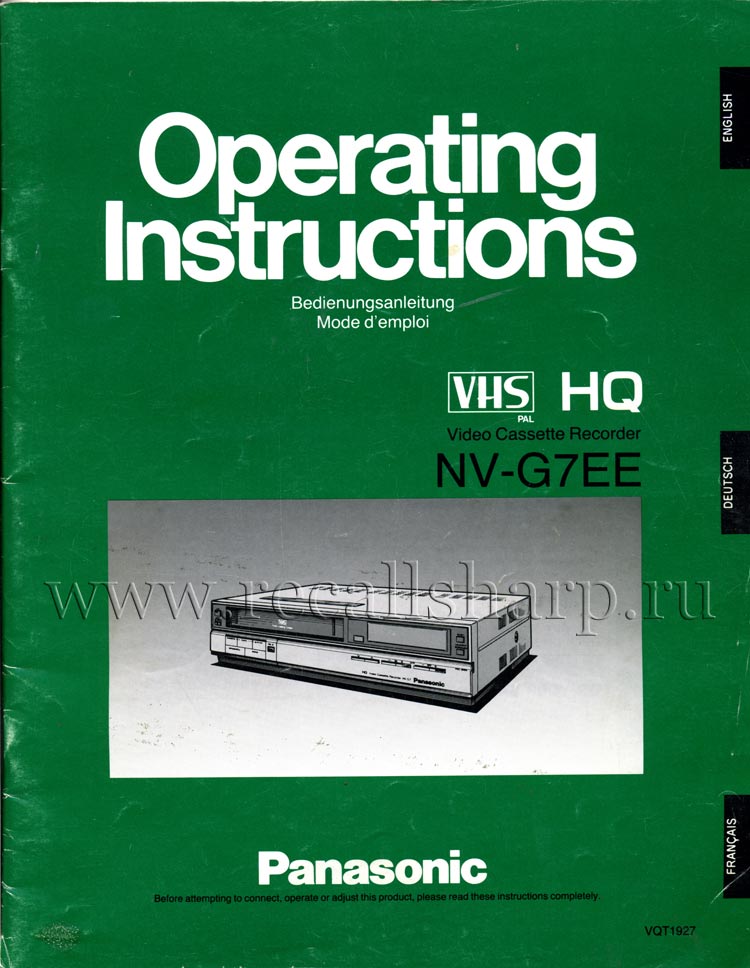

NV-G7EE
Power Source: 220 V AC 50-60 Hz
Power Consumption: Approx. 30 watts
Video Recording System: 2 rotary heads, helical scanning system
Tape Speed: 23.39 mm/sec.
Tape Format: VHS tape
Record/Playback Time: 240 min. with NV-E240
FF/REW Time: Less than 5.5 min. with NV-E180
VIDEO Television System: CCIR: 625 lines, 50 fields, PAL/SECAM B • G, SECAM OIRT colour signal
Modulation System: Luminance: FM azimuth recording

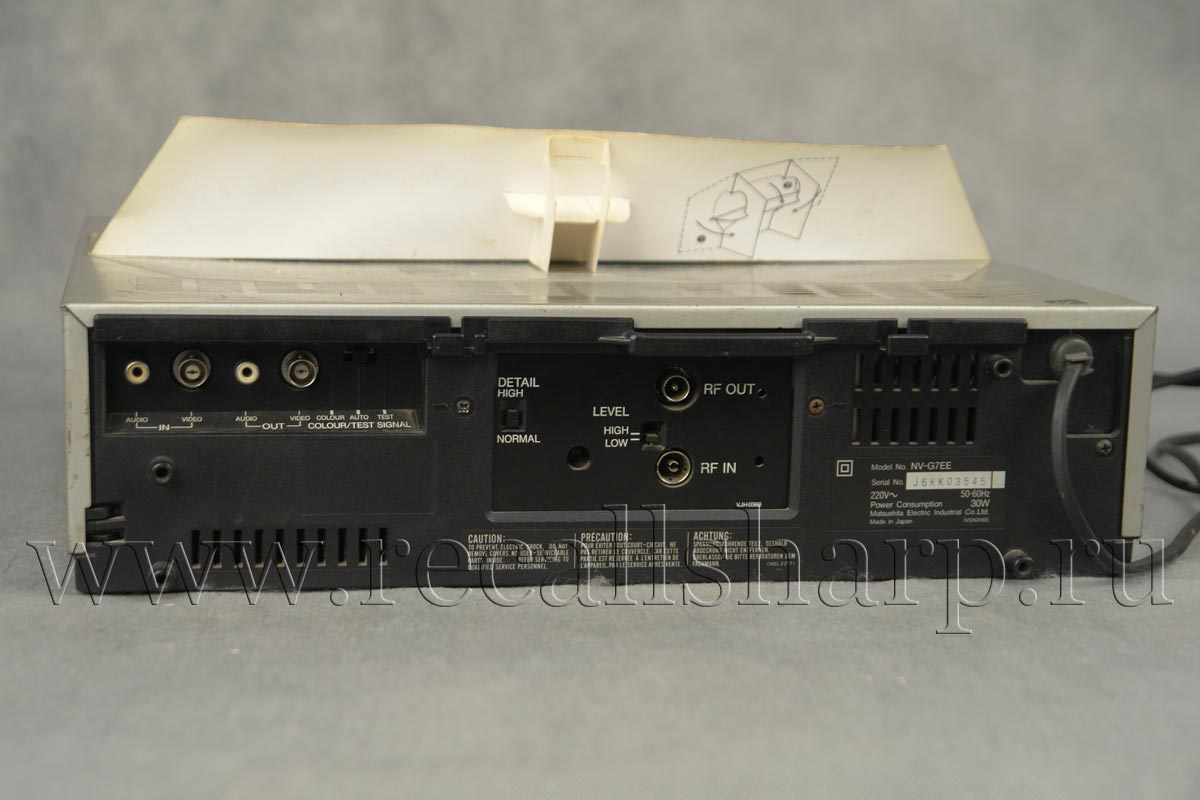

Colour signal: converted subcarrier phase shift recording Input Level: VIDEO IN (BNC); 1.0Vp-p, 75 ohm, unbalanced
Output Level: VIDEO OUT (BNC); 1.0Vp-p, 75 ohm, unbalanced
RF Modulated; UHF channel 36 (±4), 75 ohm, unbalanced
AUDIO
Input Level: AUDIO IN (RCA); -10dB, more than 50 kohm, unbalanced
Output Level: AUDIO OUT (RCA); -8dB, less than 1 kohm, unbalanced
Audio Track: 1 track monaural
Video Horizontal Resolution: Colour: more than 240 lines
Signal-to-Noise Ratio: Video; more than 43 dB
Audio; more than 43 dB
Audio Frequency Response: 80 Hz-10 kHz
Operating Temperature: 5°C-40°C
Operating Humidity: 35%-80%
Weight: 6.7 kg
Dimensions: 380 (W)x99 (H)x346.5 (D) mm
Standard Accessories: 1 pc. DIN-DIN coaxial cable
1 pc. Infra-red remote controller
Weight and dimensions shown are approximate. Specifications are subject to change without notice.
